Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

20 part groups · 2 illustrations

Illustrations

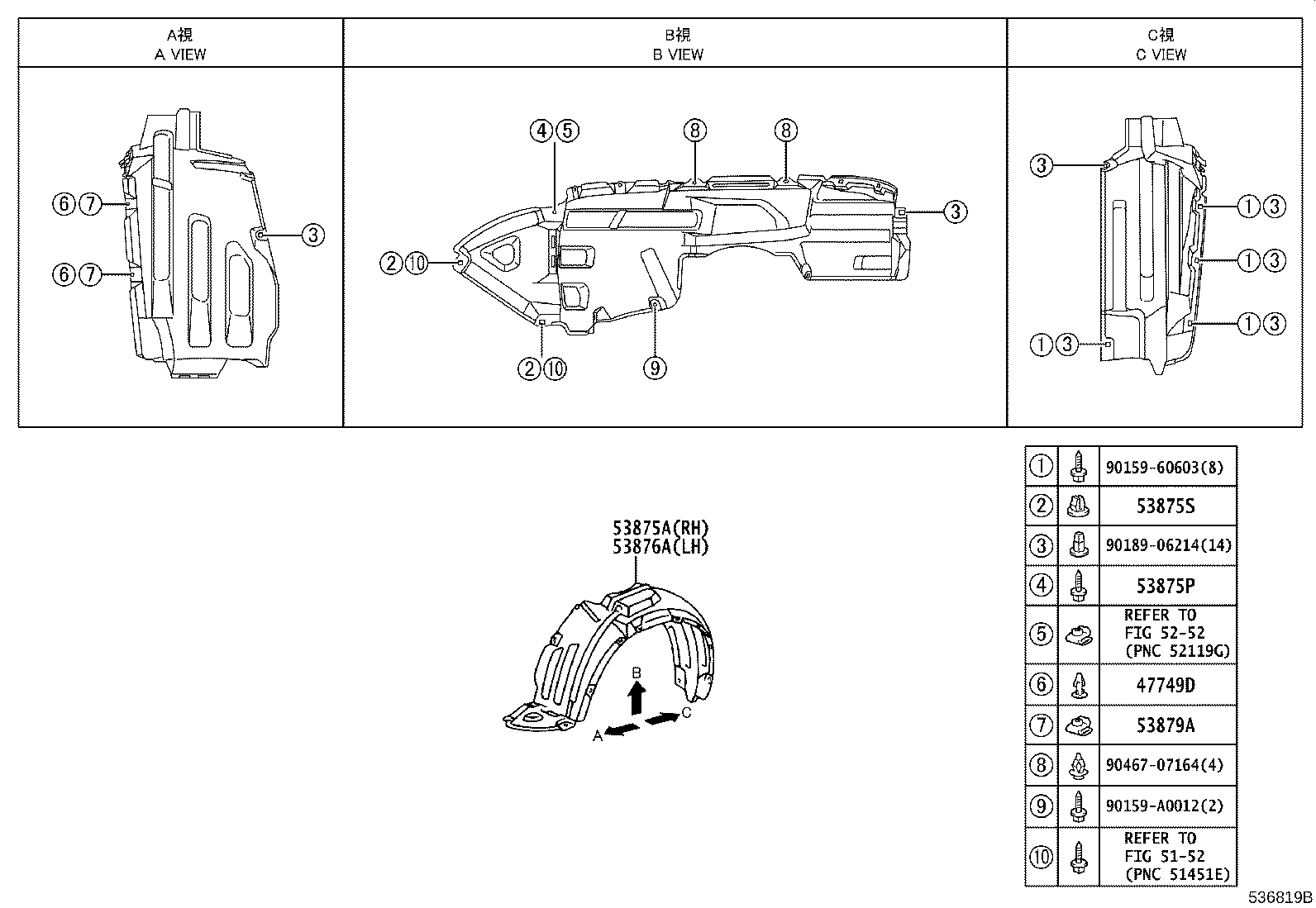

Figure 531438F 531438F 2003-01 → — Figure 536819B 536819B 2003-01 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53301 Hood Sub-assy
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53845A Brace, Front Wheel Opening Apron, RH
53846A Brace, Front Wheel Opening Apron, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53875S Grommet, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882H Seal, Front Fender Main, RH
53882K Seal, Front Fender
53883F Seal, Front Fender Main, LH
75621A Garnish, Front Fender, RH
75622A Garnish, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
