Toyota Sienna
2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States
Supported model
Data version 2010-07

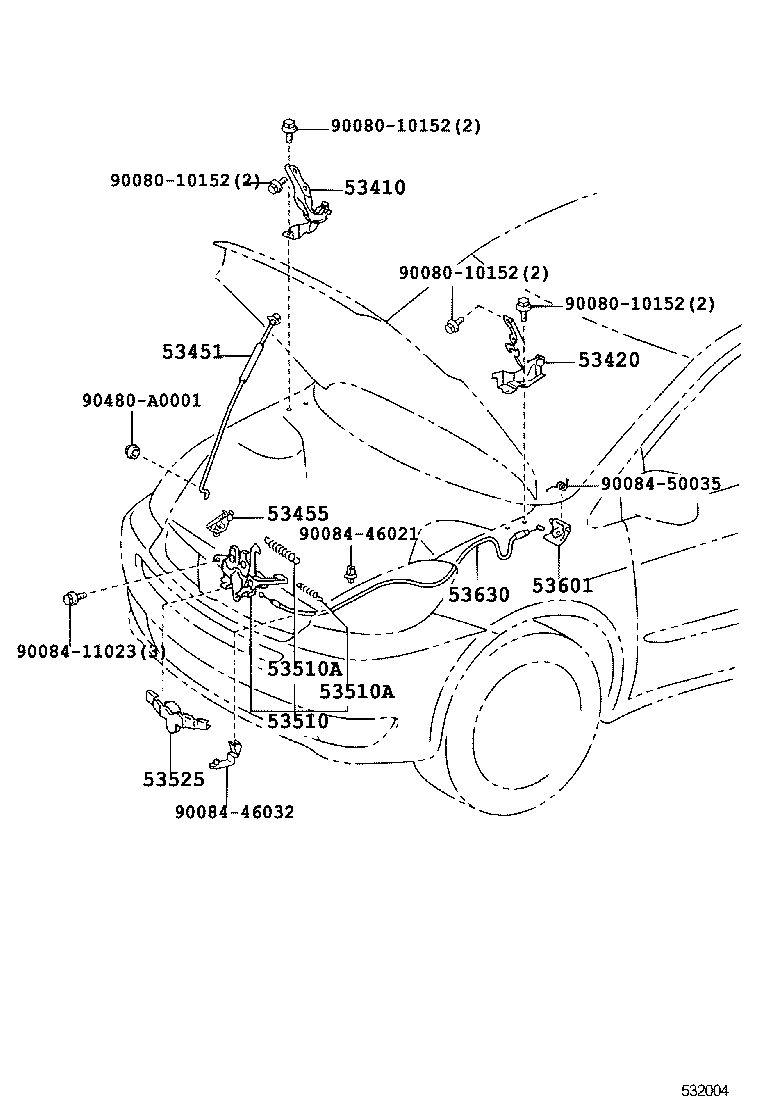

Hood Lock & Hinge
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53451 | Rod, Hood Support |
| 53455 | Clamp, Hood Support Rod |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53525 | Protector, Hood Lock Release Lever |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53630 | Cable Assy, Hood Lock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
