Toyota Sienna
2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States
Supported model
Data version 2010-07

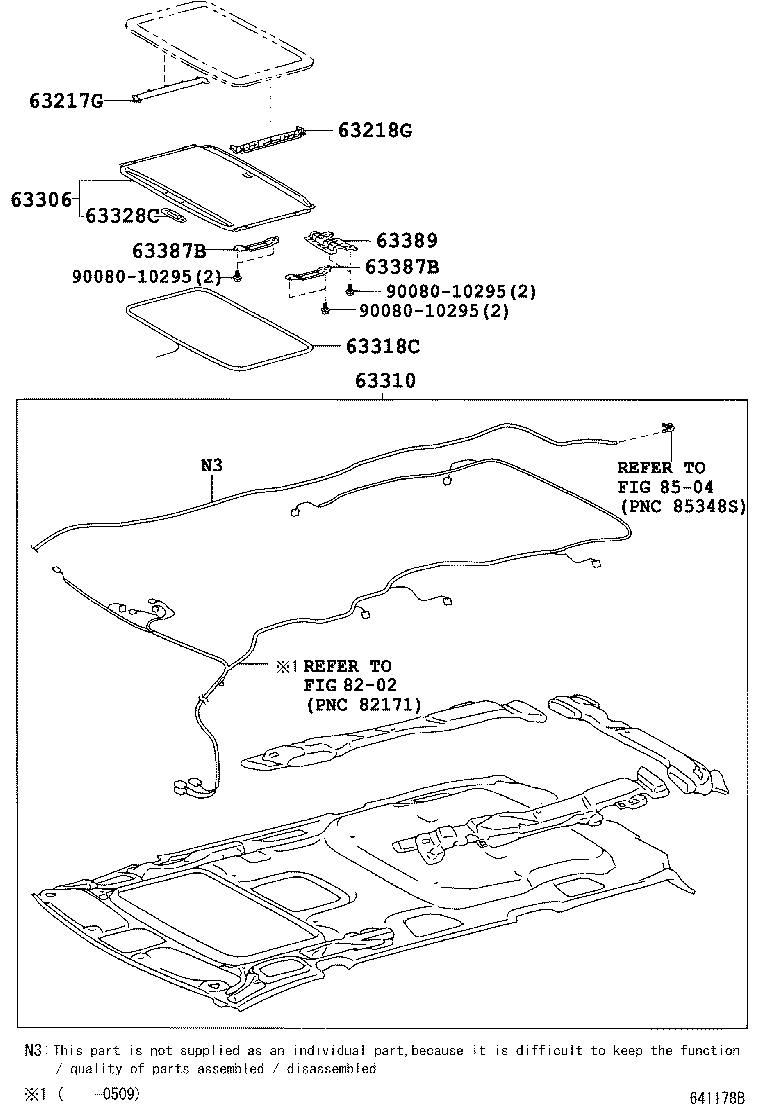

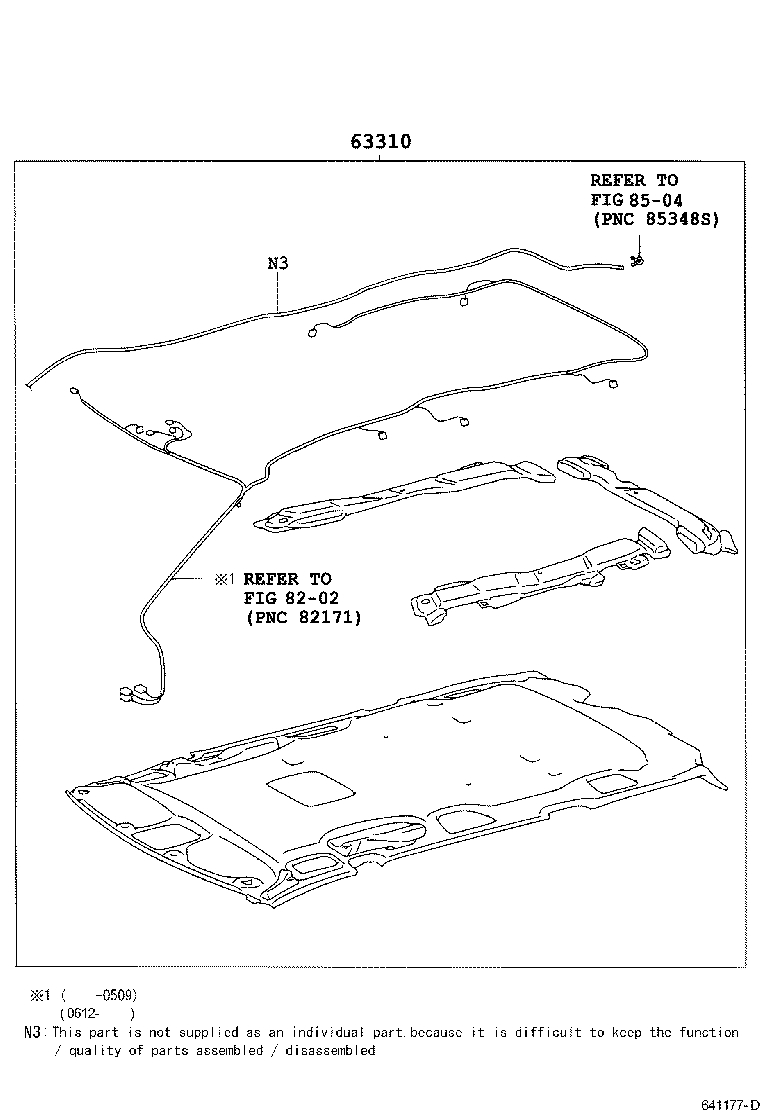

Roof Headlining & Silencer Pad
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63317A | Retainer, Roof Headlining |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63328C | Knob, Sunshade Trim |
| 63349A | Garnish, Roof Headlining, Rear |
| 63387B | Bracket, Roof Headlining Retainer |
| 63389 | Retainer, Roof Headlining Trim, Center |
| 63412B | Retainer, Roof Console |
| 63650A | Box Assy, Roof Console |
| 63651C | Box, Roof Console |
| 63656E | Cover, Roof Protector, Rear |
| 63662A | Cover, Roof Lining Trim, NO.2 |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66415A | Spacer, Side Rail, Rear NO.2 RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 66425A | Spacer, Side Rail, Rear NO.2 LH |
| 74614B | Plate, Assist Grip Lock |
| 74622B | Cover, Rear Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
