Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Lock & Handle

31 part groups · 2 illustrations

Illustrations

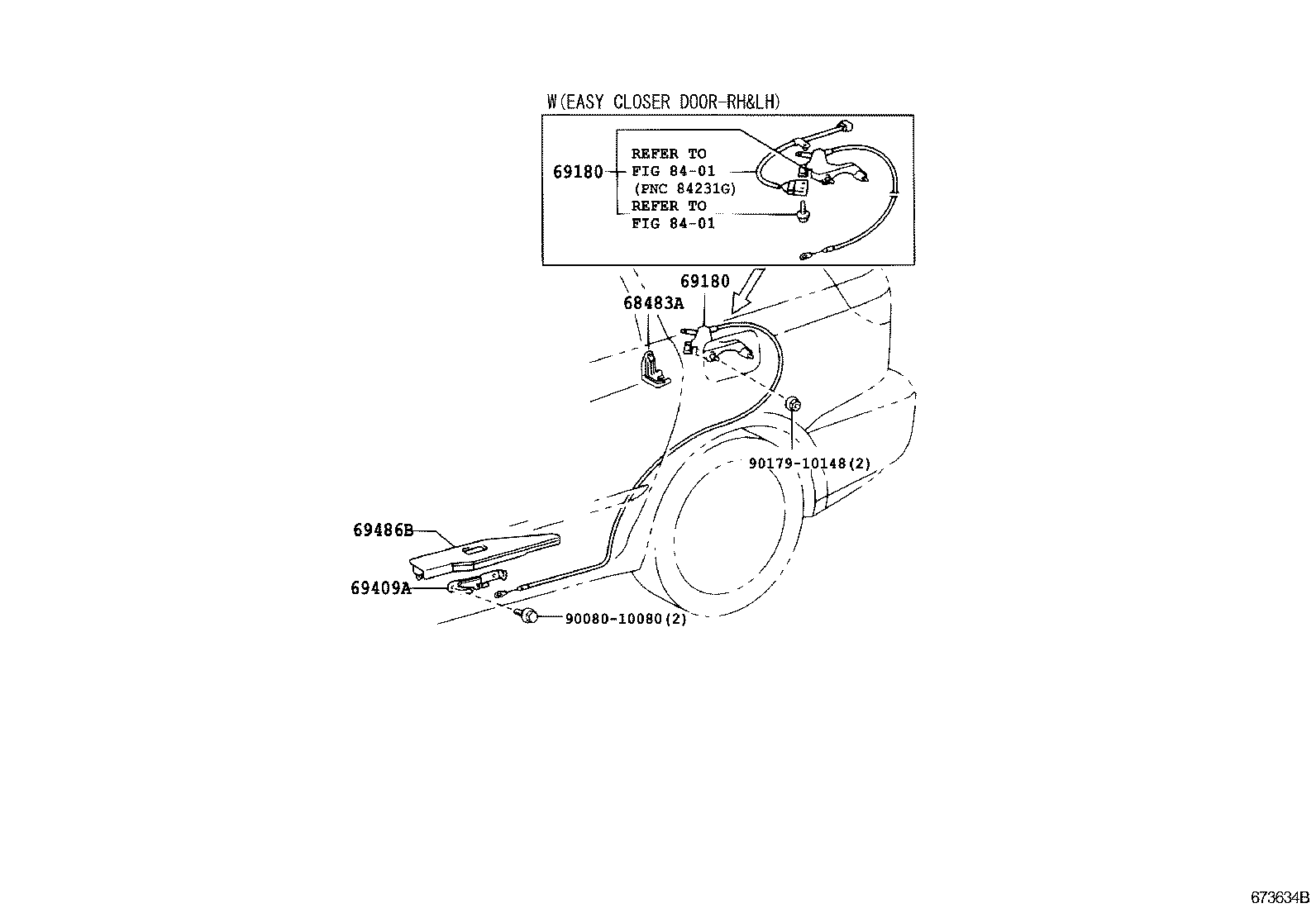

Figure 673038M 673038M 2003-01 → — Figure 673634B 673634B 2003-01 → —

Part groups

PNCDescription
68483A Guard, Slide Door Arm
69050 Lock Assy, Slide Door Full Open Stop, RH
69060 Lock Assy, Slide Door Full Open Stop, LH
69180 Control Assy, Slide Door Half Open Stopper
69203A Frame Sub-assy, Rear Door Outside Handle, RH
69204A Frame Sub-assy, Rear Door Outside Handle, LH
69205A Handle Sub-assy, Rear Door Inside, RH
69206C Handle Sub-assy, Rear Door Inside, LH
69227J Cover, Rear Door Outside Handle, RH
69227L Cover, Rear Door Outside Handle, LH
69230 Handle Assy, Rear Door Outside, RH
69240 Handle Assy, Rear Door Outside, LH
69241G Pad, Rear Door Outside Handle, Front
69242G Pad, Rear Door Outside Handle, Rear
69293J Snap, Rear Door Outside Handle, LH
69293K Snap, Rear Door Outside Handle, RH
69296B Screw, Door Inside Handle
69330E Lock Assy, Slide Door, RH
69340F Lock Assy, Slide Door, LH
69370B Lock Assy, Slide Door, Front RH
69380B Lock Assy, Slide Door, Front LH
69409A Stopper Sub-assy, Slide Door Half Open
69410B Plate Assy, Rear Door Lock Striker
69440A Plate Assy, Slide Door Front Lock Striker
69486B Cover, Slide Door Half Open Stopper
69603B Control Sub-assy, Slide Door Lock Remote, RH
69604C Control Sub-assy, Slide Door Lock Remote, LH
69631 Control, Slide Door Attachment, RH
69641 Control, Slide Door Attachment, LH
69749B Clamp, Rear Door Lock Link
85620B Motor Assy, Slide Door Lock Release
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
