Toyota Sienna
2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States
Supported model
Data version 2010-07

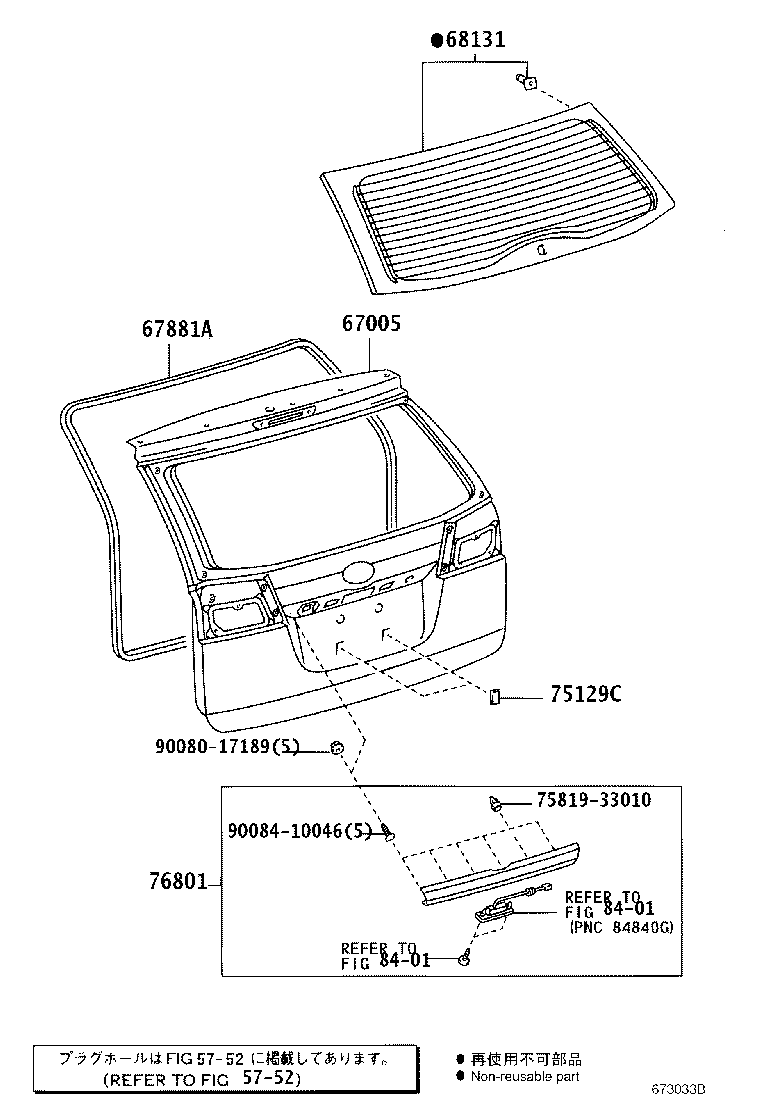

Back Door Panel & Glass
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67005 | Panel Sub-assy, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67769A | Plate, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67961 | Strap, Back Door Pull |
| 67963A | Cover, Back Door Strap |
| 68131 | Glass, Back Door |
| 75129C | Cushion, Rear Licence Plate |
| 76801 | Garnish Sub-assy, Back Door, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
