Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

27 part groups · 3 illustrations

Illustrations

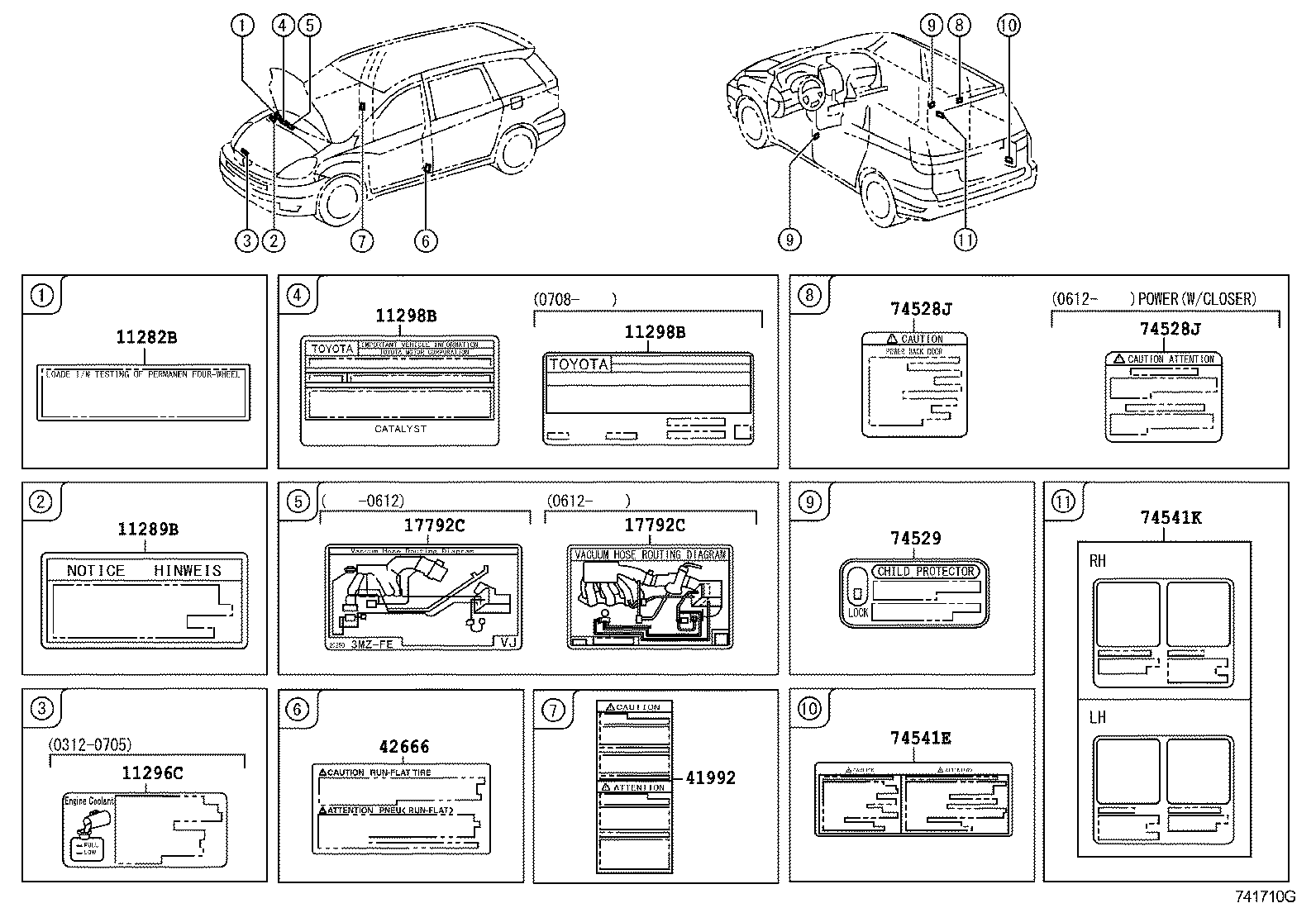

Figure 746140A 746140A 2003-01 → — Figure 741710G 741710G 2003-01 → — Figure 741711E 741711E 2003-01 → —

Part groups

PNCDescription
11282B Label, Loaded Testing Caution
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
17792C Label, Engine Vacuum Hose Information
41992 Label, Differential Notice
42666 Label, Snow Tire Caution
74515A Plate, Theft Warning
74528H Label, Power Slide Door Caution
74528J Label, Power Back Door Caution
74529 Plate, Child Proof OR Child Protector Lock Caution
74541E Plate, Compact Spare Tire Caution
74541H Plate, Body Caution
74541K Label, Slide Door Glass Caution
74541L Label, Bottle Holder Information
74544D Plate, Tire Carrier Caution
74544E Label, Rear NO.2 Seat Information
74553A Plate, Front Seat Caution
74571A Film, Label Cover
74596A Label, Side Airbag Caution
74597 Label, Driver & Passenger Airbag Caution
74751 Label, Tire Pressure Information
85254 Label, Rear Wiper Information
86995E Label, Caution
87529B Label, A/C Filter Information
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
