Toyota Sienna
2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States
Supported model
Data version 2010-07

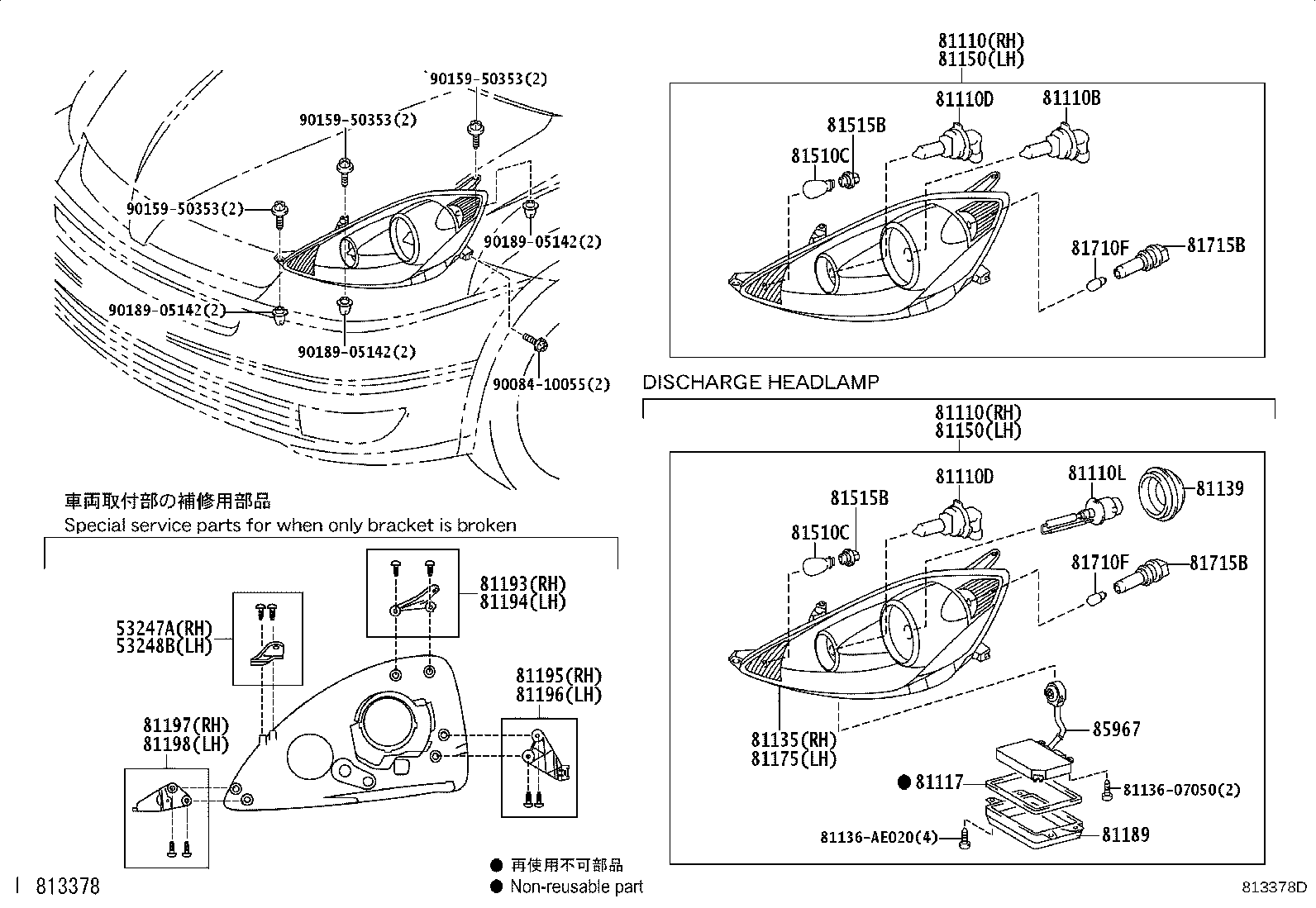

Headlamp
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53247A | Bracket, Headlamp Mounting, Inner RH |
| 53248B | Bracket, Headlamp Mounting, Inner LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81117 | Packing, Headlamp Housing |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81189 | Cover, Headlamp |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195 | Screw, Headlamp |
| 81196 | Retainer, Headlamp |
| 81197 | Bracket, Headlamp, Lower RH |
| 81198 | Bracket, Headlamp, Lwr LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 81710F | Bulb, Front Side Maker Lamp |
| 81715B | Socket & Wire, Front Side Marker Lamp |
| 85967 | Computer, Light Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
