Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

49 part groups · 14 illustrations

Illustrations

Figure 823343E 823343E 2003-01 → 2005-09 Figure 824476C 824476C 2005-09 → — Figure 823344D 823344D 2003-01 → 2006-12 Figure 825288D 825288D 2006-12 → — Figure 823345C 823345C 2003-01 → 2005-09 Figure 824477F 824477F 2005-09 → — Figure 823346A 823346A 2003-01 → — Figure 823347D 823347D 2003-01 → 2005-09 Figure 824478C 824478C 2005-09 → — Figure 823348A 823348A 2003-01 → 2004-09 Figure 824087B 824087B 2004-09 → — Figure 823350B 823350B 2003-01 → — Figure 823349G 823349G 2003-01 → — Figure 823362D 823362D 2003-01 → —

Part groups

PNCDescription
46431 Bolt, Wire

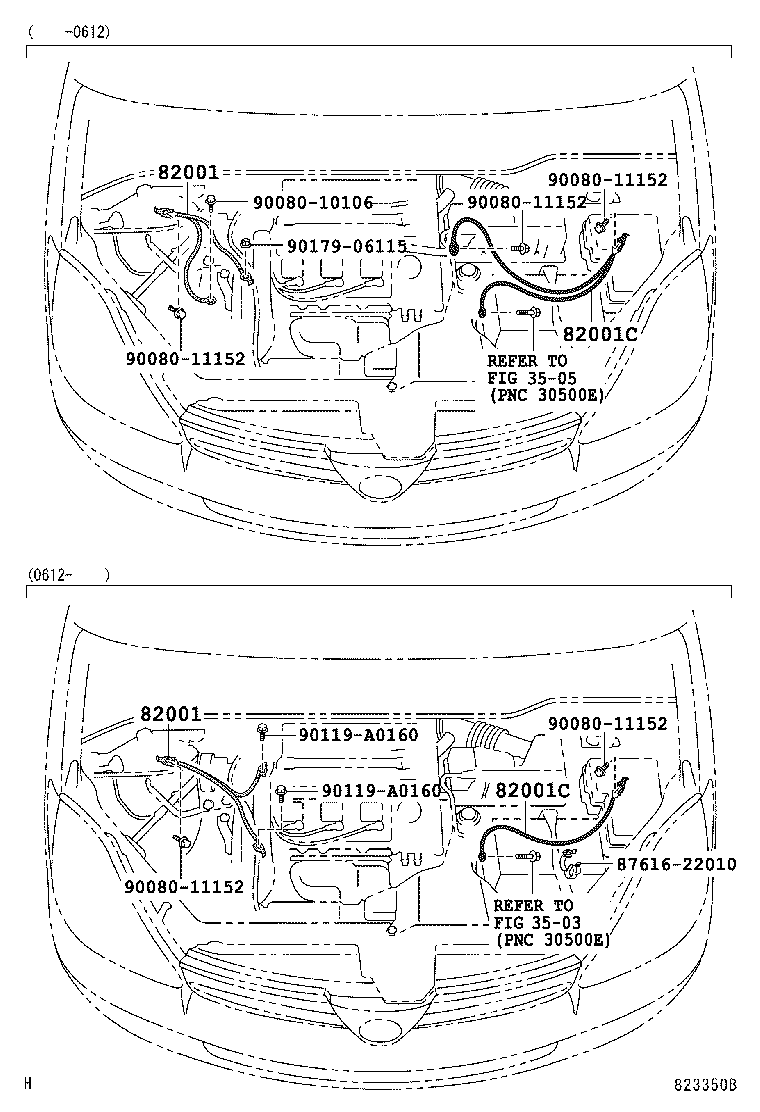

82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2

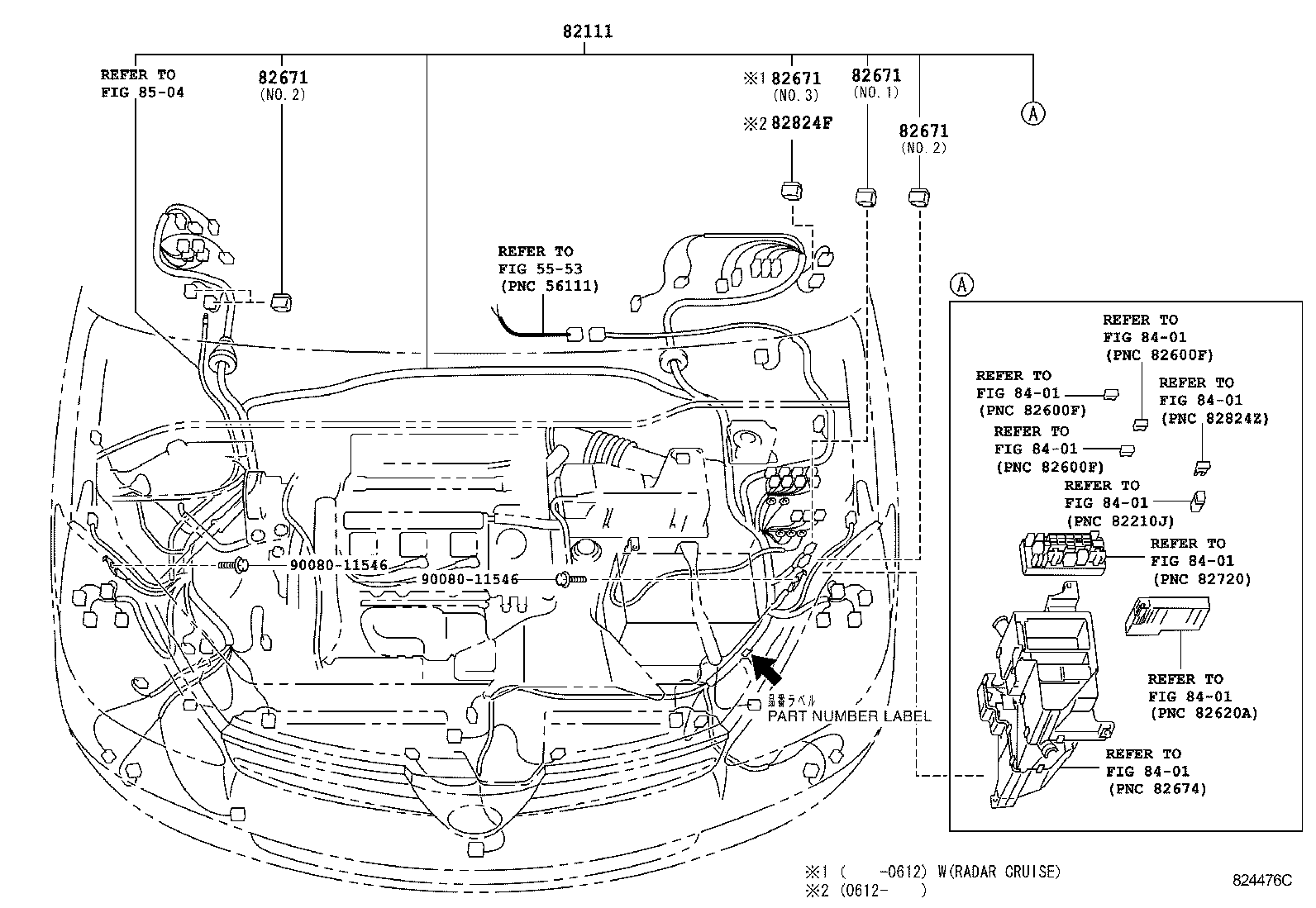

82111 Wire, Engine Room Main

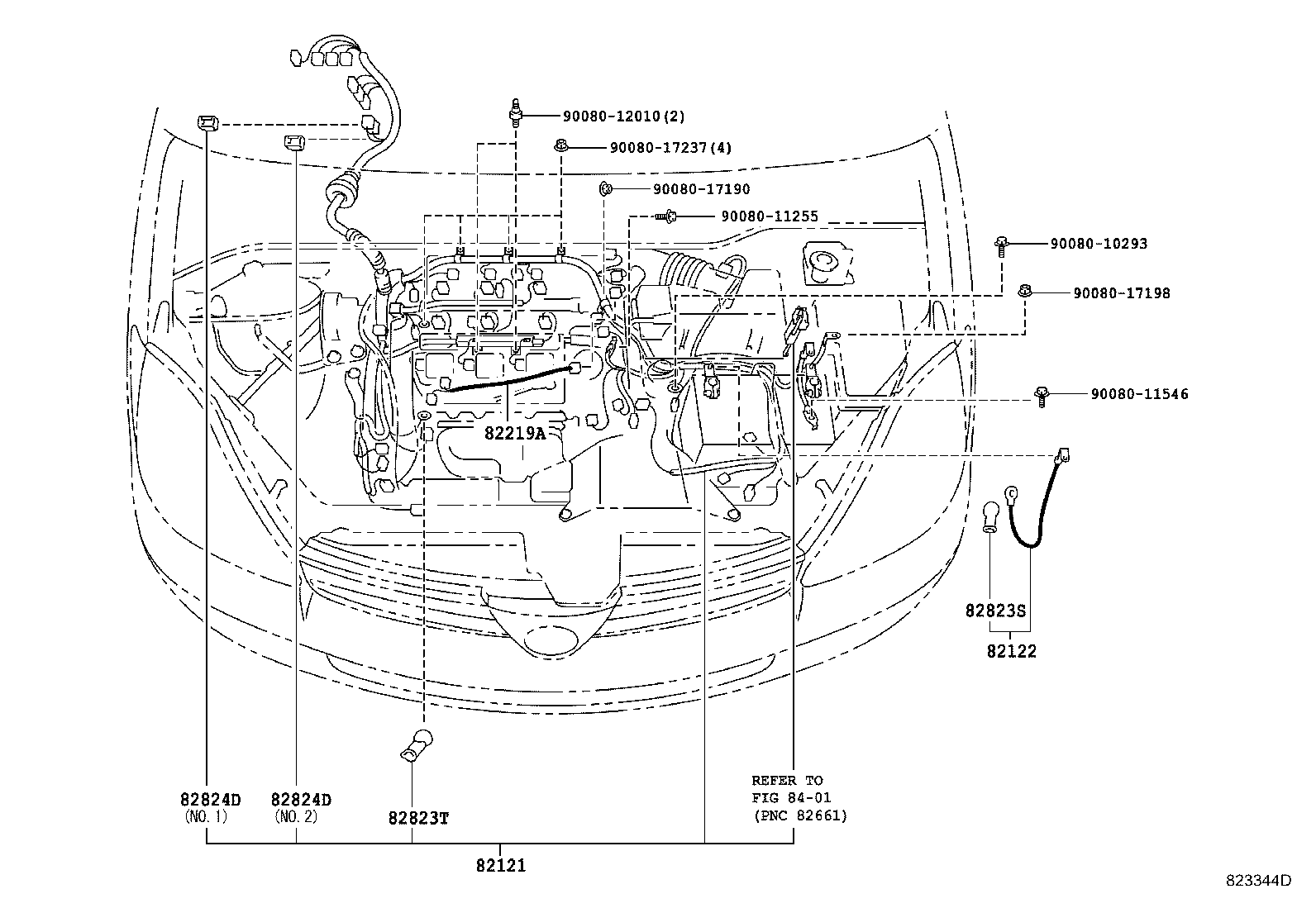

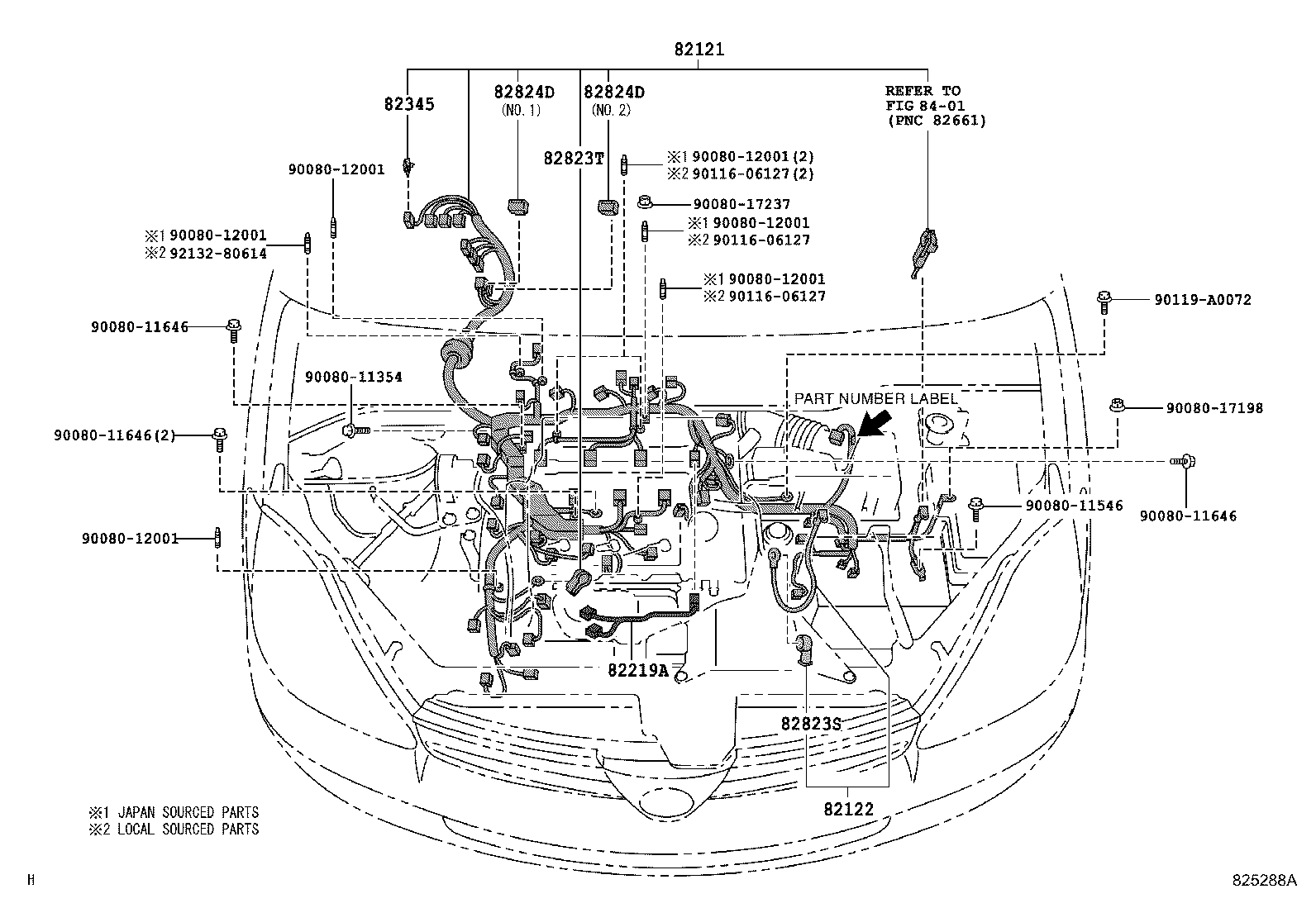

82121 Wire, Engine
82122 Wire, Engine, NO.2

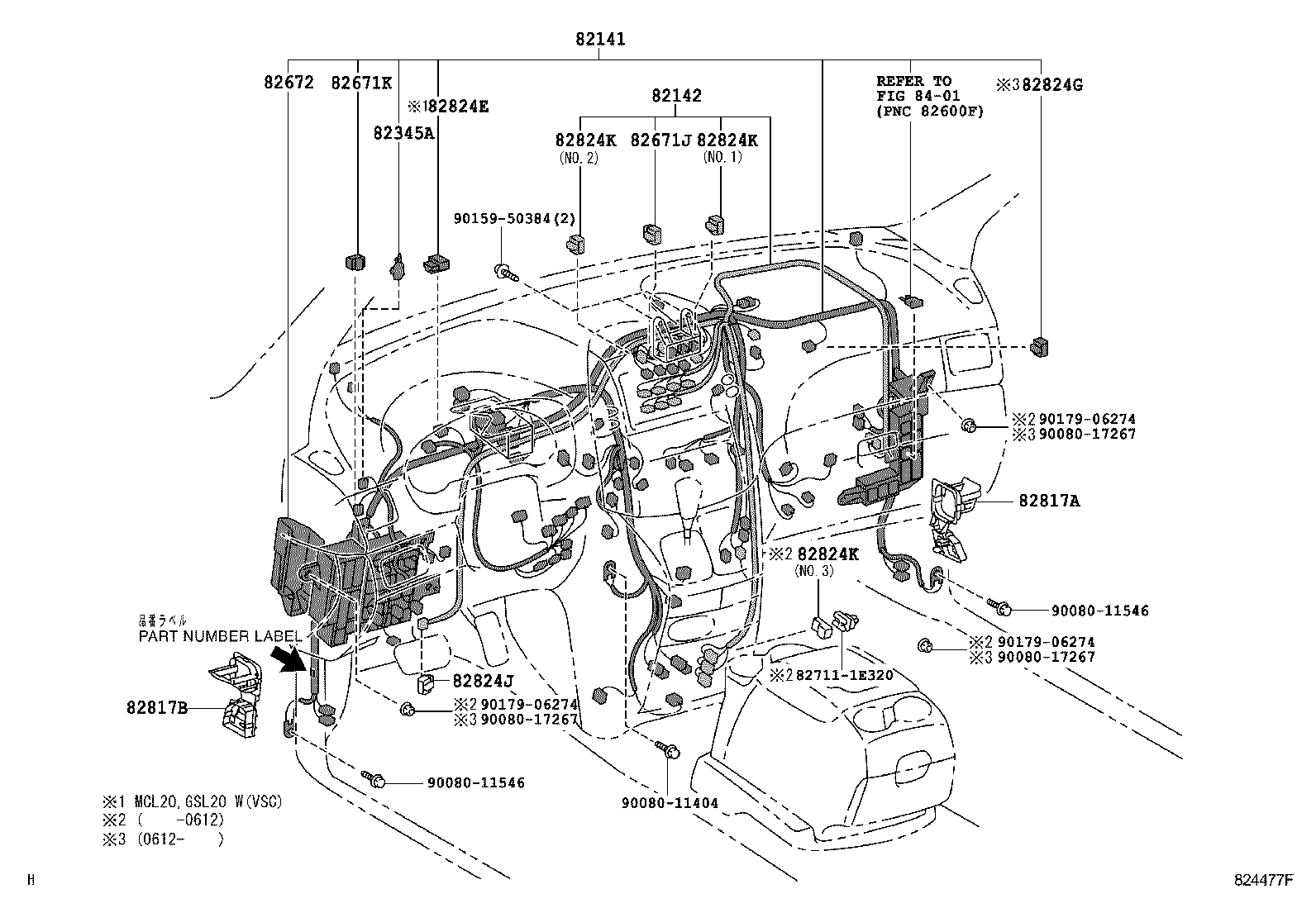

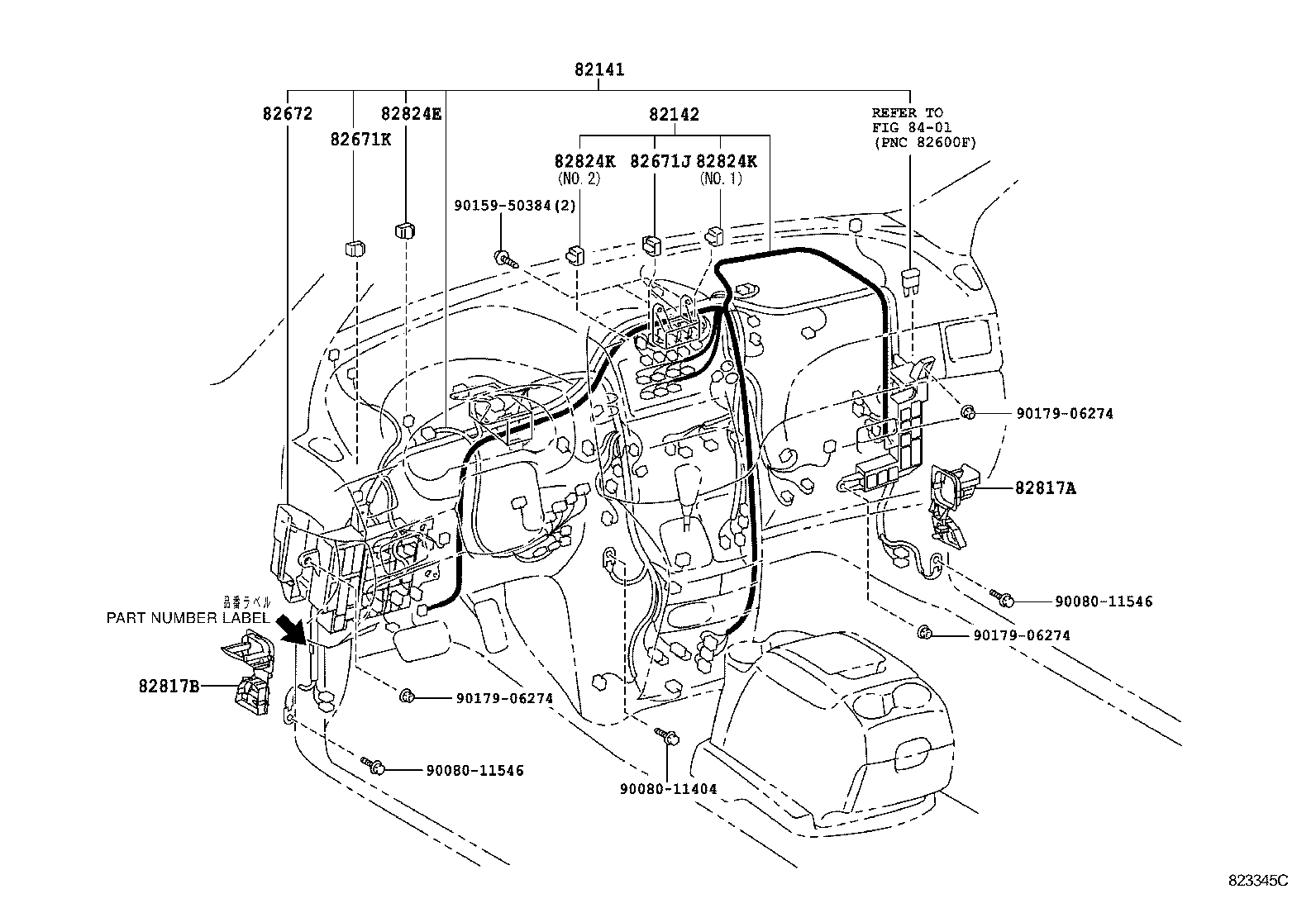

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

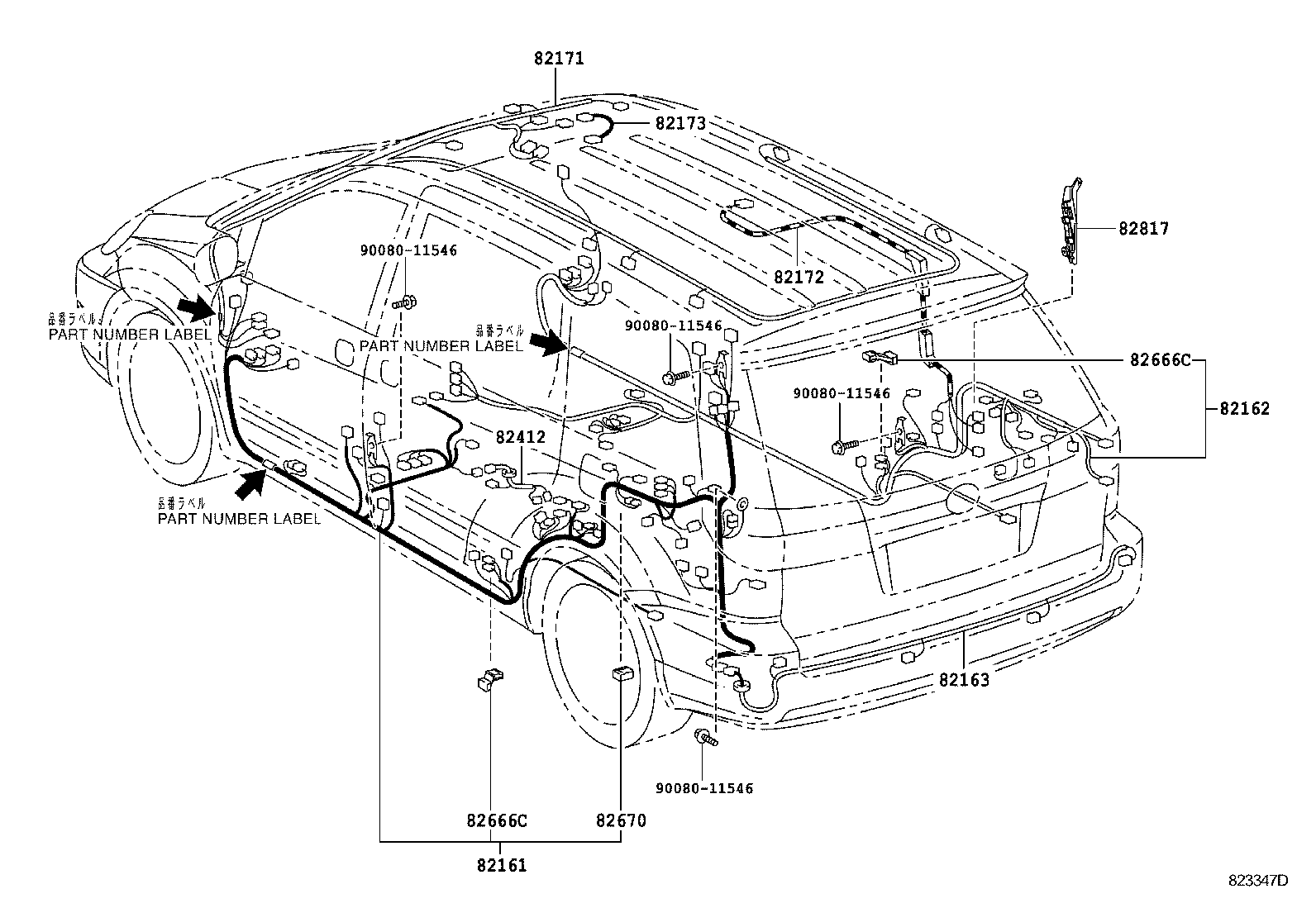

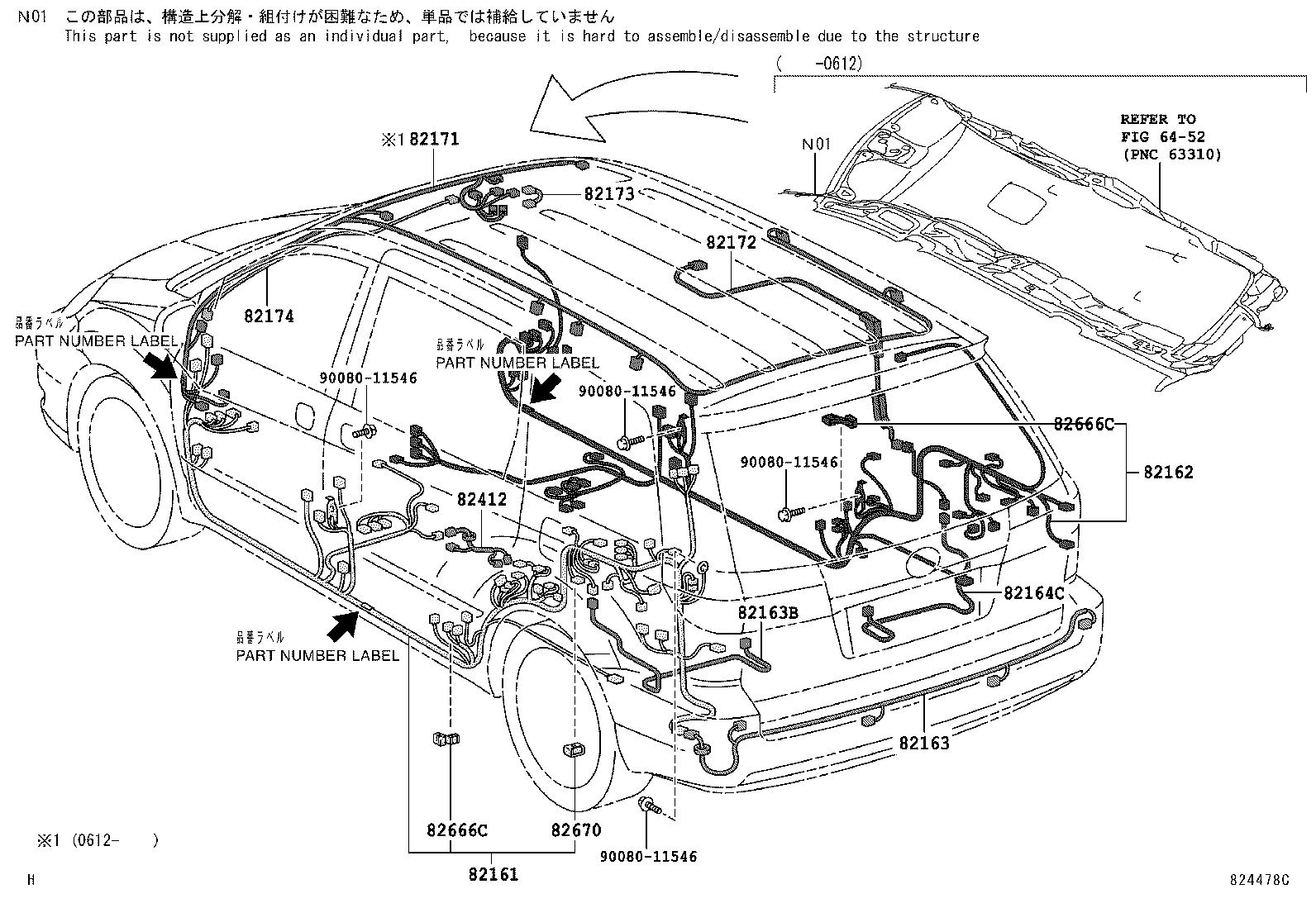

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82164C Wire, Floor, NO.4

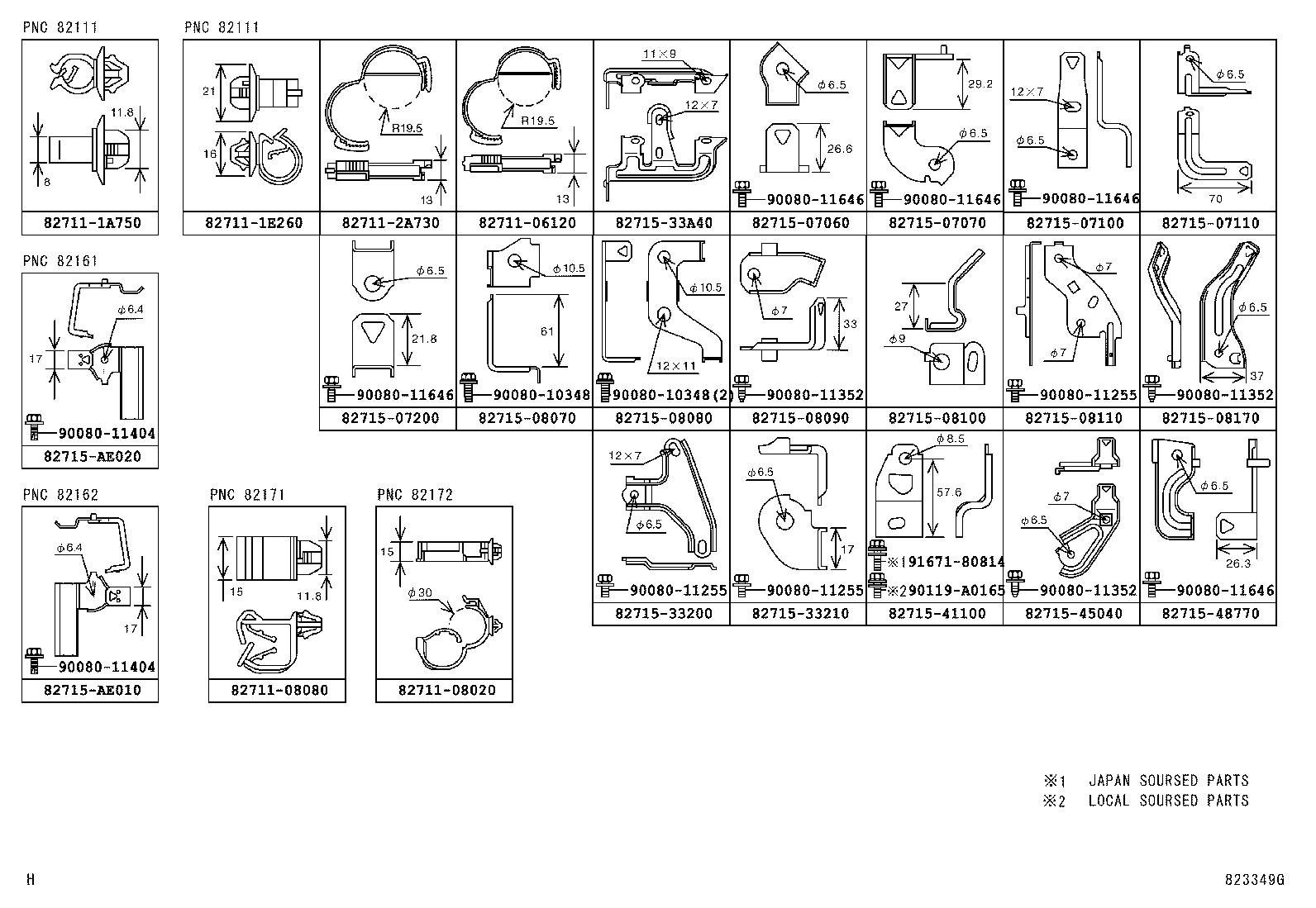

82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4

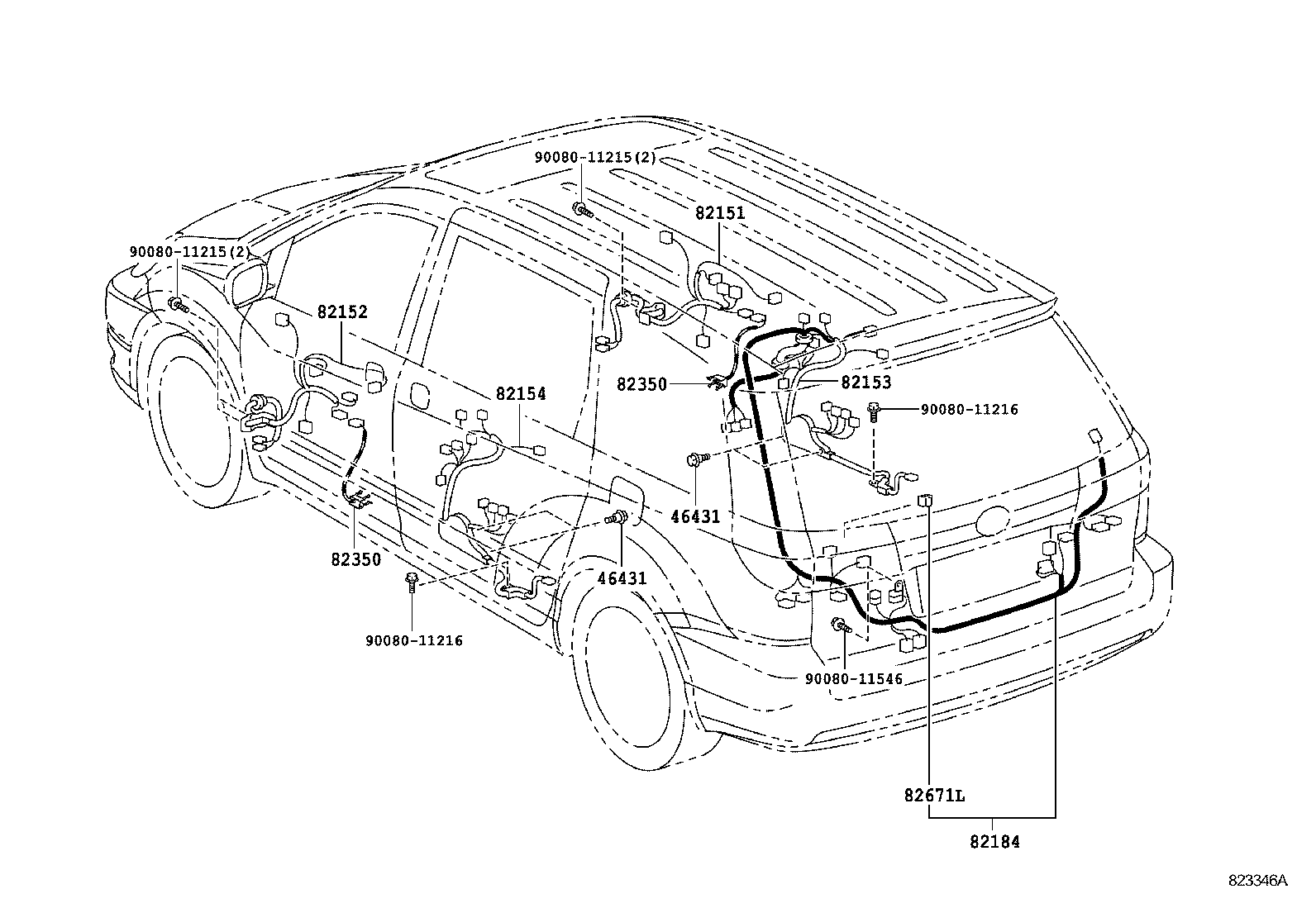

82184 Wire, Back Door, NO.1

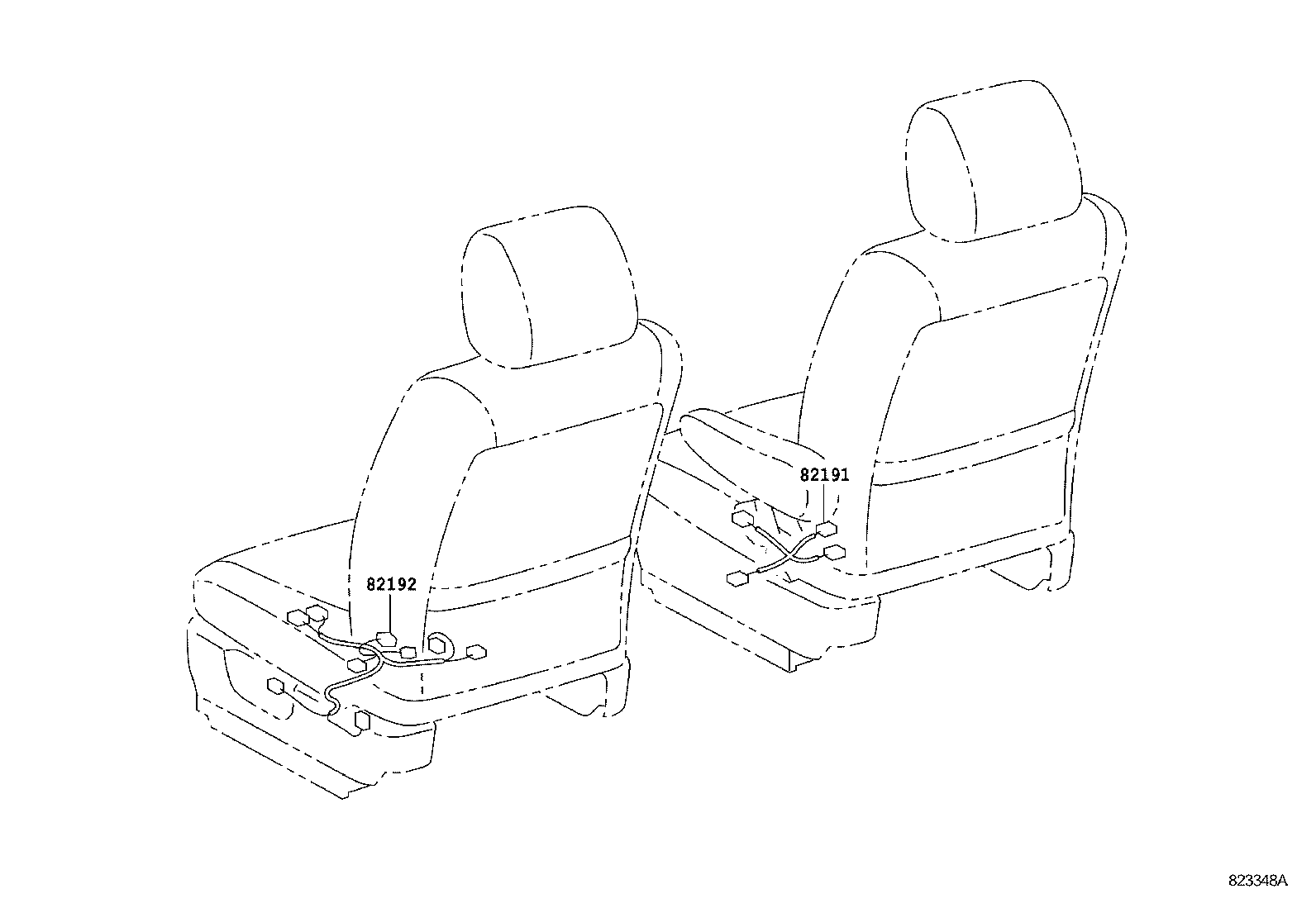

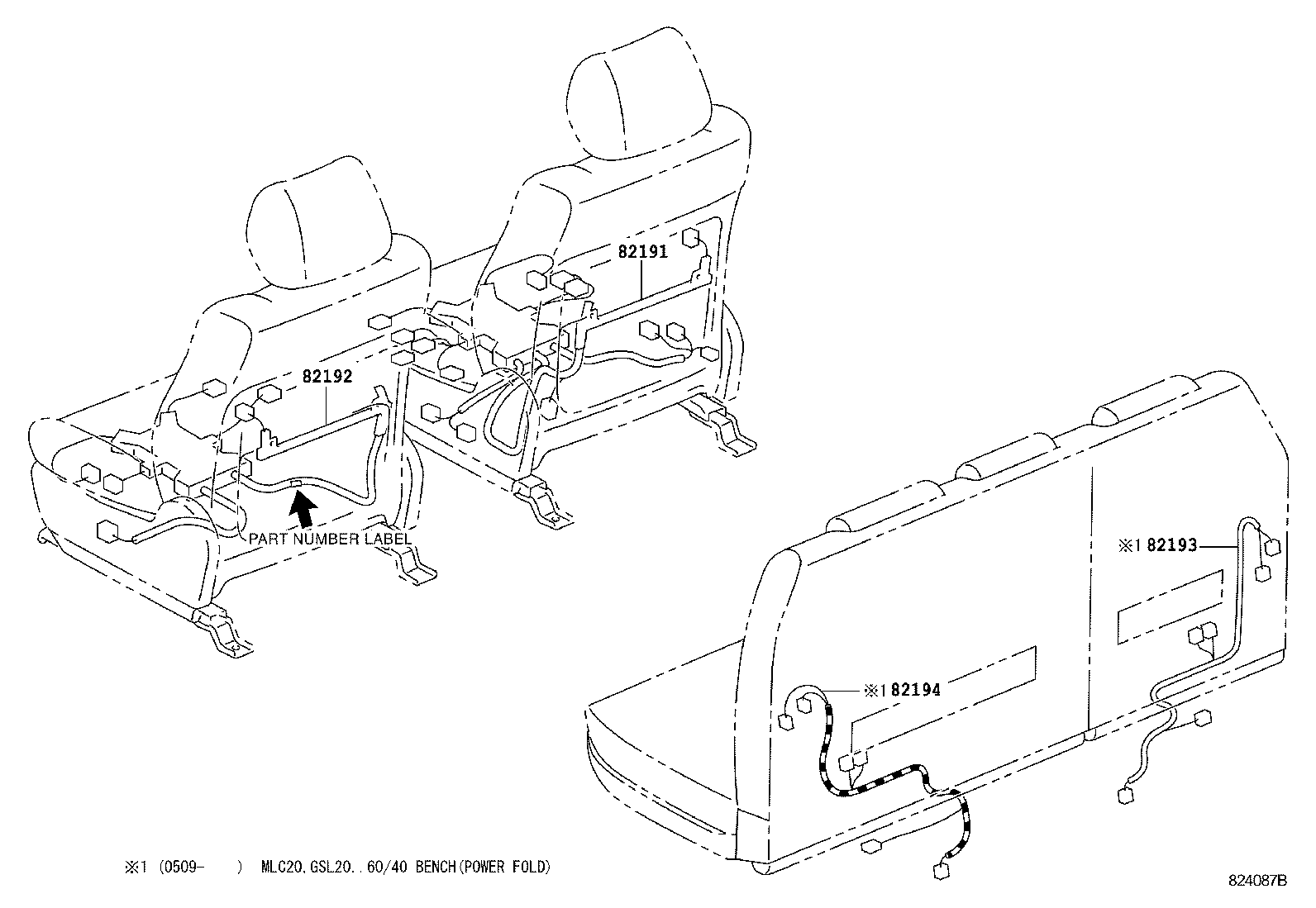

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82219A Wire, Sensor
82345 Diode
82345A Diode
82350 Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
82412 Wire, Fuel Gage
82666C Holder, Connector NO.4
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82671J Block, Junction, NO.2
82671K Block, Junction, NO.3
82671L Block, Junction, NO.4
82672 Cover, Junktion Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

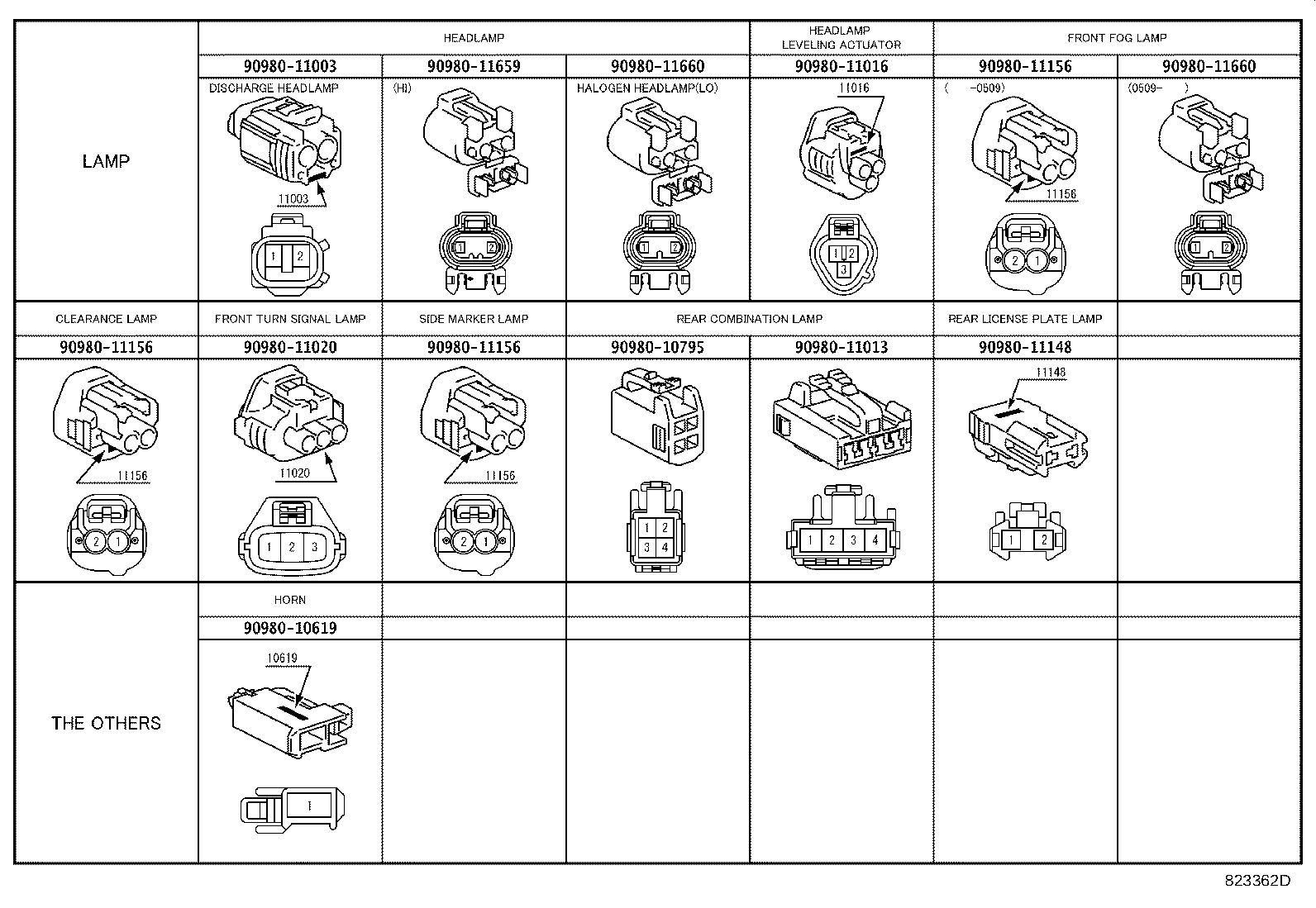

82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
