Toyota Sienna
2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States
Supported model
Data version 2010-07

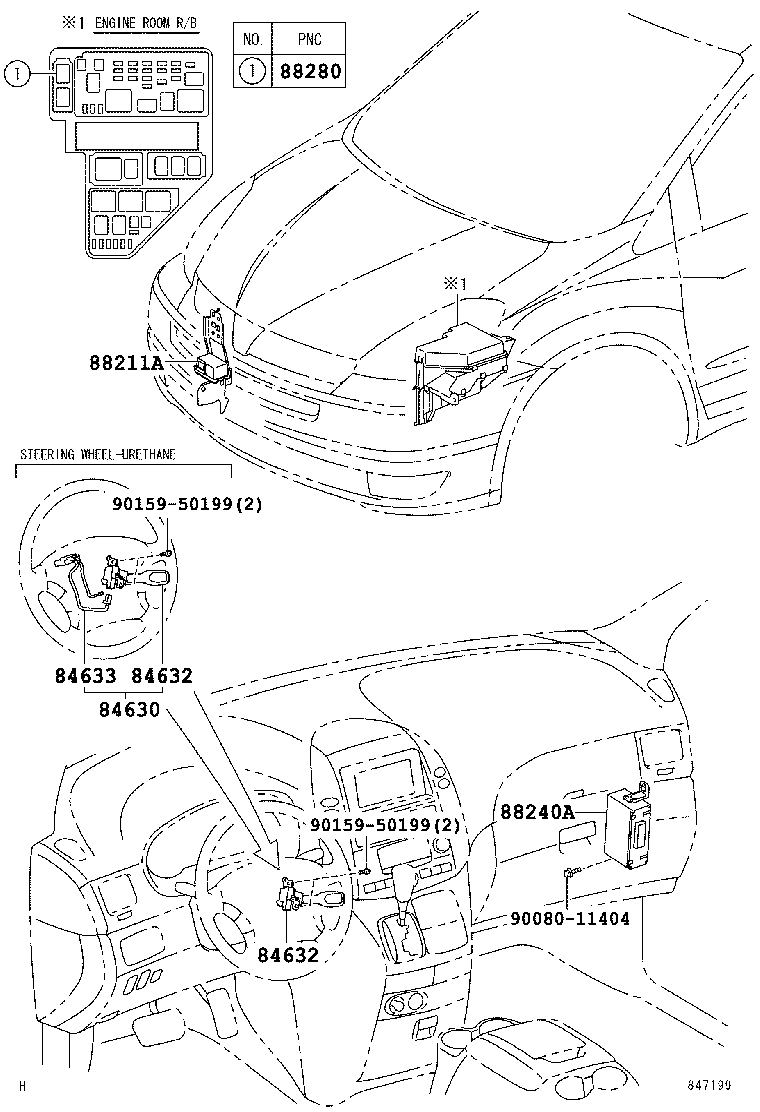

Cruise Control (AUTO DRIVE)
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84630 | Switch Assy, Cruise Control Main |
| 84632 | Switch, Cruise Control Main |
| 84633 | Wire, Cruise Control Switch |
| 88211A | Sensor, Laser Radar |
| 88240A | Computer Assy, Distance Control |
| 88280 | Relay Assy, Cruise Control(AUTO DRIVE), B |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
