Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 6 illustrations

Illustrations

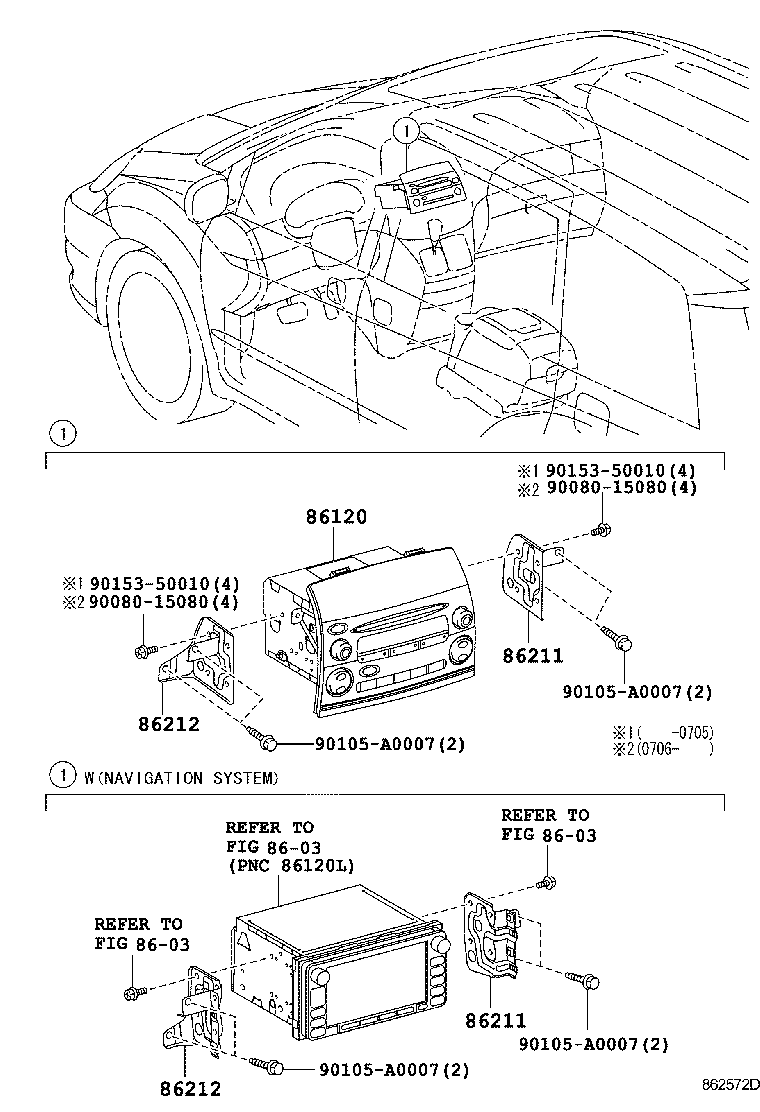

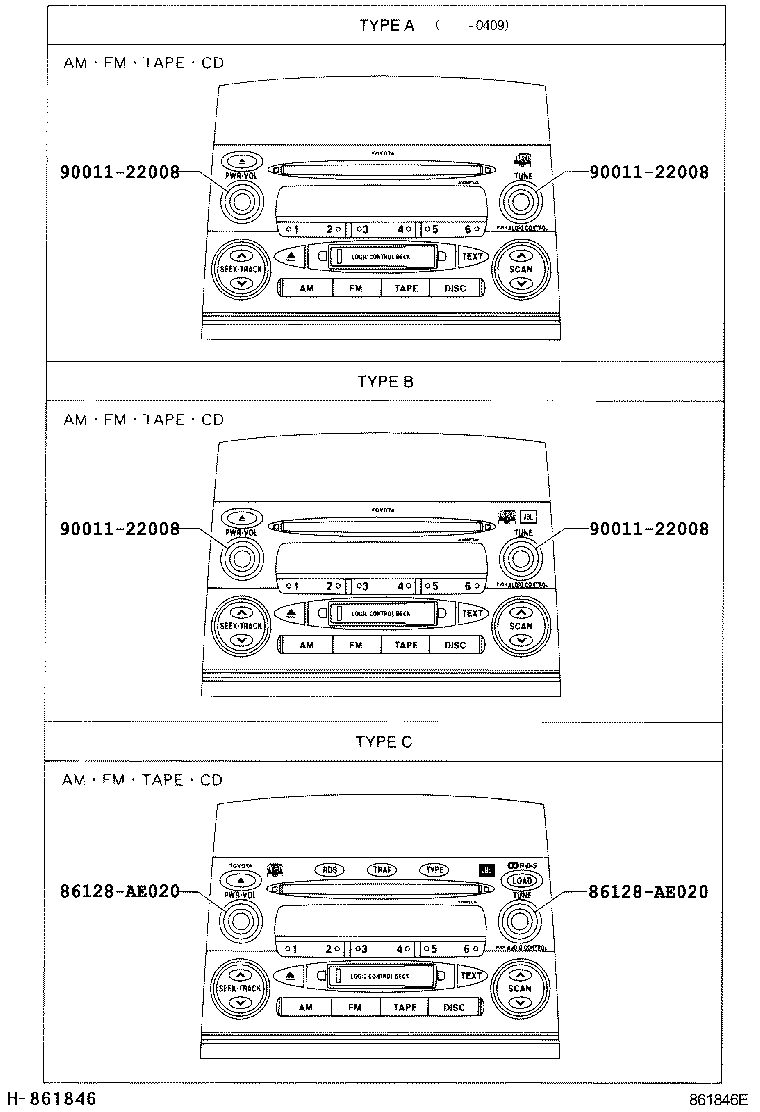

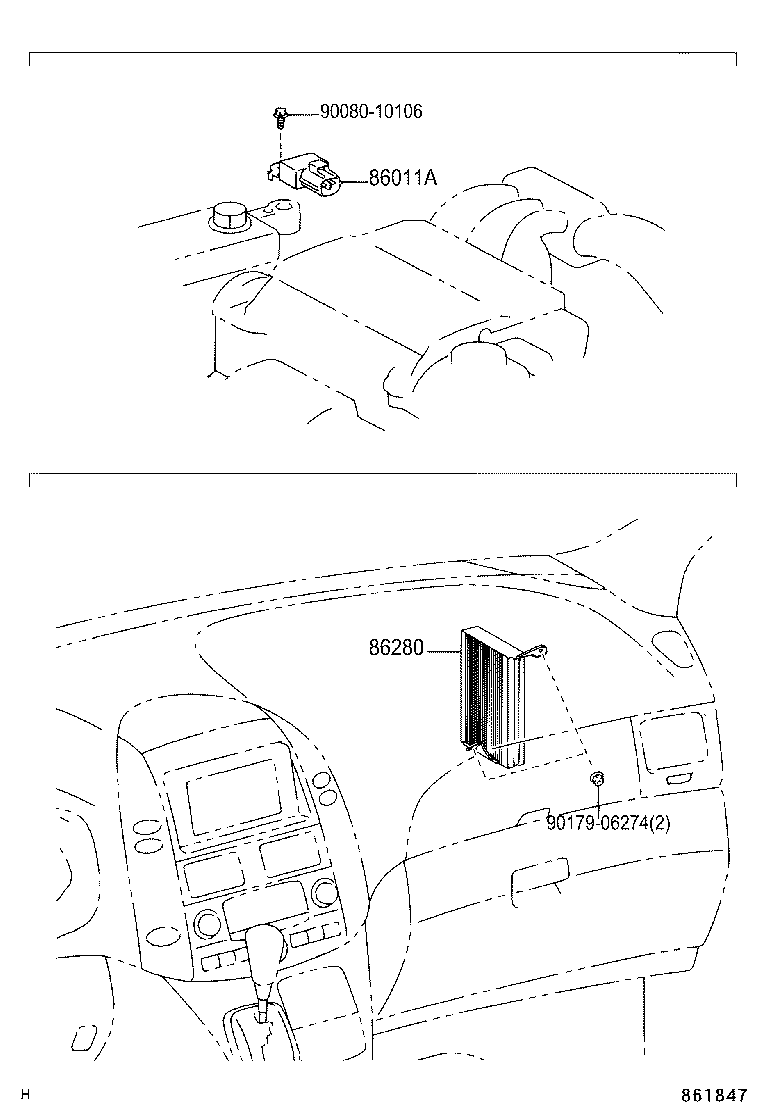

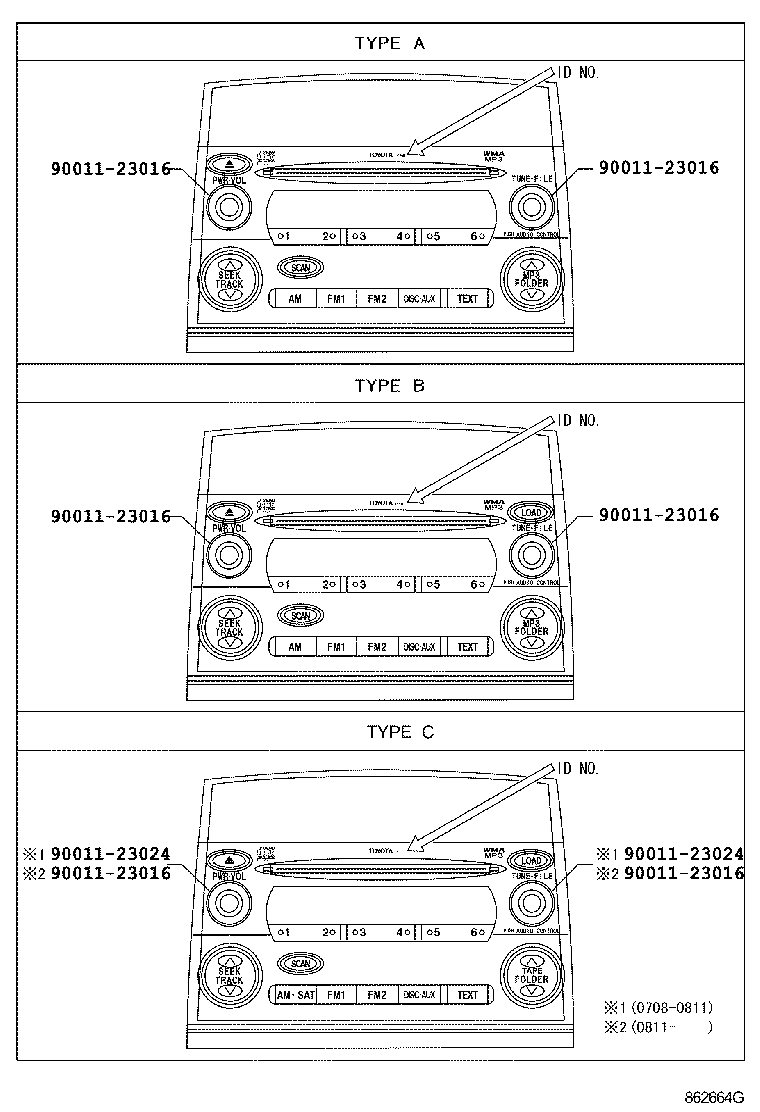

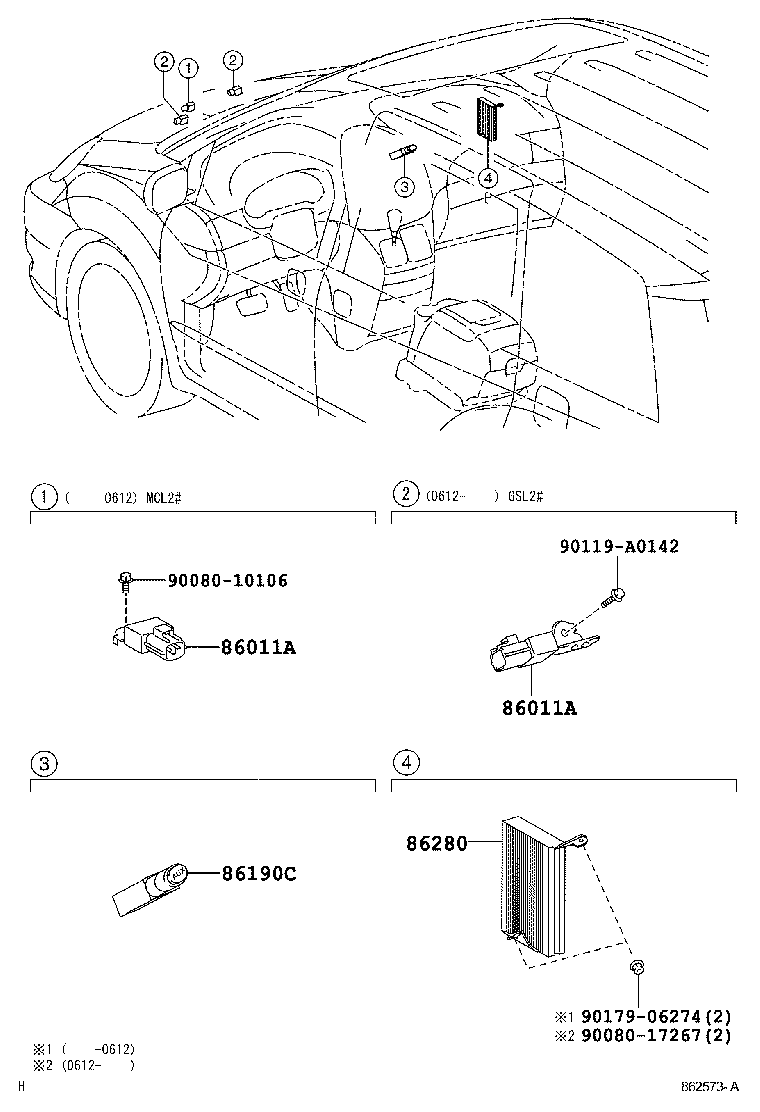

Figure 861845A 861845A 2003-01 → 2005-09 Figure 862572D 862572D 2005-09 → — Figure 861846E 861846E 2003-01 → 2005-09 Figure 862664G 862664G 2005-09 → — Figure 861847 861847 2003-01 → 2005-09 Figure 862573A 862573A 2005-09 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
