Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

15 part groups · 4 illustrations

Illustrations

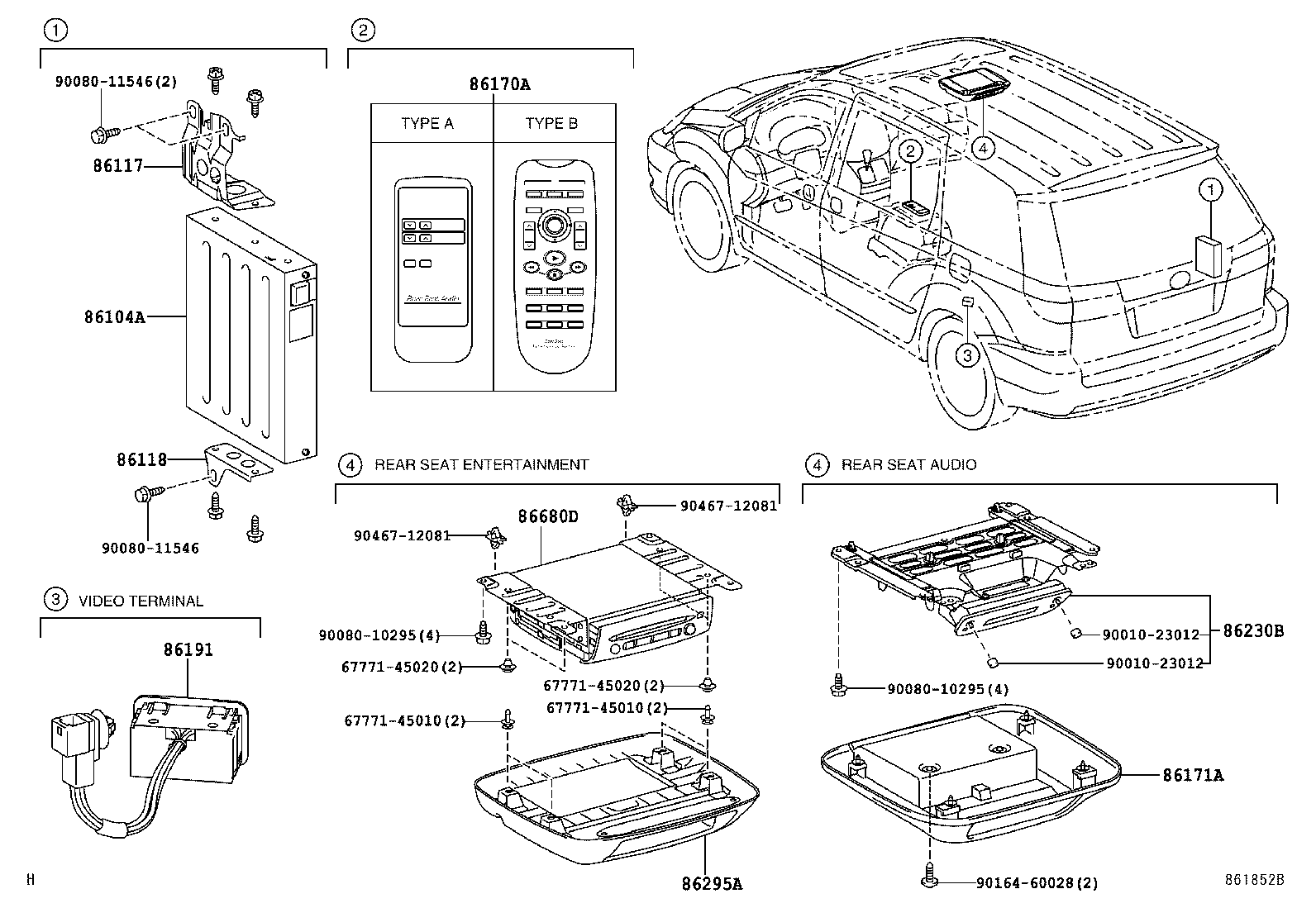

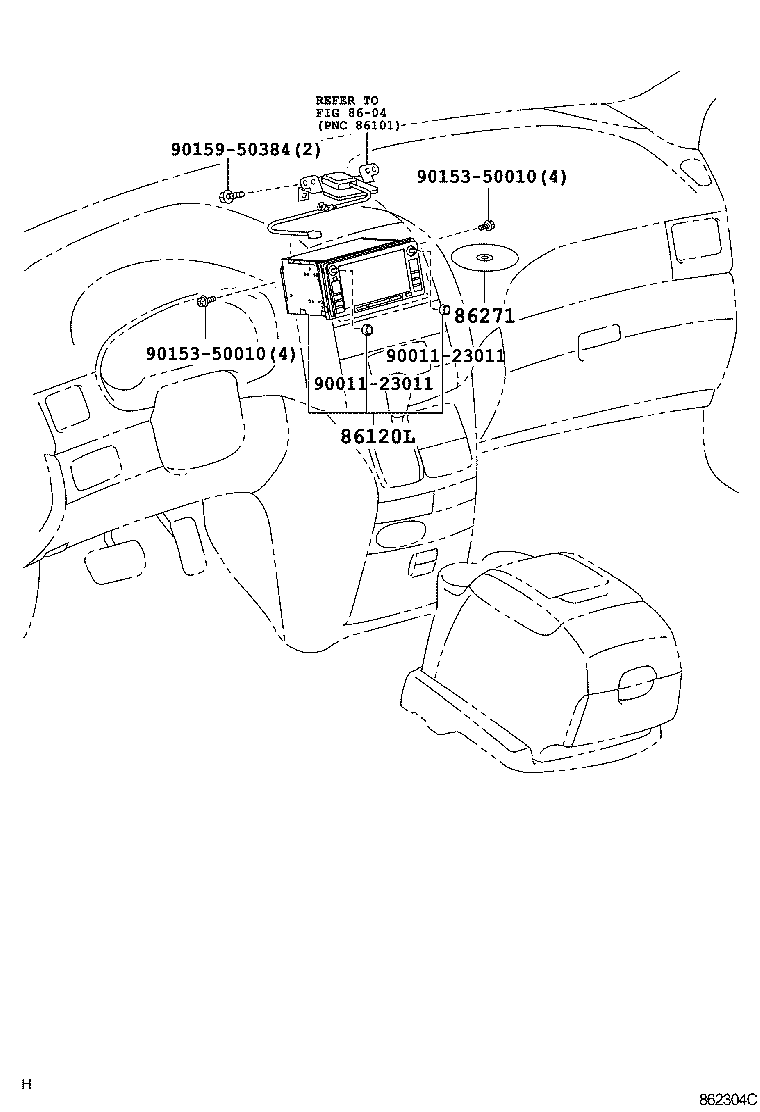

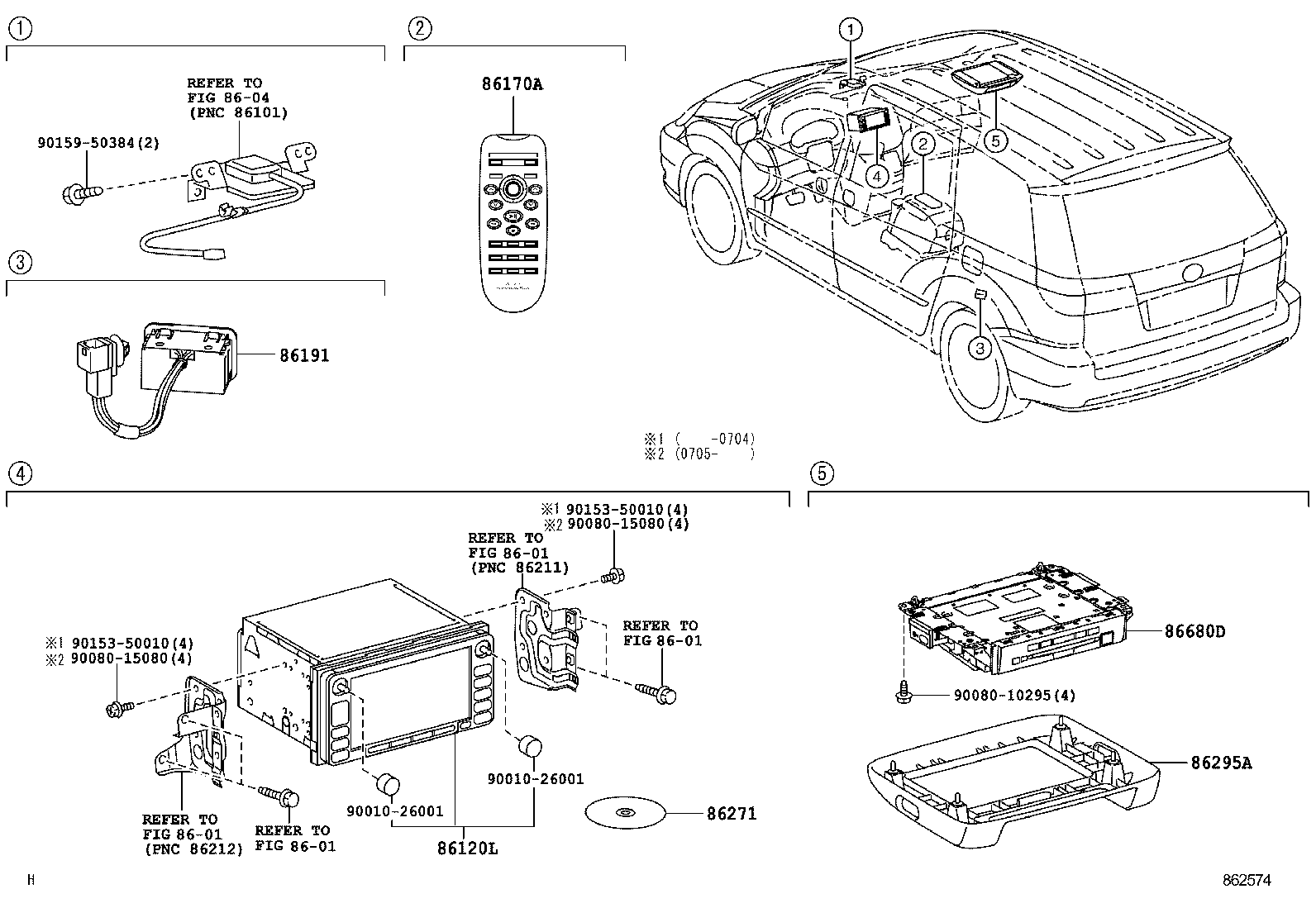

Figure 861851F 861851F 2003-01 → 2004-09 Figure 862304C 862304C 2004-09 → 2005-09 Figure 861852B 861852B 2003-01 → 2005-09 Figure 862574D 862574D 2005-09 → —

Part groups

PNCDescription
86104A Controller Sub-assy, Multi-display
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86120L Receiver Assy, Navigation
86170A Switch & Volume Assy
86171A Base, Radio Remote Control
86191 Terminal, Video(VIDEO ADAPTER)
86230B Controller Assy, Stereo Component
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86295A Base, Television
86680D Display Assy, Television
86840 Cable, Bond (FOR NAVIGATION COMPUTER)
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
