Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07

Heating & Air Conditioning - Control & Air Duct

41 part groups · 6 illustrations

PNC	Description

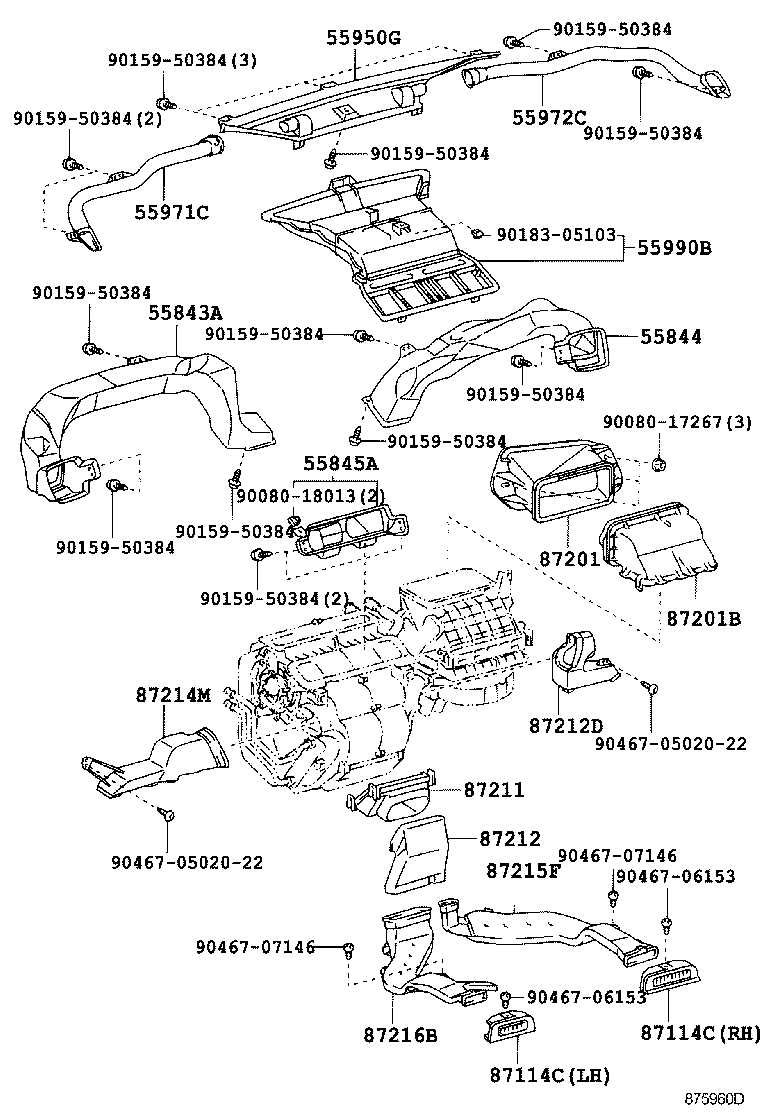

55843A	Duct, Heater TO Register, NO.1
55844	Duct, Heater TO Register, NO.2
55845A	Duct, Heater TO Register, NO.3

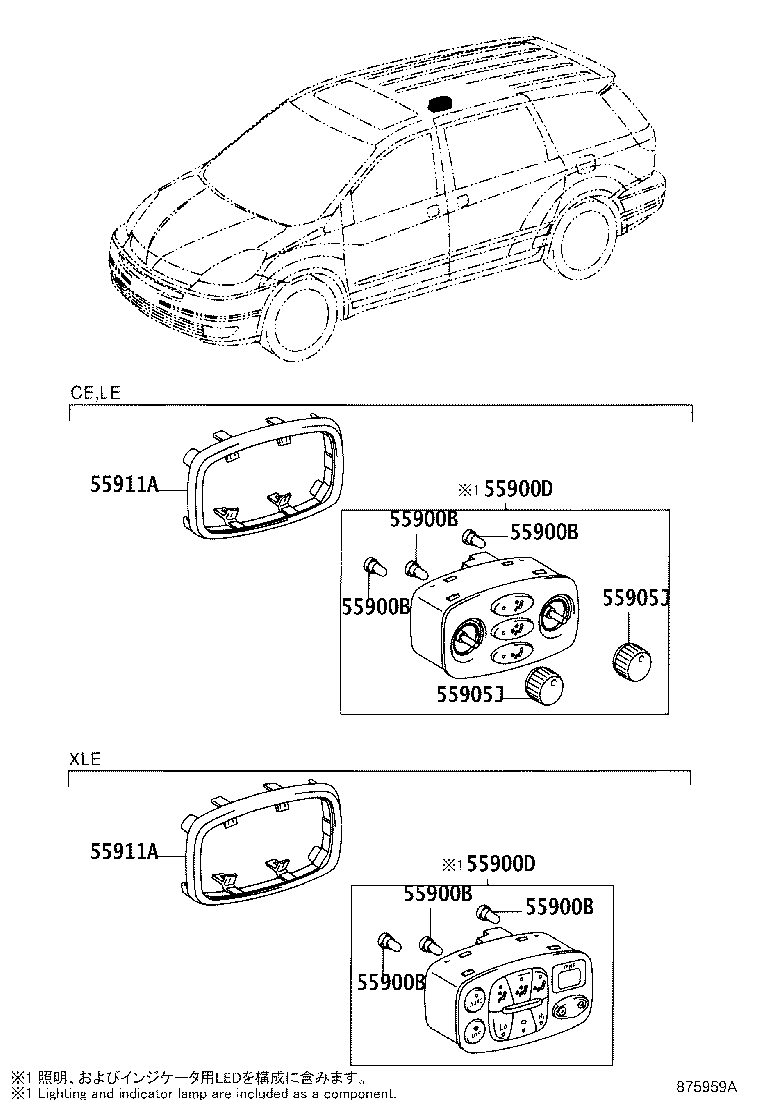

55900B	Bulb, Air Conditioner Control
55900D	Control Assy, Air Conditioner, NO.2
55905J	Knob Sub-assy, Control
55911A	Base, Heater Control
55912A	Housing, Heater Control
55937D	Knob, Center Cluster Module, NO.1
55937E	Knob, Center Cluster Module, NO.2
55937G	Knob, Center Cluster Module, NO.4
55937H	Knob, Center Cluster Module, NO.5
55937J	Knob, Center Cluster Module, NO.6
55950G	Nozzle Assy, Defroster
55971C	Duct, Side Defroster Nozzle, NO.1
55972C	Duct, Side Defroster Nozzle, NO.2
55990B	Nozzle Assy, Defroster, Lower

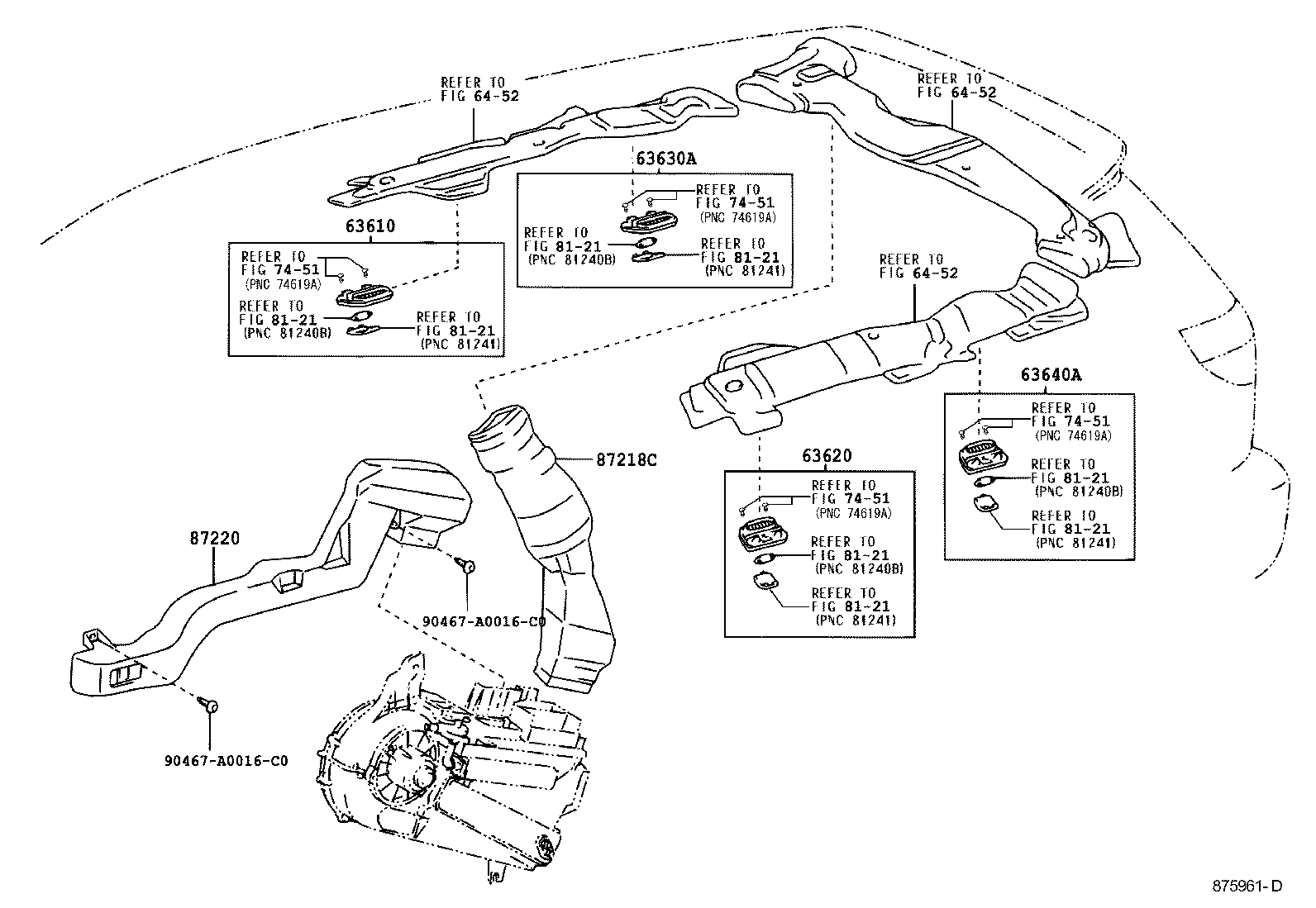

63610	Register Assy, Air Outlet, NO.1
63620	Register Assy, Air Outlet, NO.2
63630A	Register Assy, Air Duct, NO.3
63640A	Register Assy, Air Outlet, NO.4
83911E	Ornament, Clock

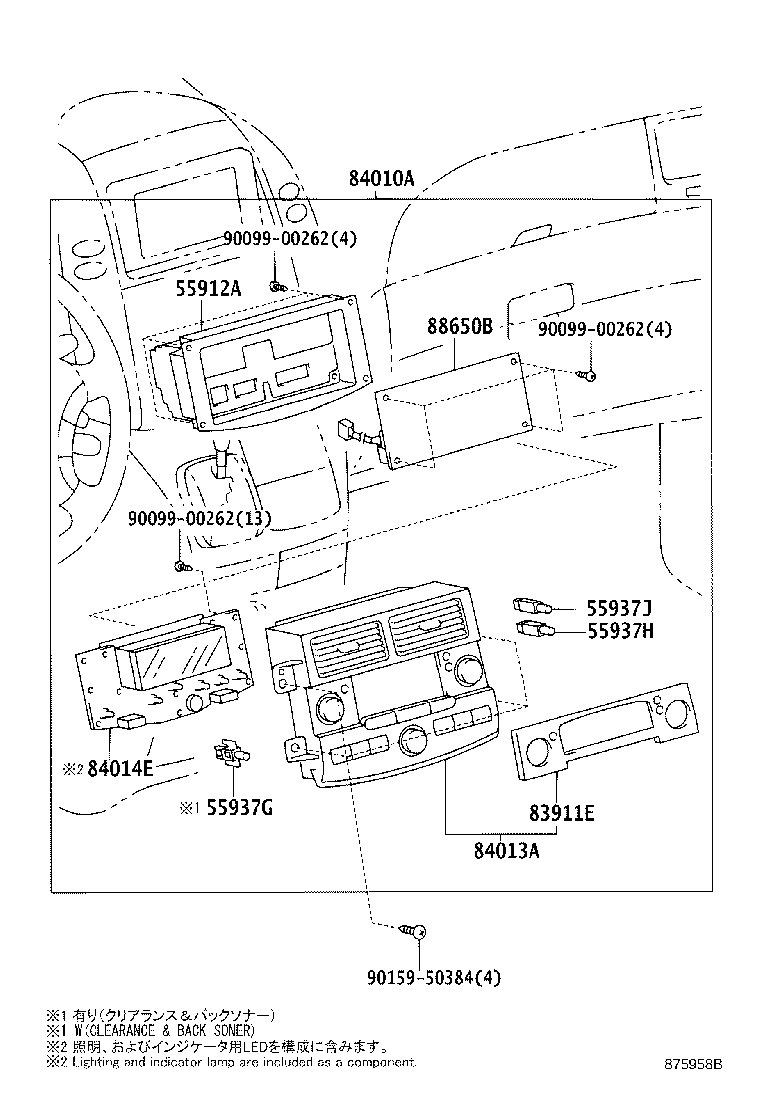

84010A	Control & Panel Assy, Integration
84010G	Bulb, Integration Control & Panel
84013A	Panel Sub-assy, Integration
84014E	Board Sub-assy, Printed Wire Integration
84732H	Switch, Heater Blower
87114C	Cover, Heater
87201	Duct Sub-assy, Air, NO.1
87201B	Duct Sub-assy, Air, NO.2
87211	Duct, Air, NO.1
87212	Duct, Air, Rear NO.1
87212D	Duct, Heater TO Foot, NO.1
87214M	Duct, Heater TO Foot, NO.3
87215F	Duct, Air, Rear NO.3
87216B	Duct, Air, Rear NO.4
87218C	Duct, Air, Rear NO.6
87220	Duct Assy, Air

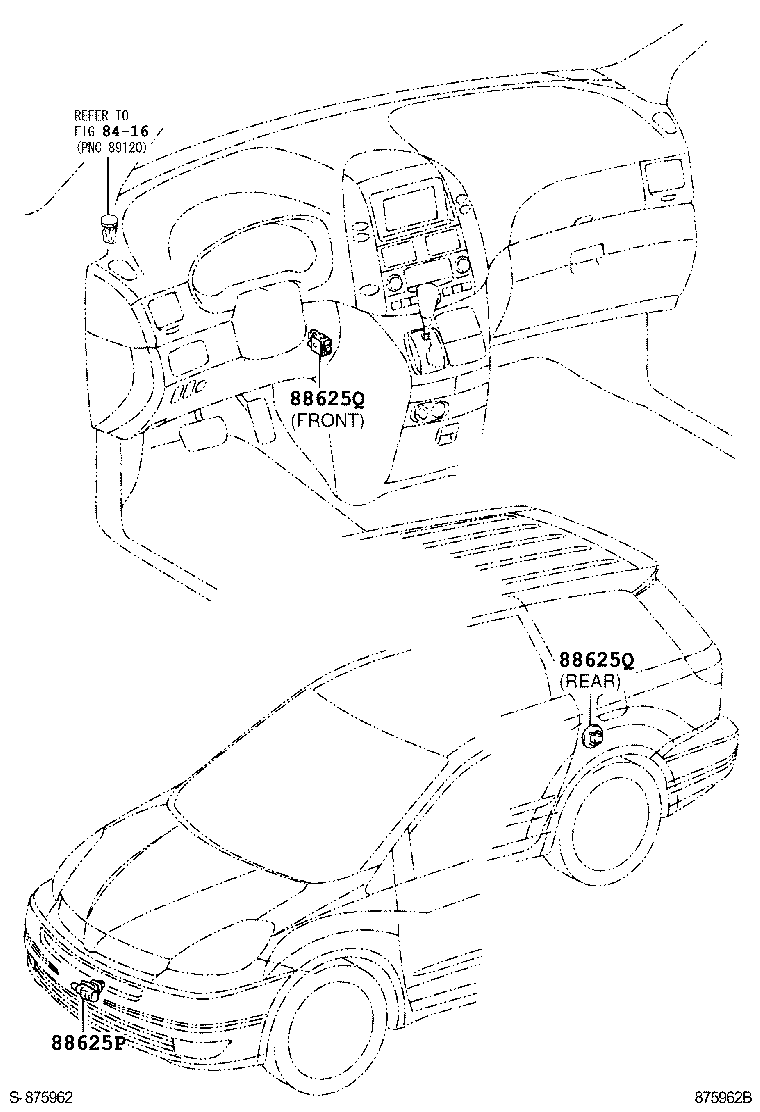

88625P	Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q	Thermistor, Cooler (ROOM TEMP. SENSOR)
88650B	Amplifier Assy, Airconditioner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
