Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

27 part groups · 4 illustrations

Illustrations

875981 2003-01 → 2006-12

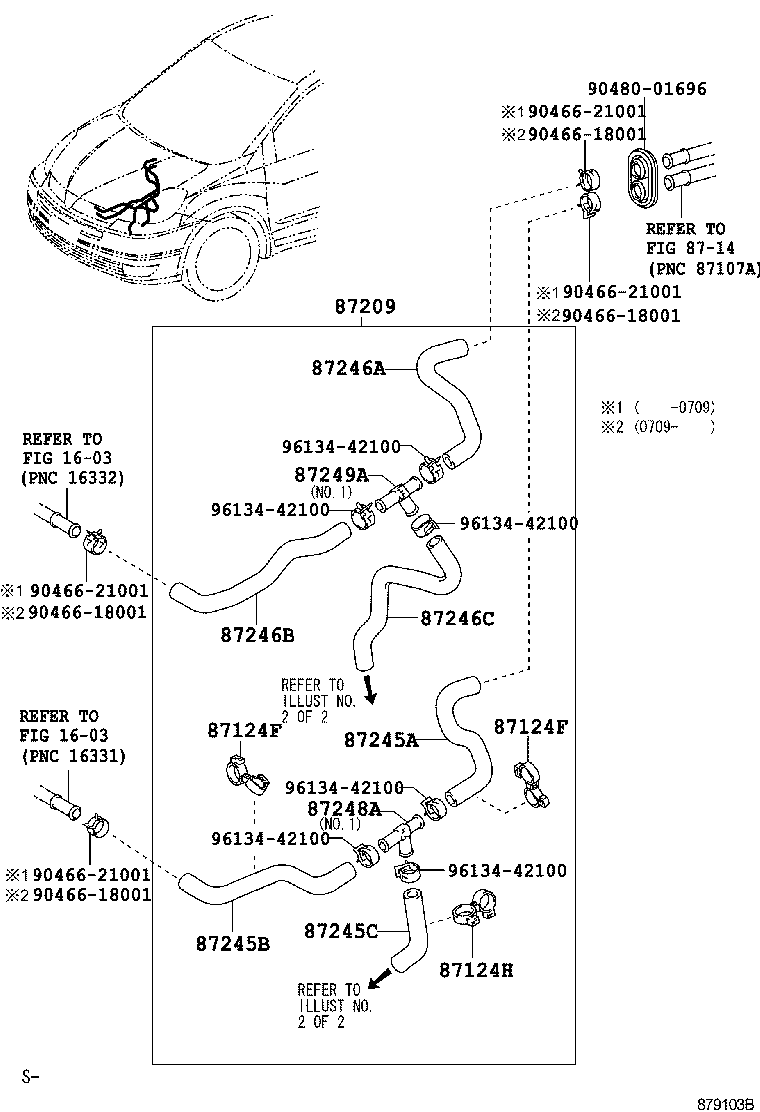

Figure 879103B

879103B 2006-12 → —

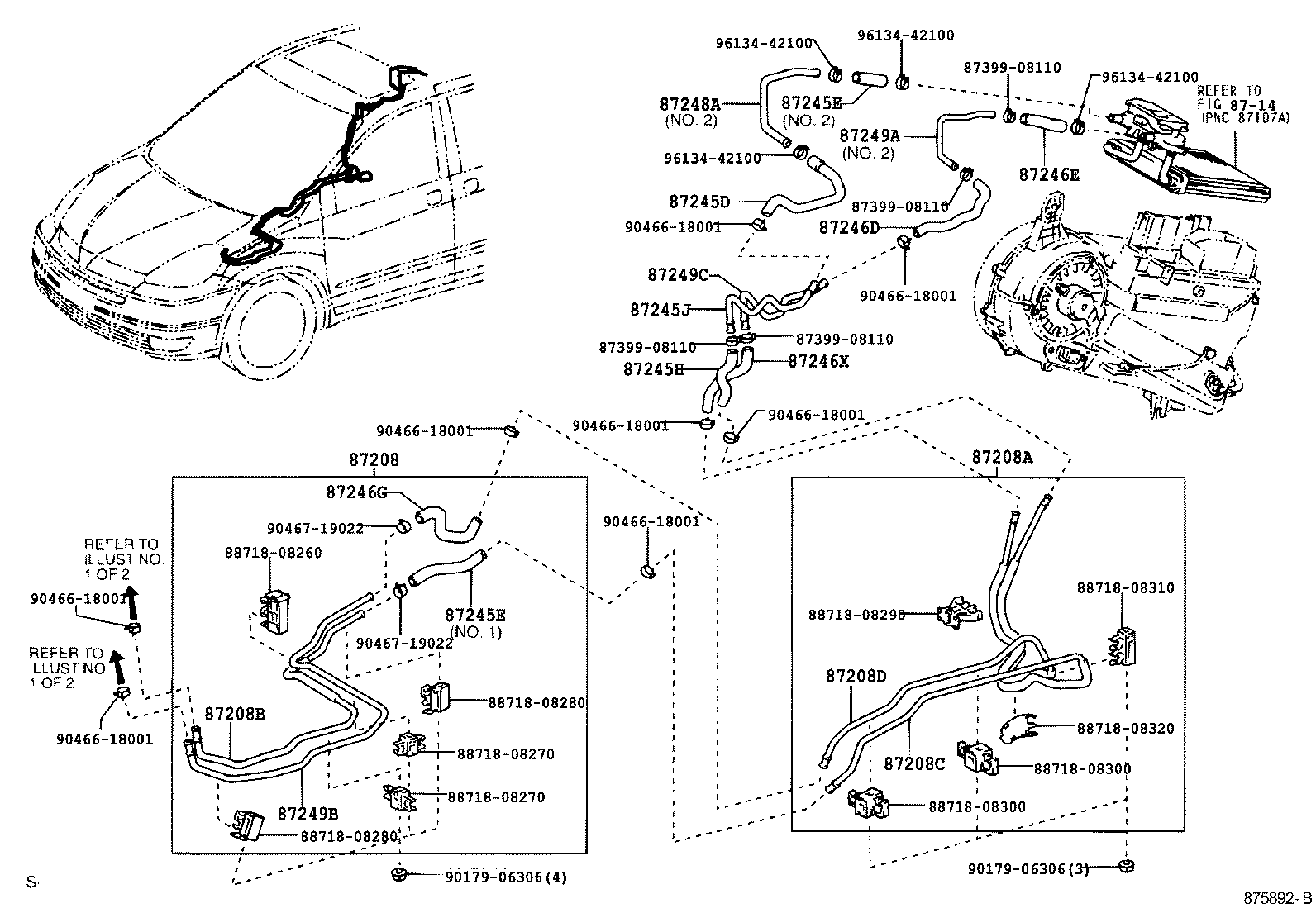

Figure 875982C

875982C 2003-01 → 2006-12

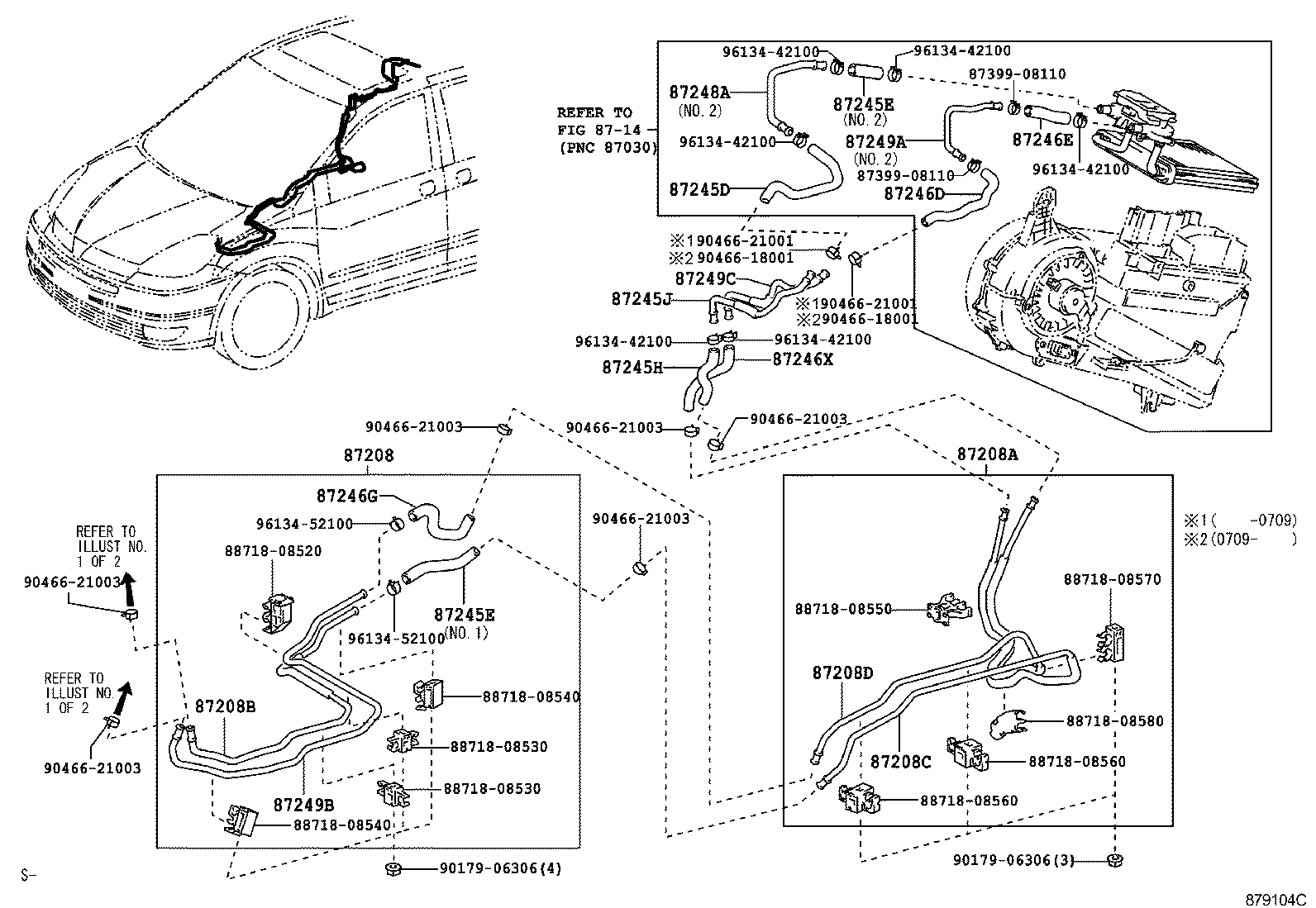

Figure 879104C

879104C 2006-12 → —

Part groups

PNC	Description
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87124H	Clamp, Heater Hose, NO.3
87208	Pipe Sub-assy, Heater Water
87208A	Pipe Sub-assy, Heater Water, A
87208B	Pipe Sub-assy, Heater Water, B
87208C	Pipe Sub-assy, Heater Water, C
87208D	Pipe Sub-assy, Heater Water, D
87209	Hose Sub-assy, Water
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245D	Hose, Heater Water, Inlet D
87245E	Hose, Heater Water, Inlet E
87245H	Hose, Heater Water, Inlet H
87245J	Hose, Heater Water, Inlet J
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87246E	Hose, Heater Water, Outlet E
87246G	Hose, Heater Water, Outlet G
87246X	Hose, Heater Water
87248A	Pipe, Heater Water Inlet, A
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
