Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 151689E 90119A0182 — not listed in this catalogue 9415180800 — not listed in this catalogue 9012608038 — not listed in this catalogue 9155180820 — not listed in this catalogue 9012608051 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9155180820 — not listed in this catalogue 90105A0128 — not listed in this catalogue 9094901993 — not listed in this catalogue 15777 — HOSE, OIL COOLER (3 parts) 15777D — CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) (3 parts) 15777D — CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) (3 parts) 16581G — CLAMP, HOSE(FOR OIL COOLER HOSE) (3 parts) 15695 — BOLT, OIL COOLER UNION (5 parts) 15767 — PIPE, OIL COOLER (7 parts) 11496B — GASKET, OIL HOLE COVER (5 parts) 15785 — GASKET, OIL COOLER (7 parts) 15781 — BRACKET, OIL COOLER, NO.1 (5 parts) 15710 — COOLER ASSY, OIL (7 parts) 15710B — RING, O(FOR OIL COOLER) (6 parts) 15777A — HOSE, OIL COOLER (7 parts) 16581H — CLIP, HOSE(FOR OIL COOLER HOSE) (3 parts) 16581H — CLIP, HOSE(FOR OIL COOLER HOSE) (3 parts) 15772E — GASKET(FOR OIL PIPE) (6 parts) 15772E — GASKET(FOR OIL PIPE) (6 parts) 15771A — UNION(FOR OIL PIPE) (3 parts) 15771M — PIPE, OIL (3 parts) 15772E — GASKET(FOR OIL PIPE) (6 parts) 15772E — GASKET(FOR OIL PIPE) (6 parts) 15772E — GASKET(FOR OIL PIPE) (6 parts) 15771A — UNION(FOR OIL PIPE) (3 parts) 90119A0182 — not listed in this catalogue 15771G — GASKET (6 parts) 15771G — GASKET (6 parts) 15771G — GASKET (6 parts) 15771G — GASKET (6 parts) 15771 — PIPE, OIL, NO.1 (3 parts) 15771A — UNION(FOR OIL PIPE) (3 parts) 15771G — GASKET (6 parts) 15771A — UNION(FOR OIL PIPE) (3 parts)

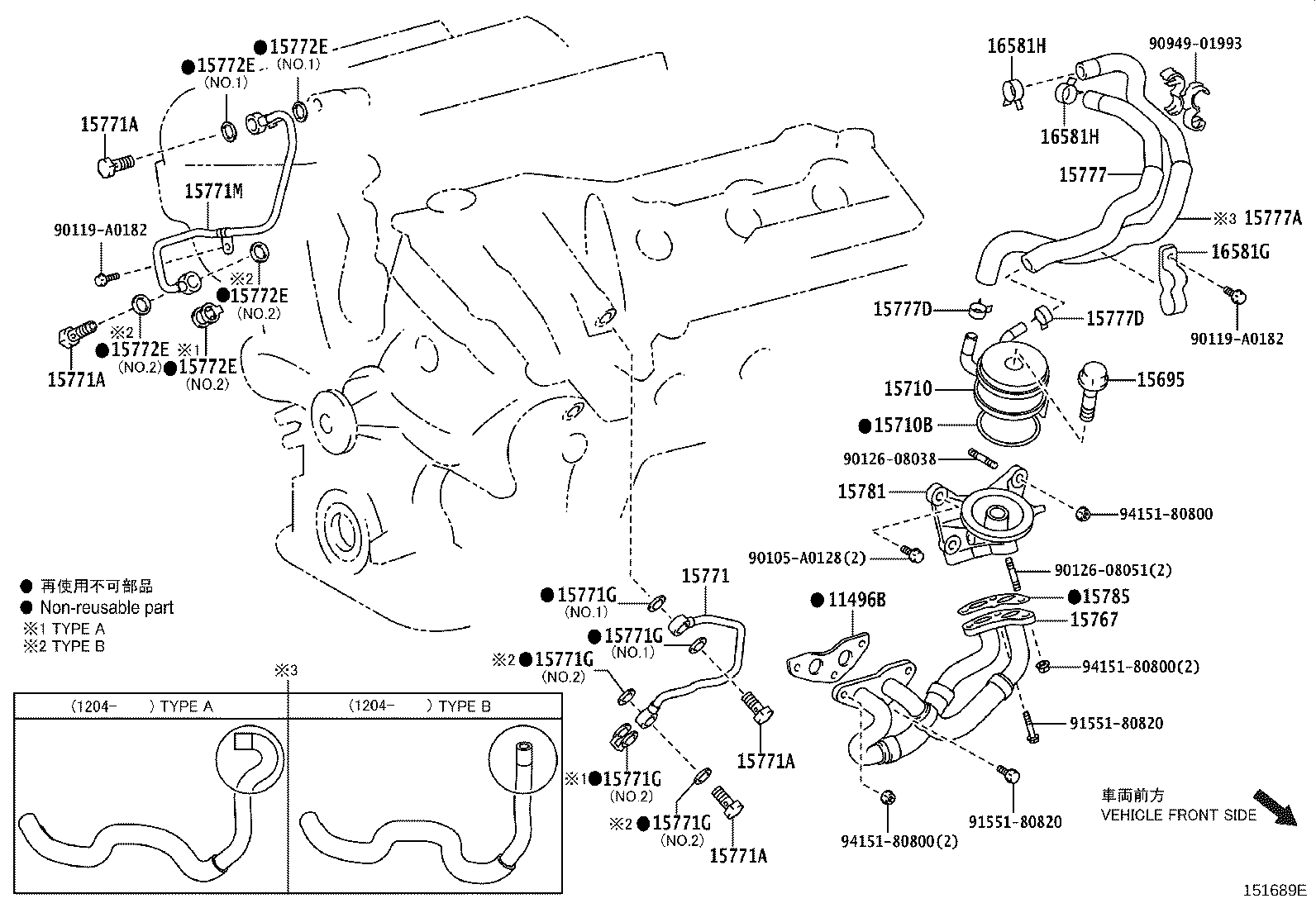

151689E · 30 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
82 parts on this figure
Part number Description Fitment Price
11496B — Gasket, Oil Hole Cover
11496-31010 note Gasket, Oil Hole Cover
2010-01 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
11496-31010 note Gasket, Oil Hole Cover
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
11496-31010 note Gasket, Oil Hole Cover
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
11496-0P010 note Gasket, Oil Hole Cover
2016-08 → 2017-11 ended
2GRFKS GSL30;2GRFKS GSL35 LE —
11496-0P010 note Gasket, Oil Hole Cover
2017-11 → 2020-09 ended
2GRFKS GSL30,35 —
15695 — Bolt, Oil Cooler Union
15695-31010 note Bolt, Oil Cooler Union
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
15695-31010 note Bolt, Oil Cooler Union
2010-01 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
15695-62030 note Bolt, Oil Cooler Union
2010-05 → 2013-08 ended
1ARFE ASL30 —
15695-62030 note Bolt, Oil Cooler Union
2011-09 → 2013-08 ended
1ARFE ASL30 —
15695-31010 note Bolt, Oil Cooler Union
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
15710 — Cooler Assy, Oil
15710-31021 note Cooler Assy, Oil
2010-01 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
15710-31021 note Cooler Assy, Oil
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
15710-36010 note Cooler Assy, Oil
2010-05 → 2013-08 ended
1ARFE ASL30 —
15710-36010 note Cooler Assy, Oil
2011-09 → 2013-08 ended
1ARFE ASL30 —
15710-31021 note Cooler Assy, Oil
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
15710-0P010 note Cooler Assy, Oil
2016-08 → 2017-11 ended
2GRFKS GSL30;2GRFKS GSL35 LE —
15710-0P010 note Cooler Assy, Oil
2017-11 → 2020-09 ended
2GRFKS GSL30,35 —
15710B — Ring, O(FOR OIL COOLER)
90301-67004 note Ring, O(FOR OIL COOLER)
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90301-67004 note Ring, O(FOR OIL COOLER)
2010-01 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
90301-67004 note Ring, O(FOR OIL COOLER)
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
96723-35035 note Ring, O(FOR OIL COOLER)
2016-08 → 2017-11 ended
2GRFKS GSL30;2GRFKS GSL35 LE —
15785-31050 note Ring, O(FOR OIL COOLER)
2018-06 → 2020-09 ended
2GRFKS GSL30,35 —
96723-35035 note Ring, O(FOR OIL COOLER)
2017-11 → 2018-05 ended
2GRFKS GSL30,35 —
15767 — Pipe, Oil Cooler
15767-31010 note Pipe, Oil Cooler
2010-01 → 2011-03 ended
2GRFE GSL30,35 —
15767-31020 note Pipe, Oil Cooler
2011-03 → 2013-08 ended
2GRFE GSL35 STD —
15767-31020 note Pipe, Oil Cooler
2011-03 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
15767-31020 note Pipe, Oil Cooler
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
15767-0P010 note Pipe, Oil Cooler
2016-08 → 2017-11 ended
2GRFKS GSL30;2GRFKS GSL35 LE —
15767-0P010 note Pipe, Oil Cooler
2017-11 → 2019-12 ended
2GRFKS GSL30,35 —
15767-0P011 note Pipe, Oil Cooler
2020-01 → 2020-09 ended
2GRFKS GSL30,35 —
15771 — Pipe, Oil, NO.1
15771-31010 Pipe, Oil, NO.1
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
15771-31010 Pipe, Oil, NO.1
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
15771-31010 Pipe, Oil, NO.1
2014-09 → 2016-08 ended
2GRFE GSL3# —
15771A — Union(FOR OIL PIPE)
90401-16043 Union(FOR OIL PIPE)
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90401-16043 Union(FOR OIL PIPE)
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
90401-16043 Union(FOR OIL PIPE)
2014-09 → 2016-08 ended
2GRFE GSL3# —
15771G — Gasket
90430-16016 note Gasket
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90430-16016 note Gasket
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
90430-16017 note Gasket
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90430-16017 note Gasket
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
90430-16016 note Gasket
2014-09 → 2016-08 ended
2GRFE GSL3# —
90430-16017 note Gasket
2014-09 → 2016-08 ended
2GRFE GSL3# —
15771M — Pipe, Oil
15772-31030 Pipe, Oil
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
15772-31030 Pipe, Oil
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
15772-31030 Pipe, Oil
2014-09 → 2016-08 ended
2GRFE GSL3# —
15772E — Gasket(FOR OIL PIPE)
90430-16016 note Gasket(FOR OIL PIPE)
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90430-16016 note Gasket(FOR OIL PIPE)
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
90430-16017 note Gasket(FOR OIL PIPE)
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90430-16017 note Gasket(FOR OIL PIPE)
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
90430-16016 note Gasket(FOR OIL PIPE)
2014-09 → 2016-08 ended
2GRFE GSL3# —
90430-16017 note Gasket(FOR OIL PIPE)
2014-09 → 2016-08 ended
2GRFE GSL3# —
15777 — Hose, Oil Cooler
16281-31030 note Hose, Oil Cooler
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
16281-31030 note Hose, Oil Cooler
2010-01 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
16281-31030 note Hose, Oil Cooler
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
15777A — Hose, Oil Cooler
16282-31020 note Hose, Oil Cooler
2010-01 → 2012-04 ended
2GRFE GSL30,35 —
16282-31020 note Hose, Oil Cooler
2012-04 → 2013-08 ended
2GRFE GSL35 STD —
16282-31020 note Hose, Oil Cooler
2012-04 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
16282-31050 note Hose, Oil Cooler
2012-04 → 2013-08 ended
2GRFE GSL35 STD —
16282-31050 note Hose, Oil Cooler
2012-04 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
16282-31020 note Hose, Oil Cooler
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
16282-31050 note Hose, Oil Cooler
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
15777D — Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
96136-42101 note Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
2010-01 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
96136-42101 note Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
96136-42101 note Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
15781 — Bracket, Oil Cooler, NO.1
15781-31010 note Bracket, Oil Cooler, NO.1
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
15781-31010 note Bracket, Oil Cooler, NO.1
2010-01 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
15781-31010 note Bracket, Oil Cooler, NO.1
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
15781-0P010 note Bracket, Oil Cooler, NO.1
2016-08 → 2017-11 ended
2GRFKS GSL30;2GRFKS GSL35 LE —
15781-0P010 note Bracket, Oil Cooler, NO.1
2017-11 → 2020-09 ended
2GRFKS GSL30,35 —
15785 — Gasket, Oil Cooler
15785-31010 note Gasket, Oil Cooler
2010-01 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
15785-31010 note Gasket, Oil Cooler
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
15785-36010 note Gasket, Oil Cooler
2010-05 → 2013-08 ended
1ARFE ASL30 —
15785-36010 note Gasket, Oil Cooler
2011-09 → 2013-08 ended
1ARFE ASL30 —
15785-31010 note Gasket, Oil Cooler
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
15785-0P010 note Gasket, Oil Cooler
2016-08 → 2017-11 ended
2GRFKS GSL30;2GRFKS GSL35 LE —
15785-0P010 note Gasket, Oil Cooler
2017-11 → 2020-09 ended
2GRFKS GSL30,35 —
16581G — Clamp, Hose(FOR OIL COOLER HOSE)
16581-31020 note Clamp, Hose(FOR OIL COOLER HOSE)
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
16581-31020 note Clamp, Hose(FOR OIL COOLER HOSE)
2010-01 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
16581-31020 note Clamp, Hose(FOR OIL COOLER HOSE)
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
16581H — Clip, Hose(FOR OIL COOLER HOSE)
96136-42101 note Clip, Hose(FOR OIL COOLER HOSE)
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
96136-42101 note Clip, Hose(FOR OIL COOLER HOSE)
2010-01 → 2014-09 ended
2GRFE GSL30;2GRFE GSL35 LE,XLE —
96136-42101 note Clip, Hose(FOR OIL COOLER HOSE)
2014-09 → 2016-08 ended
2GRFE GSL30;2GRFE GSL35 LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
