Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

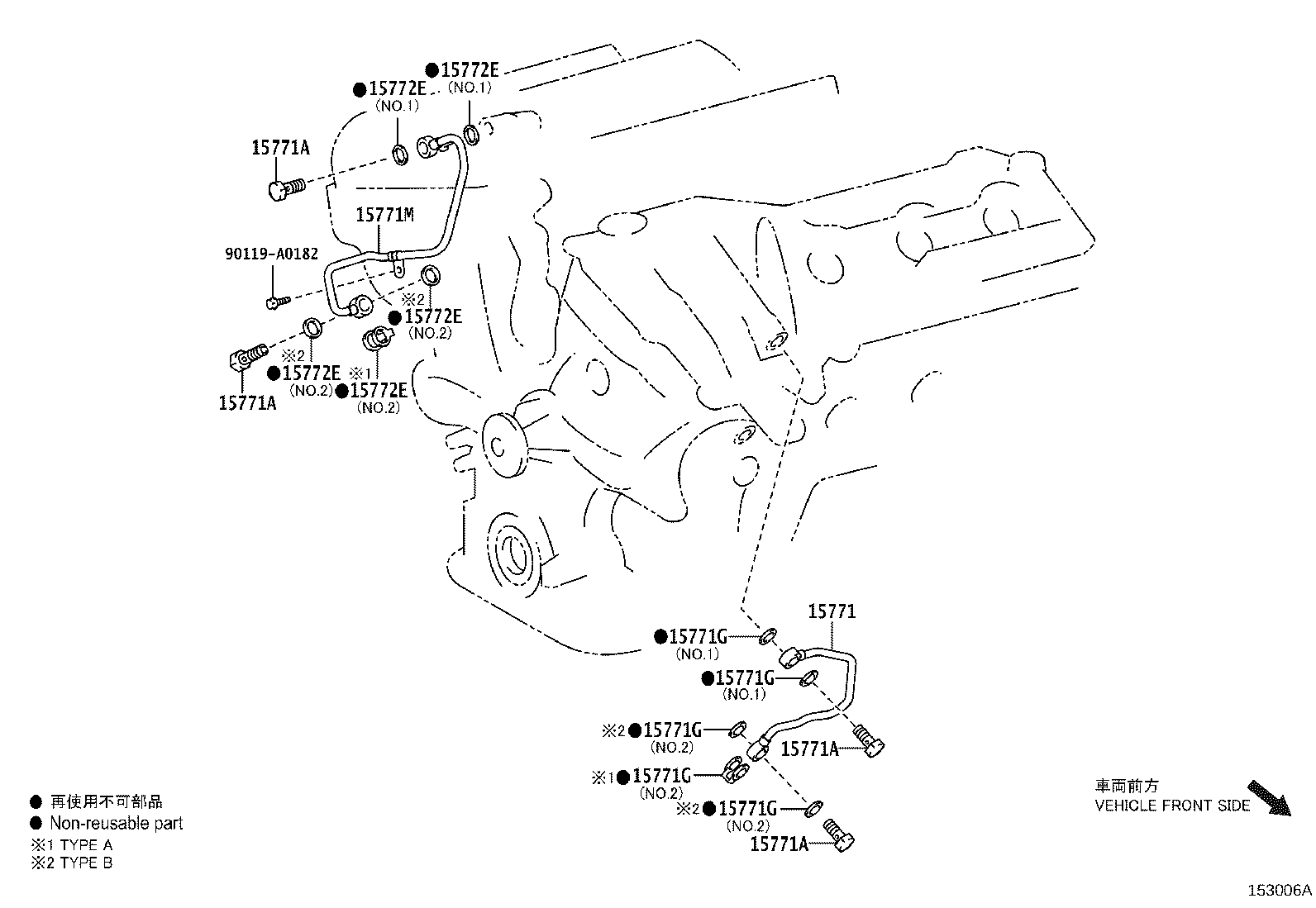

Exploded illustration 153006A 15772E — GASKET(FOR OIL PIPE) (6 parts) 15772E — GASKET(FOR OIL PIPE) (6 parts) 15771A — UNION(FOR OIL PIPE) (3 parts) 15771M — PIPE, OIL (3 parts) 15772E — GASKET(FOR OIL PIPE) (6 parts) 15772E — GASKET(FOR OIL PIPE) (6 parts) 15772E — GASKET(FOR OIL PIPE) (6 parts) 15771A — UNION(FOR OIL PIPE) (3 parts) 90119A0182 — not listed in this catalogue 15771G — GASKET (6 parts) 15771G — GASKET (6 parts) 15771G — GASKET (6 parts) 15771G — GASKET (6 parts) 15771 — PIPE, OIL, NO.1 (3 parts) 15771A — UNION(FOR OIL PIPE) (3 parts) 15771G — GASKET (6 parts) 15771A — UNION(FOR OIL PIPE) (3 parts)
153006A · 16 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
15771 — Pipe, Oil, NO.1
15771-31010 Pipe, Oil, NO.1
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
15771-31010 Pipe, Oil, NO.1
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
15771-31010 Pipe, Oil, NO.1
2014-09 → 2016-08 ended
2GRFE GSL3# —
15771A — Union(FOR OIL PIPE)
90401-16043 Union(FOR OIL PIPE)
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90401-16043 Union(FOR OIL PIPE)
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
90401-16043 Union(FOR OIL PIPE)
2014-09 → 2016-08 ended
2GRFE GSL3# —
15771G — Gasket
90430-16016 note Gasket
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90430-16016 note Gasket
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
90430-16017 note Gasket
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90430-16017 note Gasket
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
90430-16016 note Gasket
2014-09 → 2016-08 ended
2GRFE GSL3# —
90430-16017 note Gasket
2014-09 → 2016-08 ended
2GRFE GSL3# —
15771M — Pipe, Oil
15772-31030 Pipe, Oil
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
15772-31030 Pipe, Oil
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
15772-31030 Pipe, Oil
2014-09 → 2016-08 ended
2GRFE GSL3# —
15772E — Gasket(FOR OIL PIPE)
90430-16016 note Gasket(FOR OIL PIPE)
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90430-16016 note Gasket(FOR OIL PIPE)
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
90430-16017 note Gasket(FOR OIL PIPE)
2010-01 → 2013-08 ended
2GRFE GSL35 STD —
90430-16017 note Gasket(FOR OIL PIPE)
2010-01 → 2014-09 ended
2GRFE GSL30,33;2GRFE GSL35 LE,XLE —
90430-16016 note Gasket(FOR OIL PIPE)
2014-09 → 2016-08 ended
2GRFE GSL3# —
90430-16017 note Gasket(FOR OIL PIPE)
2014-09 → 2016-08 ended
2GRFE GSL3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
