Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

8 part groups · 3 illustrations

Illustrations

Figure 164124C

164124C 2010-05 → —

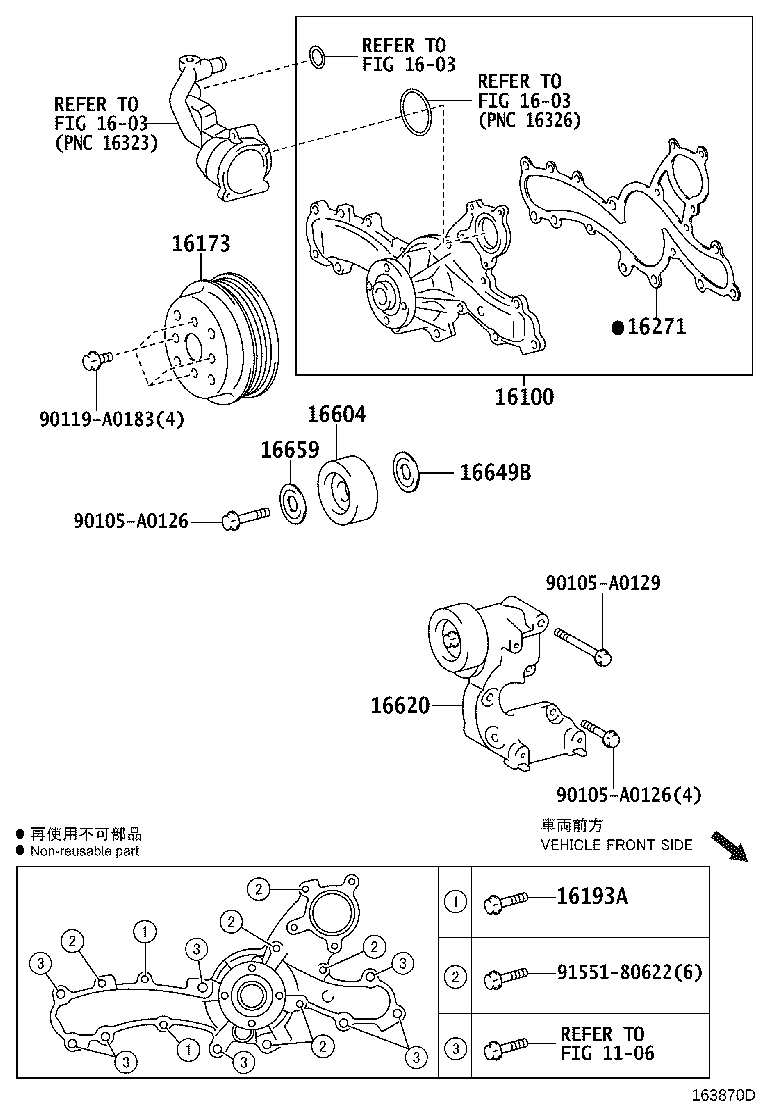

Figure 163870D

163870D 2010-01 → 2016-08

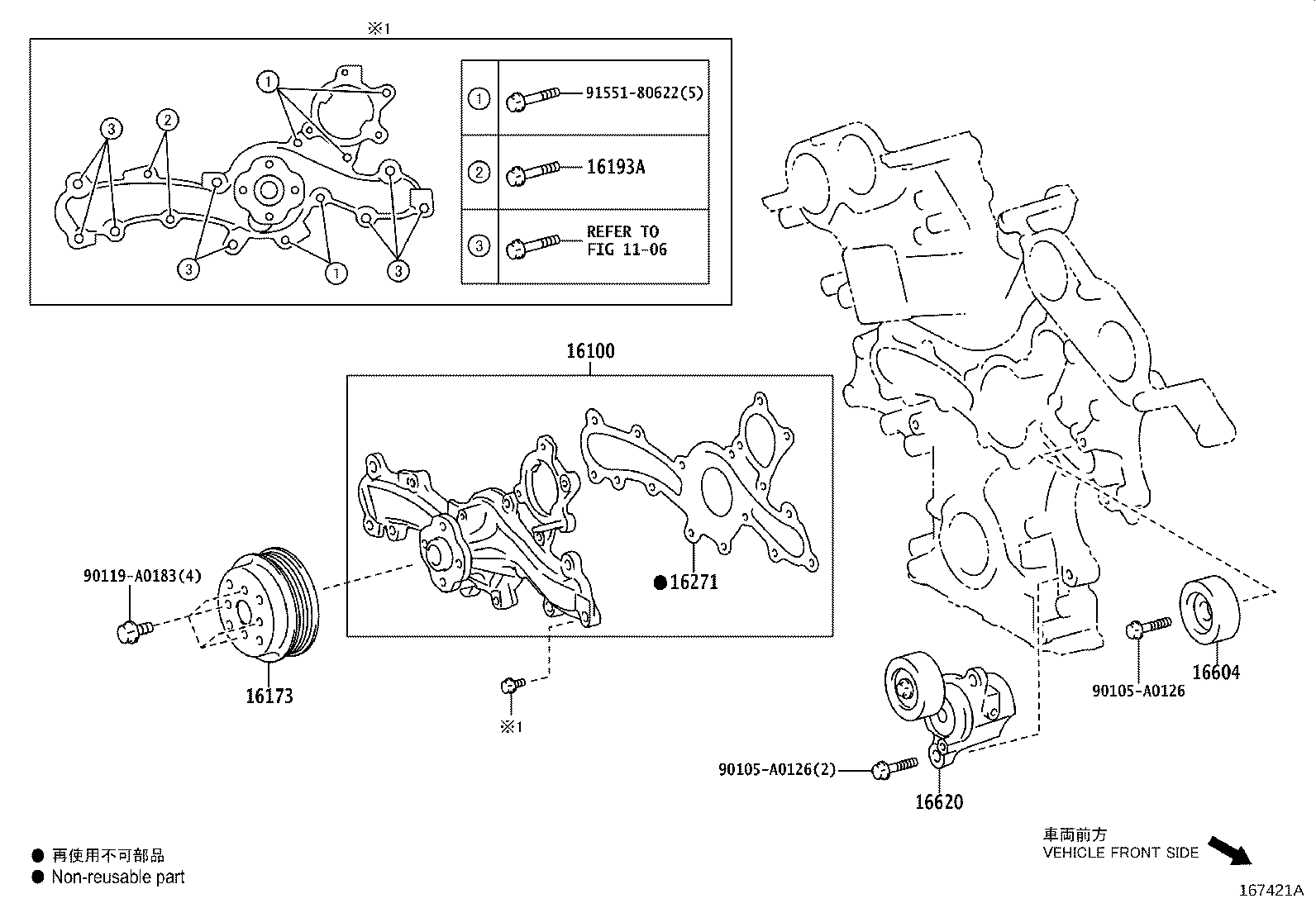

Figure 167421A

167421A 2016-08 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16649B	Plate, Idler Pulley Cover
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
