Toyota Sienna
2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States
Supported model
Data version 2020-09

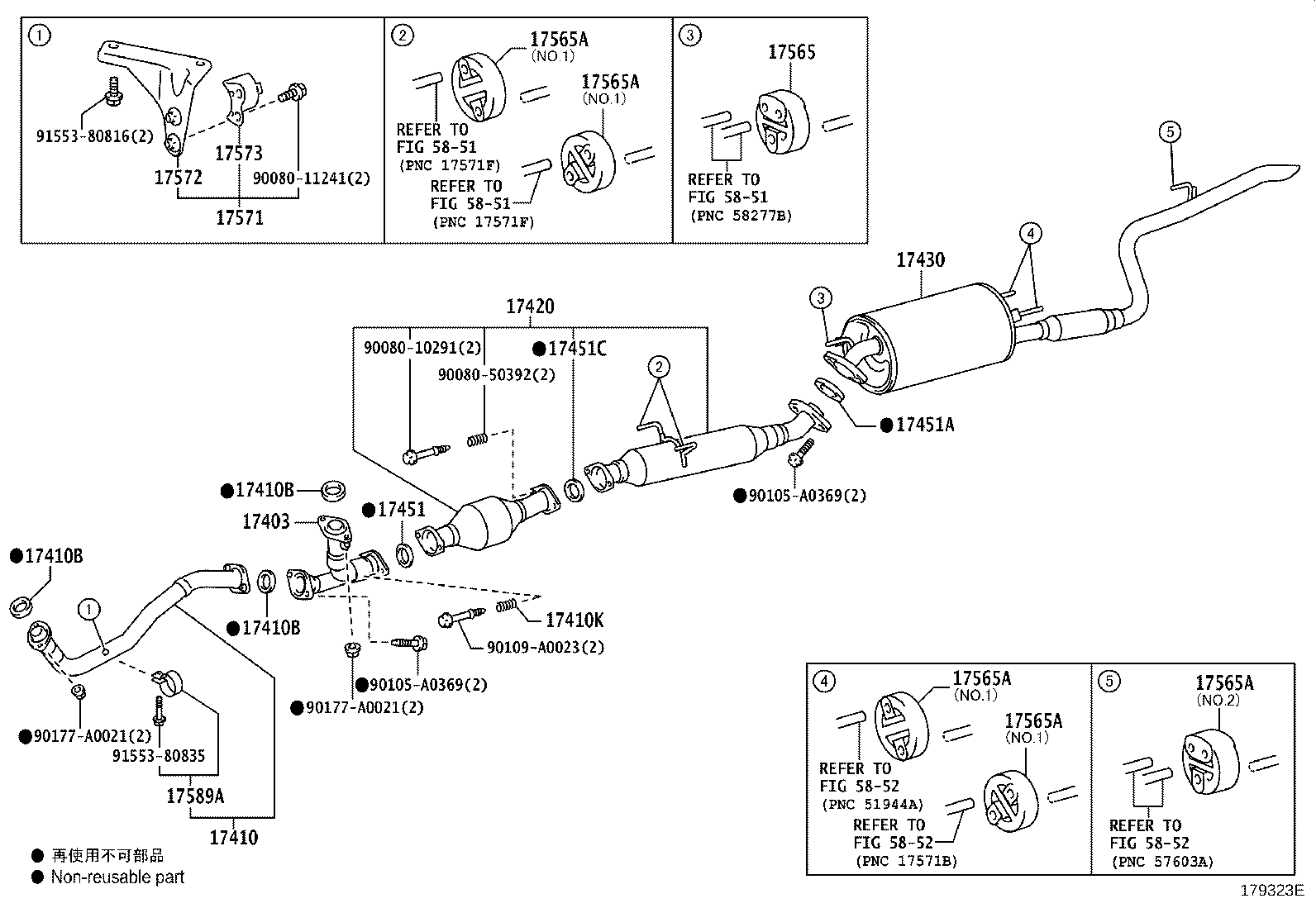

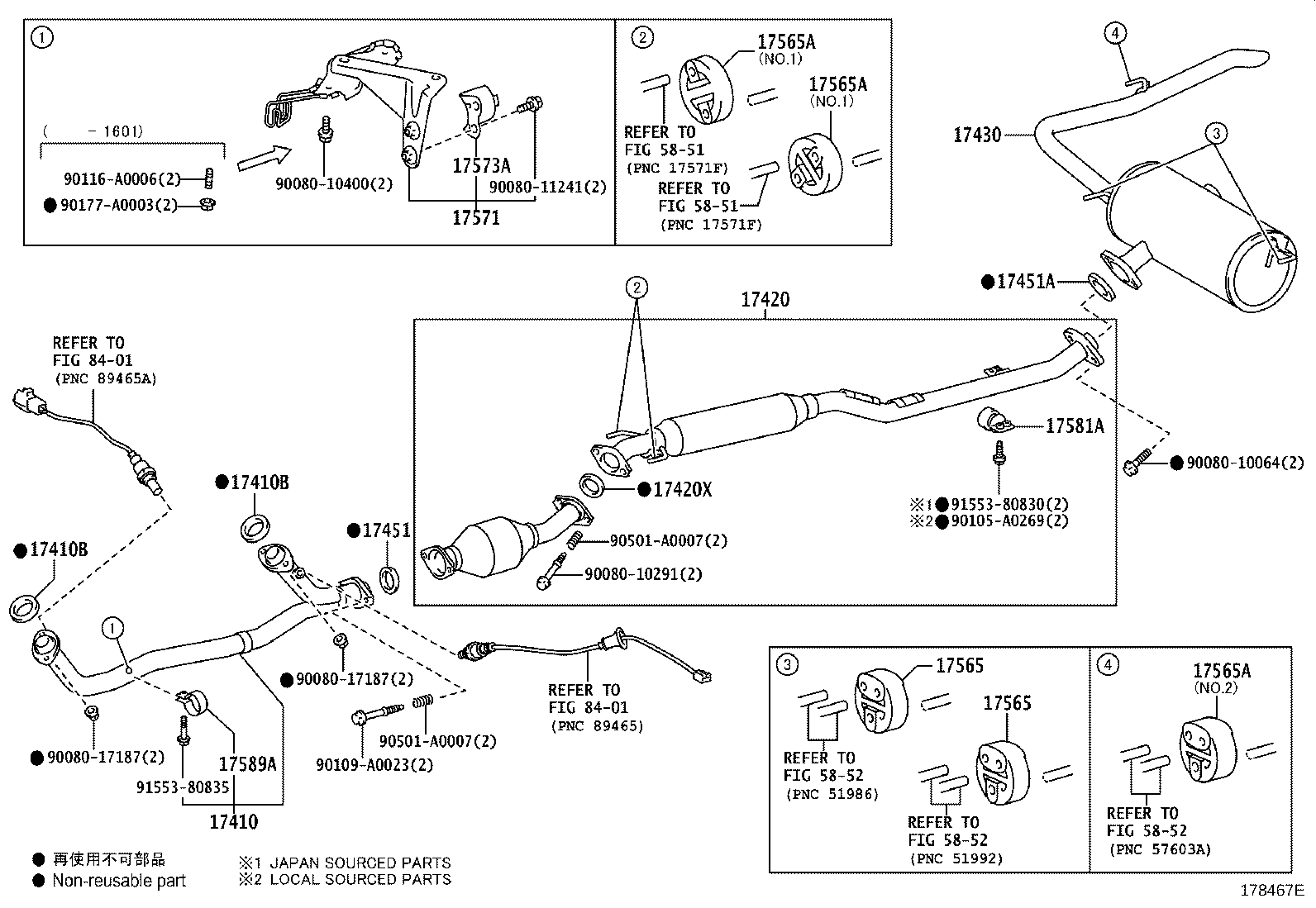

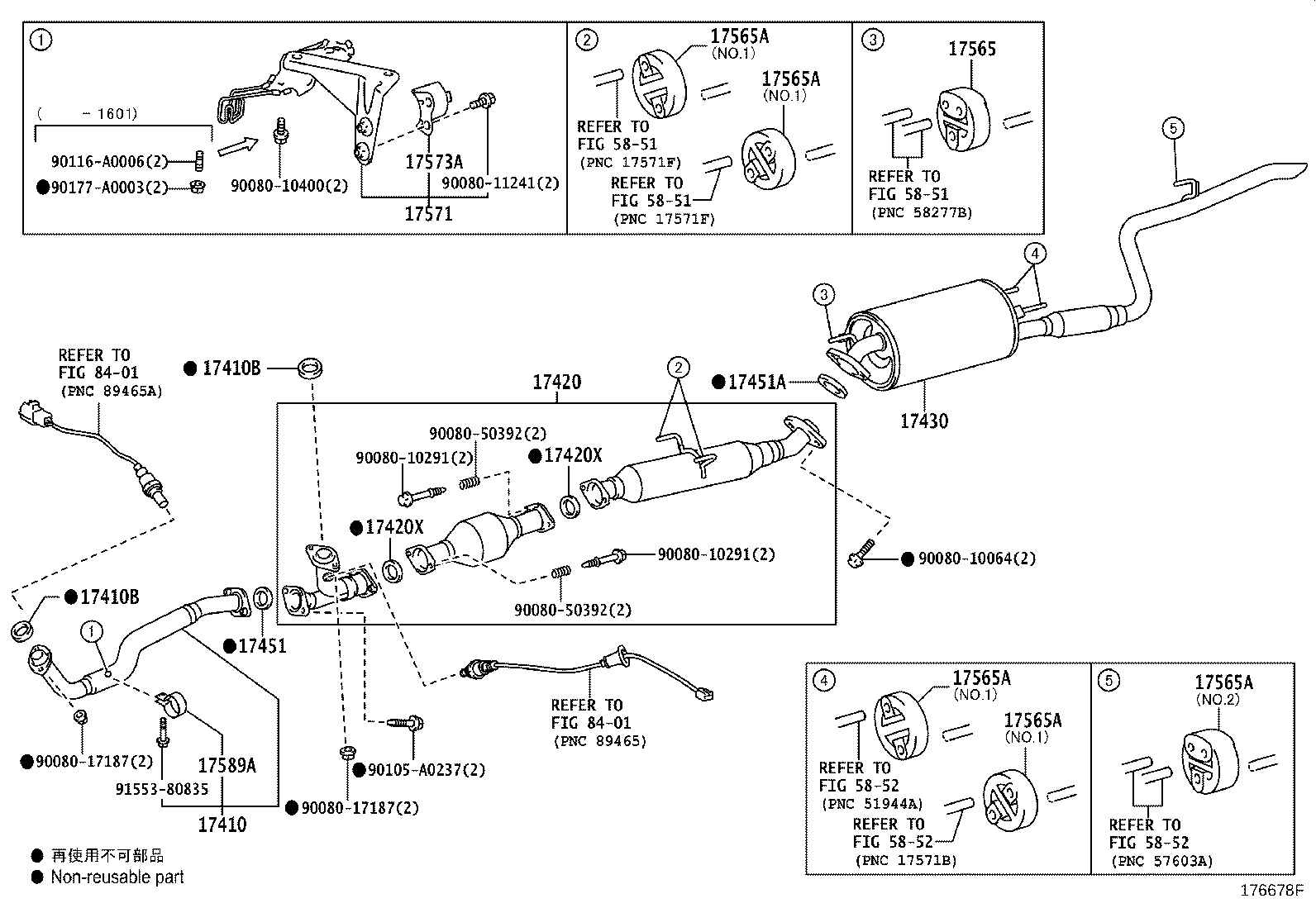

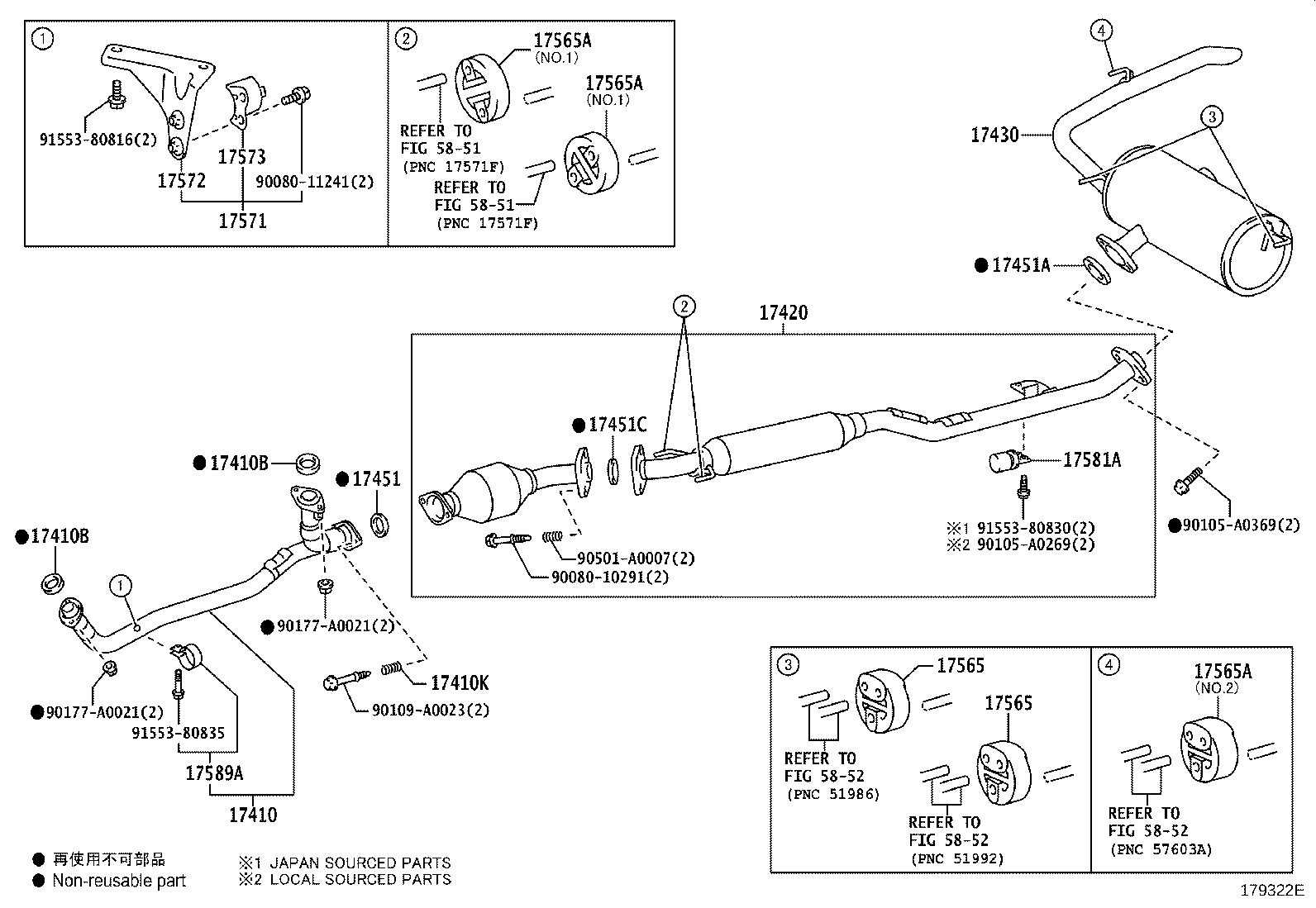

Exhaust Pipe
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17403 | Pipe Sub-assy, Exhaust, Front NO.3 |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17410K | Spring, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17451C | Gasket, Exhaust Pipe, NO.3 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17573 | Bracket, Exhaust Pipe NO.1 Support, Lower |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17581A | Damper, Exhaust Pipe |
| 17589A | Clamp, Exhaust Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
