Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 3 illustrations

Illustrations

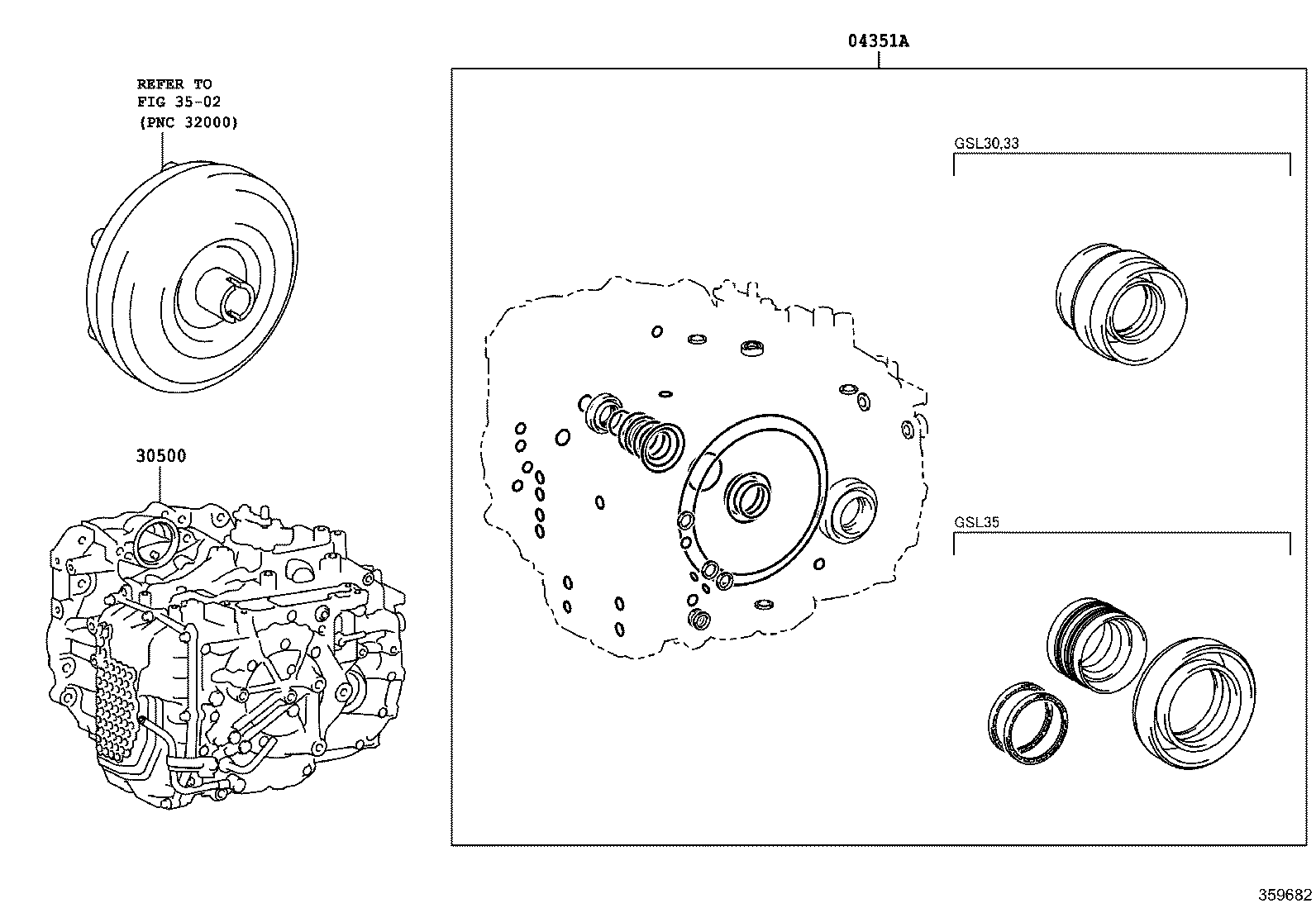

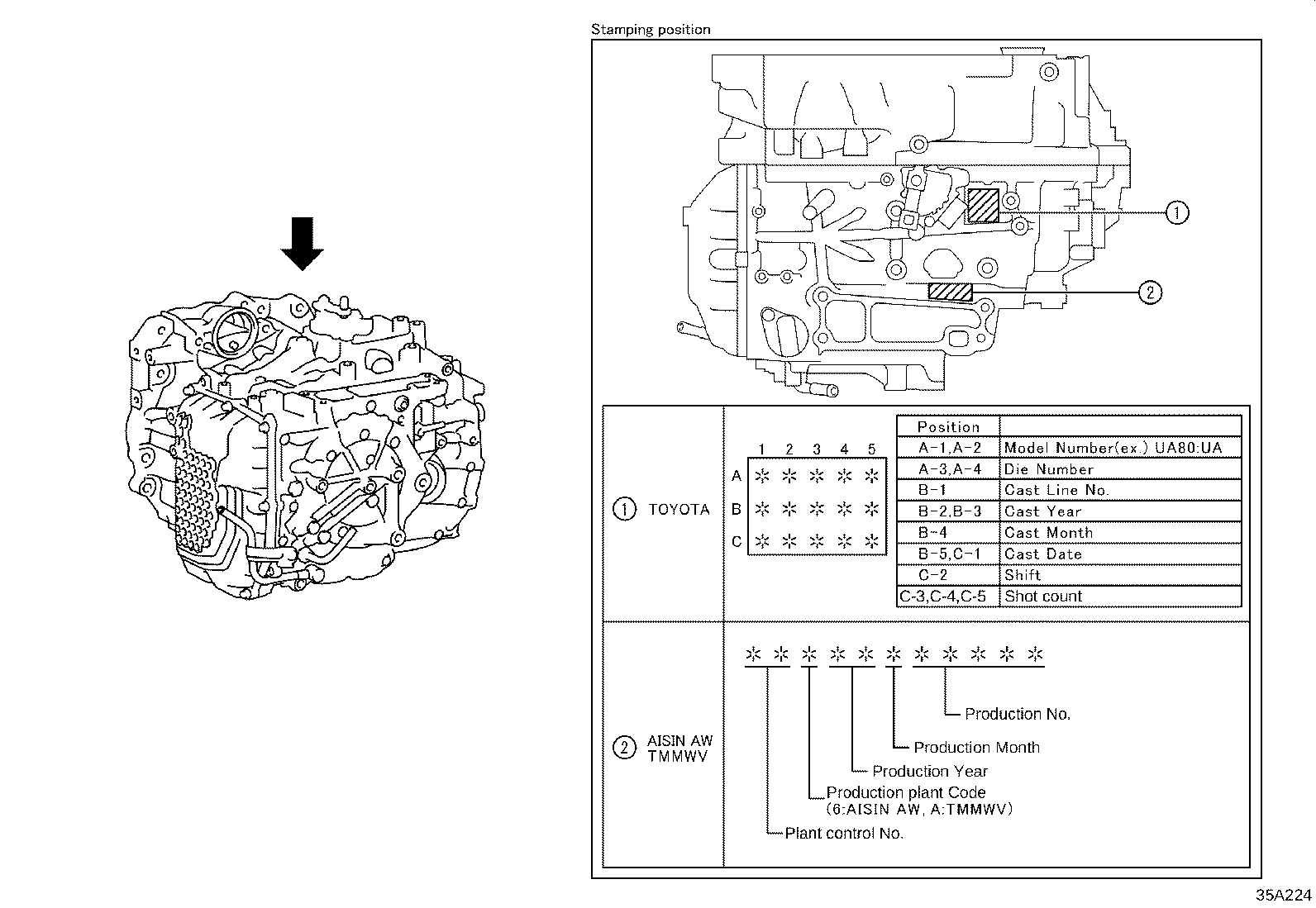

Figure 357630A 357630A 2010-01 → 2016-08 Figure 359682 359682 2016-08 → — Figure 35A224 35A224 2016-08 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
04352A Kit, Transaxle Overhaul(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
