Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09

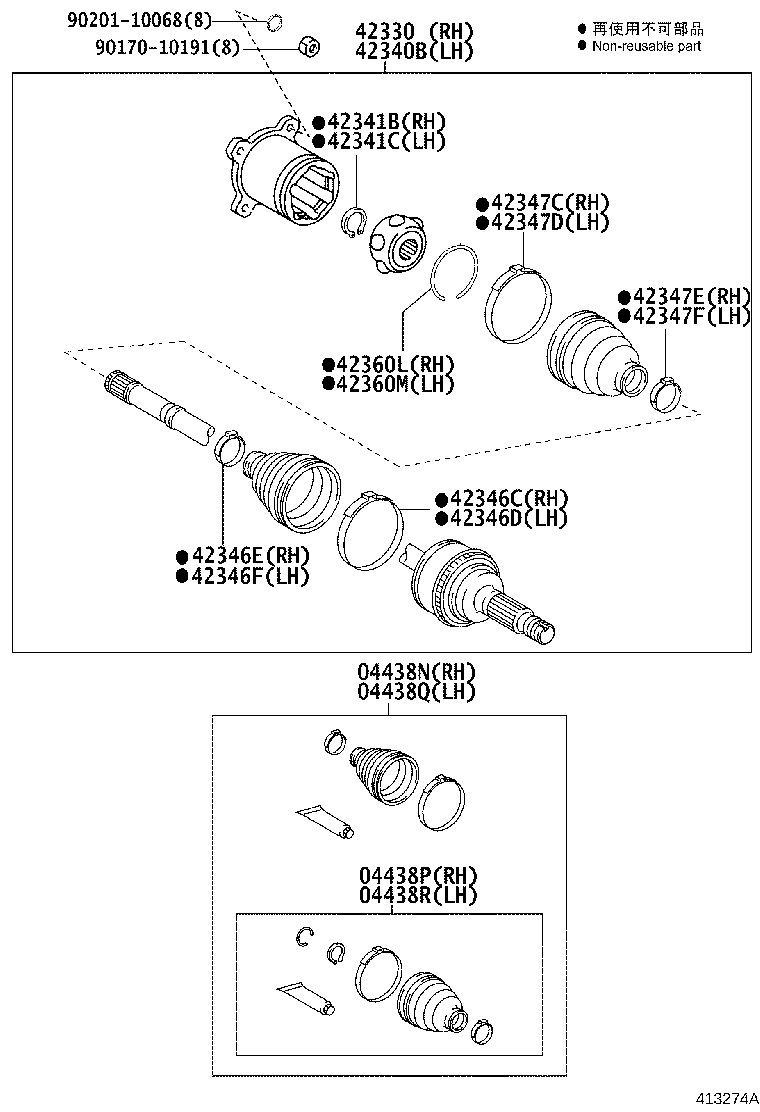

Rear Axle Shaft & Hub

32 part groups · 3 illustrations

PNC	Description
04438N	Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
04438P	Boot Kit, Rear Drive Shaft, Inboard Joint, RH
04438Q	Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
04438R	Boot Kit, Rear Drive Shaft, Inboard Joint, LH
42311N	Nut(FOR REAR AXLE SHAFT RH)
42311U	Bolt, Hub(FOR REAR AXLE RH)
42312B	Nut(FOR REAR AXLE SHAFT LH)
42312E	Bolt, Hub(FOR REAR AXLE LH)
42330	Shaft Assy, Rear Drive, RH
42340B	Shaft Assy, Rear Drive, LH
42341B	Ring, Snap (FOR REAR DRIVE SHAFT RH)
42341C	Ring, Snap (FOR REAR DRIVE SHAFT LH)
42346C	Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346D	Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42346E	Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346F	Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42347C	Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347D	Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347E	Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347F	Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42360L	Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
42360M	Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
42410	Hub & Bearing Assy, Rear Axle, RH
42423A	Retainer, Rear Axle Bearing, Inner RH
42423B	Retainer, Rear Axle Bearing, Inner LH
42424	Retainer, Rear Axle Bearing, Outer, RH
42431	Disc, Rear
42440	Hub & Bearing Assy, Rear Axle, LH
42450A	Hub & Bearing Assy, Rear Axle, RH
42450B	Hub & Bearing Assy, Rear Axle, LH
42454	Retainer, Rear Axle Bearing, Outer, LH
42491	Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
