Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

20 part groups · 3 illustrations

Illustrations

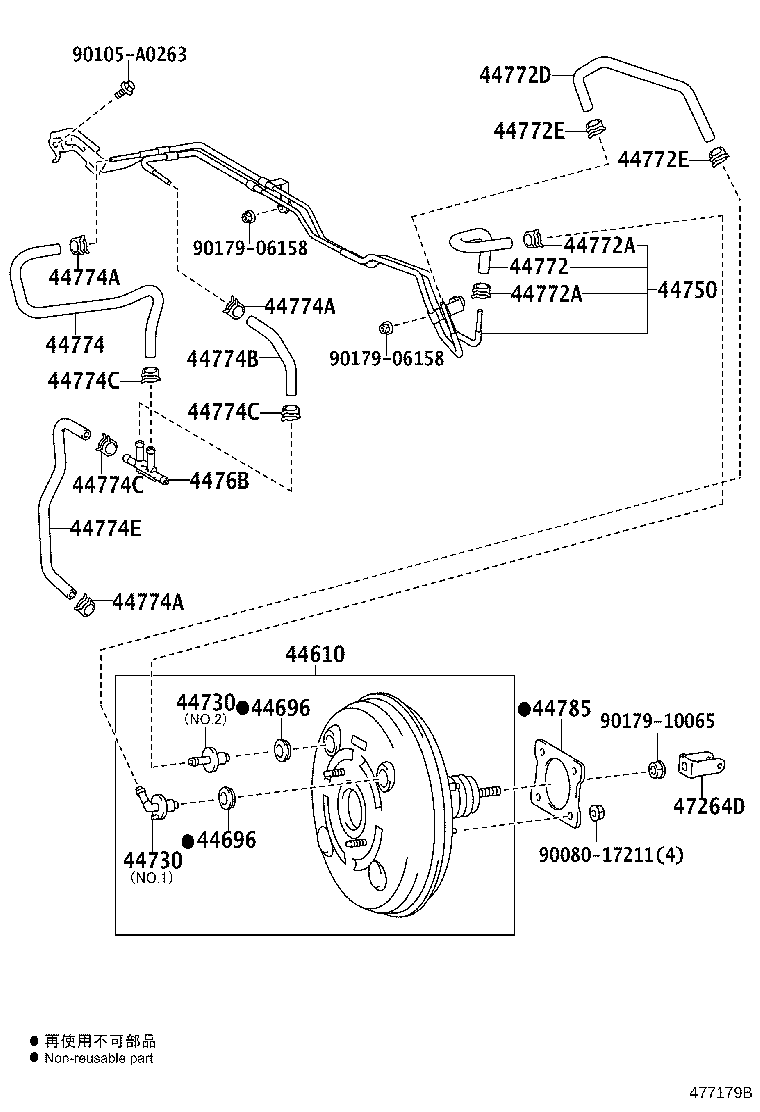

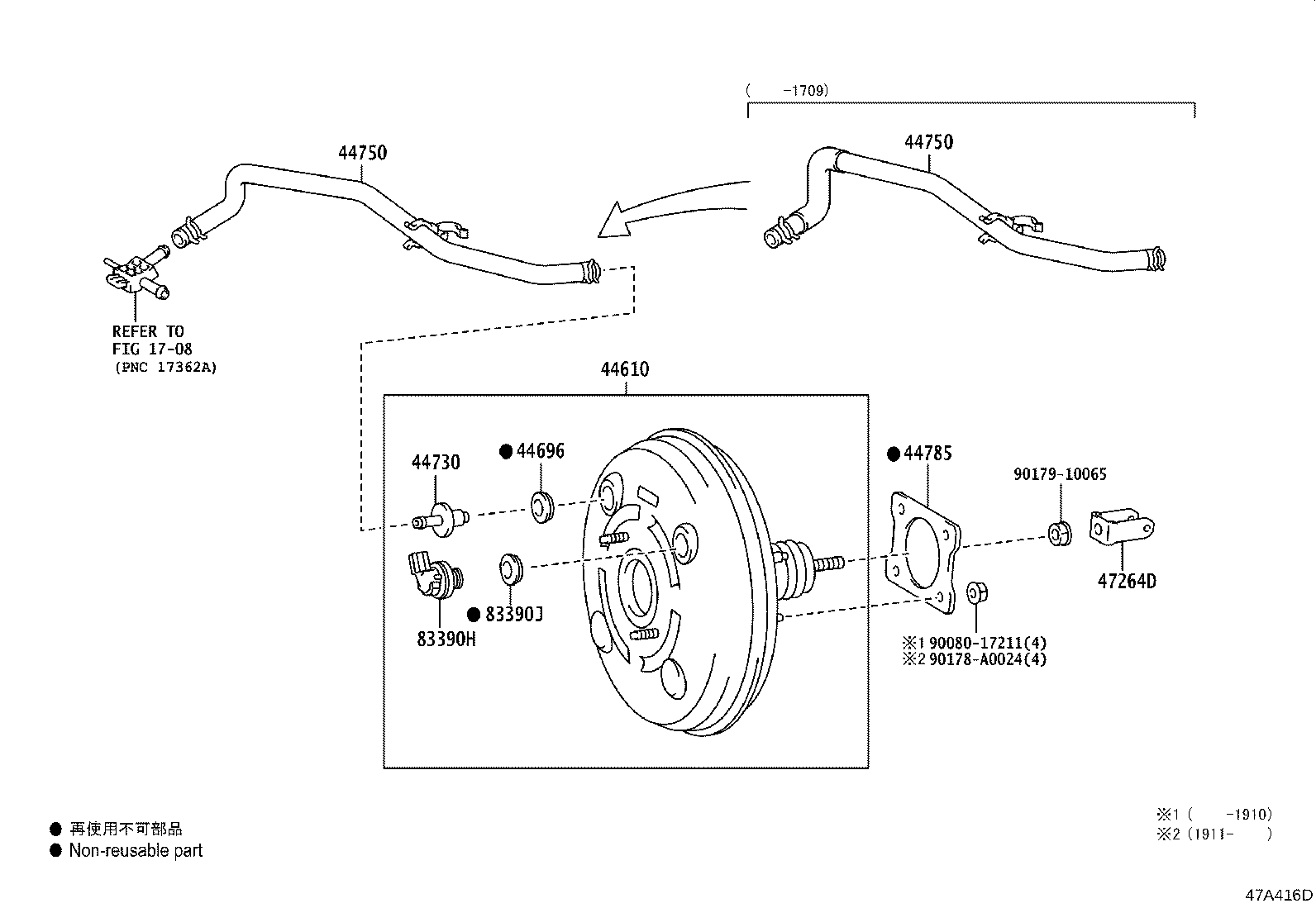

Figure 477178B 477178B 2010-01 → 2016-08 Figure 477179B 477179B 2010-05 → 2016-08 Figure 47A416D 47A416D 2016-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44750 Hose Assy, Vacuum
4476B Ejector, Brake Booster Vacuum
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772D Hose, Check Valve TO Actuator
44772E Clip(FOR CHECK VALVE TO ACTUATOR HOSE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774B Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
83390H Switch Assy, Vacuum Warning
83390J Grommet, Vacuum Warning Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
