Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 5 illustrations

Illustrations

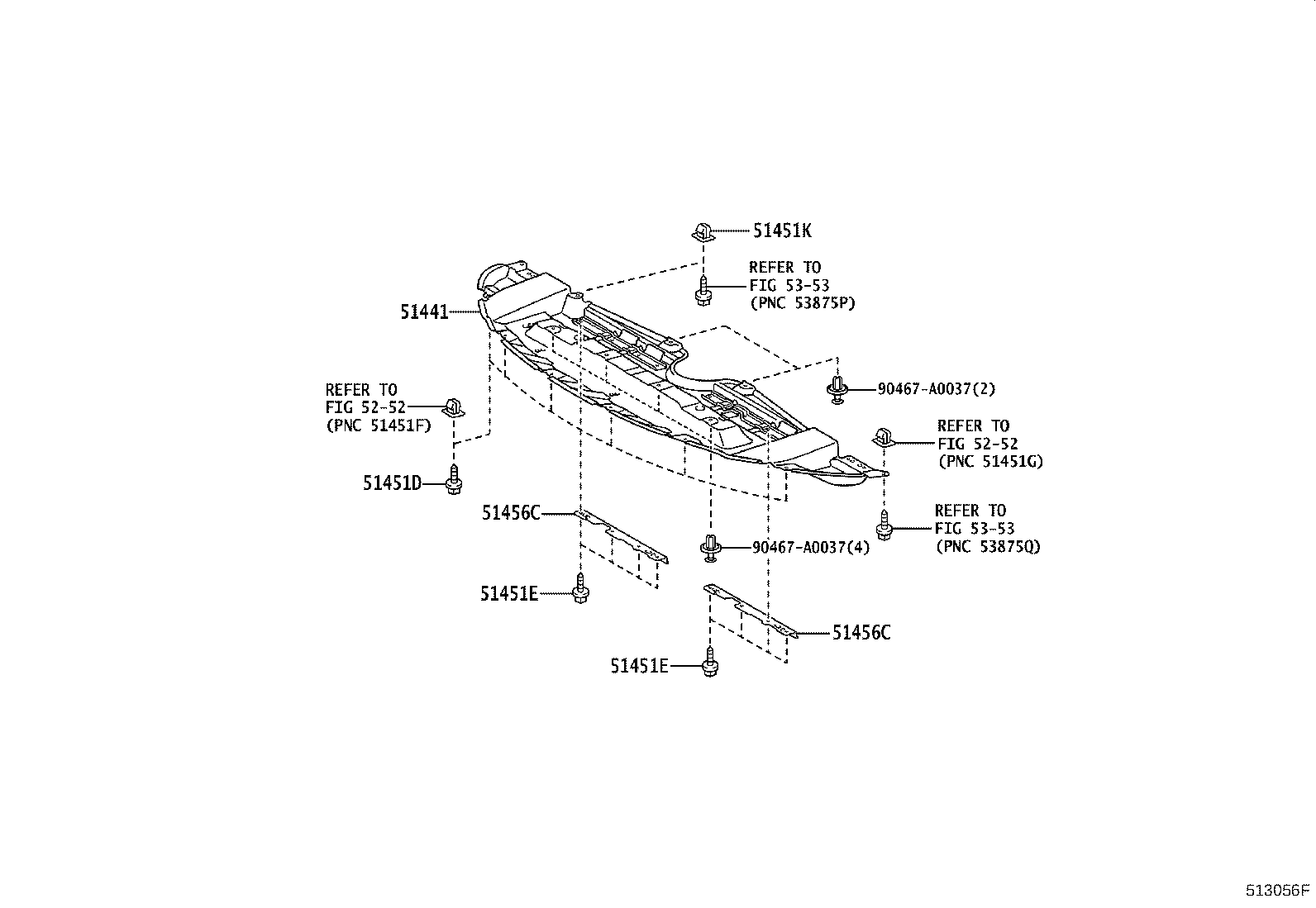

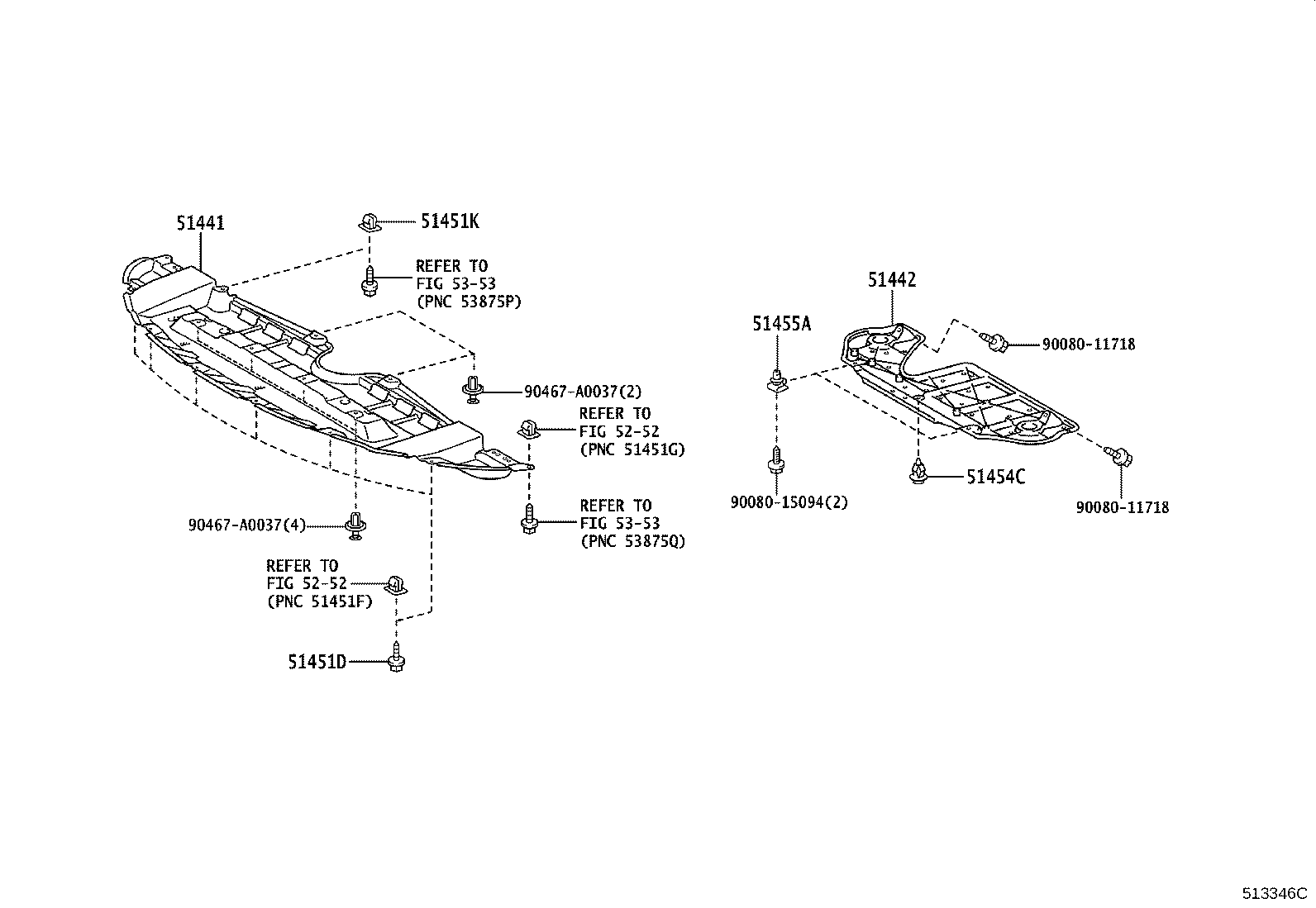

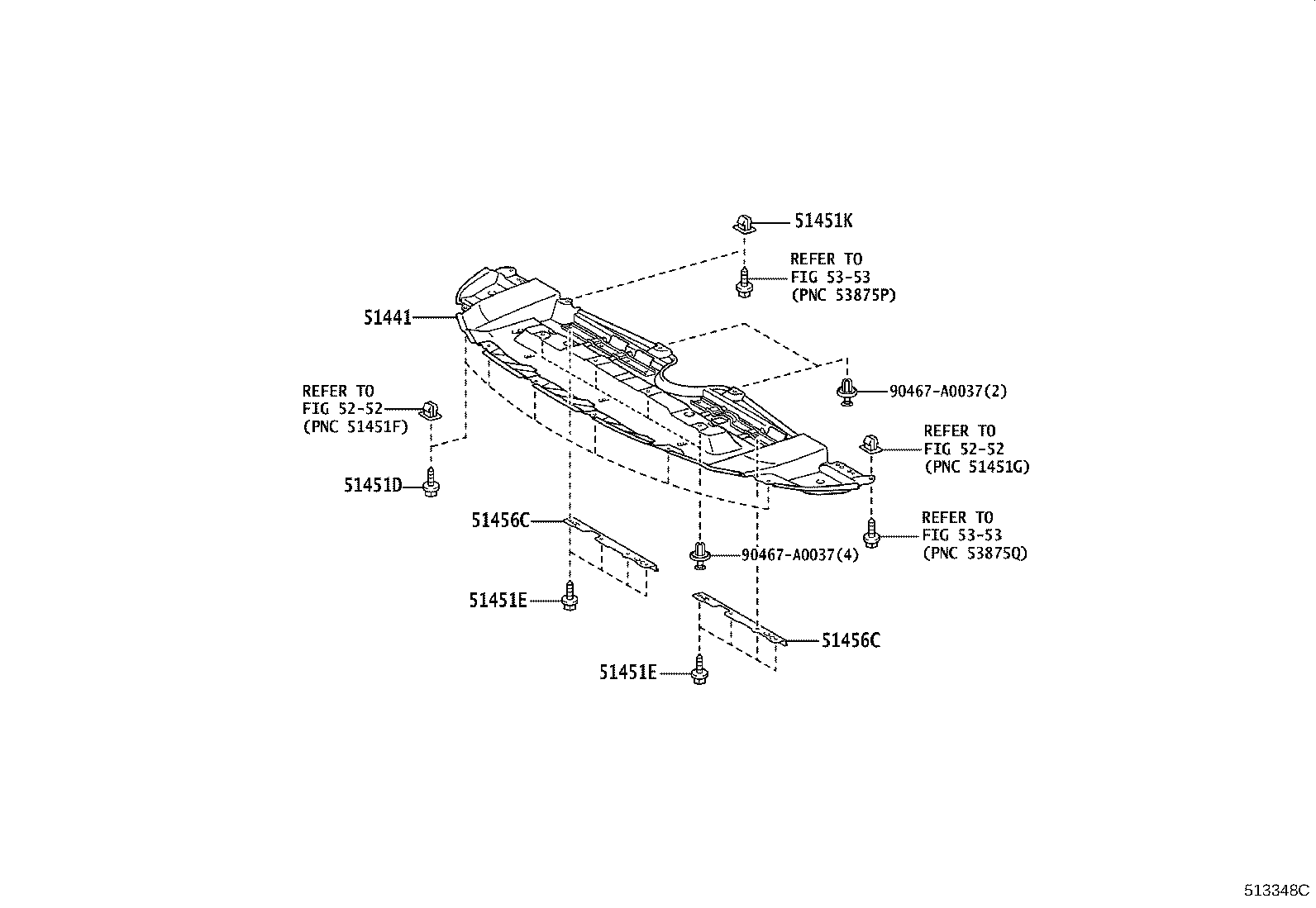

Figure 512026F 512026F 2010-01 → 2016-08 Figure 513348C 513348C 2016-08 → 2017-11 Figure 513056F 513056F 2016-08 → — Figure 513056F 513056F 2017-11 → — Figure 513346C 513346C 2016-08 → —

Part groups

PNCDescription
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51451D Screw, NO.1
51451E Screw, NO.2
51451K Grommet, Screw, NO.1
51454C Silencer, Engine Under Cover, Rear
51455A Seal, Engine Under Cover, NO.1
51456C Seal, Engine Under Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
