Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 12 illustrations

Illustrations

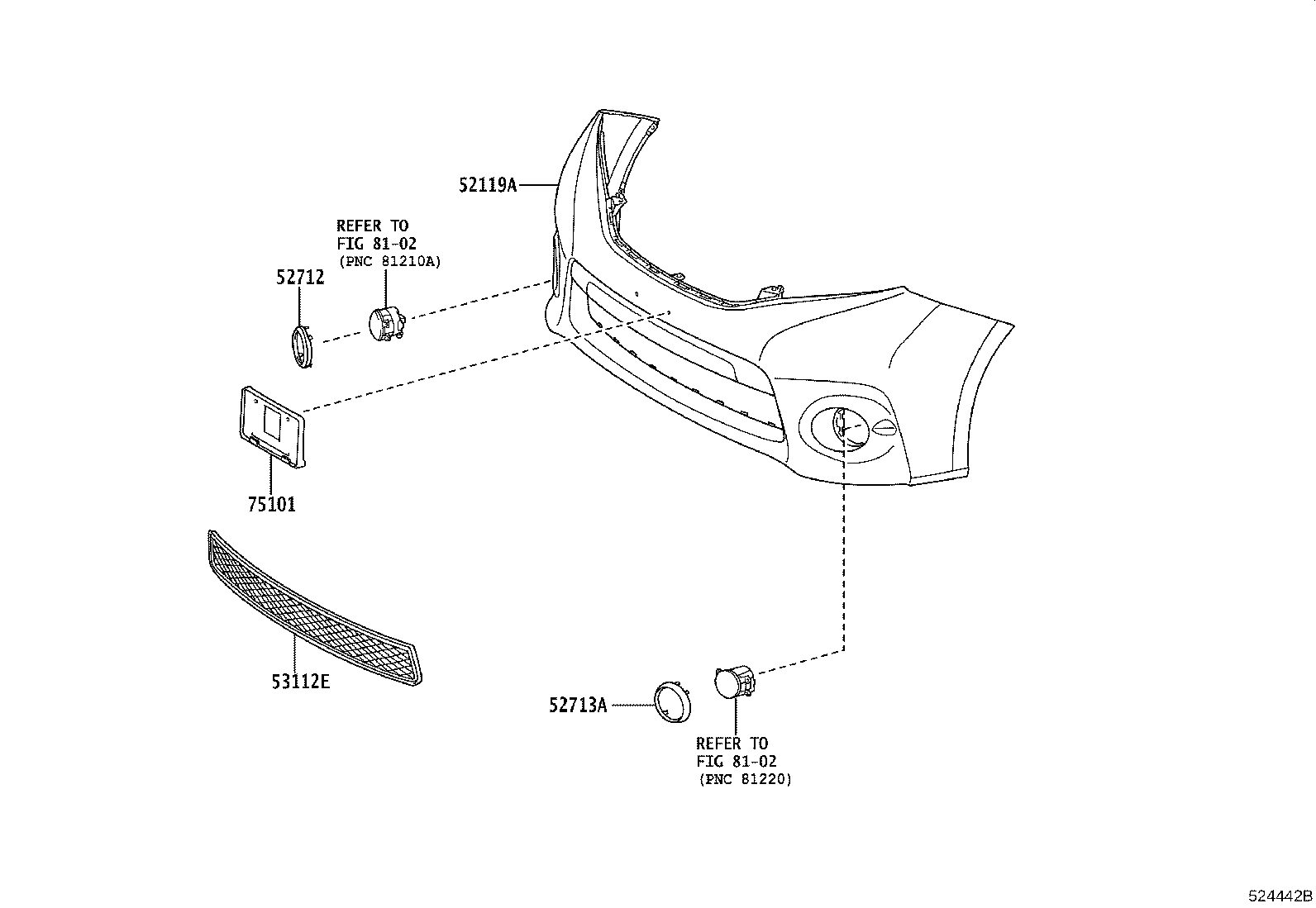

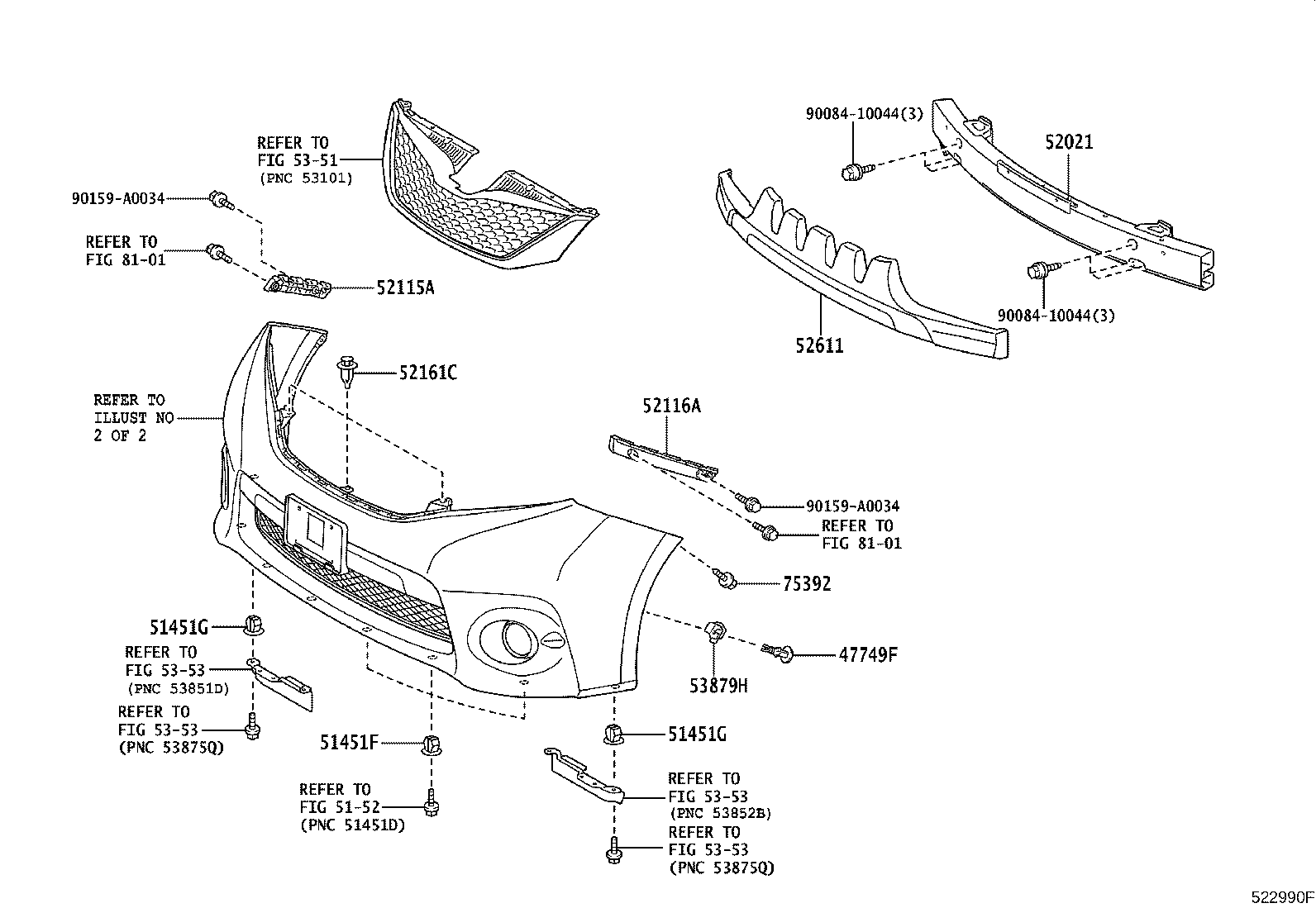

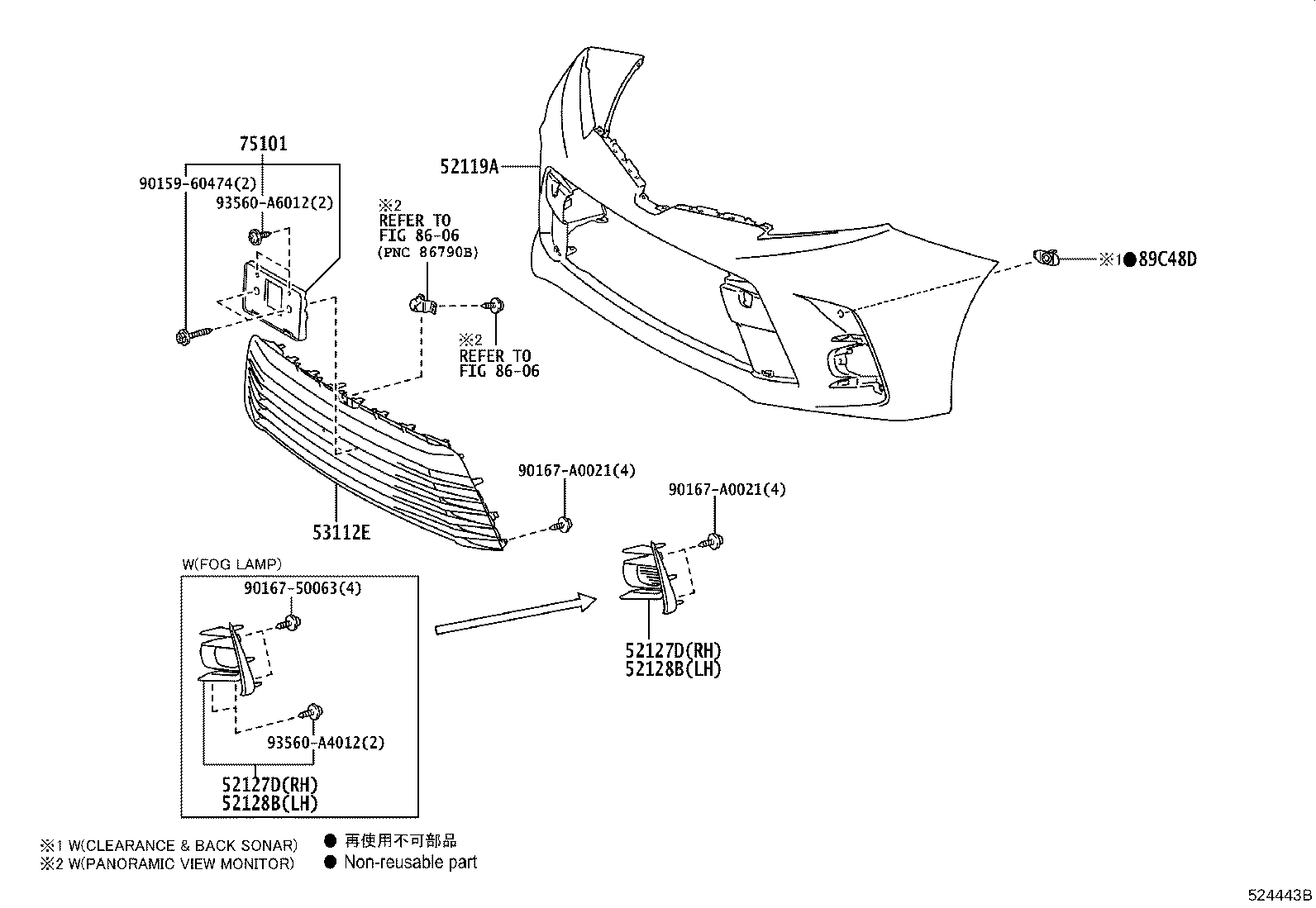

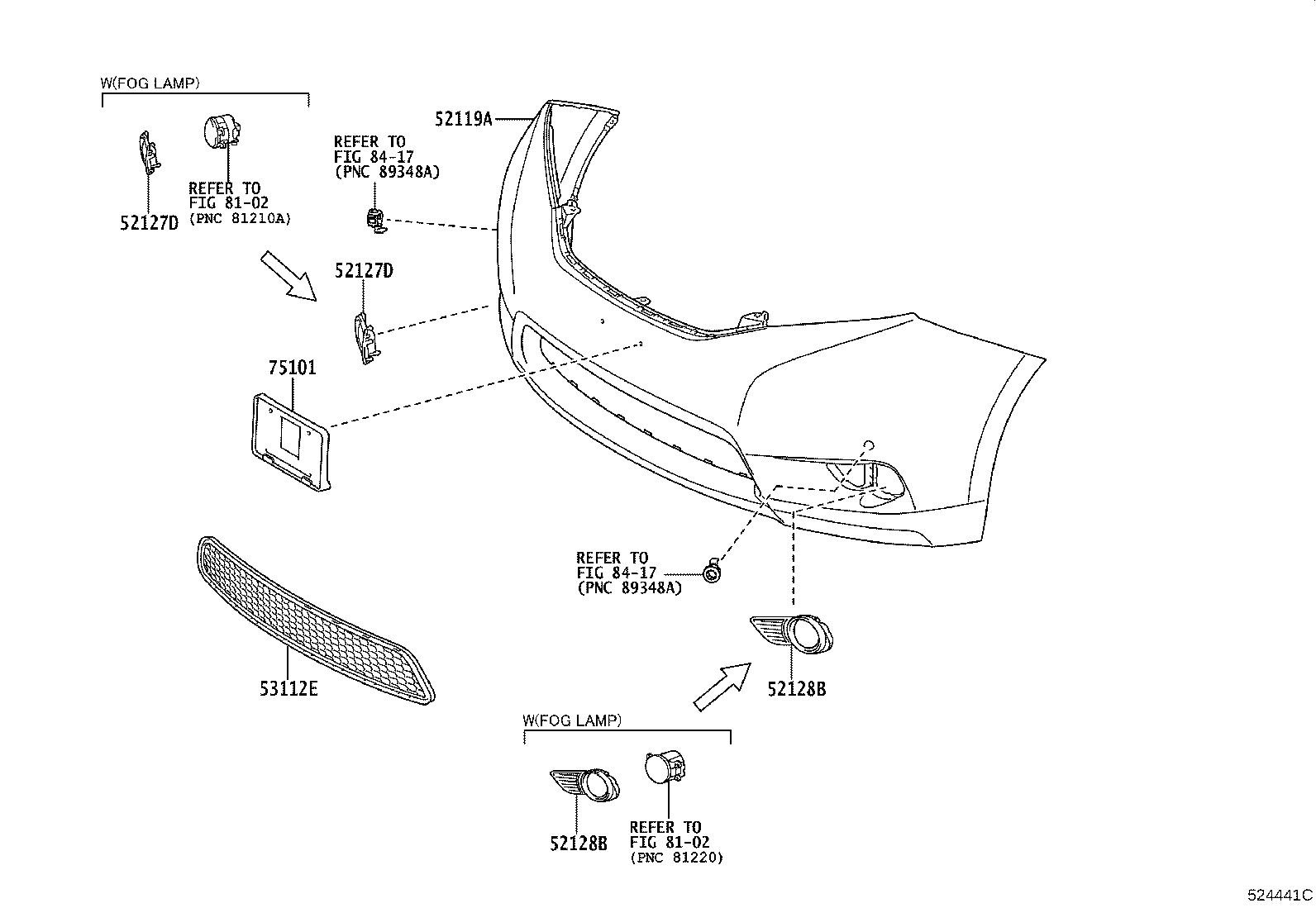

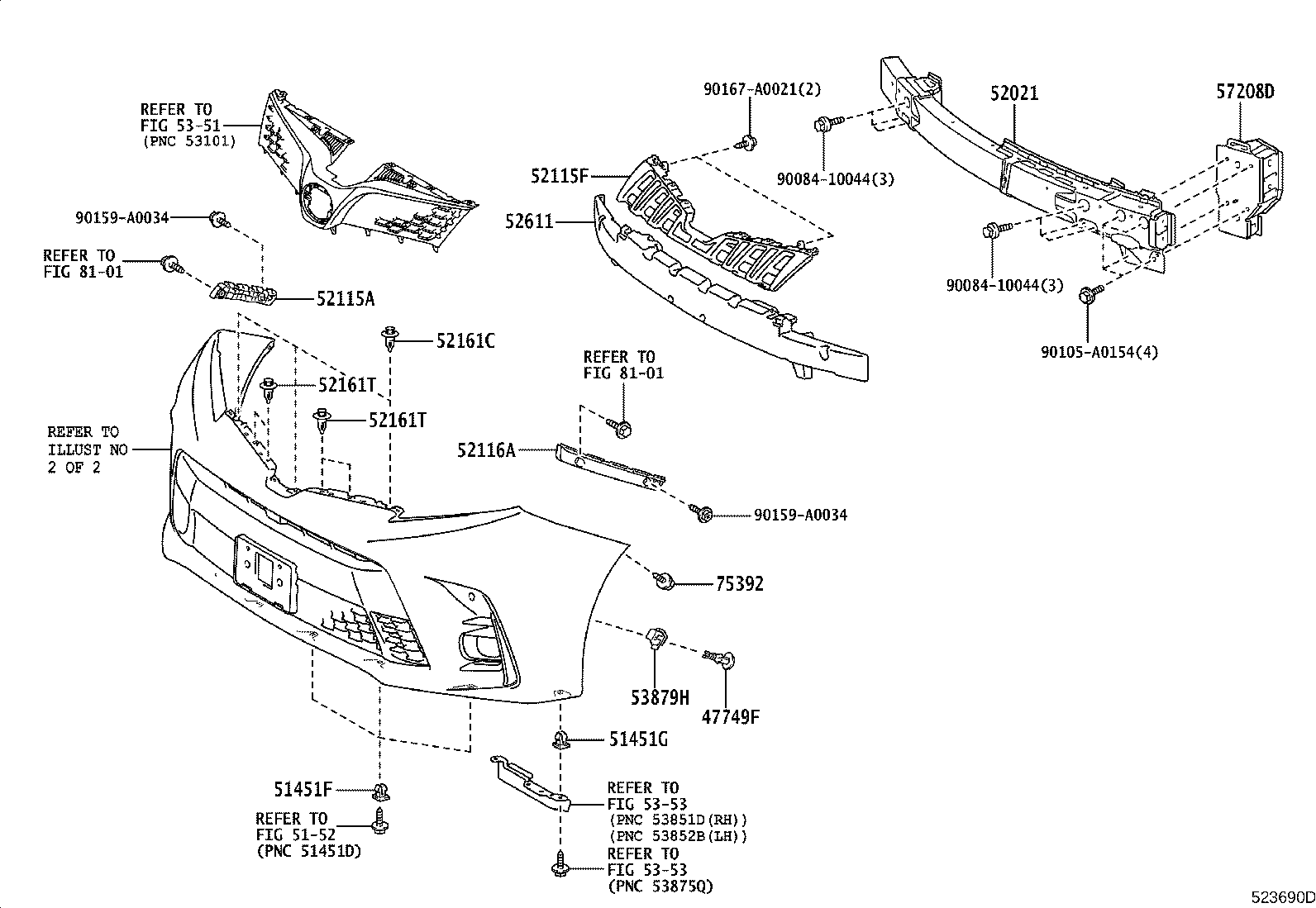

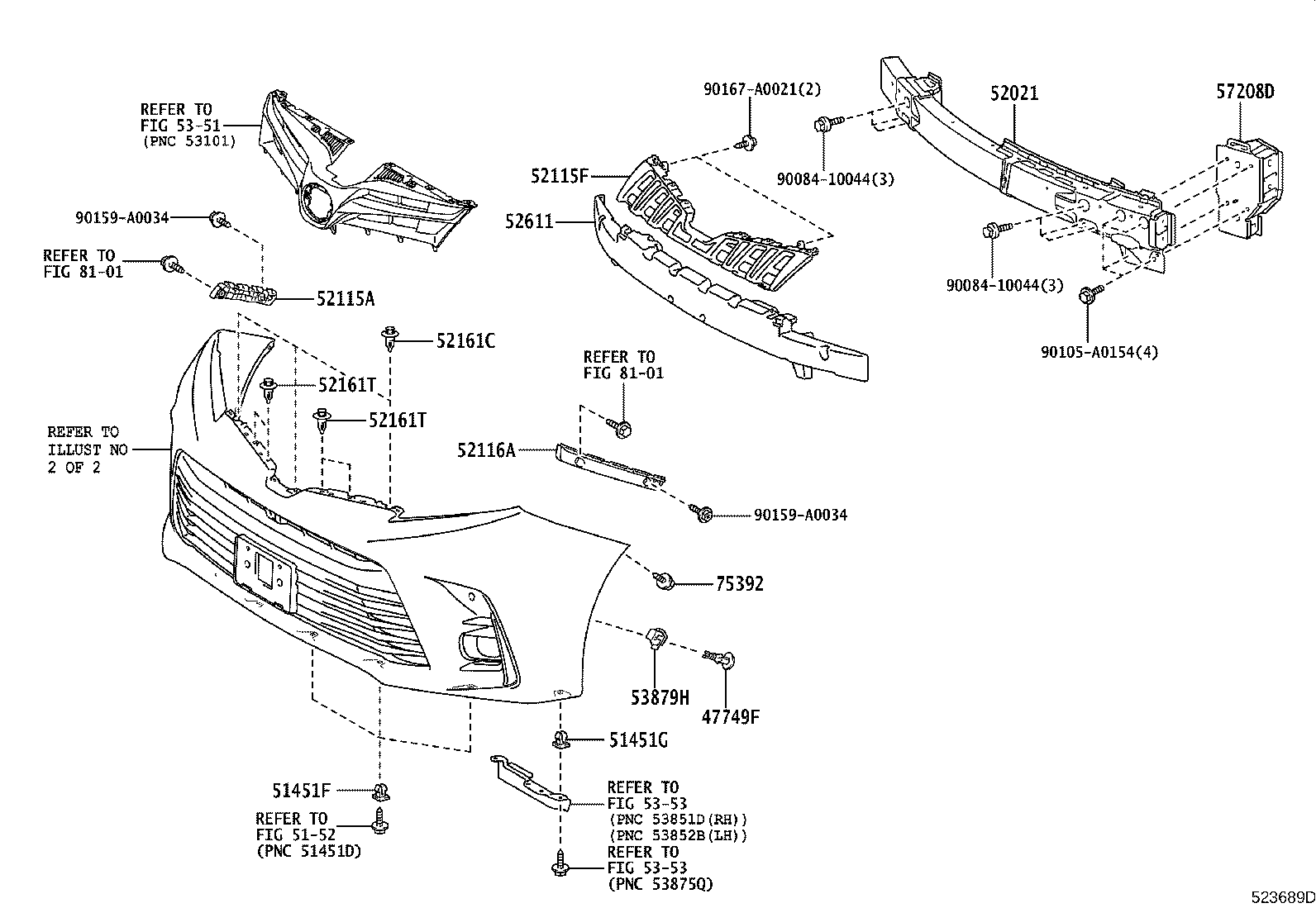

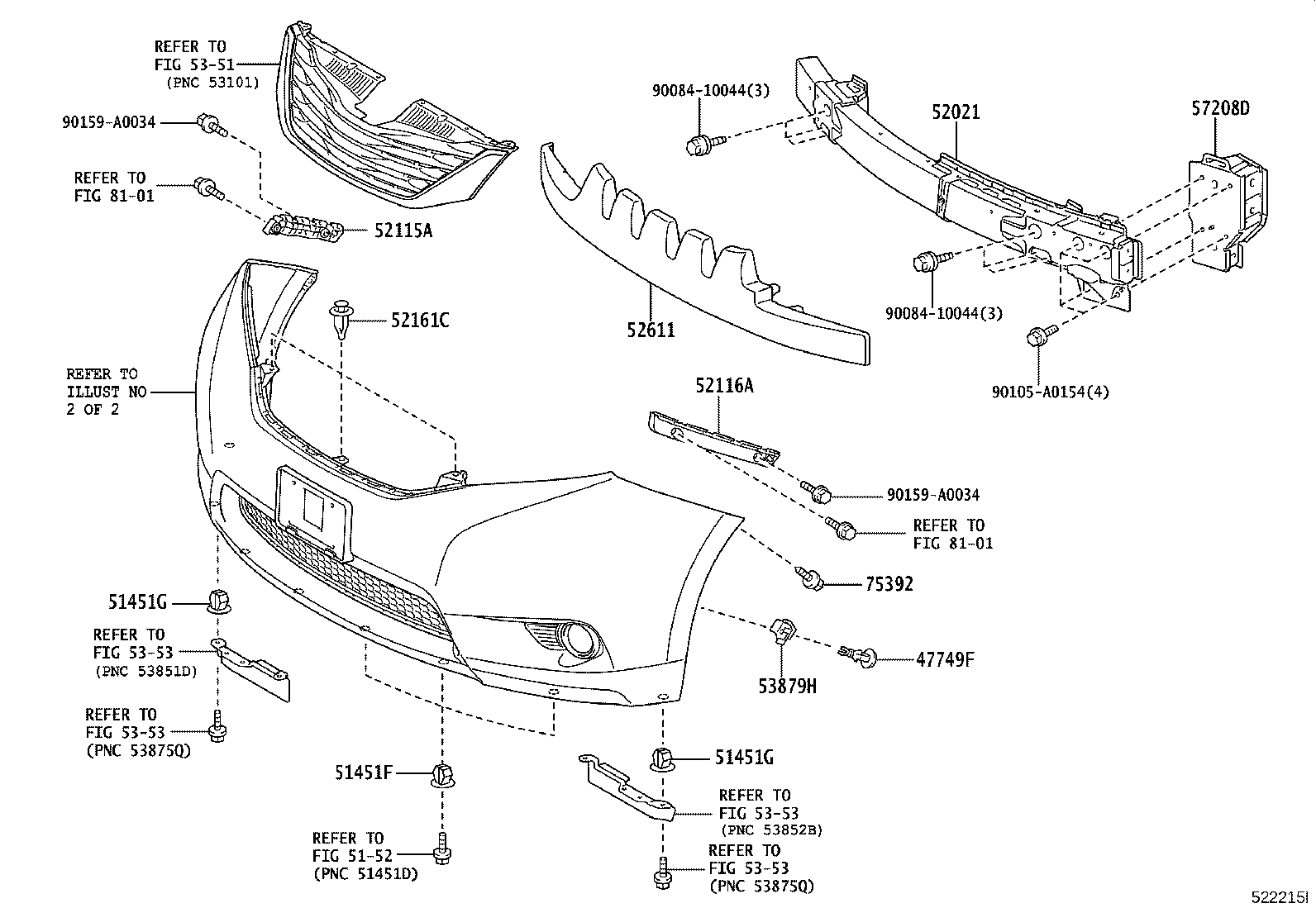

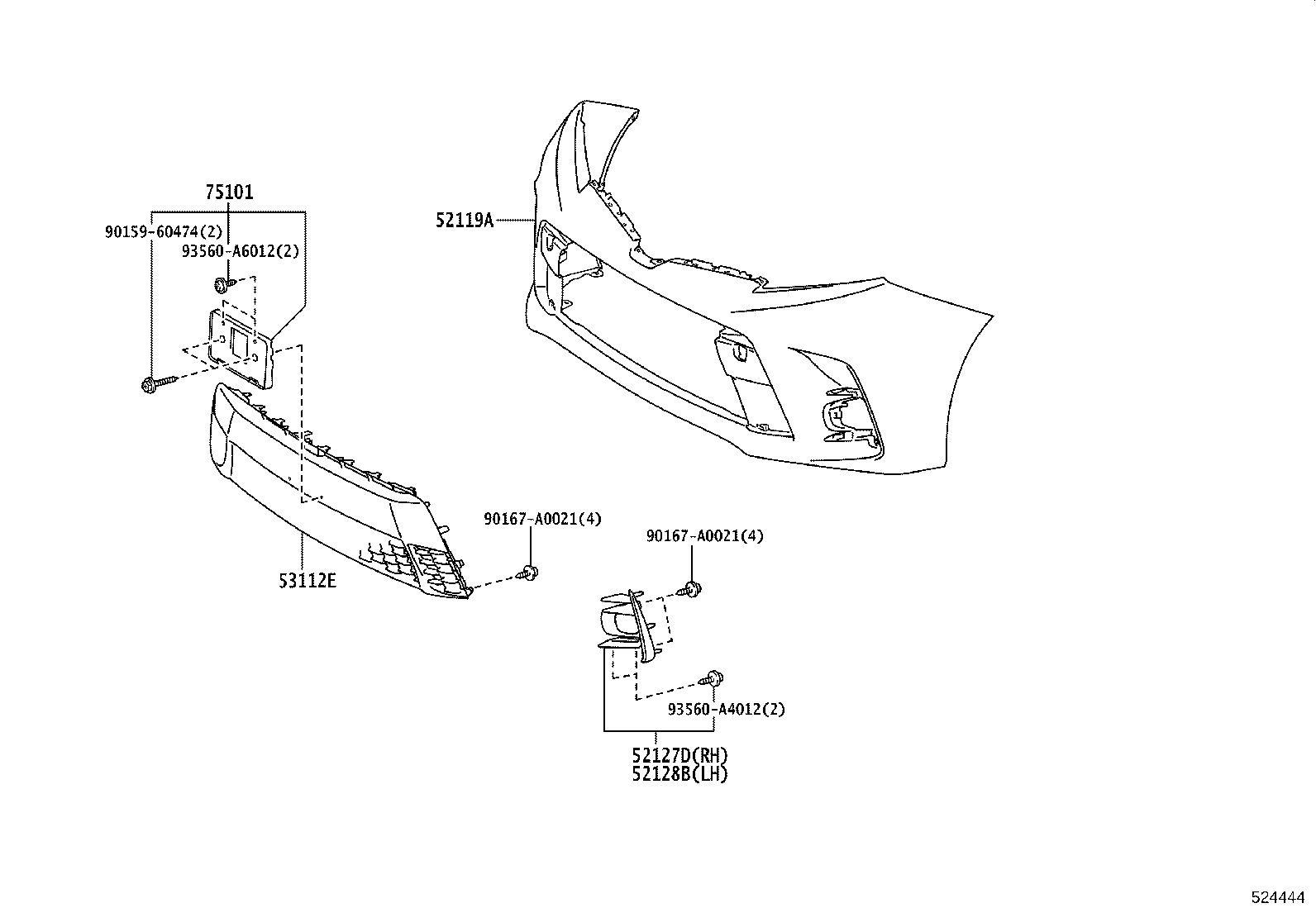

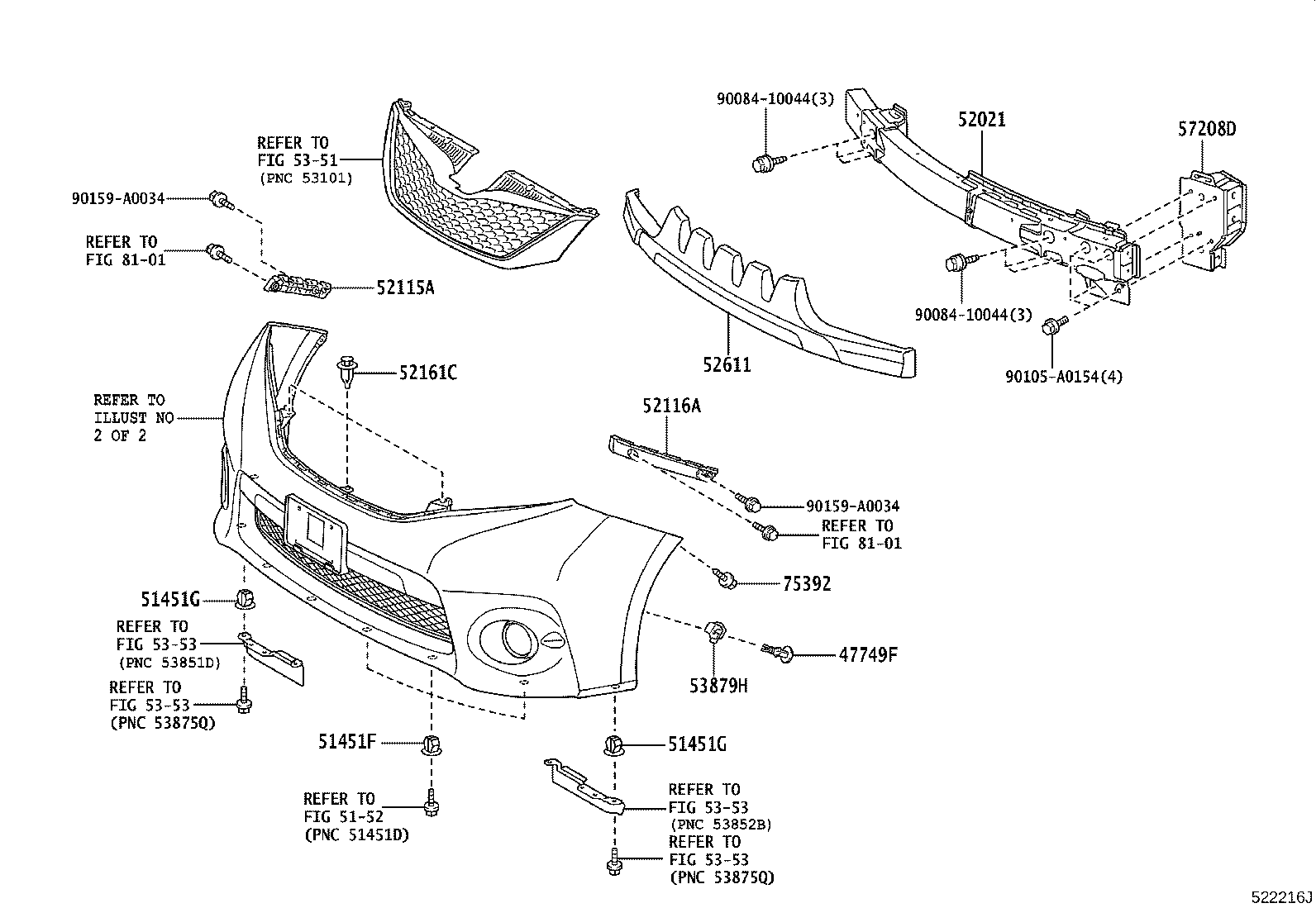

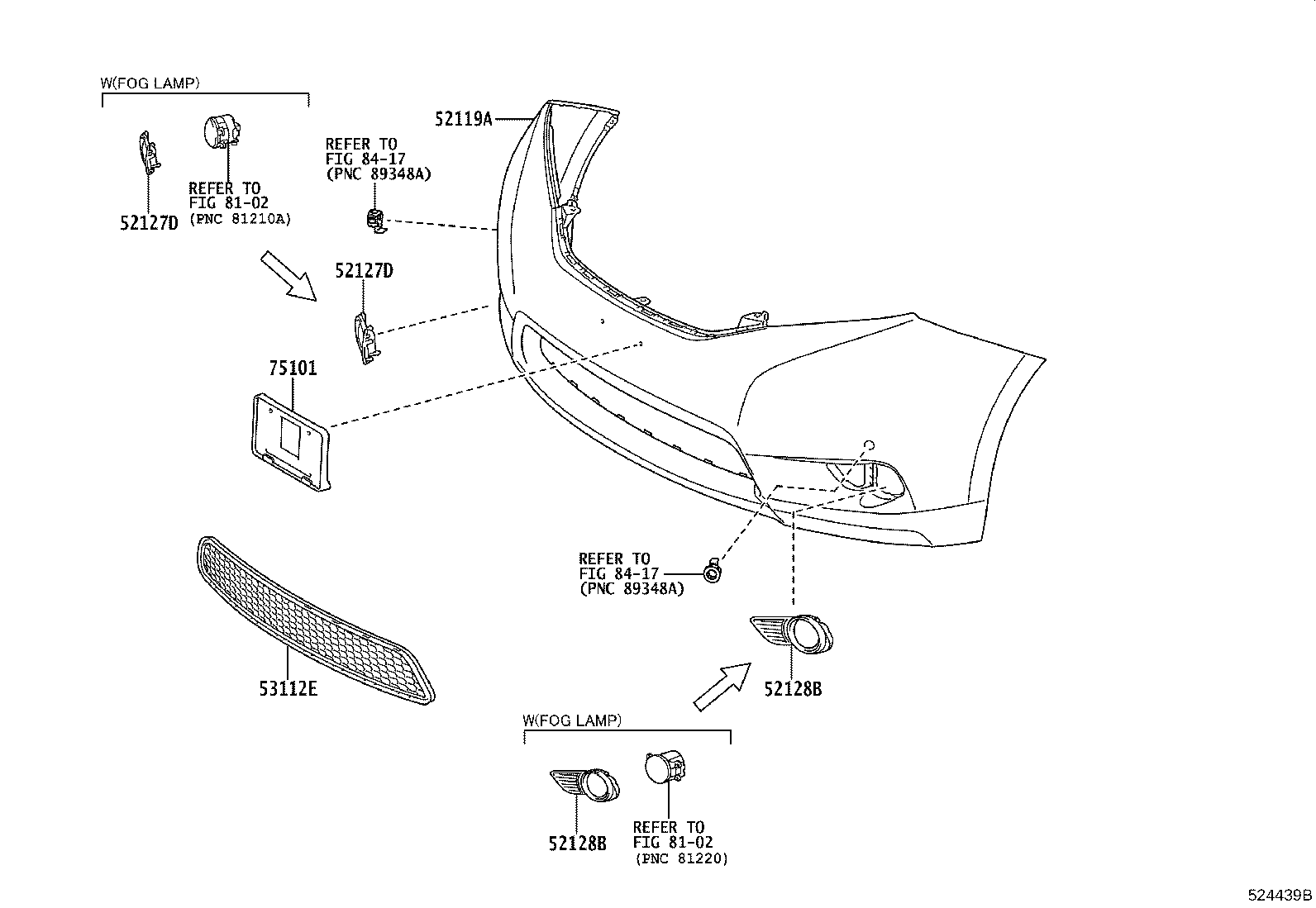

Figure 522989F 522989F 2010-01 → 2014-09 Figure 524439C 524439C 2010-01 → 2014-09 Figure 522990F 522990F 2010-05 → 2014-09 Figure 524440 524440 2010-05 → 2014-09 Figure 522215J 522215J 2014-09 → 2017-11 Figure 524441C 524441C 2014-09 → 2017-11 Figure 522216J 522216J 2014-09 → 2017-11 Figure 524442B 524442B 2014-09 → 2017-11 Figure 523689D 523689D 2017-11 → — Figure 524443B 524443B 2017-11 → — Figure 523690D 523690D 2017-11 → — Figure 524444 524444 2017-11 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
51451G Grommet, NO.2
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52115F Insert, Front Bumper Cover
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
57208D Spacer Sub-assy, Front Bumper Support, NO.2
75101 Bracket Sub-assy, Front License Plate
75392 Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
