Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 4 illustrations

Illustrations

Figure 533179C

533179C 2010-01 → 2017-11

Figure 533180B

533180B 2010-05 → 2017-11

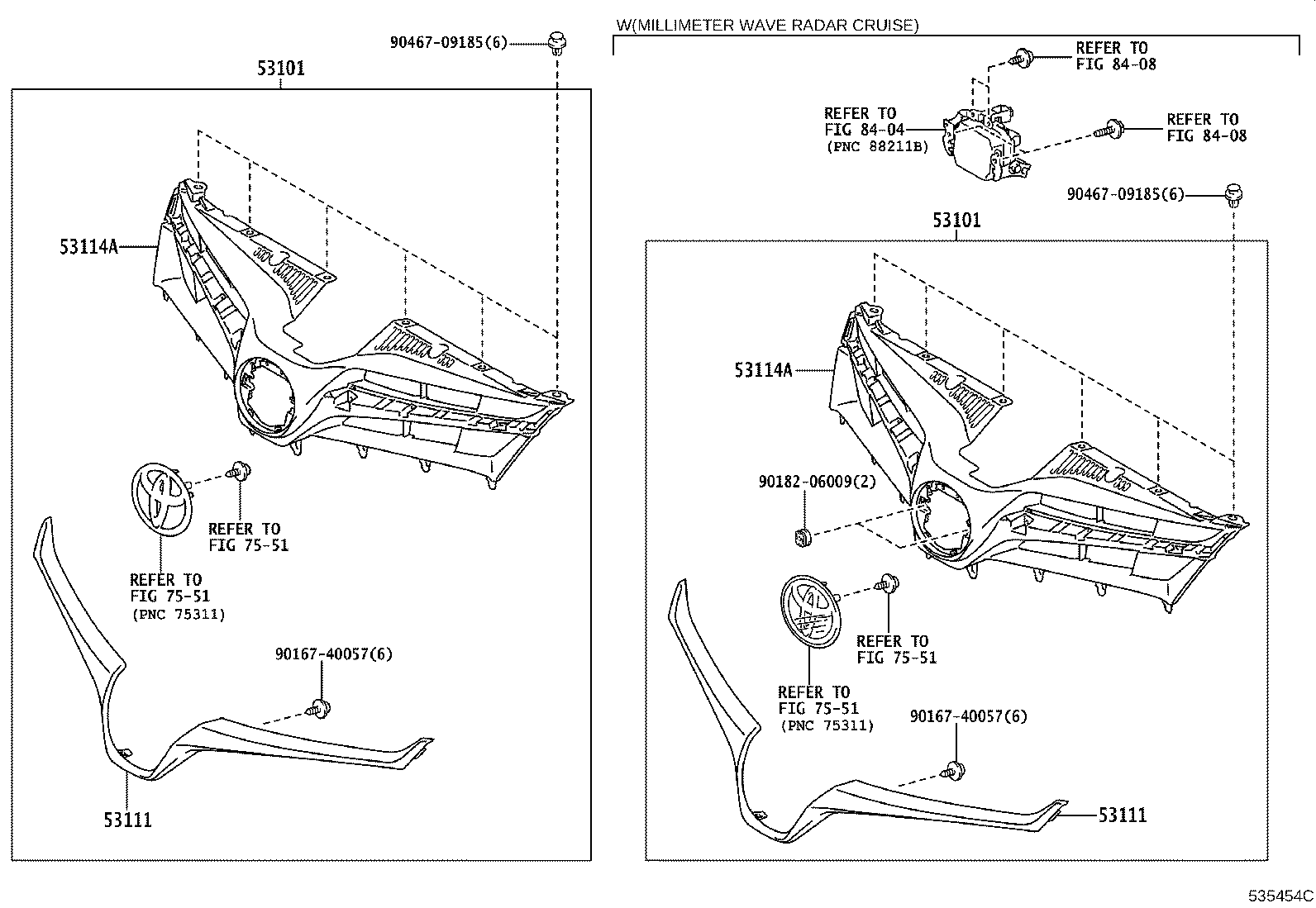

Figure 535454C

535454C 2017-11 → —

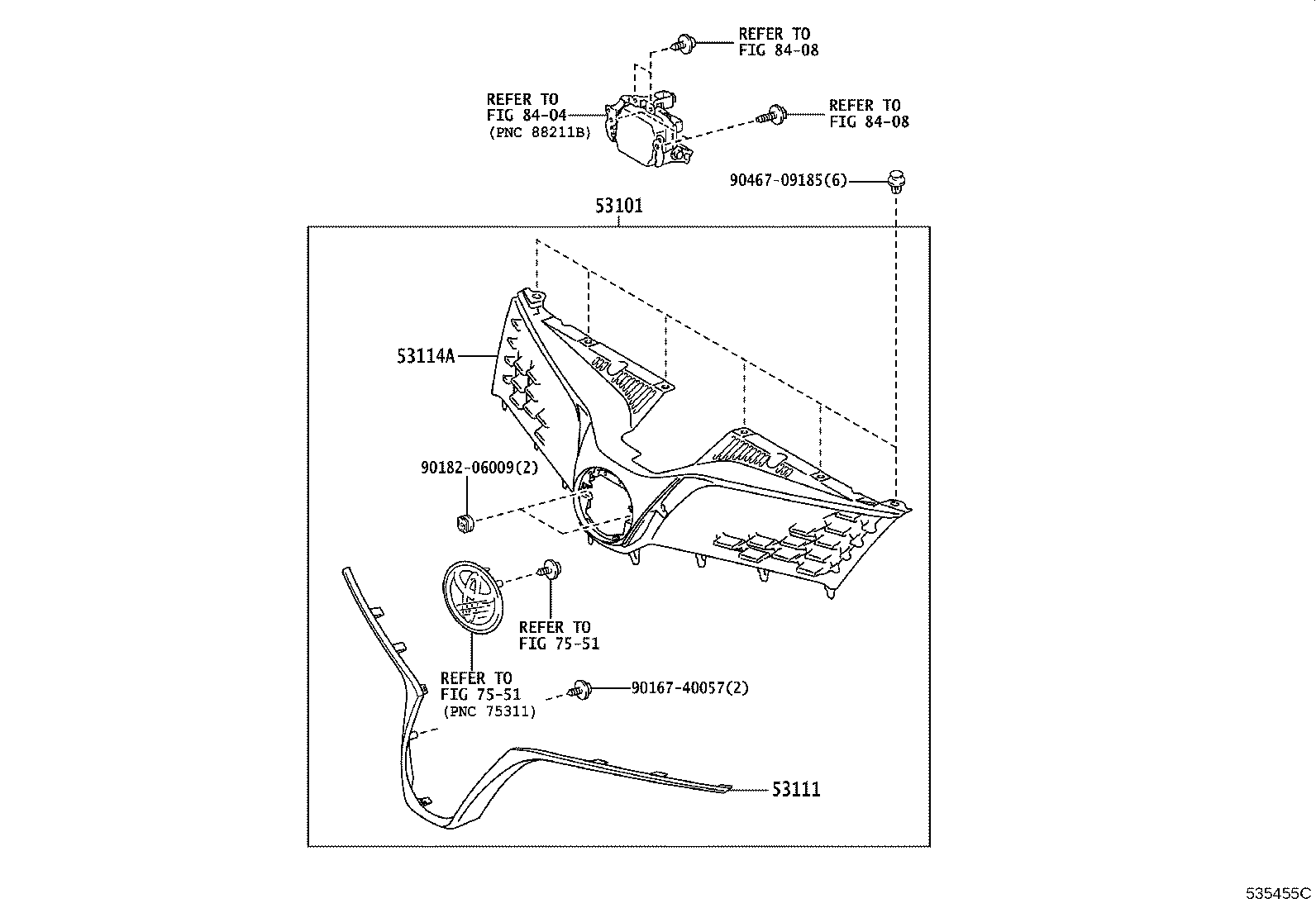

Figure 535455C

535455C 2017-11 → —

Part groups

PNC	Description
53101	Grille Sub-assy, Radiator
53111	Grille, Radiator
53114A	Grille, Radiator, Inner
53114B	Grille, Radiator, Upper
53141C	Garnish, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
