Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

23 part groups · 2 illustrations

Illustrations

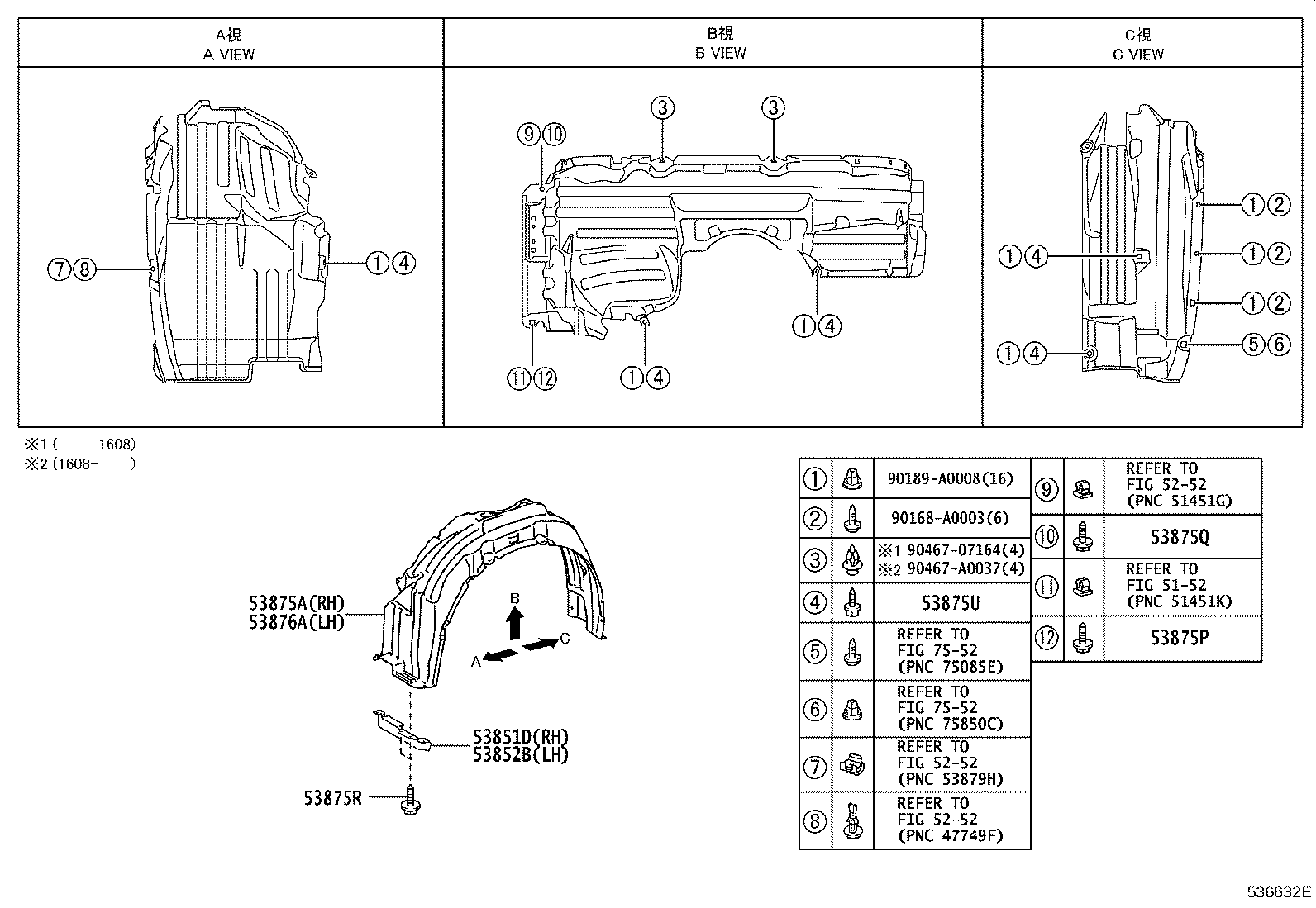

Figure 533185Q 533185Q 2010-01 → — Figure 536632E 536632E 2010-01 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53326A Clip, Hood Moulding
53326B Clip, Hood Moulding
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388D Seal, Hood TO Front Fender, RH
53388F Retainer, Hood TO Front Fender Seal
53389B Seal, Hood TO Front Fender, LH
53389D Retainer, Hood TO Front Fender Seal
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53813D Extension, Front Fender
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53875Q Screw, NO.2
53875R Screw, NO.3
53875U Screw, NO.4
53876A Liner, Front Fender, LH
53882H Seal, Front Fender Main, RH
53883F Seal, Front Fender Main, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
