Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

23 part groups · 2 illustrations

Illustrations

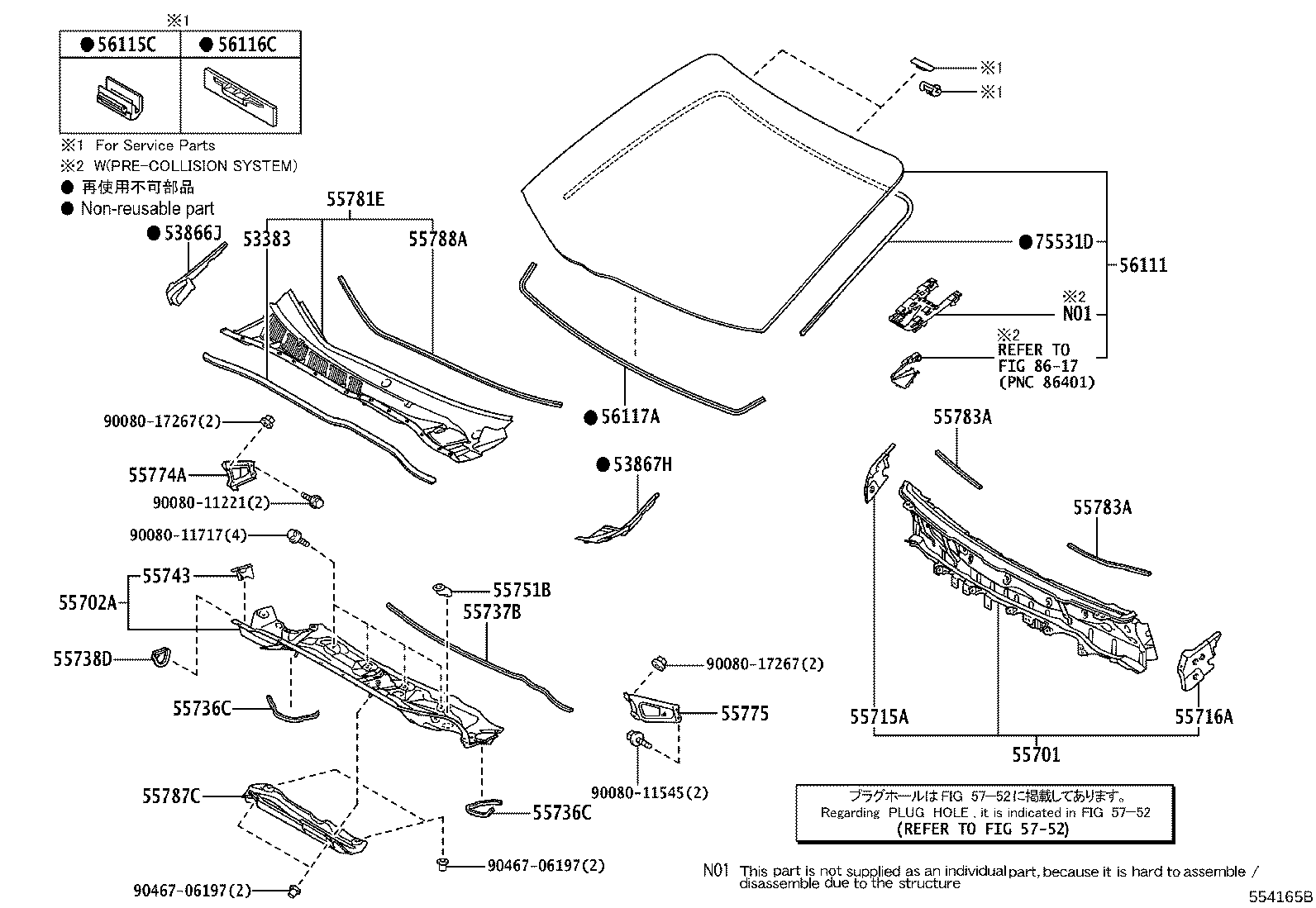

Figure 554160B 554160B 2010-01 → 2017-11 Figure 554165B 554165B 2017-11 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55701 Panel Sub-assy, Cowl
55702A Panel Sub-assy, Cowl Top, Outer Front
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55736C Seal, Water Guard Plate
55737B Seal, Heater Air Duct Splash Shield, NO.1
55738D Seal, Heater Air Duct Splash Shield, NO.2
55743 Panel, Cowl Top Outside Corner, RH
55751B Hose, Cowl Water Extract, NO.1
55774A Bracket, Cowl Top Inner TO Pillar Brace, RH
55775 Bracket, Cowl Top Inner TO Pillar Brace, LH
55781E Louver Sub-assy, Cowl Top Ventilator
55783A Pad, Cowl Top Silencer
55787C Insulator, Cowl Top Panel, NO.1
55788A Protector, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115C Stopper, Windshield Glass
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
75531D Moulding, Windshield, Outside Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
