Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

17 part groups · 4 illustrations

Illustrations

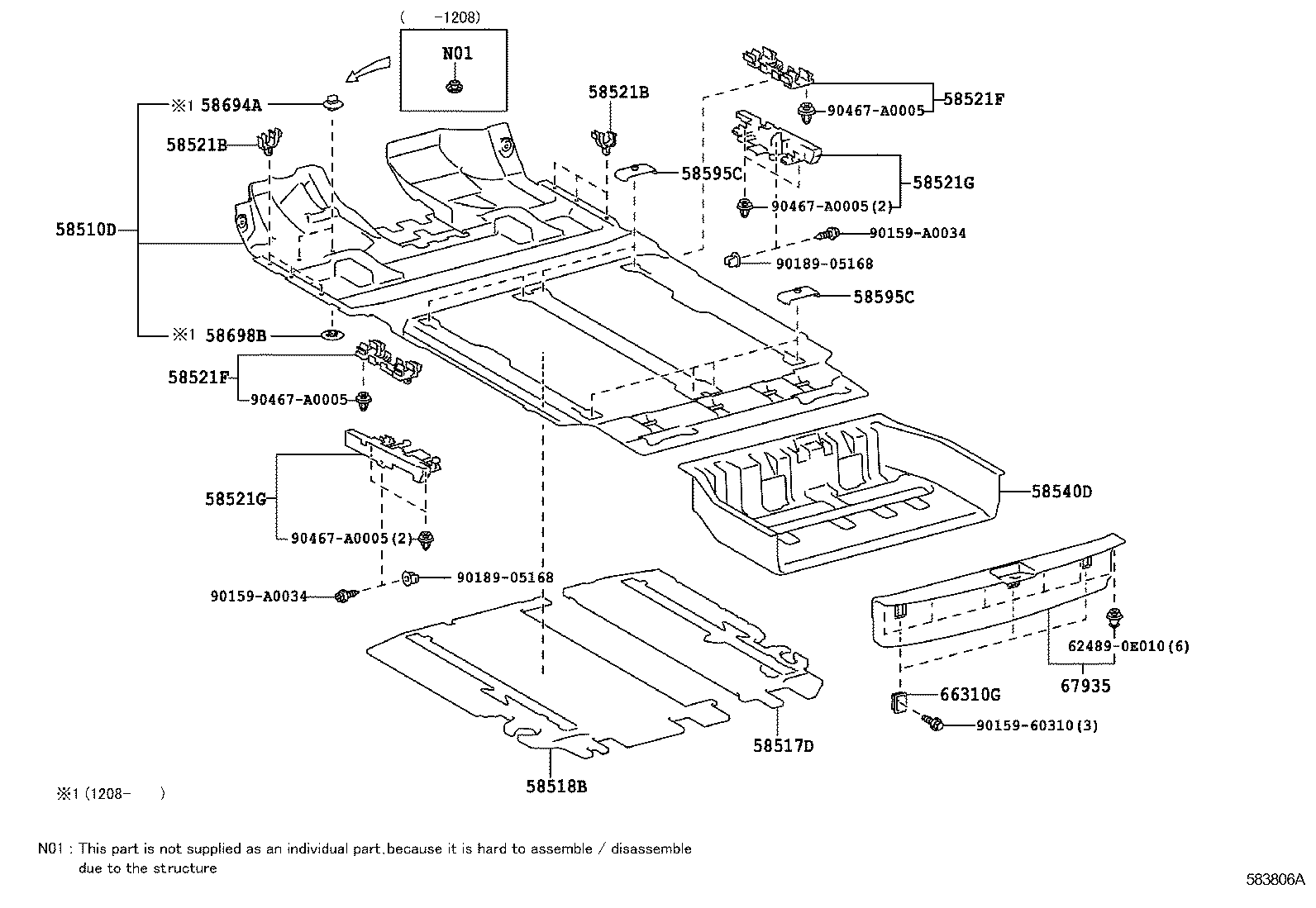

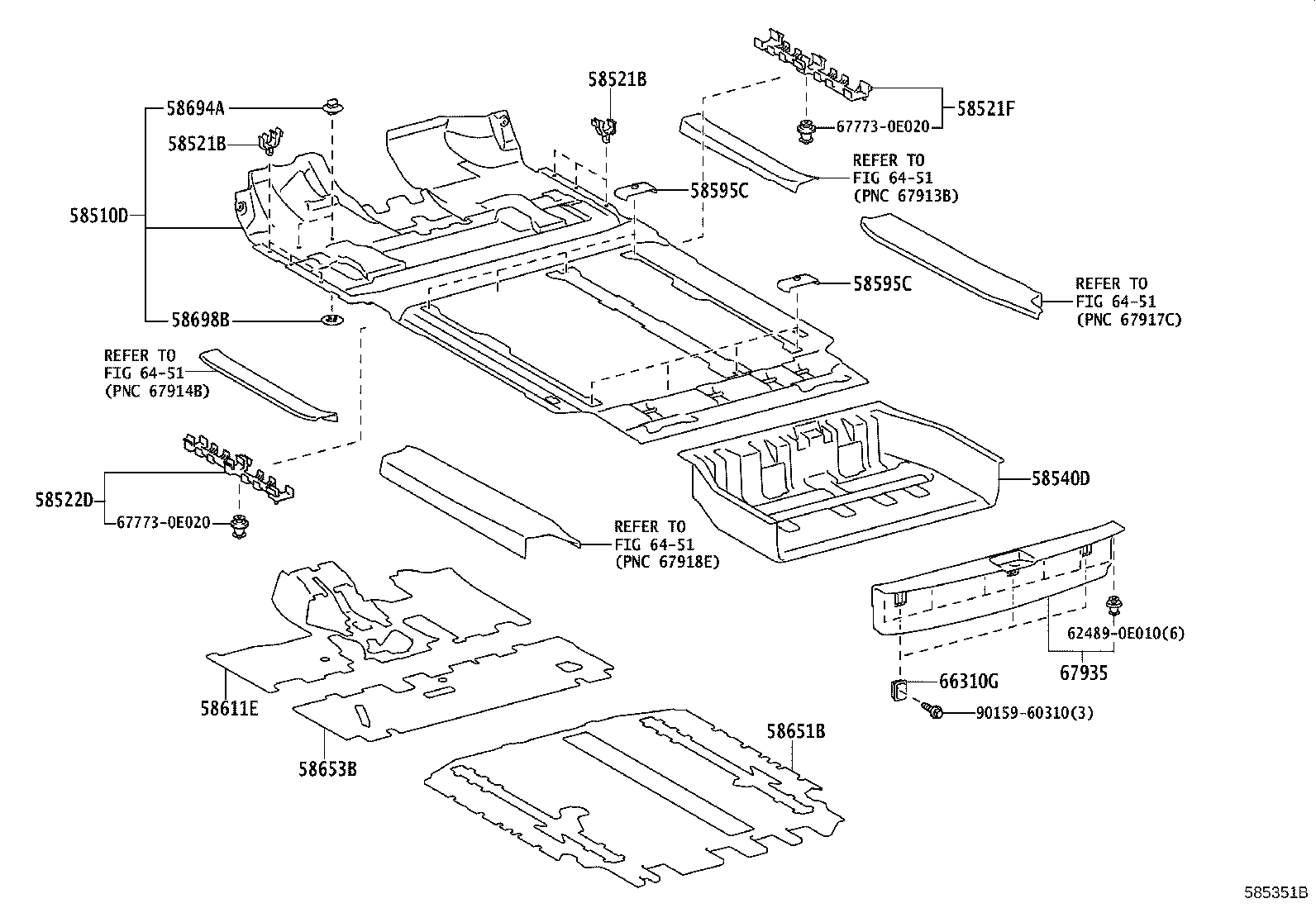

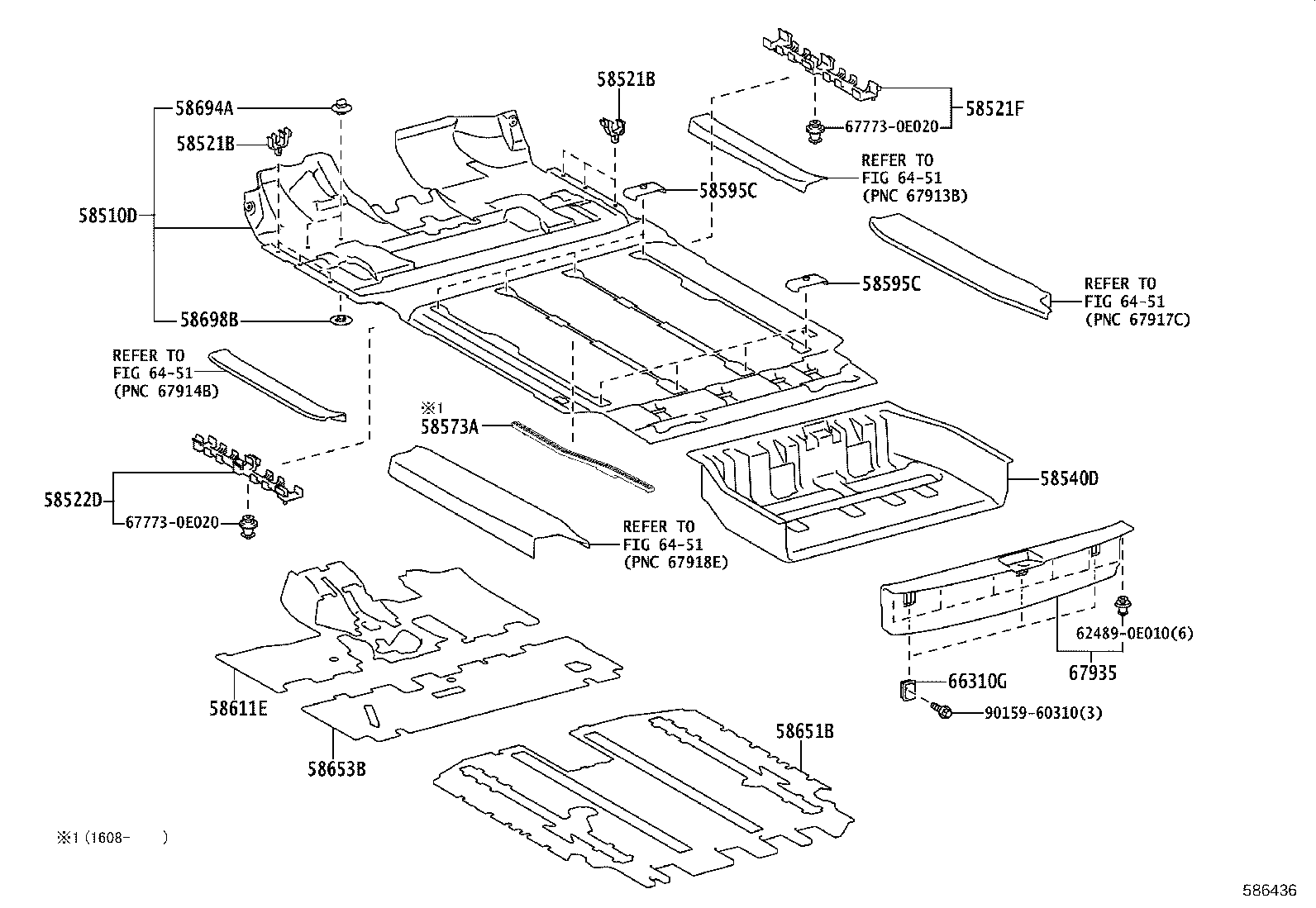

Figure 583805A 583805A 2010-01 → 2014-09 Figure 583806A 583806A 2010-01 → 2014-09 Figure 586436 586436 2014-09 → — Figure 585351B 585351B 2014-09 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58517D Mat, Rear Floor
58518B Mat, Rear Floor, NO.2
58521B Hook, Floor Carpet
58521F Hook, Floor Carpet
58521G Hook, Floor Carpet
58522D Hook, Floor Carpet, NO.2
58540D Carpet Assy, Floor, Rear
58573A Plate, Rear Floor Mat Support
58595C Moulding, Floor Carpet, NO.1
58611E Sheet, Front Floor Silencer
58651B Sheet, Rear Floor Silencer, NO.1
58653B Sheet, Rear Floor Silencer, NO.2
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
66310G Hook Assy, Rope
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
