Toyota Sienna
2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States
Supported model
Data version 2020-09

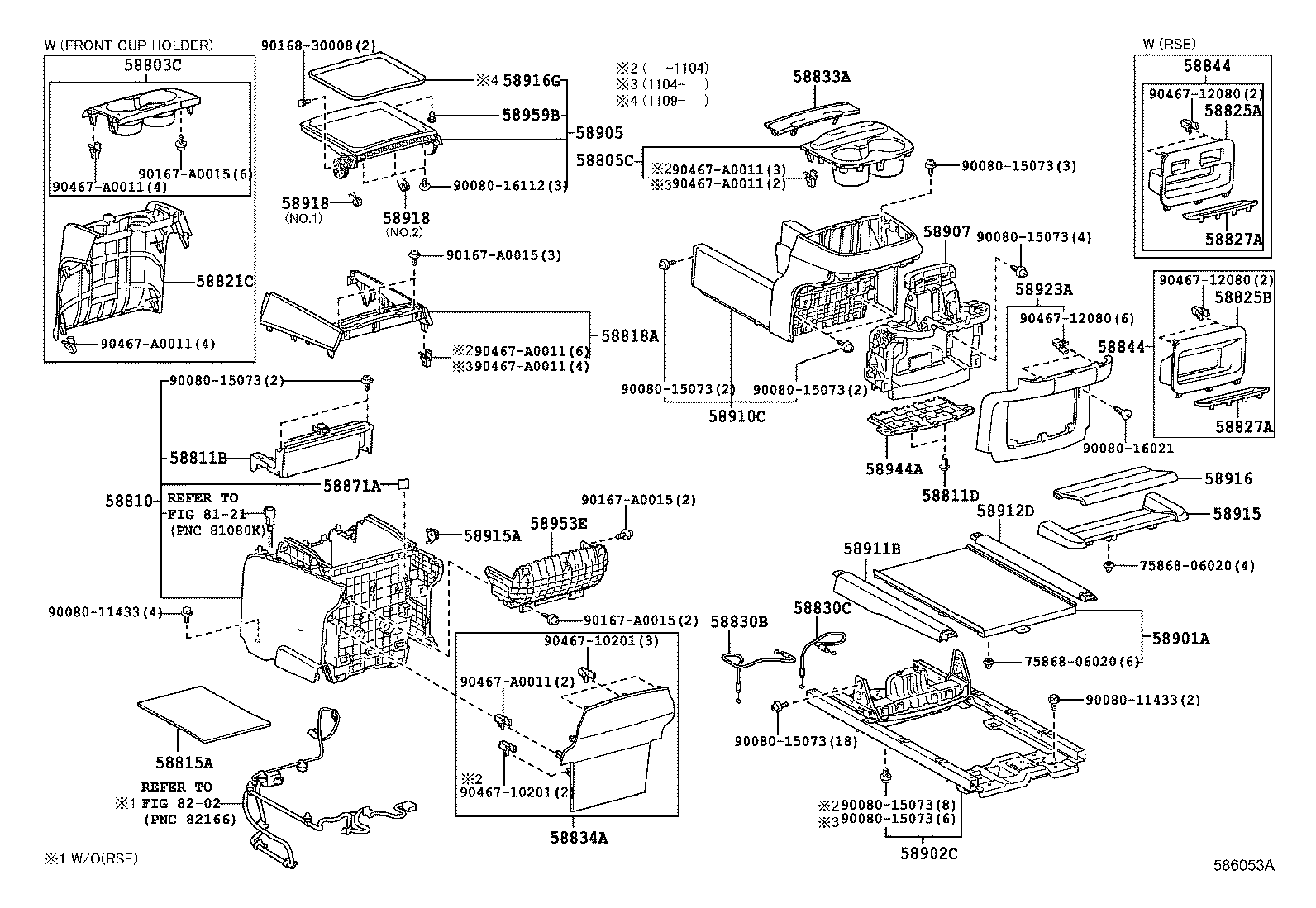

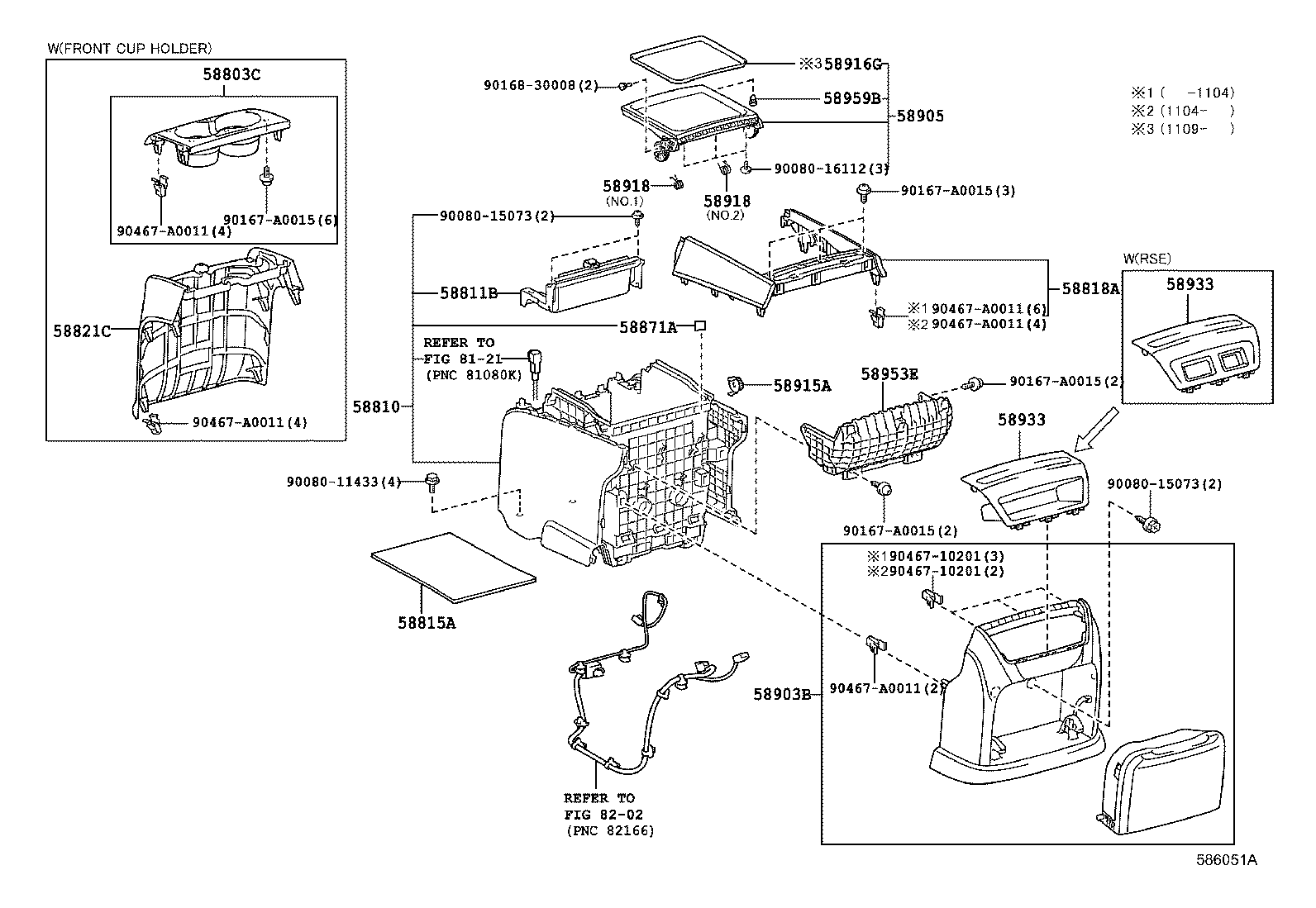

Console Box & Bracket
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58803C | Box Sub-assy, Console Cup Holder |
| 58805C | Panel Sub-assy, Console, Upper Rear |
| 58810 | Console Assy |
| 58811B | Box, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58815A | Carpet, Console Box |
| 58818A | Cover, Console Box, FR |
| 58821C | Panel, Console, Upper |
| 58825A | Pocket, Console Box |
| 58825B | Pocket, Console Box |
| 58827A | Garnish, Console Box Pocket |
| 58830B | Cable Assy, Console Box Lock Control, NO.1 |
| 58830C | Cable Assy, Console Box Lock Control, NO.2 |
| 58833A | Cover, Console, Upper |
| 58834A | Cover, Console, Lower |
| 58844 | Bezel, Console Box |
| 58871A | Cushion, Console Box, NO.2 |
| 58901A | Box Sub-assy, Console, Rear |
| 58902C | Bracket Sub-assy, Console Box Mounting |
| 58903B | Bracket Sub-assy, Console Box Hinge, NO.2 |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58911B | Panel, Box, NO.1 |
| 58912D | Panel, Box, NO.2 |
| 58915 | Panel, Box Bottom |
| 58915A | Damper, Console Box, Rear |
| 58916 | Mat, Box Bottom |
| 58916G | Mat, Box Bottom, NO.2 |
| 58918 | Spring, Console Box Stopper |
| 58923A | Panel, Console Rear End |
| 58933 | Garnish, Console Rear End Panel |
| 58944A | Cover, Console, Rear |
| 58953E | Cover, Console Compartment Door Pad |
| 58959B | Cushion, Console Compartment Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
