Toyota Sienna
2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States
Supported model
Data version 2020-09
Roof Panel & Back Panel
61 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63104D | Reinforcement Sub-assy, Roof Panel, NO.2 |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63106 | Reinforcement Sub-assy, Roof Panel, NO.4 |
| 63107B | Reinforcement Sub-assy, Roof Panel, RH |

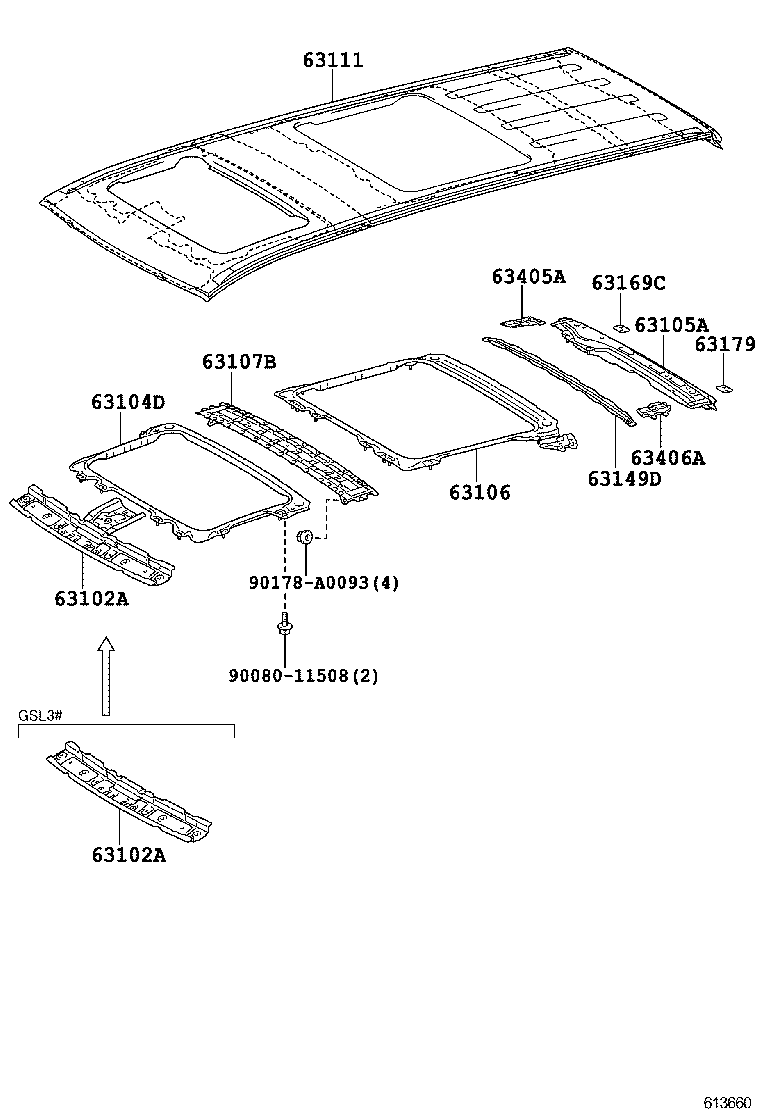

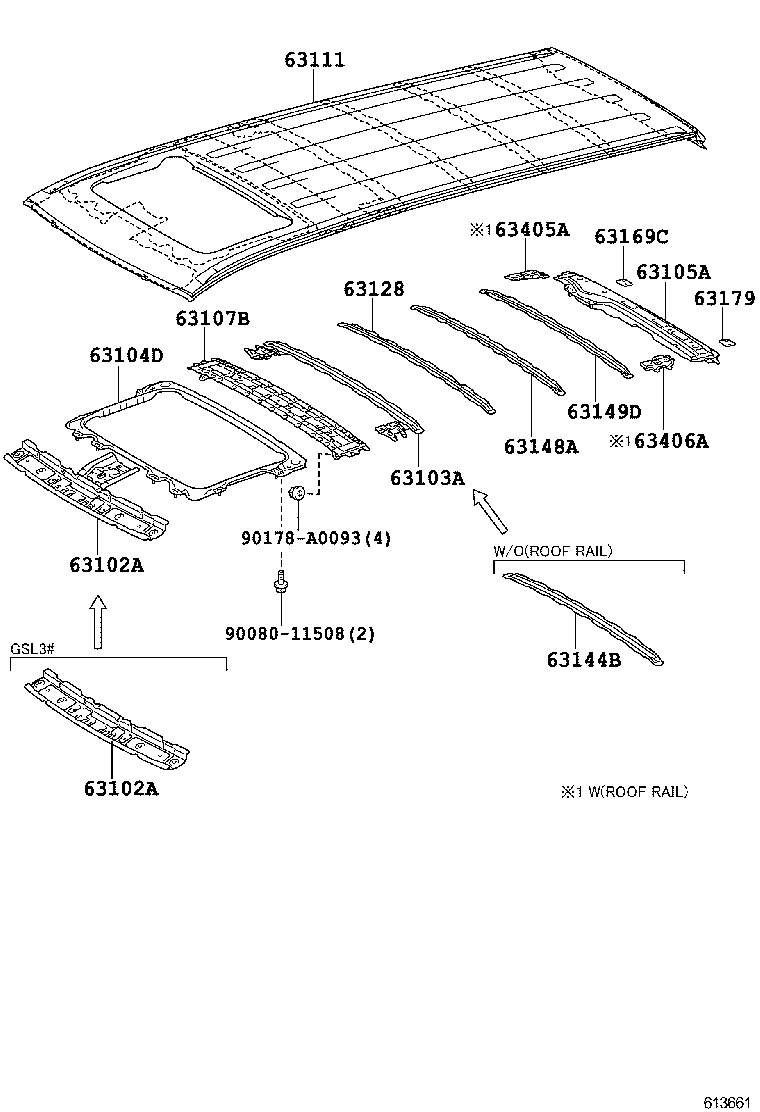

| 63111 | Panel, Roof |
| 63128 | Reinforcement, Roof Panel, NO.6 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63149D | Reinforcement, Roof Panel, NO.8 |
| 63169C | Retainer, Roof Reinforcement, NO.2 |
| 63179 | Plate, Roof Panel Reinforcement, LH |

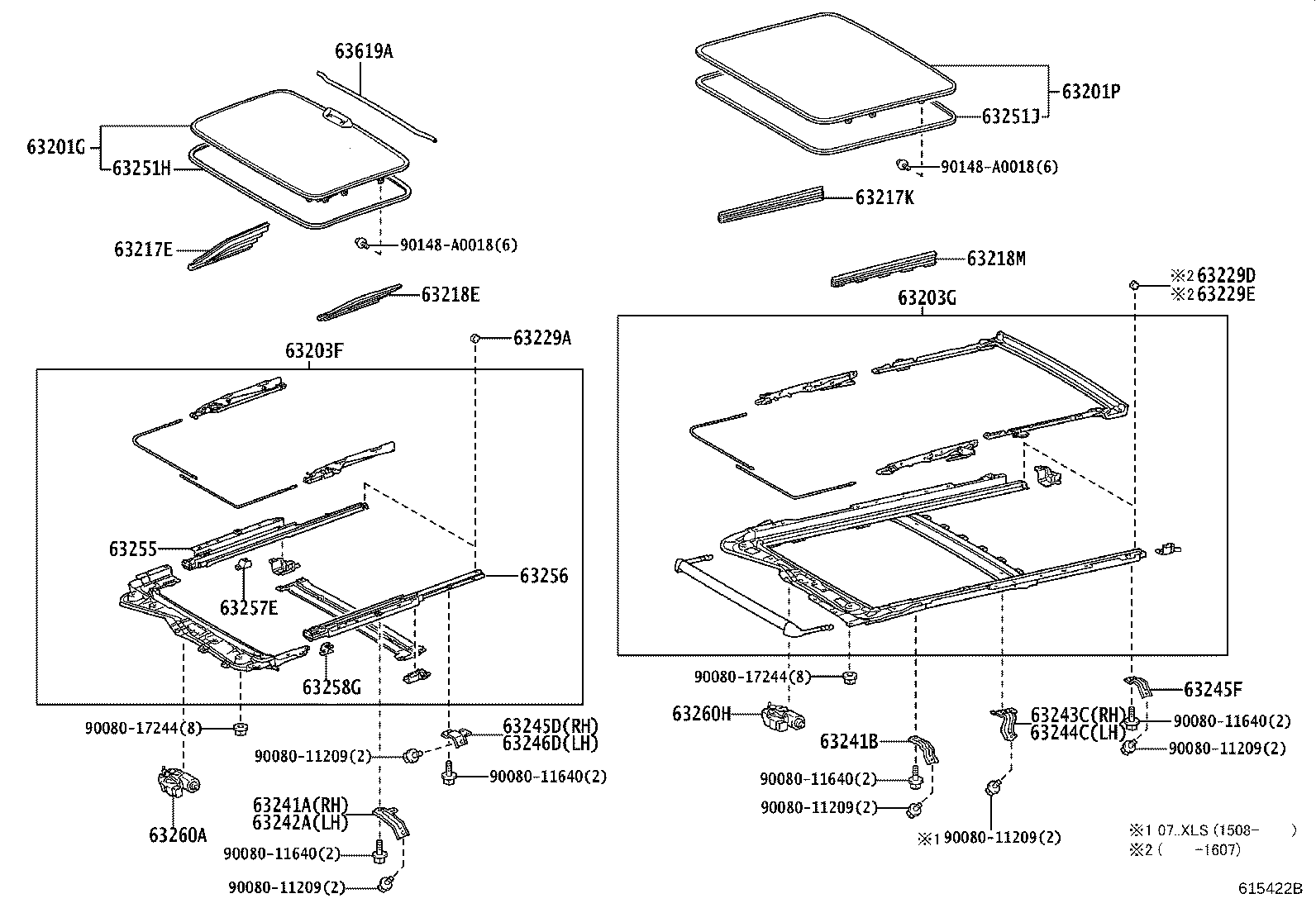

| 63201G | Glass Sub-assy, Sliding Roof |
| 63201P | Glass Sub-assy, Sliding Roof |

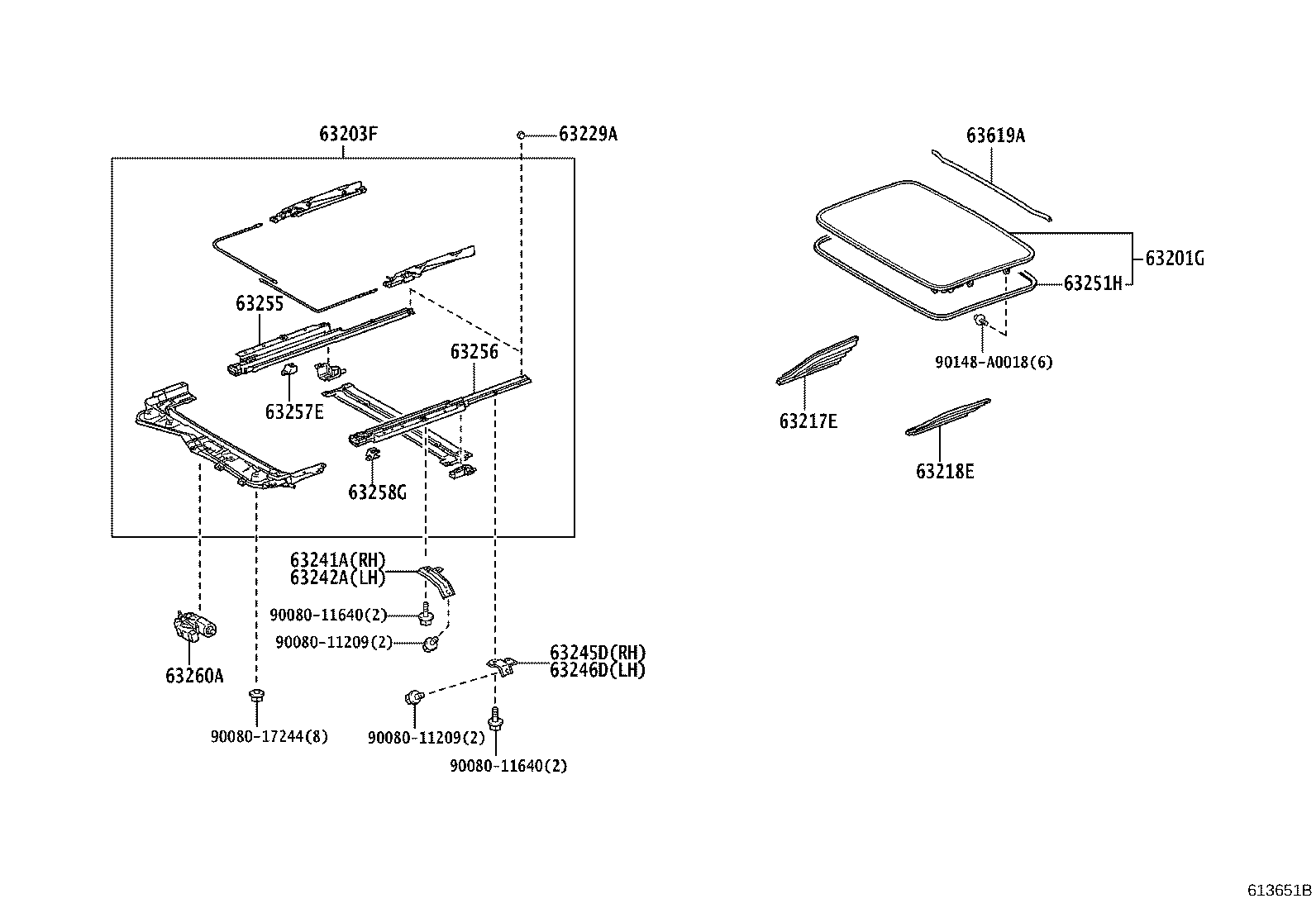

| 63203F | Housing Sub-assy, Sliding Roof |
| 63203G | Housing Sub-assy, Sliding Roof, Rear |
| 63217E | Garnish, Sliding Roof, Front RH |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218E | Garnish, Sliding Roof, Front LH |
| 63218M | Garnish, Sliding Roof Side, LH |

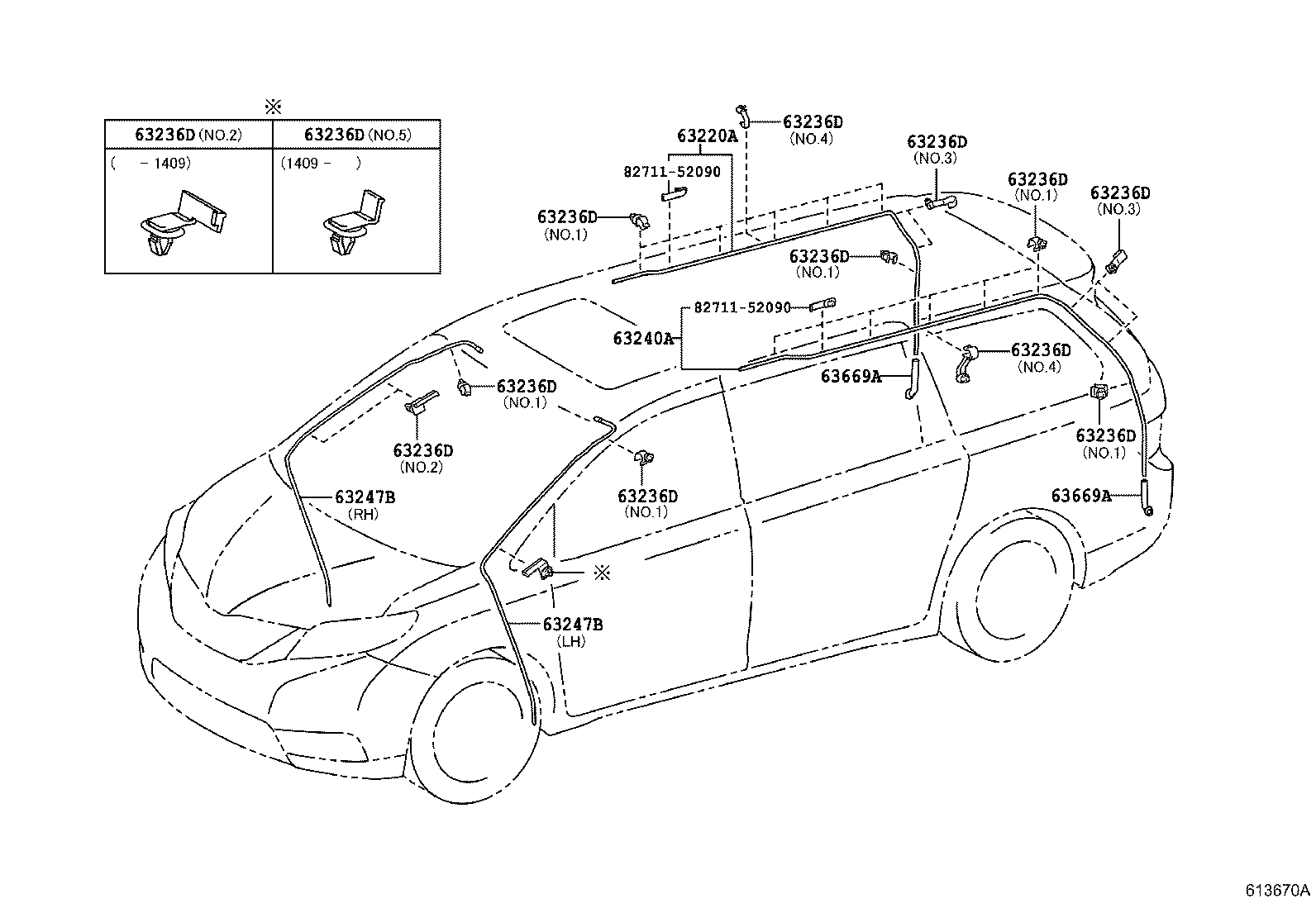

| 63220A | Hose Assy, Sliding Roof Drain, RH |
| 63229A | Stopper, Sliding Roof Sunshade |
| 63229D | Stopper, Sliding Roof Sunshade, Rear RH |
| 63229E | Stopper, Sliding Roof Sunshade, Rear LH |

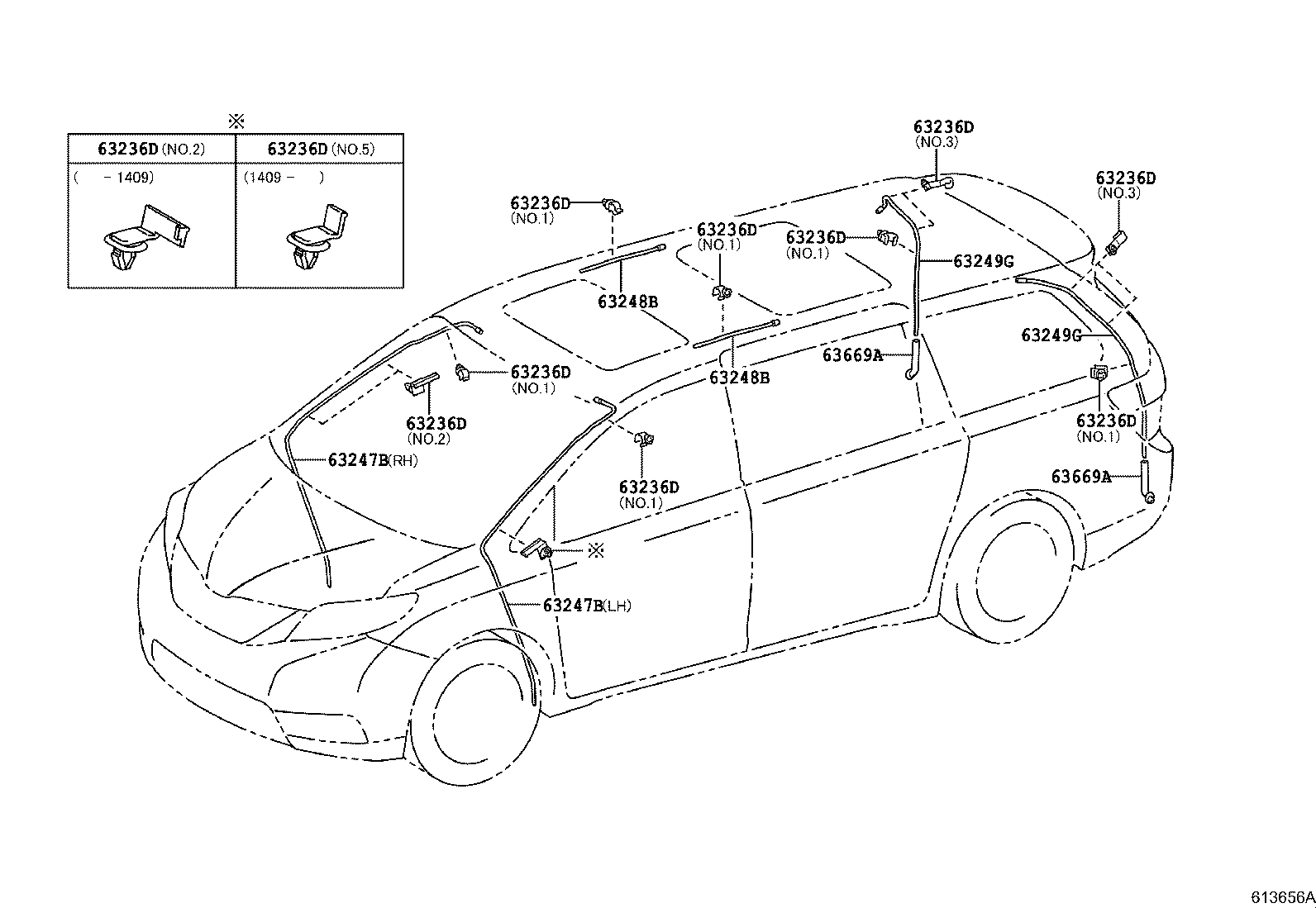

| 63236D | Clamp, Sliding Roof Drain Hose |
| 63240A | Hose Assy, Sliding Roof Drain, LH |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63241B | Bracket, Sliding Roof Housing, NO.1 |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63245F | Bracket, Sliding Rear Mounting |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63247B | Hose, Sliding Roof |
| 63248B | Hose, Sliding Roof |
| 63249G | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63251J | Weatherstrip, Sliding Roof, NO.2 |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63257E | Holder, Sliding Roof Guide Rail, RH |
| 63258G | Holder, Sliding Roof Guide Rail, LH |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63260H | Gear Assy, Sliding Roof Drive |
| 63405A | Support Sub-assy, Roof Rack, Rear |
| 63406A | Support Sub-assy, Roof Rack, Rear LH |

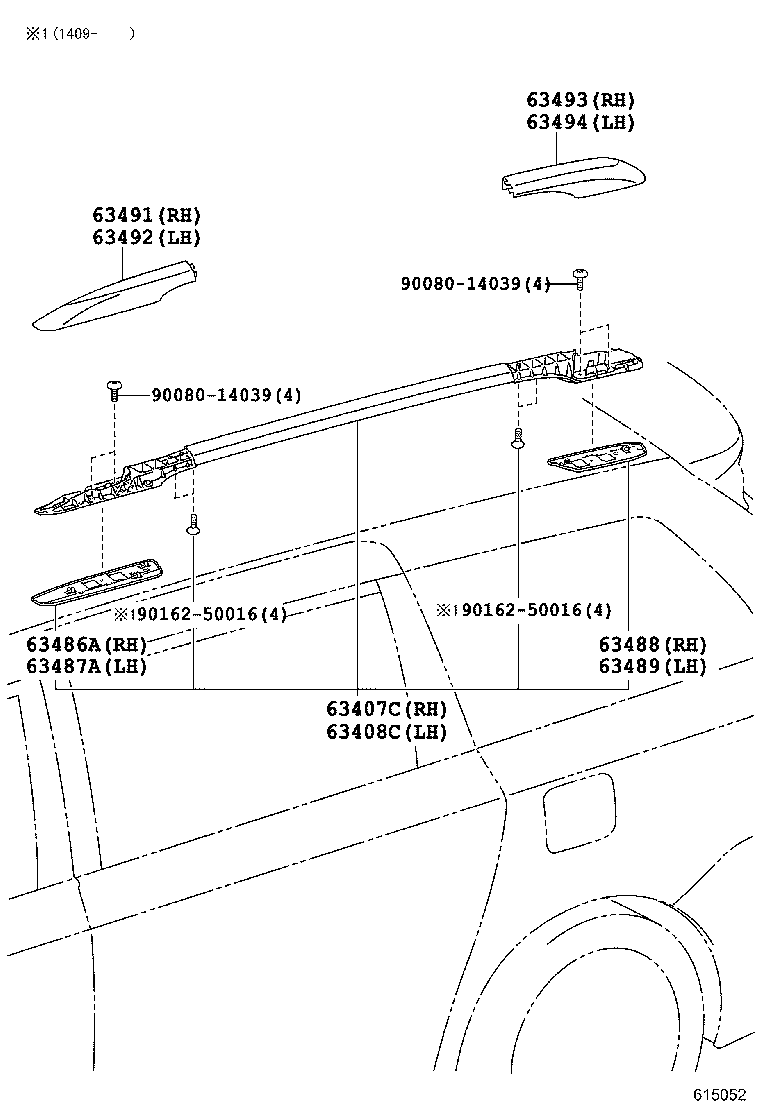

| 63407C | Carrier Sub-assy, Roof, RH |
| 63408C | Carrier Sub-assy, Roof, LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63619A | Protector, Removable Roof Panel, Inner |
| 63669A | Grommet, Sliding Roof Drain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
