Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

22 part groups · 9 illustrations

Illustrations

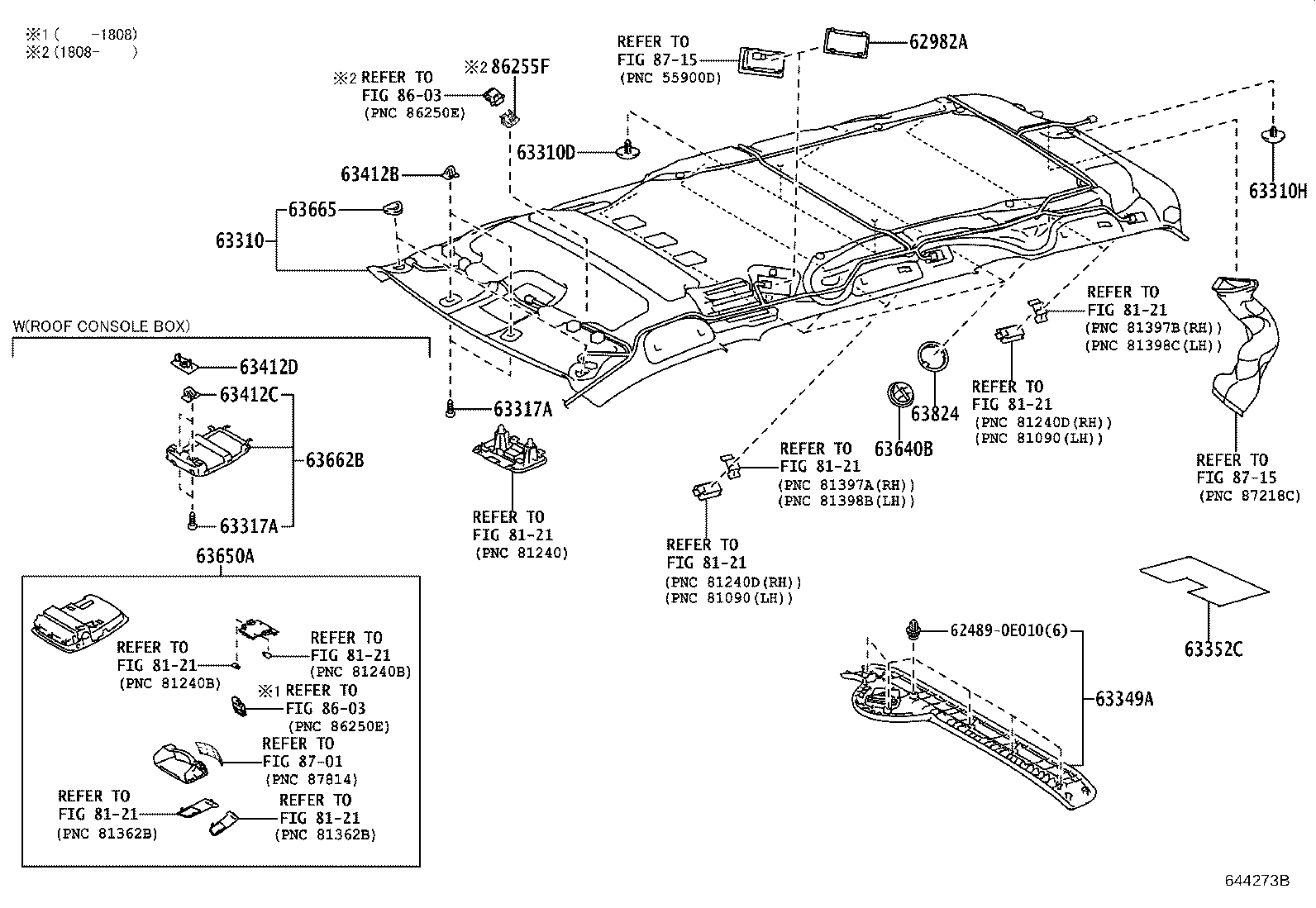

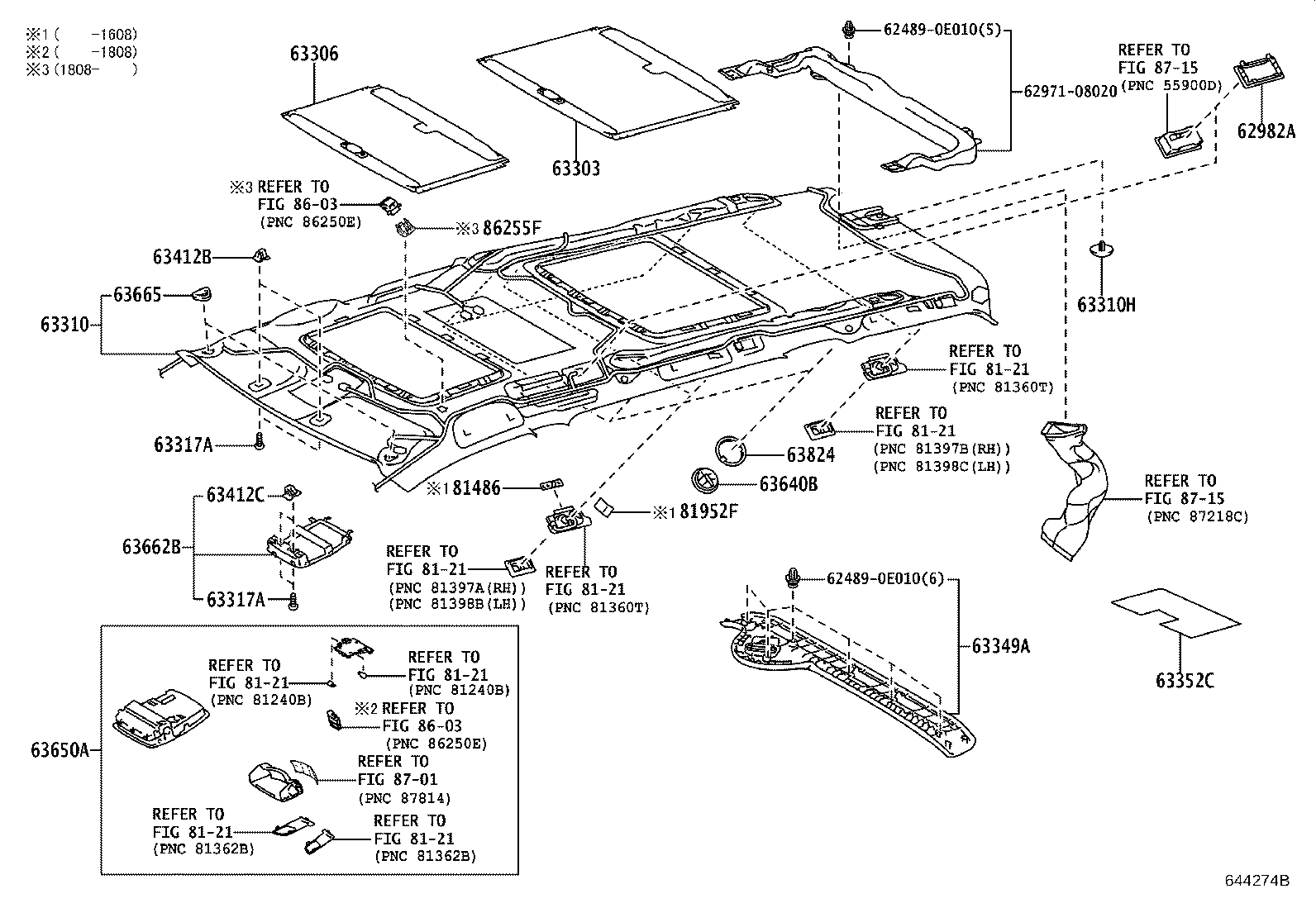

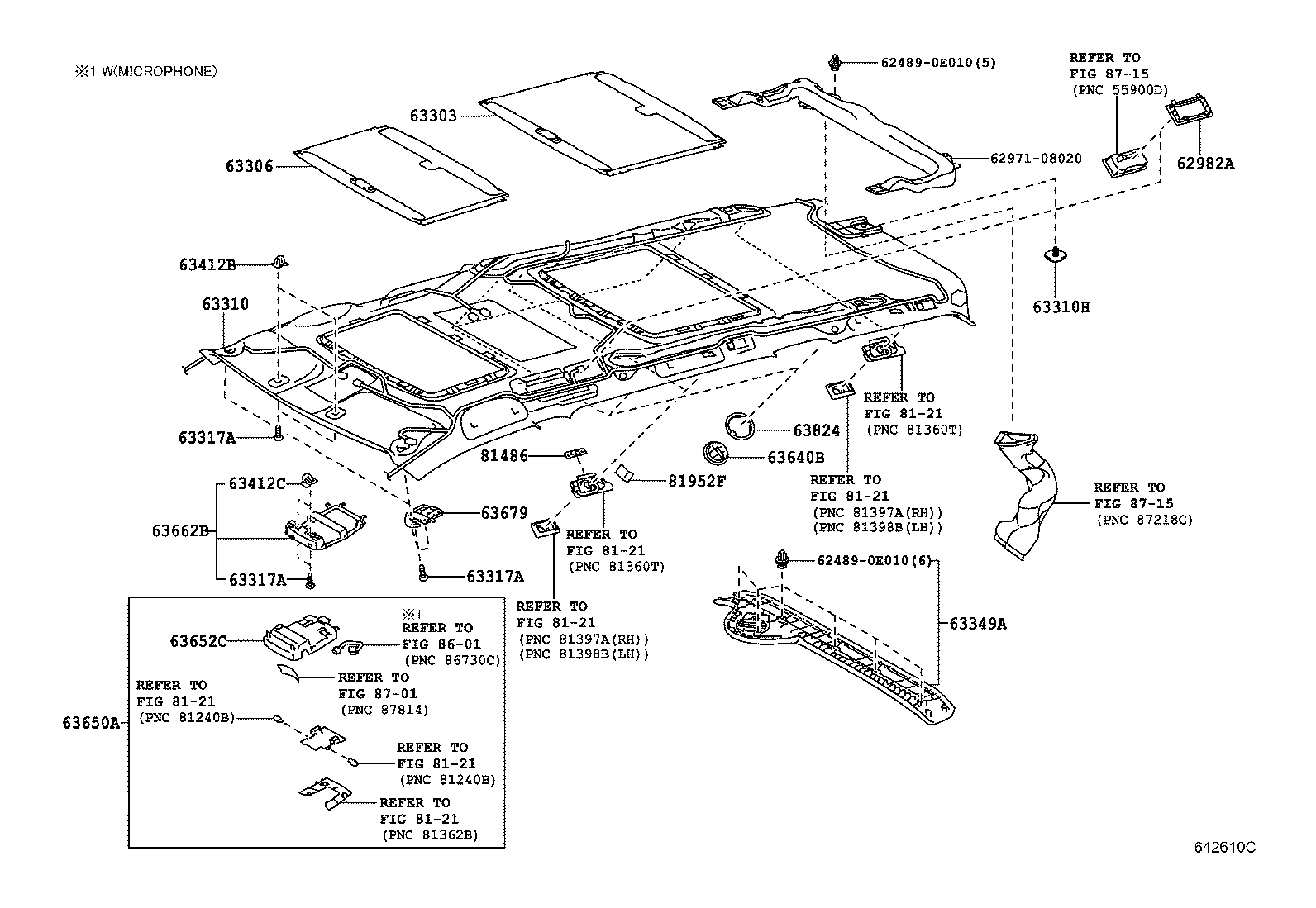

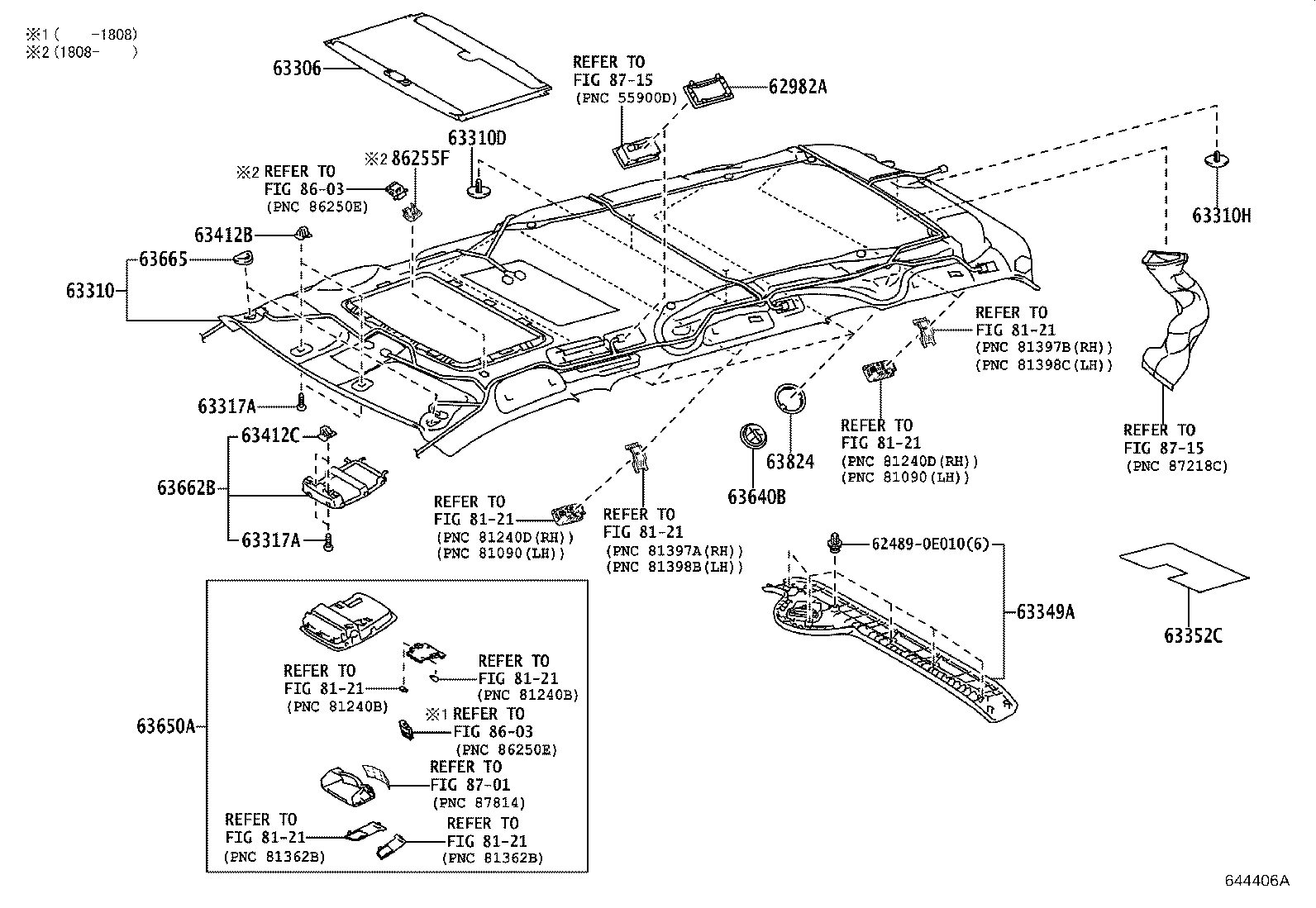

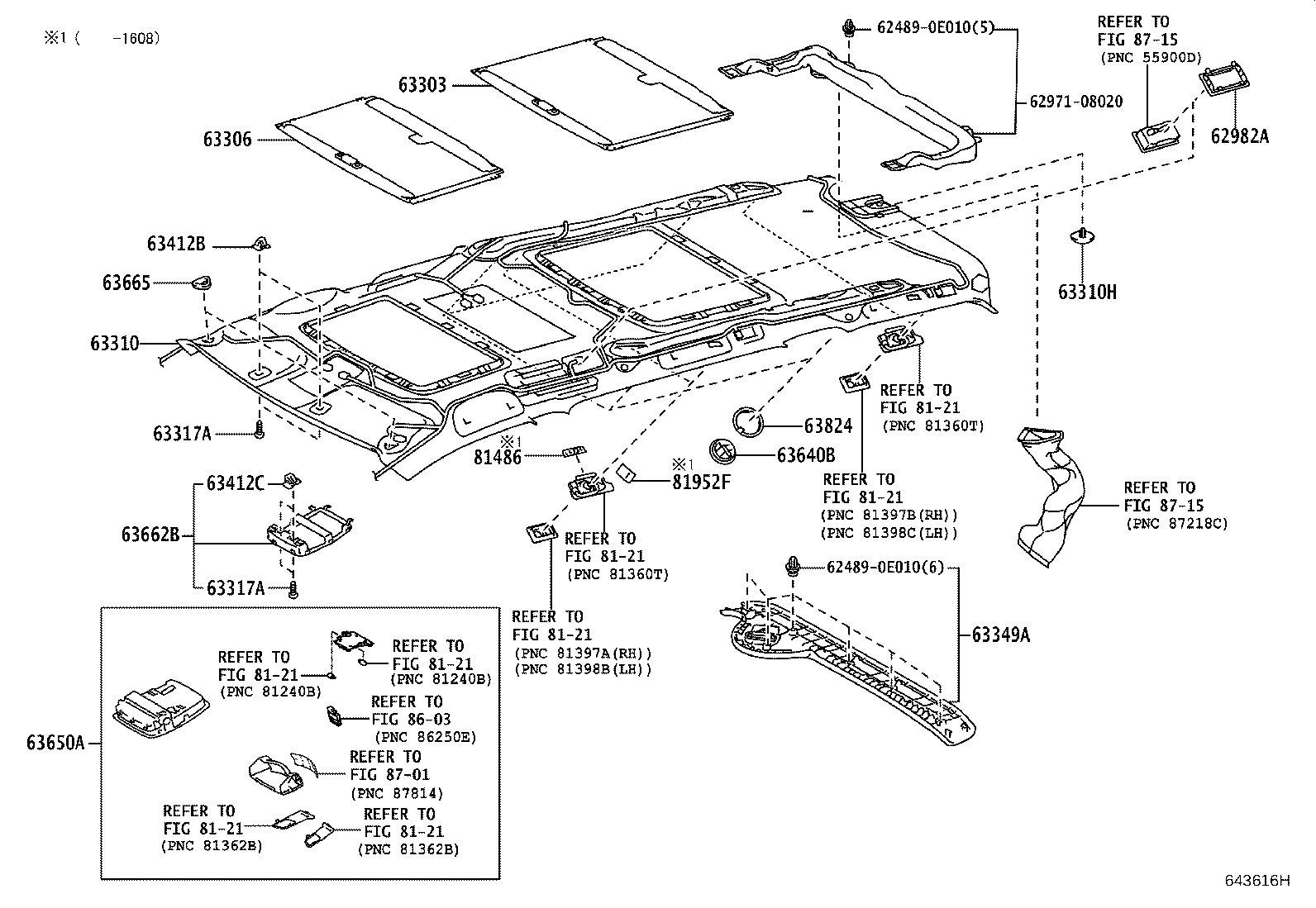

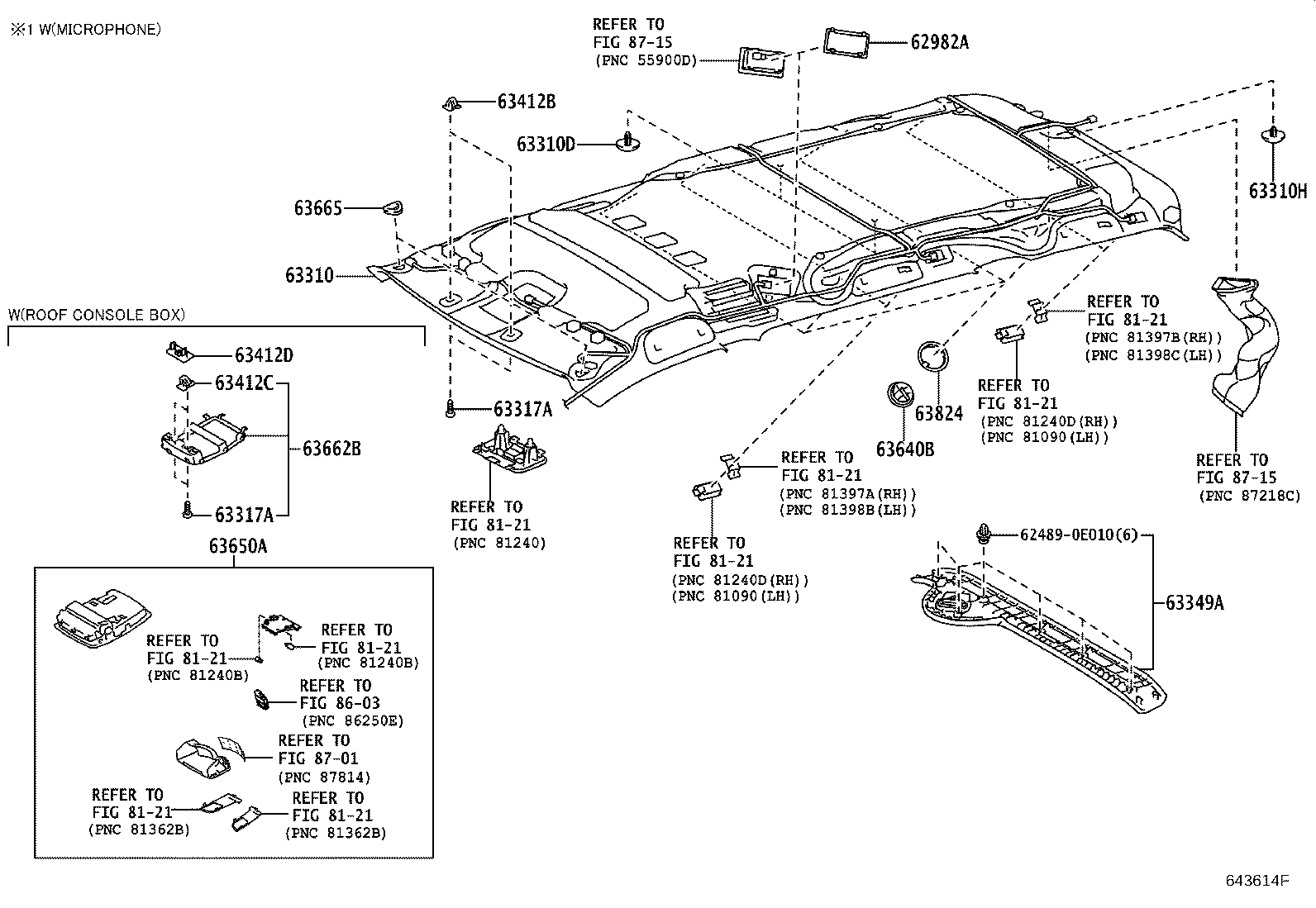

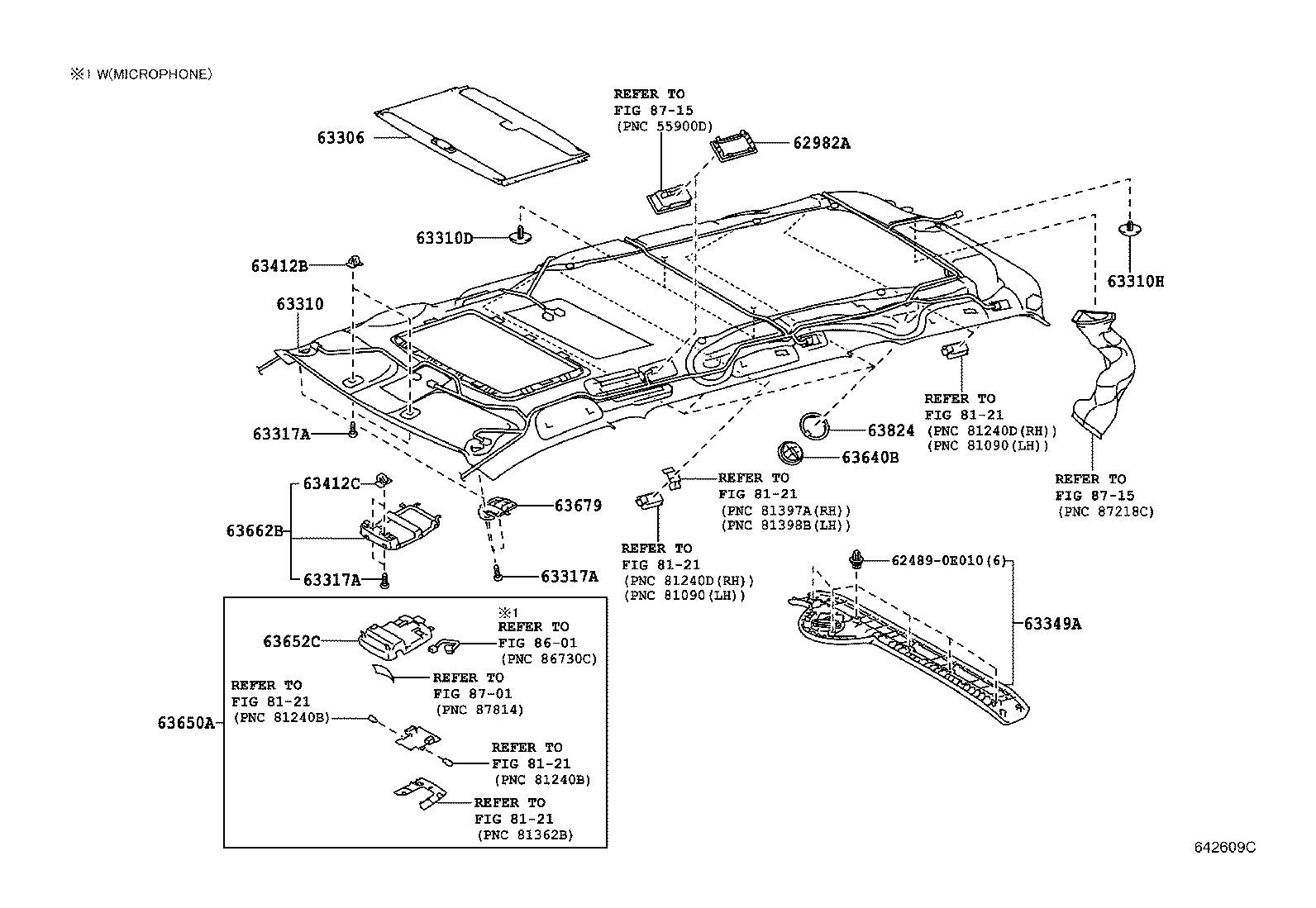

Figure 642608C 642608C 2010-01 → 2014-09 Figure 642609C 642609C 2010-01 → 2014-09 Figure 642610C 642610C 2010-01 → 2014-09 Figure 643614F 643614F 2014-09 → 2017-11 Figure 644273B 644273B 2017-11 → — Figure 644406A 644406A 2014-09 → — Figure 644406A 644406A 2016-08 → — Figure 643616H 643616H 2014-09 → 2017-11 Figure 644274B 644274B 2017-11 → —

Part groups

PNCDescription
62982A Bezel, Roof Side Register, LH
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63317A Retainer, Roof Headlining
63349A Garnish, Roof Headlining, Rear
63352C Pad, Roof Headlining, End
63412B Retainer, Roof Console
63412C Retainer, Overhead Console
63412D Retainer, Roof Console, NO.2
63640B Register Assy, Air Outlet
63650A Box Assy, Roof Console
63652C Cover, Roof Console Box
63662B Plate, Roof Console
63665 Spacer, Roof Headlining
63679 Retainer, Roof Headlining
63824 Retainer, Front Roof Side Vent
81486 Retainer, Map Lamp
81952F Cover, Rear Lamp
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
