Toyota Sienna
2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States
Supported model
Data version 2020-09

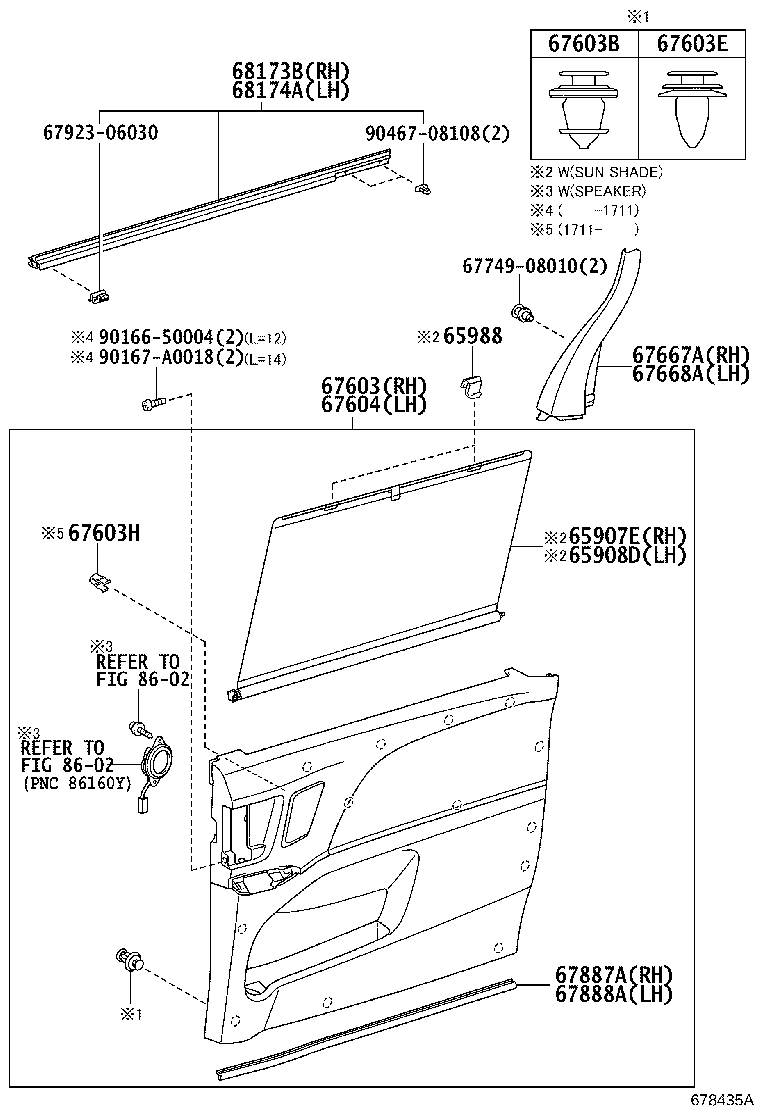

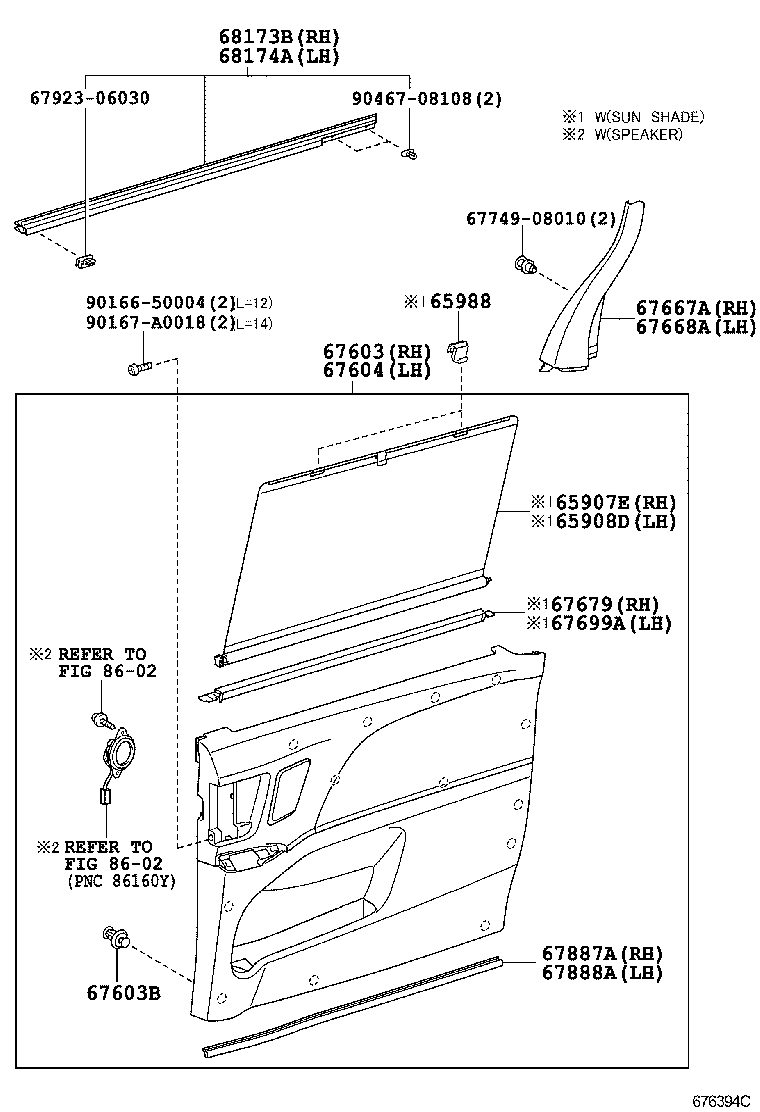

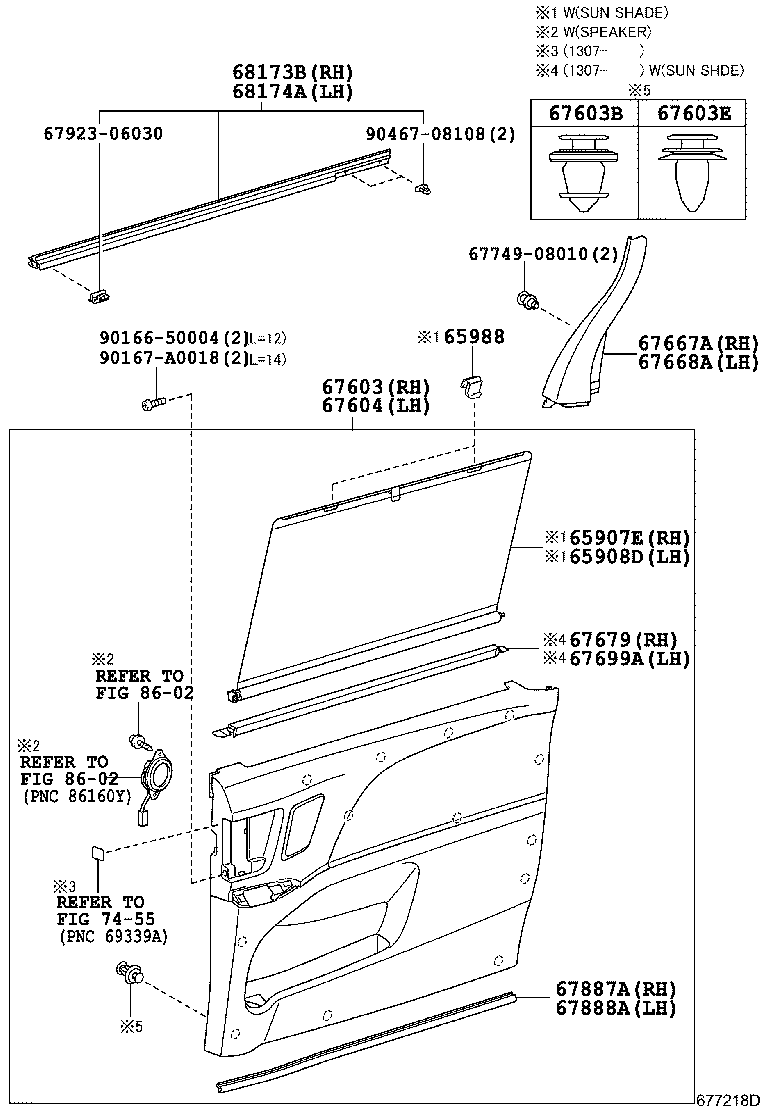

Rear Door Panel & Glass
56 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58742H | Protector, Slide Door, LH |
| 58743D | Protector, Slide Door Panel, RH |
| 58744E | Protector, Slide Door Panel, LH |
| 62149V | Tape, Rear Side Window Frame |
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 65988 | Hook, Sunshade |
| 67003C | Cushion, Rear Door Panel |
| 67003H | Door Sub-assy, Slide, RH |
| 67004H | Door Sub-assy, Slide, LH |
| 67113A | Panel, Slide Door, Outer RH |
| 67114A | Panel, Slide Door, Outer LH |
| 67259B | Reflector, Slide Door |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603H | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67667A | Garnish, Slide Door Window, RH |
| 67668A | Garnish, Slide Door Window, LH |
| 67679 | Bezel, Sunshade, RH |
| 67699A | Bezel, Sunshade, LH |
| 67837M | Seal, Door Ventilation Duct, RH |
| 67838E | Seal, Door Ventilation Duct, LH |
| 67851A | Cover, Slide Door Service Hole, NO.1 |
| 67852A | Cover, Slide Door Service Hole, NO.2 |
| 67865D | Weatherstrip, Center Pillar Upper End, RH |
| 67866E | Weatherstrip, Center Pillar Upper End, LH |
| 67871E | Weatherstrip, Slide Door, NO.1 RH |
| 67872A | Weatherstrip, Slide Door, NO.1 LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67887D | Weatherstrip, Slide Door, NO.2 RH |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 67888B | Weatherstrip, Slide Door, NO.2 LH |
| 67927A | Cushion, Rear Door Stiffener, RH |
| 67928A | Cushion, Rear Door Stiffener, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68191B | Run, Rear Door Glass, NO.2 RH |
| 68192B | Run, Rear Door Glass, NO.2 LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 75931A | Tape, Black Out, Outer Upper RH |
| 75932A | Tape, Black Out, Outer Upper LH |
| 75933B | Tape, Black Out, Outer Front RH |
| 75934B | Tape, Black Out, Outer Front LH |
| 84250D | Sensor Assy, Power Slide Door, RH |
| 84260J | Sensor Assy, Power Slide Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
