Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

20 part groups · 2 illustrations

Illustrations

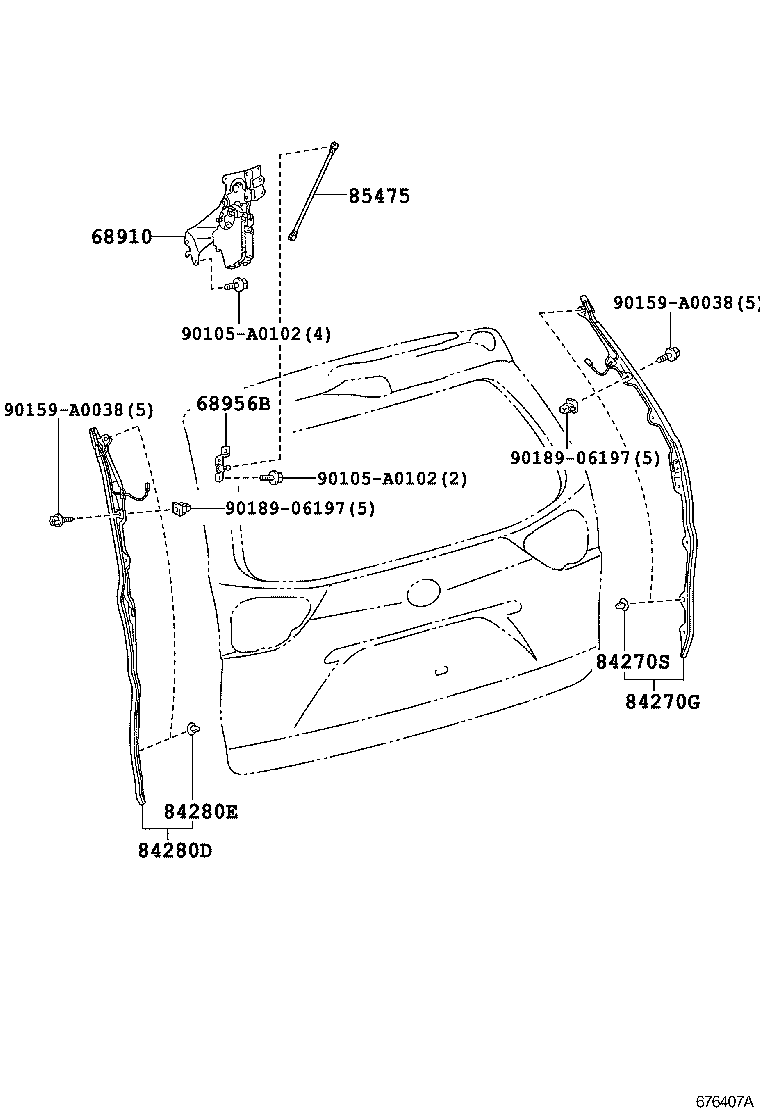

Figure 676406C 676406C 2010-01 → — Figure 676407A 676407A 2010-01 → —

Part groups

PNCDescription
68810D Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68910 Unit Assy, Power Back Door
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68950C Stay Assy, Back Door, RH
68956B Bracket, Back Door Stay, Upper LH
68960 Stay Assy, Back Door, LH
68961 Bolt, Back Door Stay
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69403A Stopper Sub-assy, Back Door Side Female, RH
69404A Stopper Sub-assy, Back Door Side Female, LH
69410C Plate Assy, Back Door Lock Striker
69461 Stopper, Back Door Side Male, RH
69462 Stopper, Back Door Side Male, LH
84270G Sensor Assy, Power Back Door, RH
84270S Clip(POWER BACK DOOR SENSOR, RH)
84280D Sensor Assy, Power Back Door, LH
84280E Clip (FOR POWER BACK DOOR SENSOR, LH)
85475 Rod, Power Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
