Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

11 part groups · 2 illustrations

Illustrations

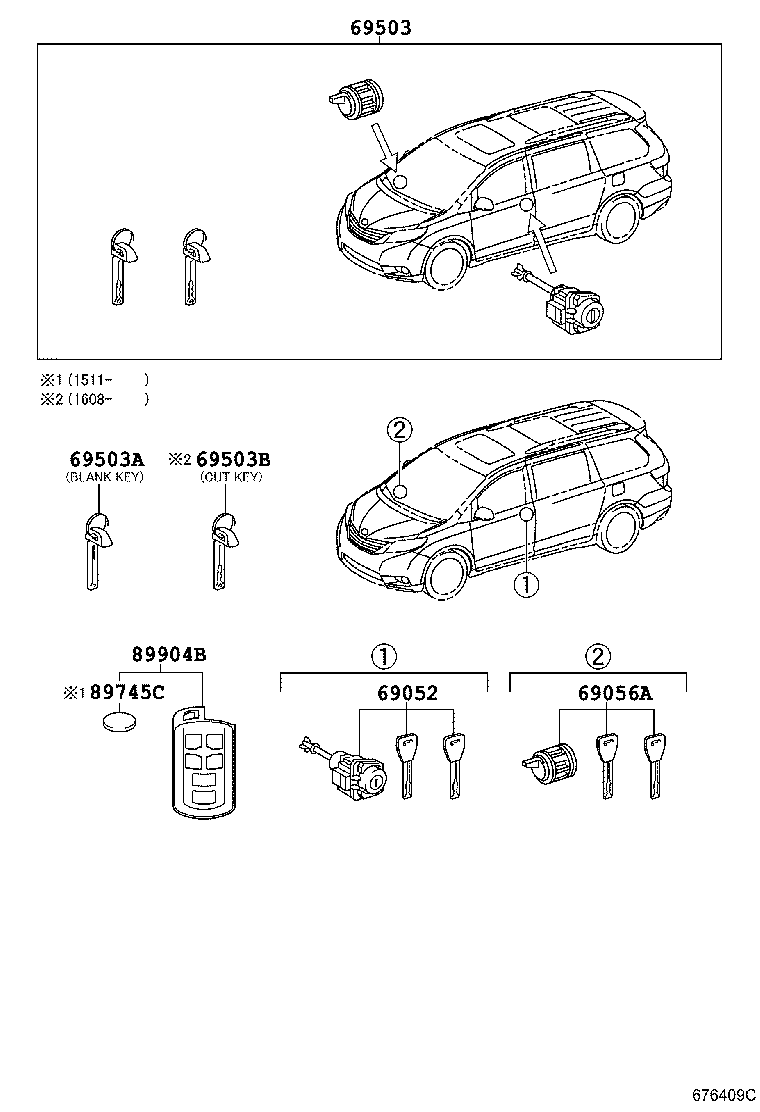

Figure 676408A 676408A 2010-01 → — Figure 676409C 676409C 2010-01 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
89742A Transmitter, Door Control
89745C Battery, Transmitter
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
