Toyota Sienna
2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States
Supported model
Data version 2020-09
Seat Belt
31 part groups · 5 illustrations
Part groups

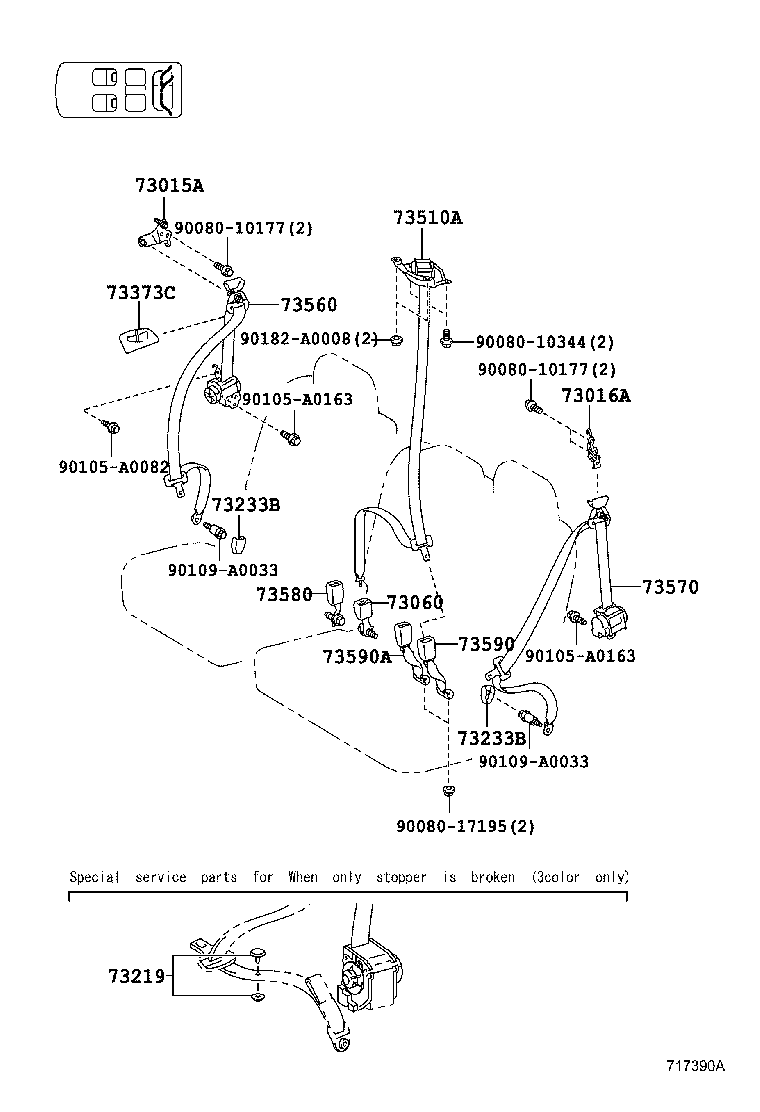

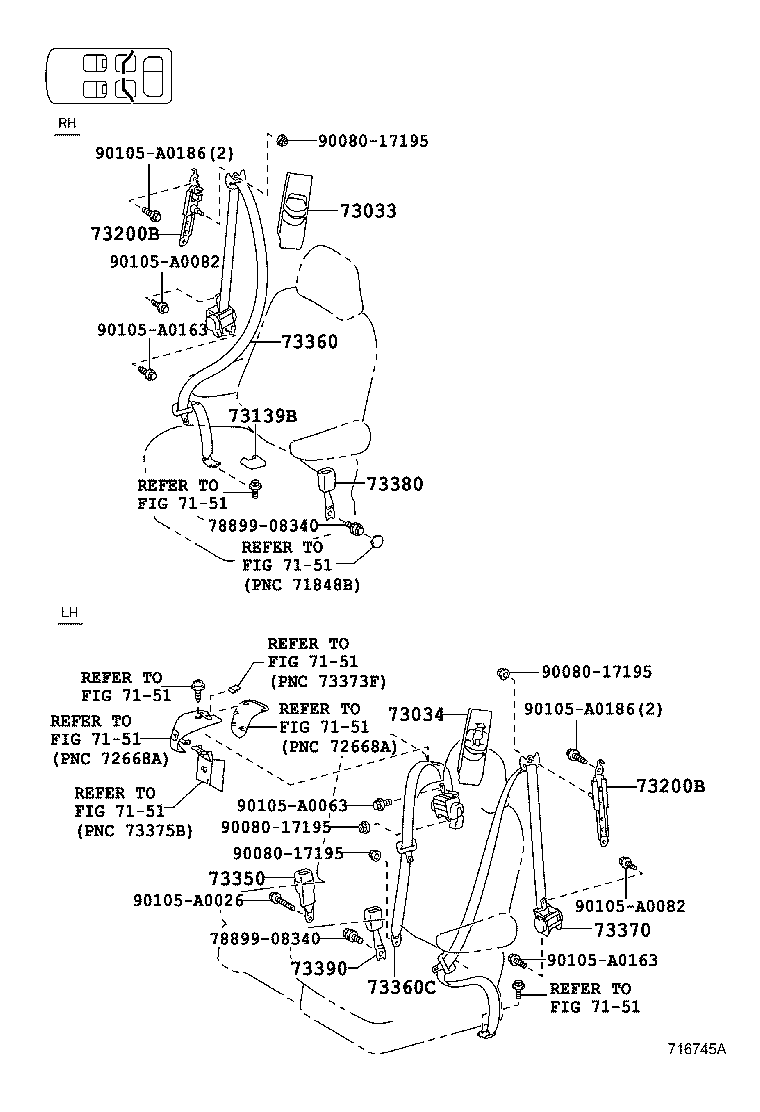

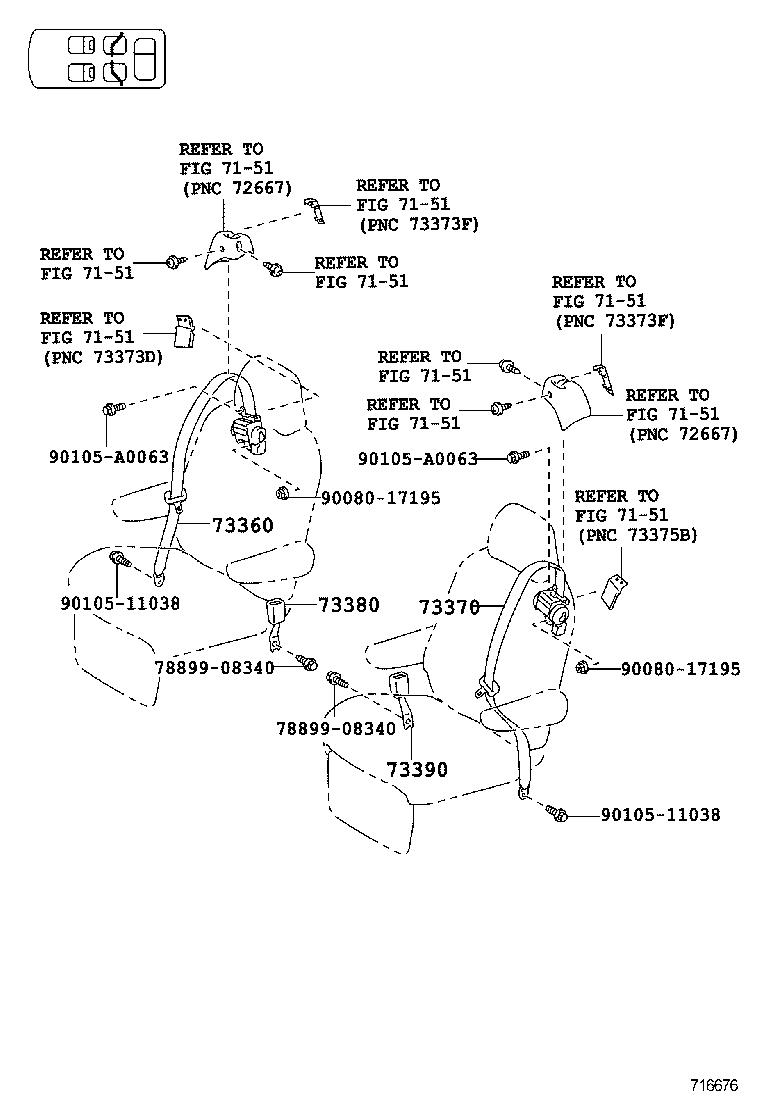

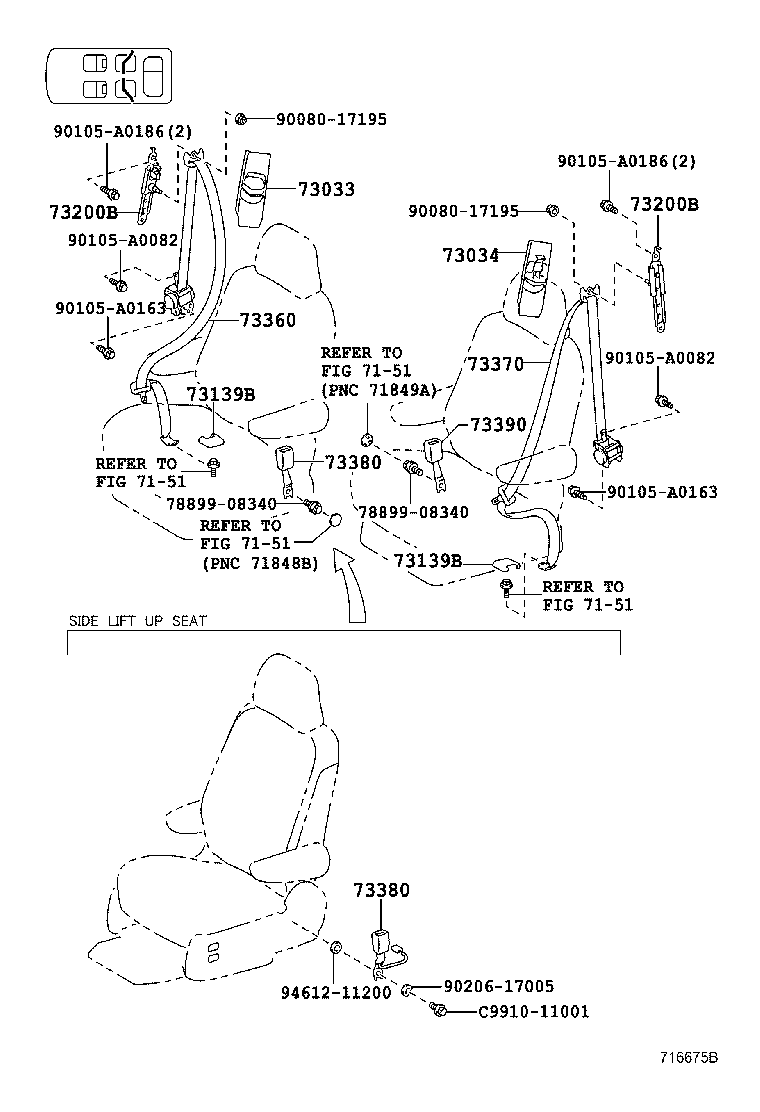

| PNC | Description |
|---|---|
| 73015A | Bracket Sub-assy, Belt Outer Anchor, RH |
| 73016A | Bracket Sub-assy, Belt Outer Anchor, LH |
| 73033 | Plate Sub-assy, Rear Shoulder Belt Anchor, RH |
| 73034 | Plate Sub-assy, Rear Shoulder Belt Anchor, LH |
| 73060 | Belt Assy, Rear NO.2 Seat Lap, Center W/Inner LH |
| 73135A | Cover, Shoulder Belt Anchor, RH |
| 73136A | Cover, Shoulder Belt Anchor, LH |
| 73139B | Cover, Seat Belt Anchor |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73200B | Adjuster Assy, Rear Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73233B | Cover, Lap Belt Outer Anchor, Rear NO.2 Seat |
| 73233C | Cover, Lap Belt Outer Anchor, LH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73373C | Cover, Rear NO.2 Seat Shoulder Belt |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73510A | Belt Assy, Rear NO.2 Seat, 3 Point Type |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
| 73590A | Belt Assy, Rear Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
