Toyota Sienna
2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States
Supported model
Data version 2020-09

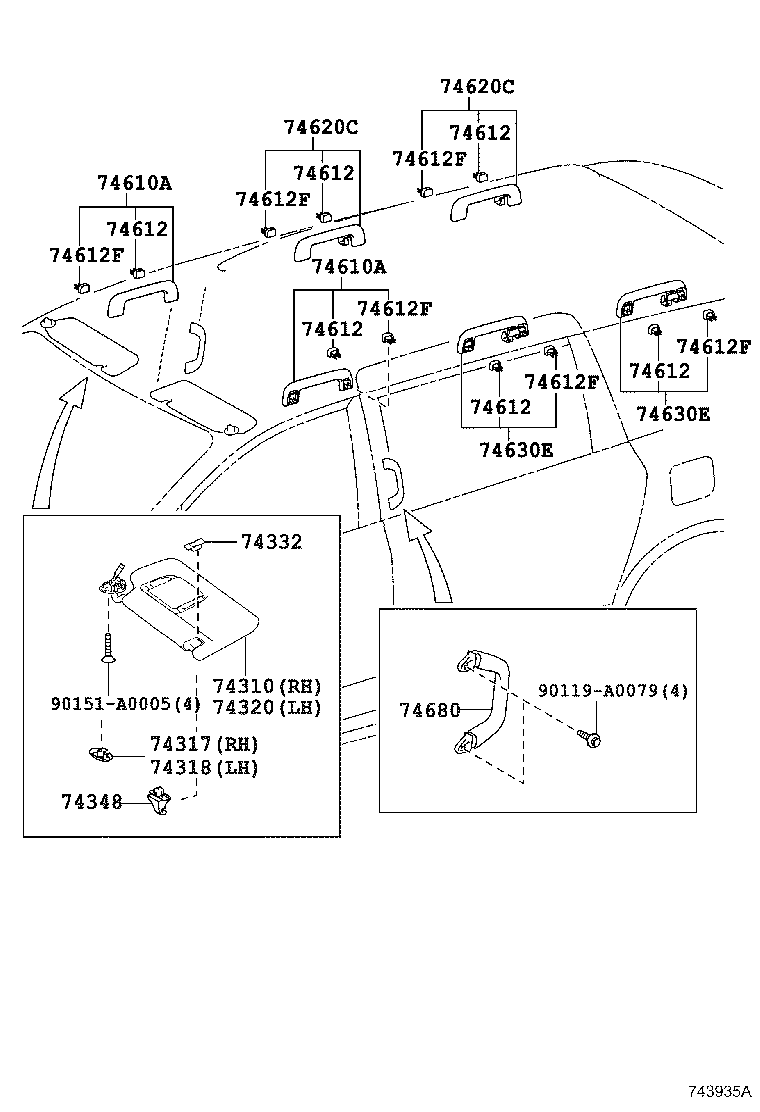

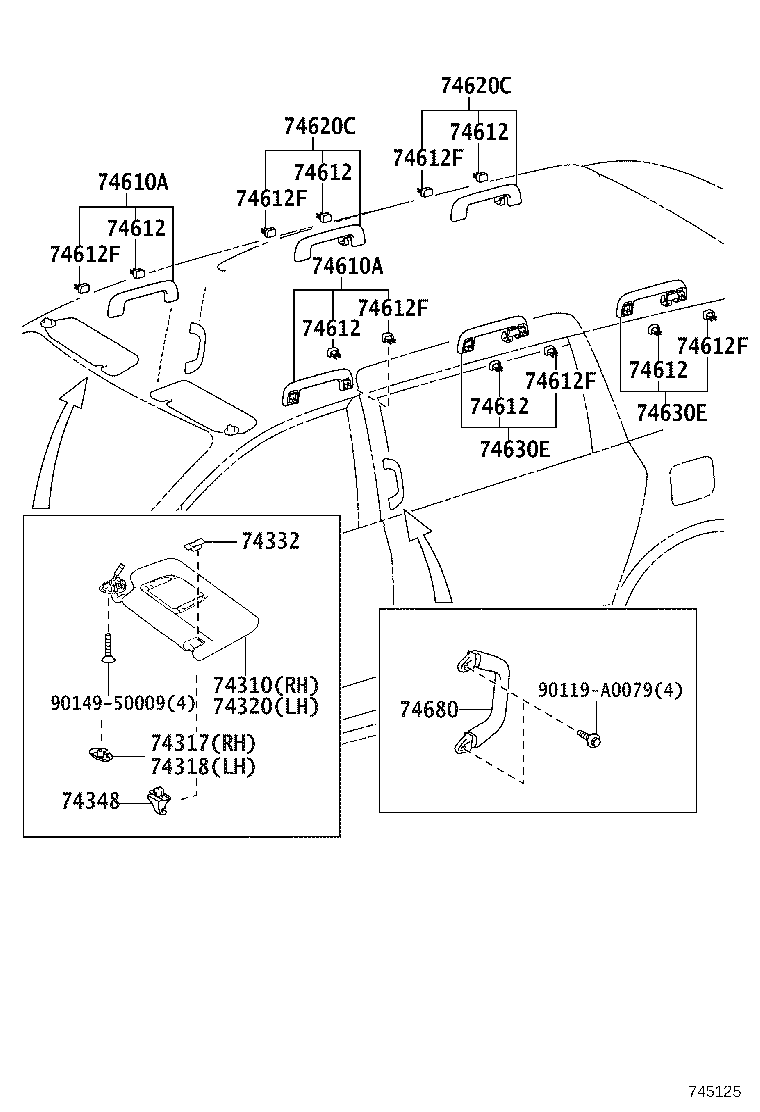

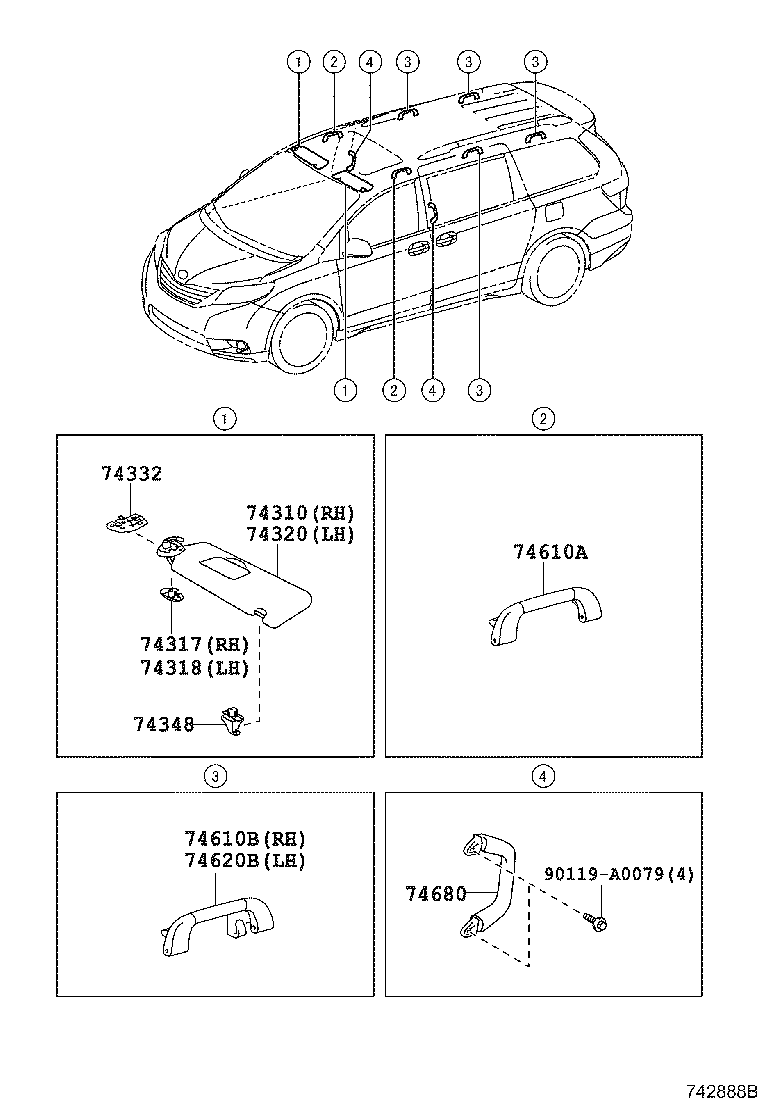

Armrest & Visor
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 74230A | Panel Assy, Front Door Armrest Base, RH |
| 74240A | Panel Assy, Front Door Armrest Base, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74332 | Reinforcement, Visor |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74610B | Grip Assy, Assist, NO.2 RH |
| 74612 | Cover, Assist Grip |
| 74612F | Cover, Assist Grip |
| 74620B | Grip Assy, Assist, Rear |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
| 74680 | Grip Assy, Pillar Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
