Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

19 part groups · 6 illustrations

Illustrations

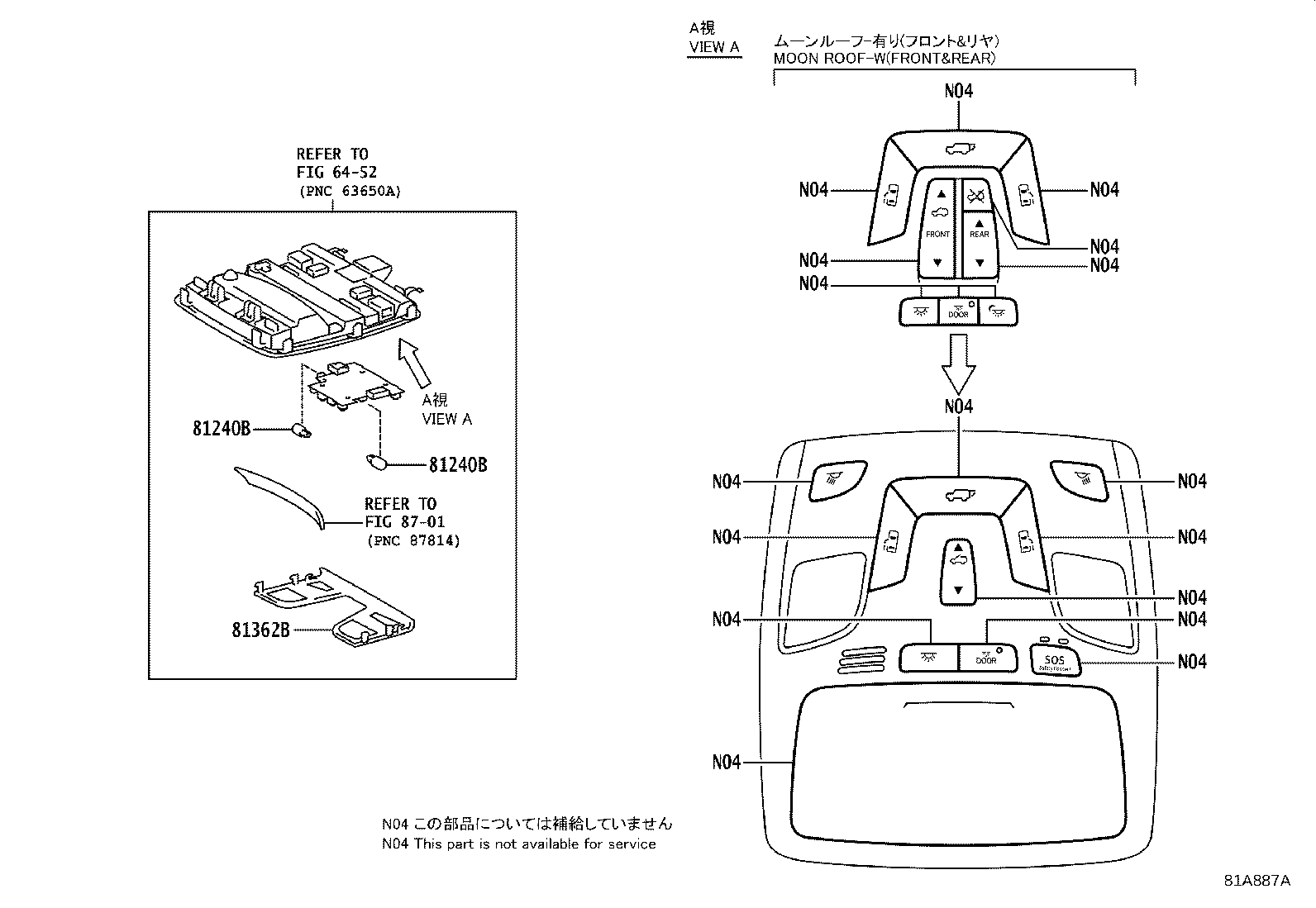

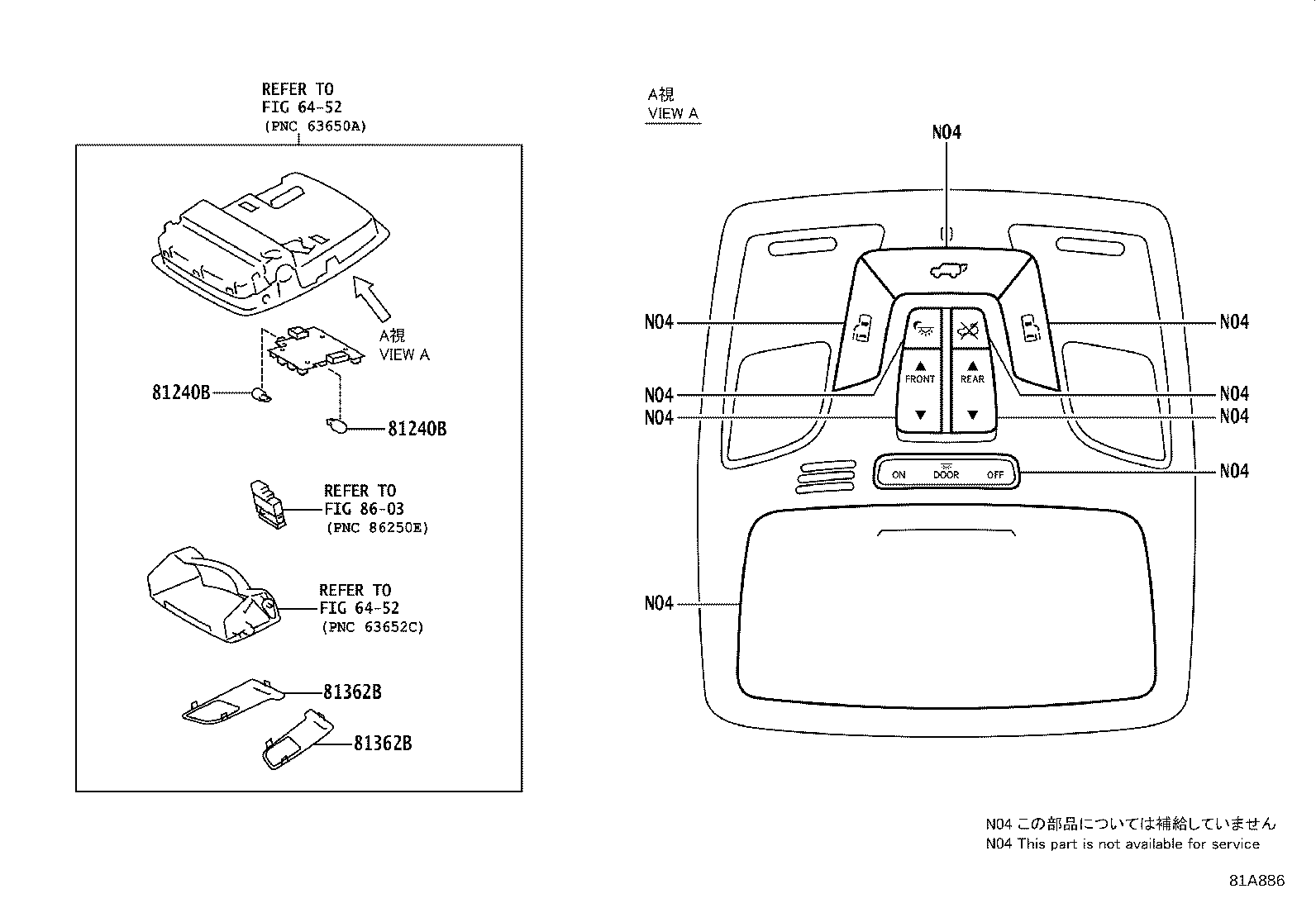

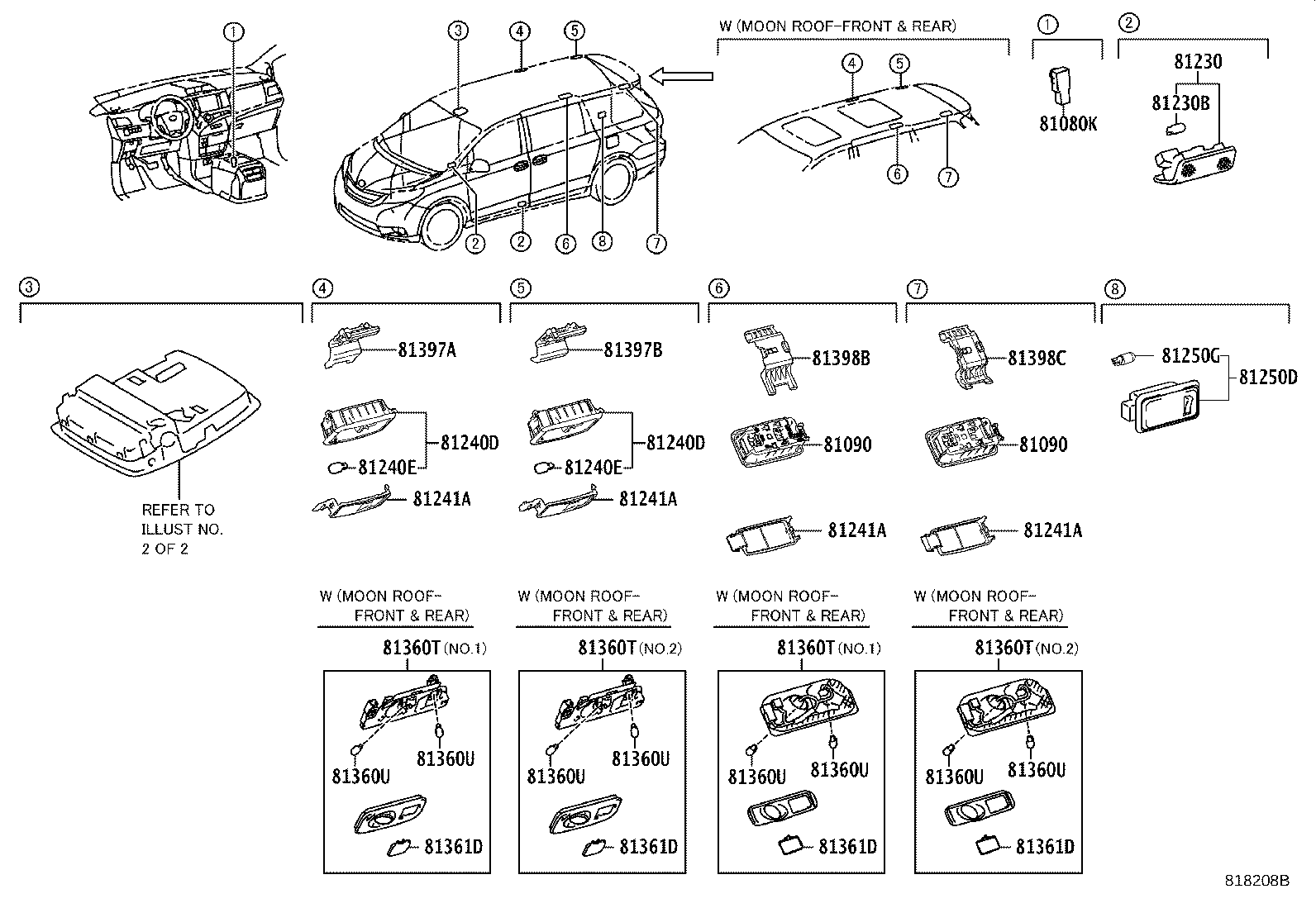

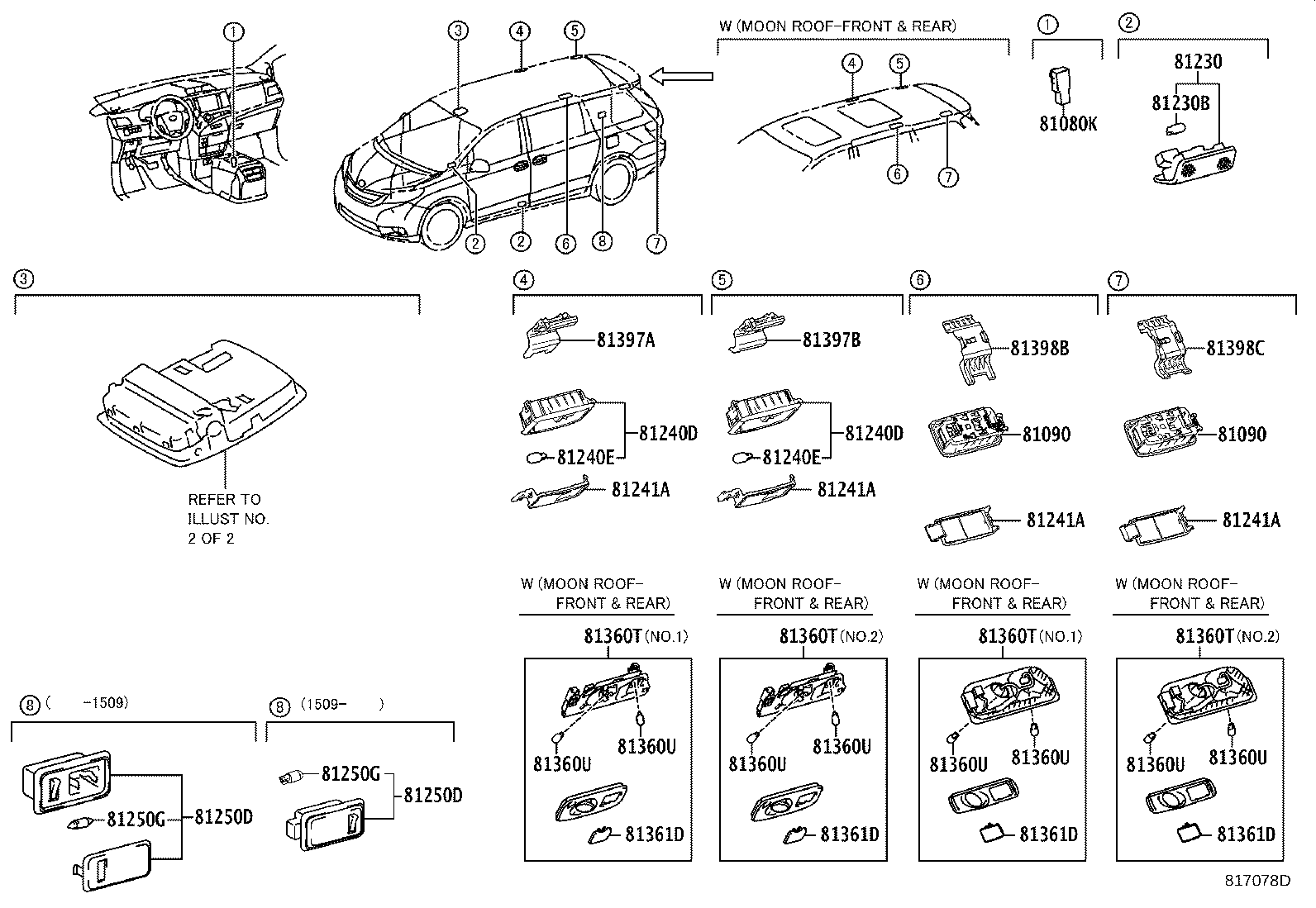

Figure 815289F 815289F 2010-01 → 2014-09 Figure 815289F 815289F 2010-05 → 2013-08 Figure 817078D 817078D 2014-09 → 2016-08 Figure 818208B 818208B 2016-08 → — Figure 81A887A 81A887A 2010-01 → 2014-09 Figure 81A886 81A886 2014-09 → —

Part groups

PNCDescription
81080K Lamp Assy, Console Box Illumination
81090 Lamp Assy, Interior Illumination, NO.2
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81241A Lens, Room Lamp, NO.2
81250D Lamp Assy, Rear Room, RH
81250G Bulb, Rear Room Lamp, RH
81360T Lamp Assy, Spot
81360U Bulb, Spot Lamp
81361D Lens, Spot Lamp
81362B Lens, Interior Illumination Lamp
81397A Retainer, Room Lamp, RH
81397B Retainer, Room Lamp, NO.2 RH
81398B Retainer, Room Lamp, LH
81398C Retainer, Room Lamp, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
