Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

79 part groups · 22 illustrations

Illustrations

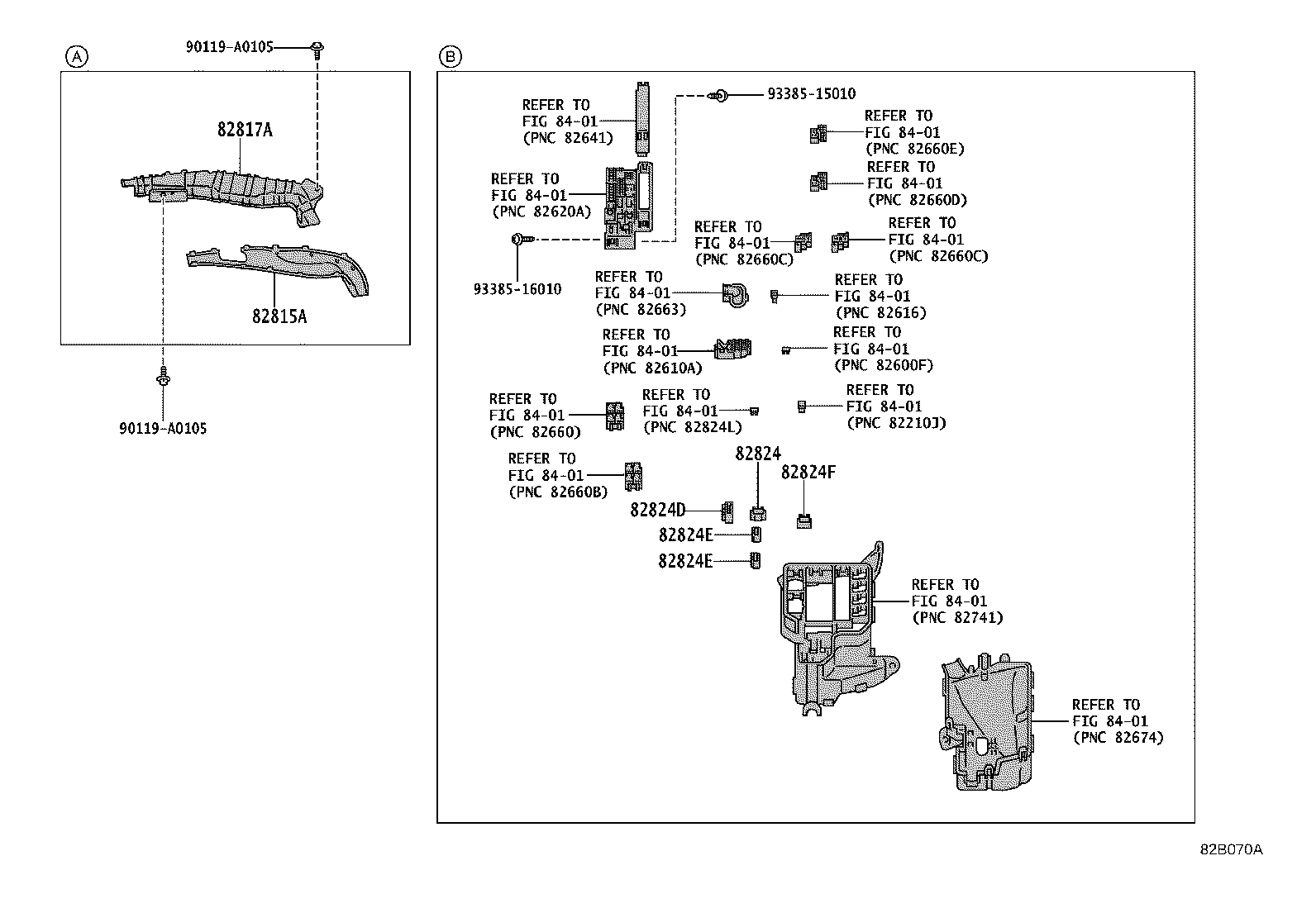

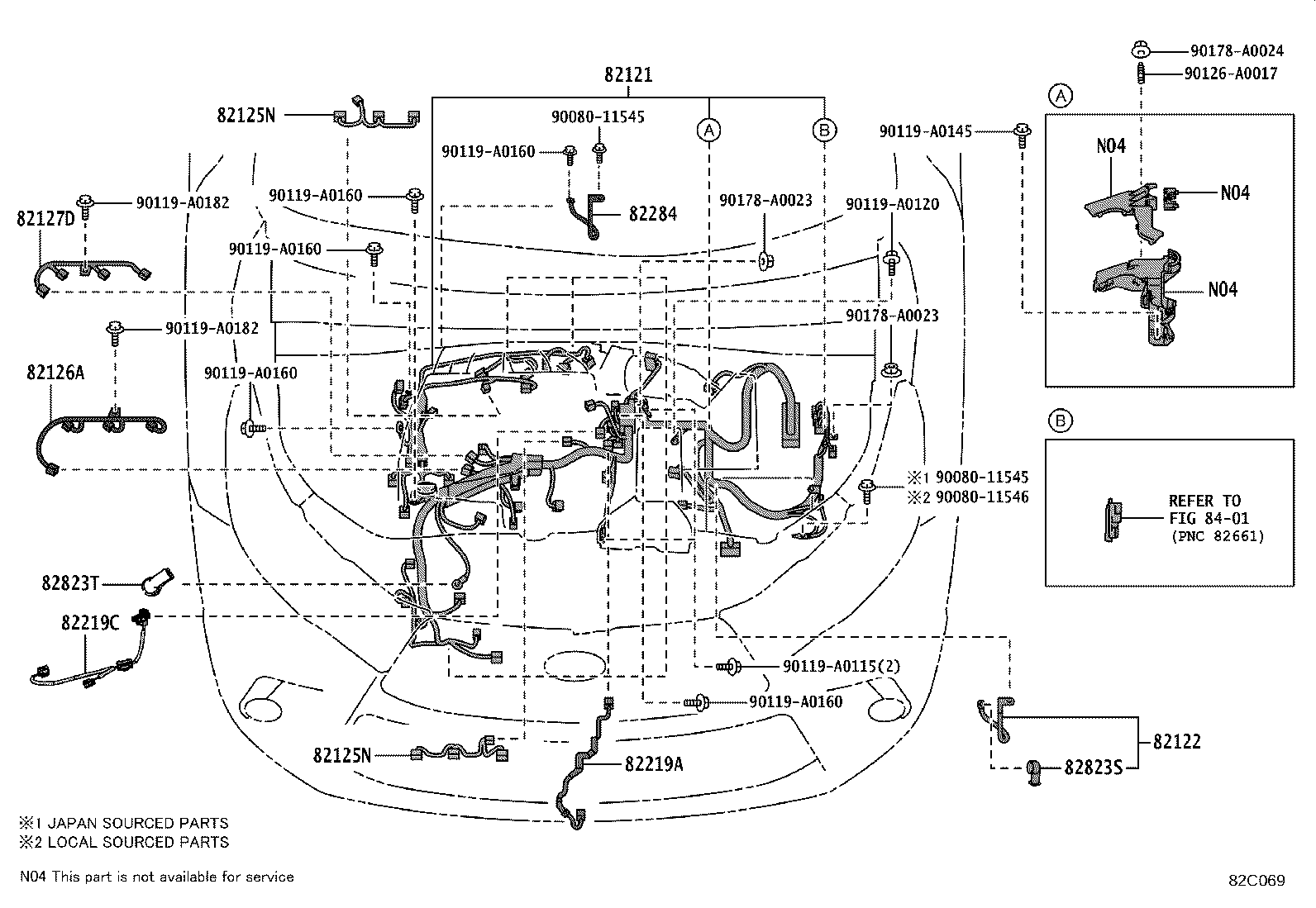

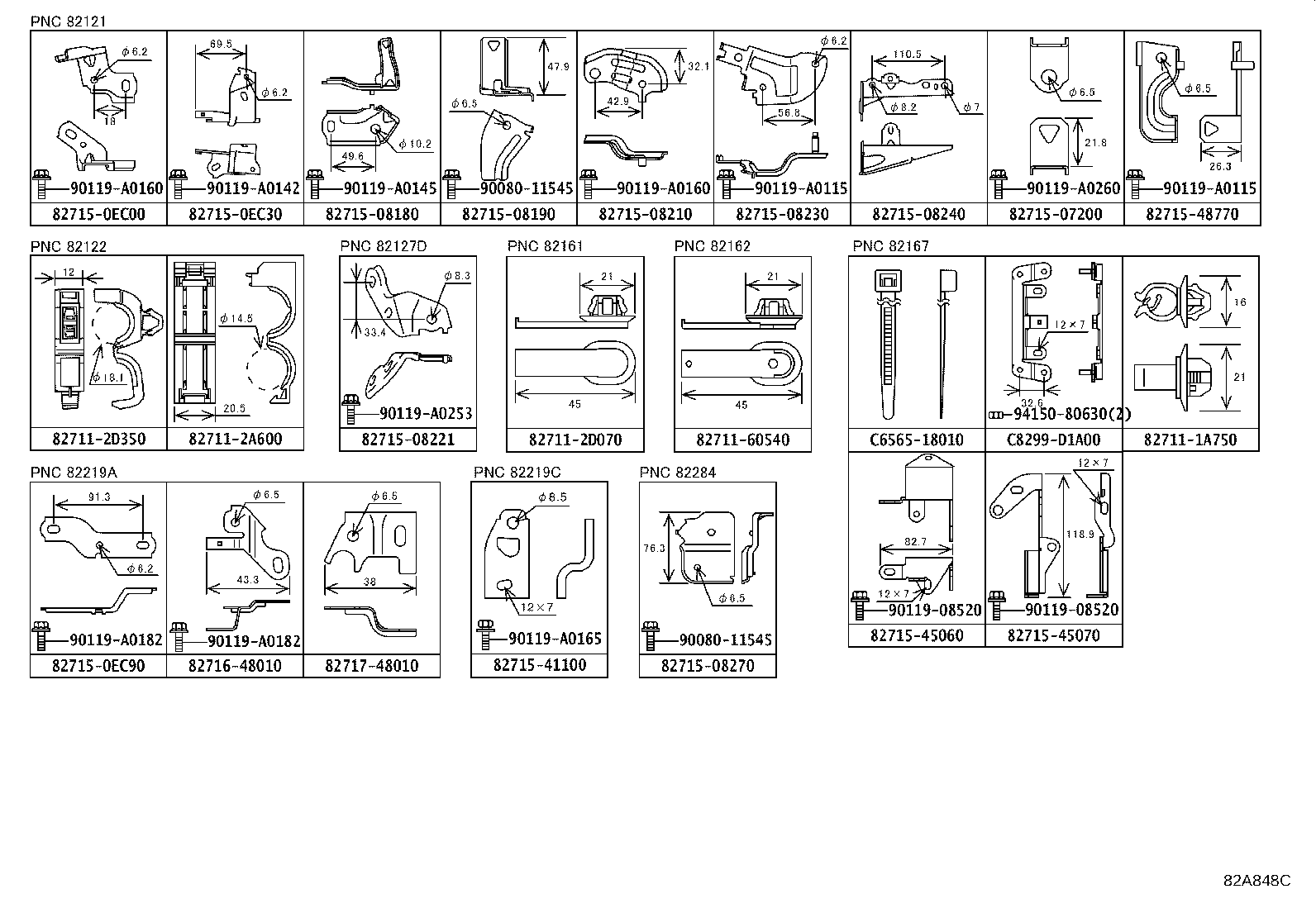

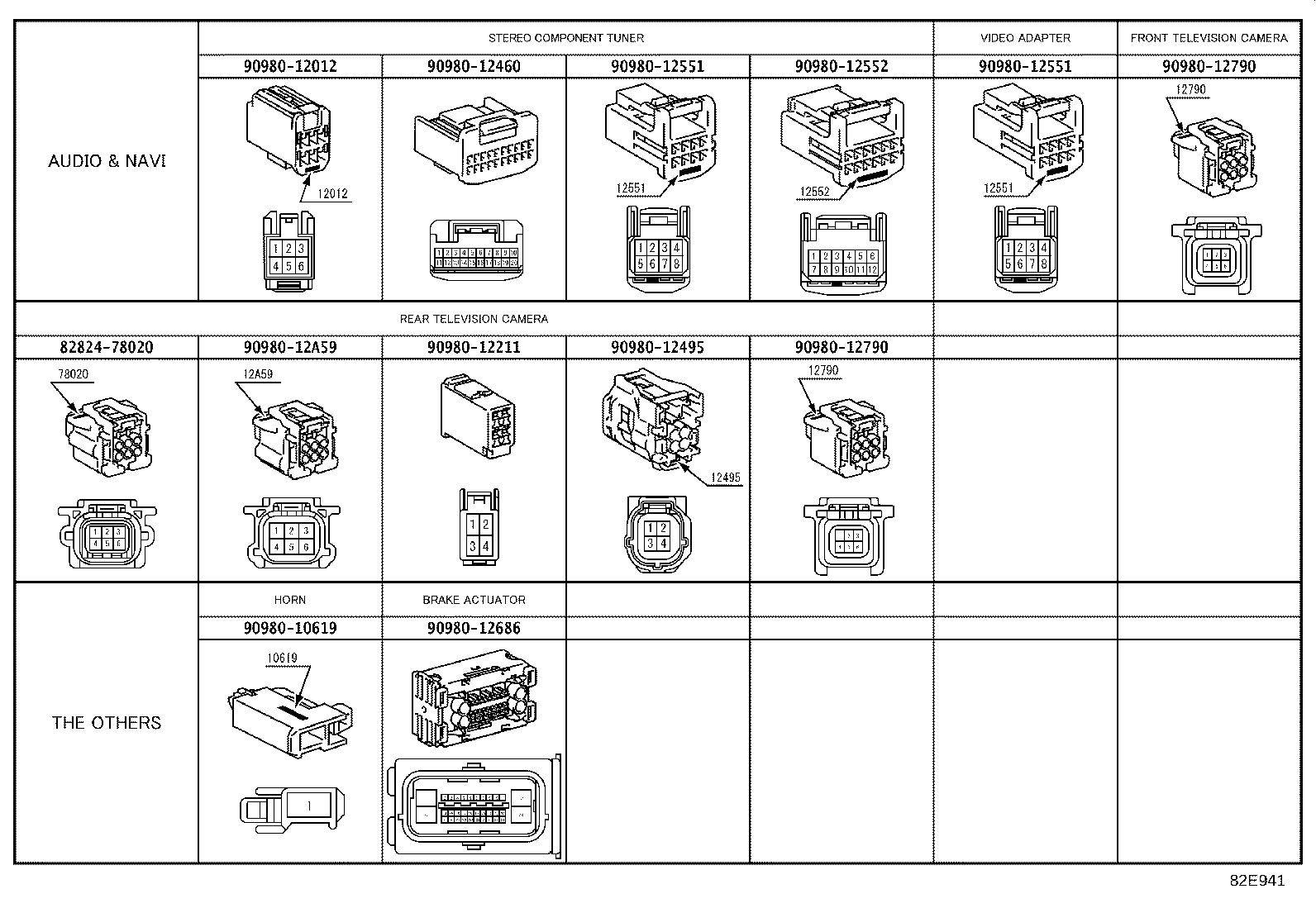

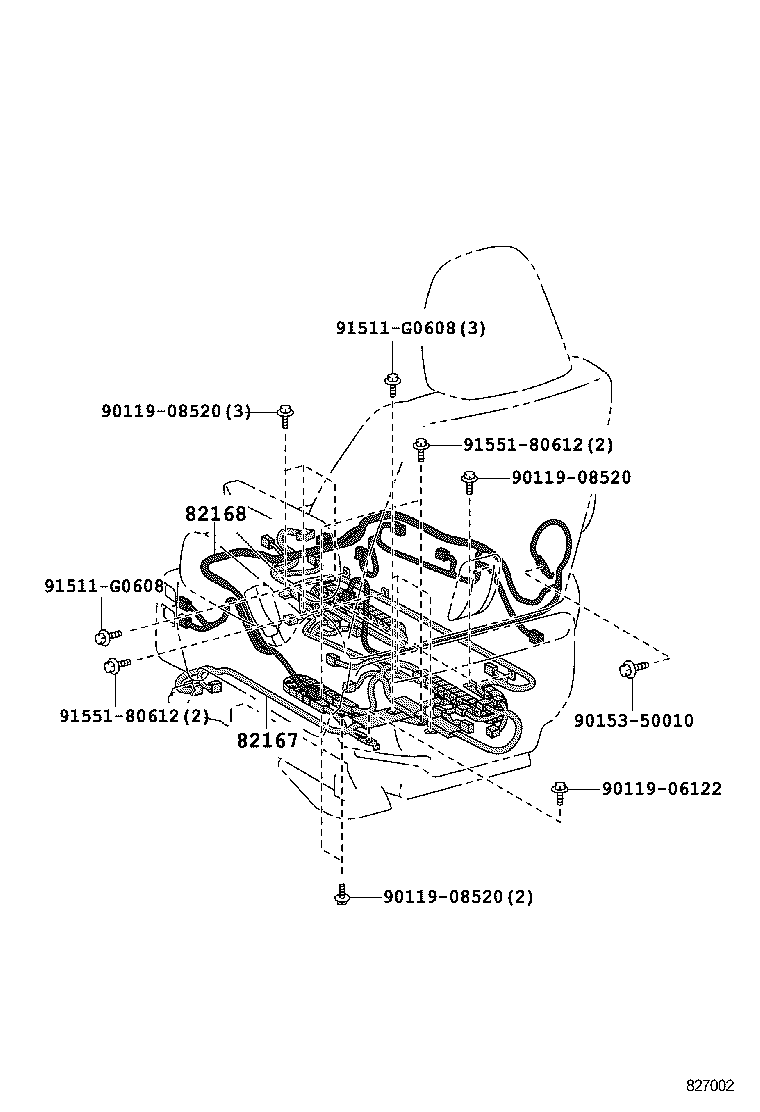

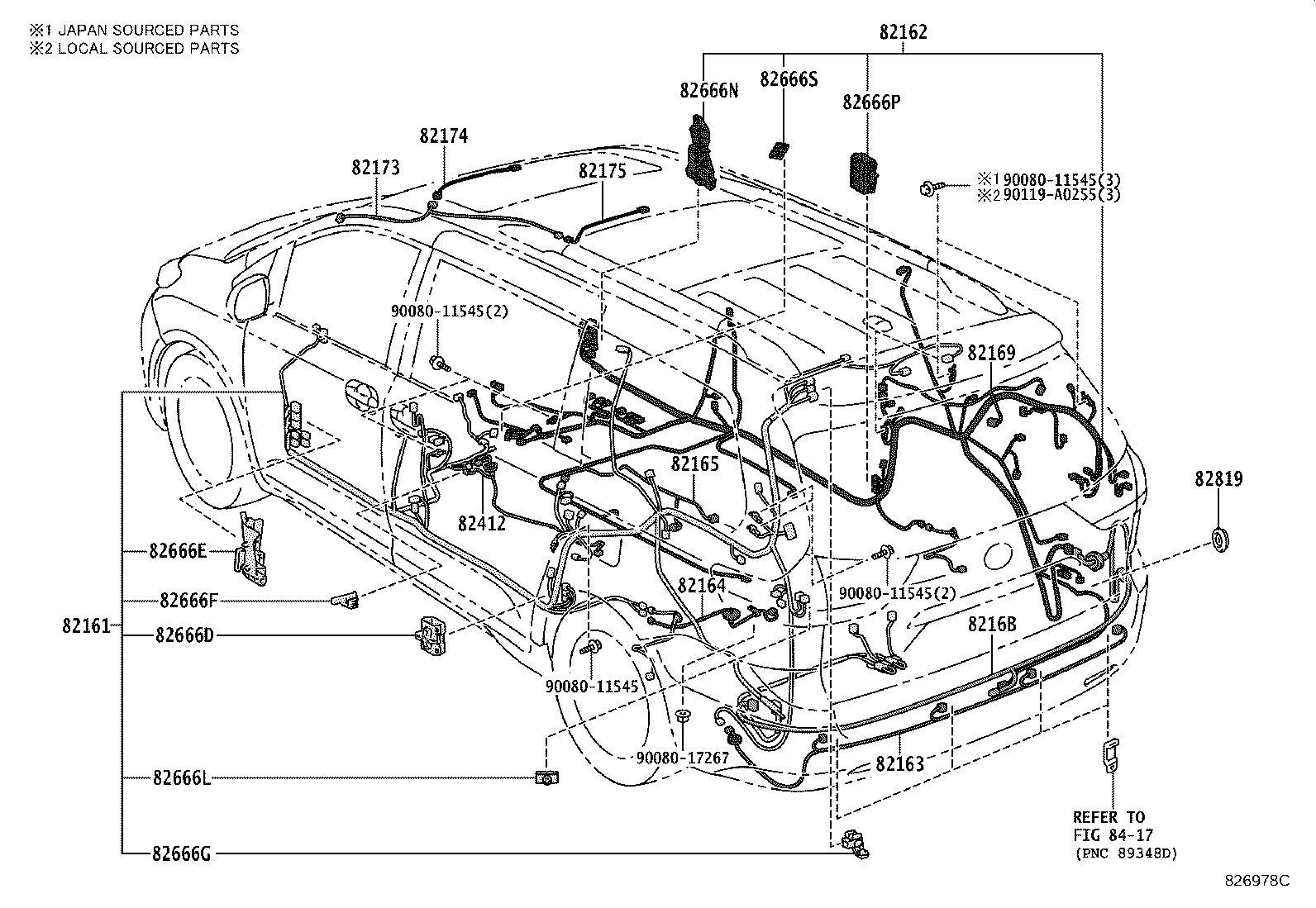

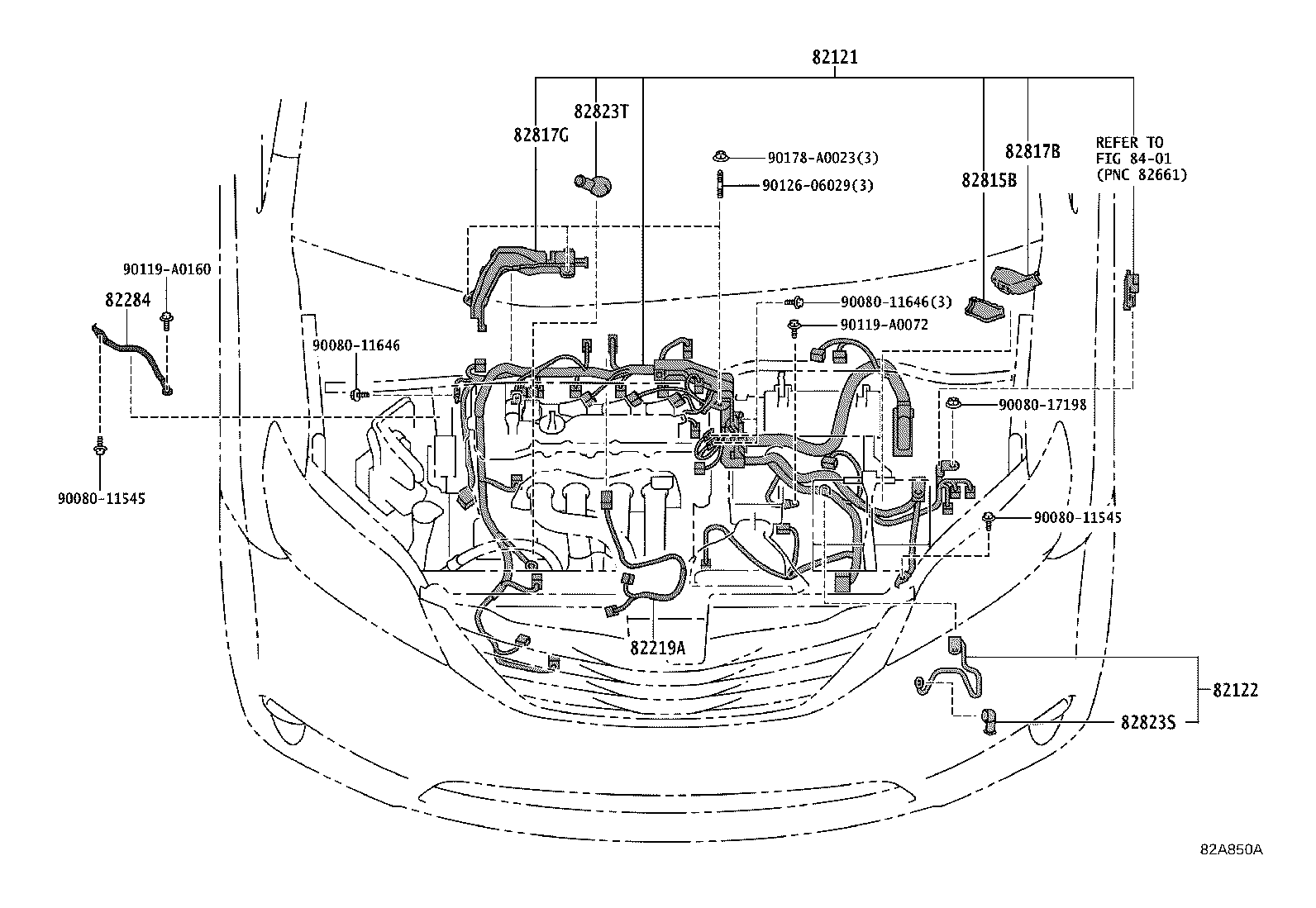

Figure 826973A 826973A 2010-01 → 2016-08 Figure 82B070A 82B070A 2010-01 → 2014-09 Figure 826982G 826982G 2014-09 → 2016-08 Figure 82A846 82A846 2016-08 → — Figure 82B071E 82B071E 2016-08 → — Figure 82A849 82A849 2010-01 → 2016-08 Figure 82A850A 82A850A 2010-05 → 2016-08 Figure 82C069 82C069 2016-08 → — Figure 829623C 829623C 2010-01 → — Figure 826977B 826977B 2010-01 → — Figure 826978C 826978C 2010-01 → — Figure 826979 826979 2010-01 → — Figure 826980 826980 2010-01 → — Figure 827002 827002 2010-01 → — Figure 826984A 826984A 2010-01 → 2016-08 Figure 826983 826983 2010-05 → 2016-08 Figure 82A848C 82A848C 2016-08 → — Figure 826981 826981 2010-01 → 2014-09 Figure 827040F 827040F 2010-01 → — Figure 827041E 827041E 2010-01 → — Figure 829795D 829795D 2010-01 → — Figure 82E941 82E941 2010-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82169 Wire Frame, NO.3
8216B Wire, Floor NO.8
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82175 Wire, Roof, NO.5
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82219A Wire, Sensor
82219C Wire, Sensor
82284 Wire, Earth
82412 Wire, Fuel Gage
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817G Protector, Wiring Harness, NO.8
82819 Grommet, Wiring Harness
82821A Cover, Connector
82821E Cover, Connector
82821G Cover, Connector(FOR DIAGNOSIS)
82821H Cover, Connector
82821M Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
