Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

144 part groups · 19 illustrations

Illustrations

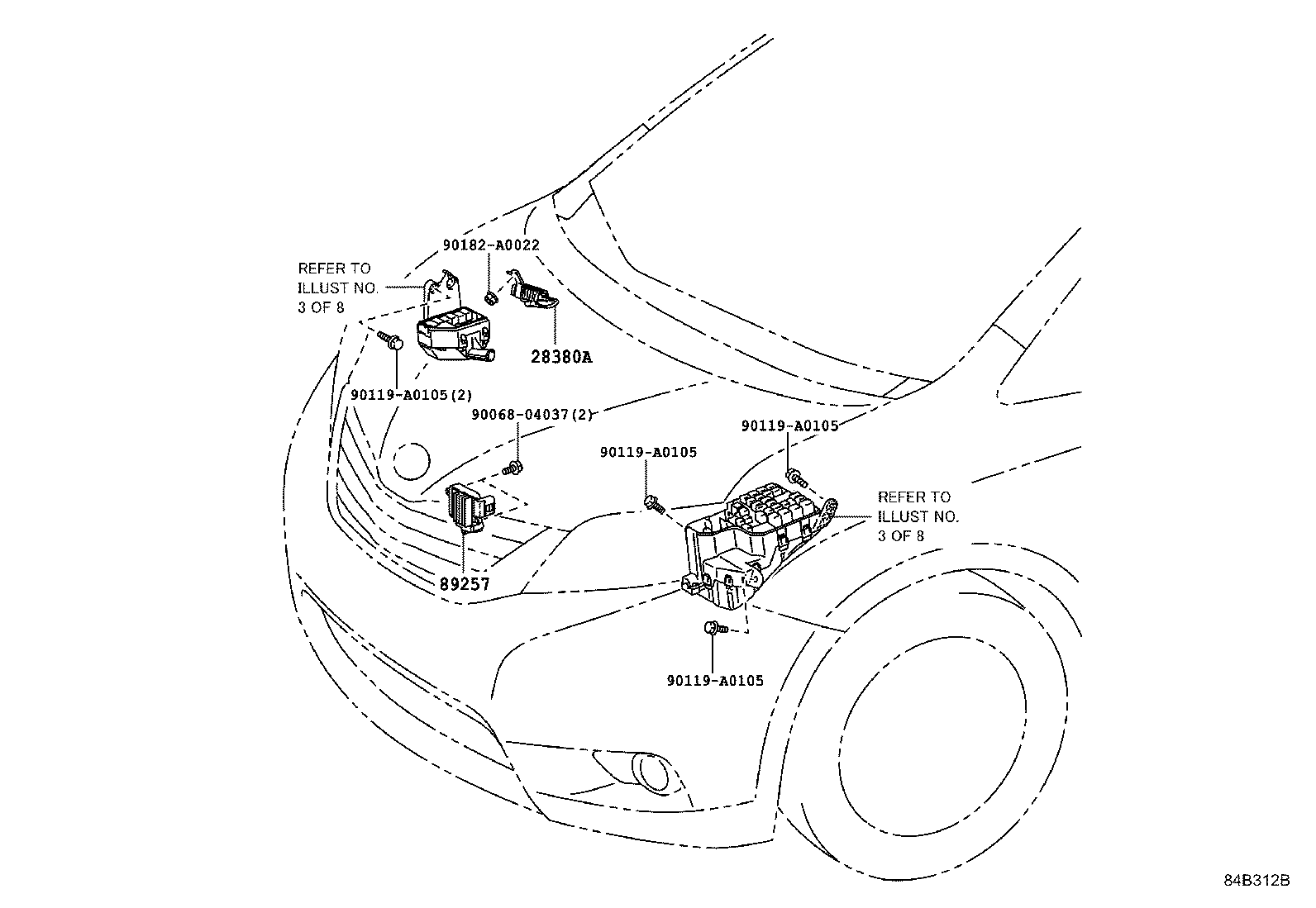

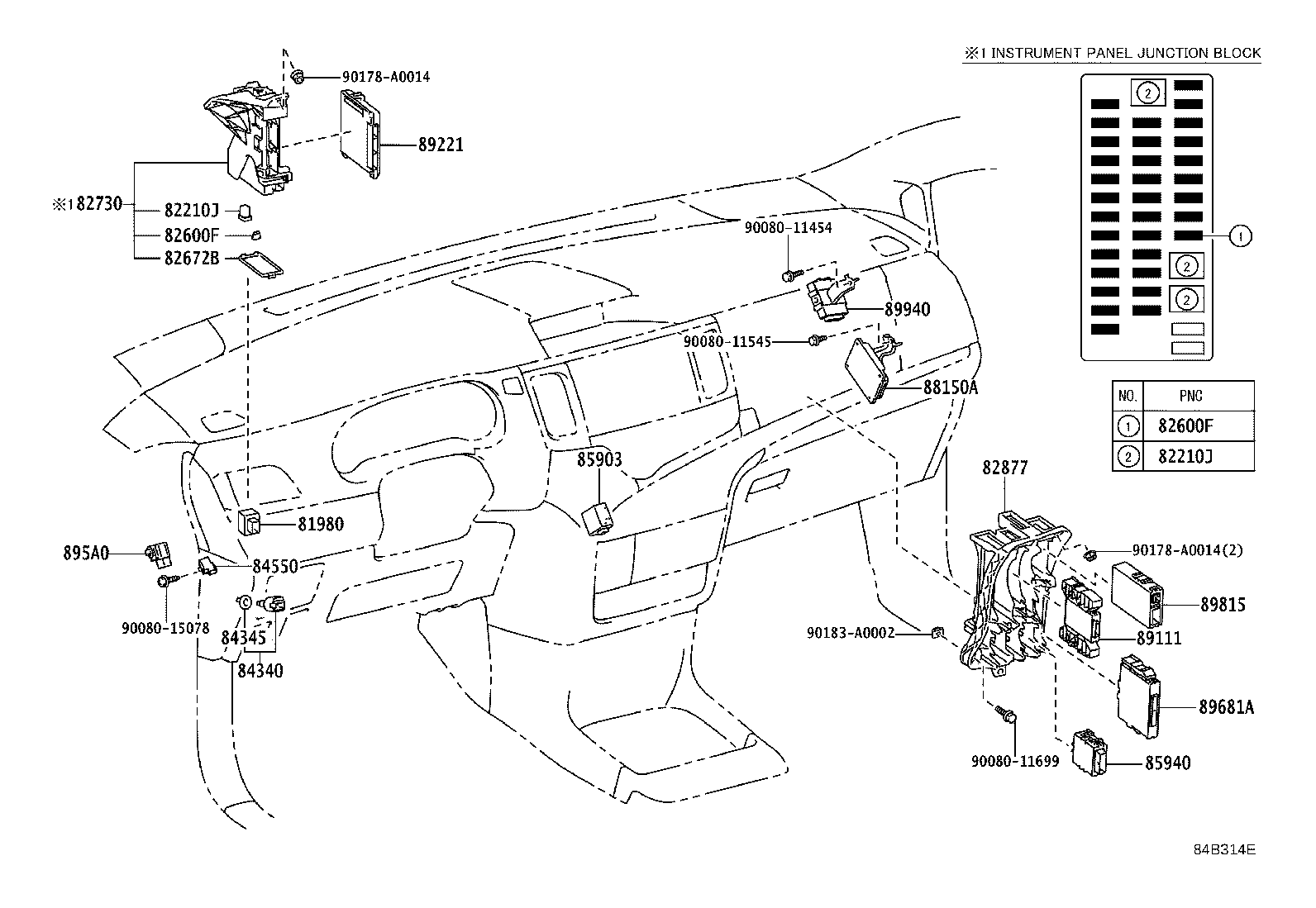

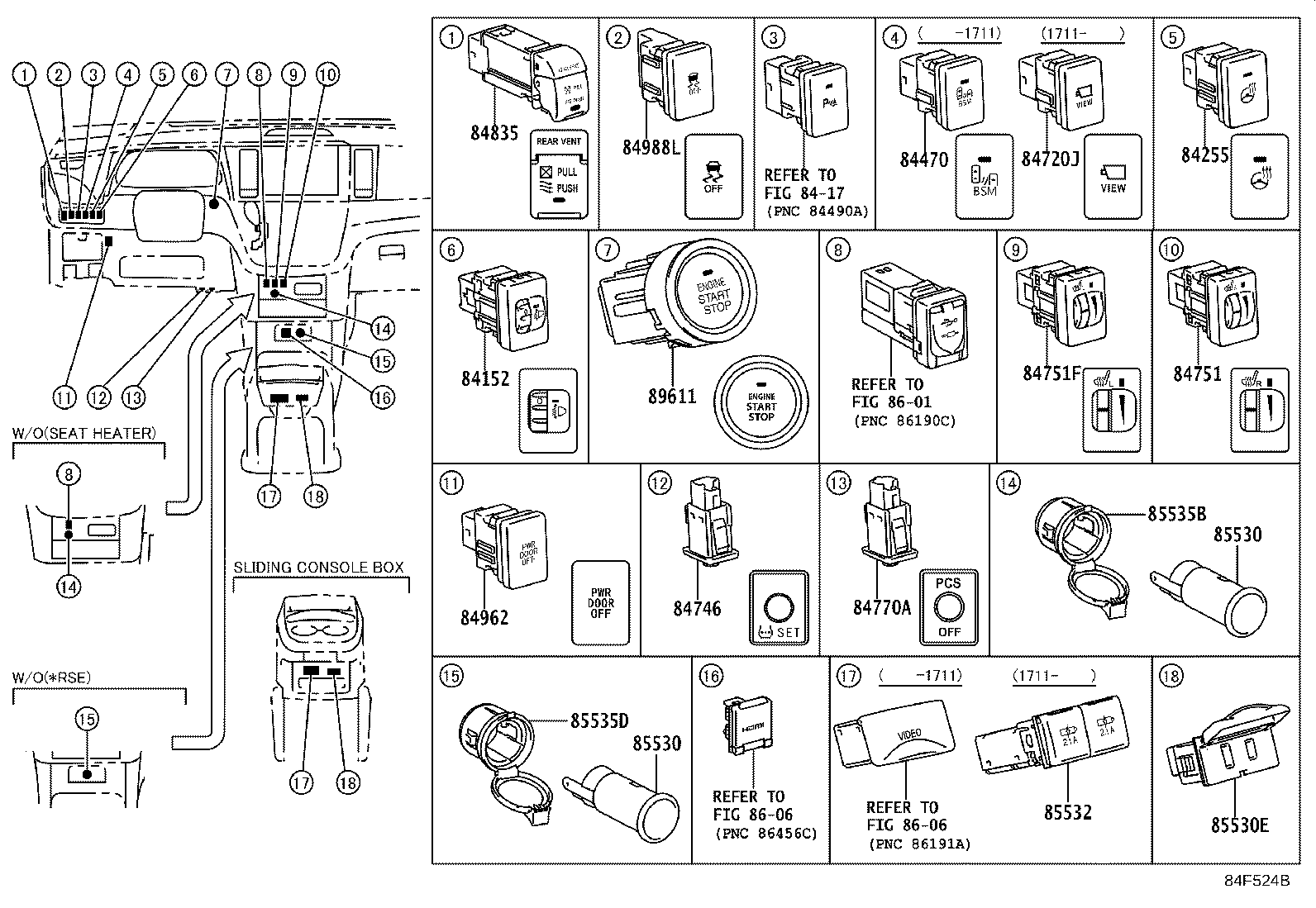

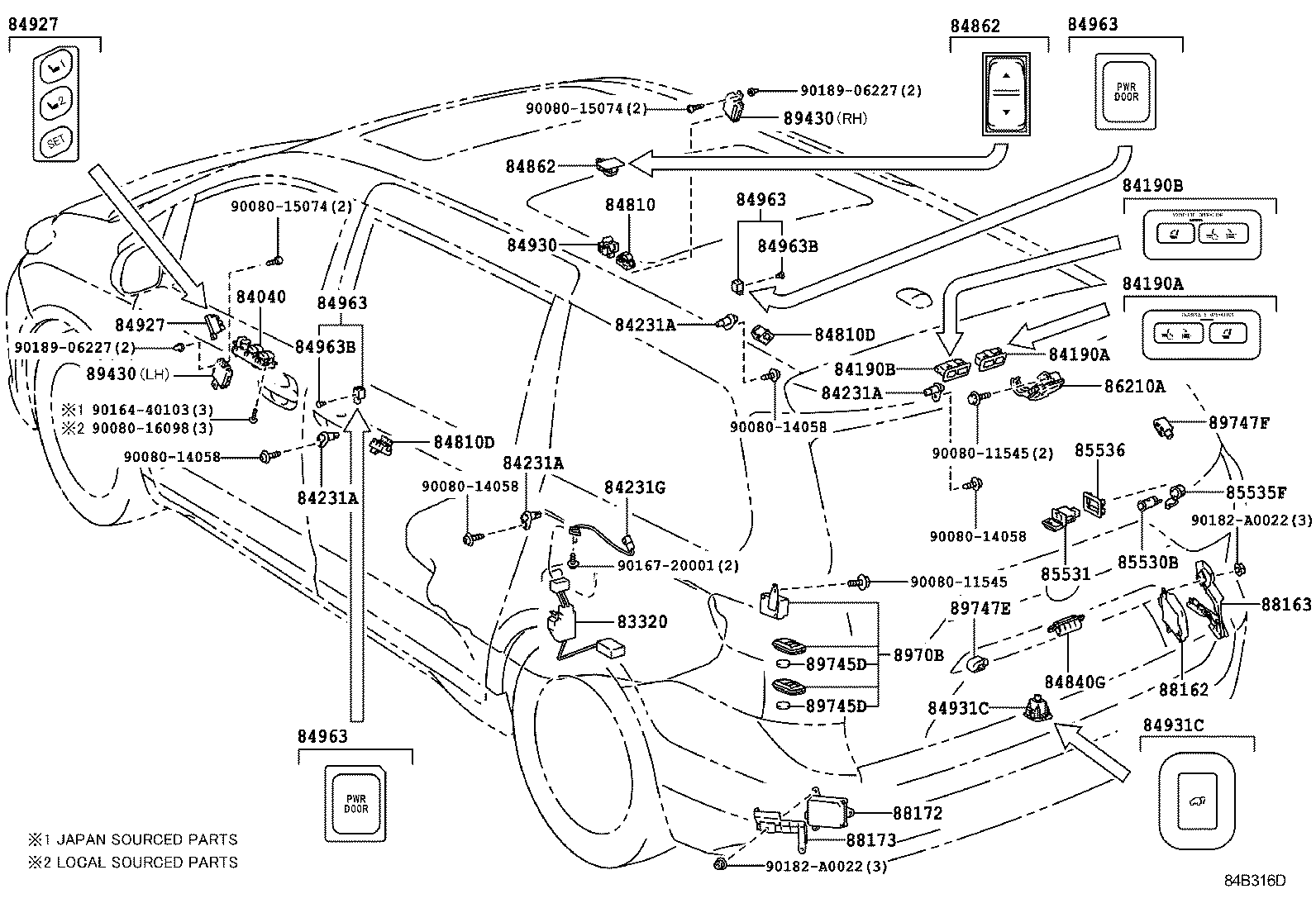

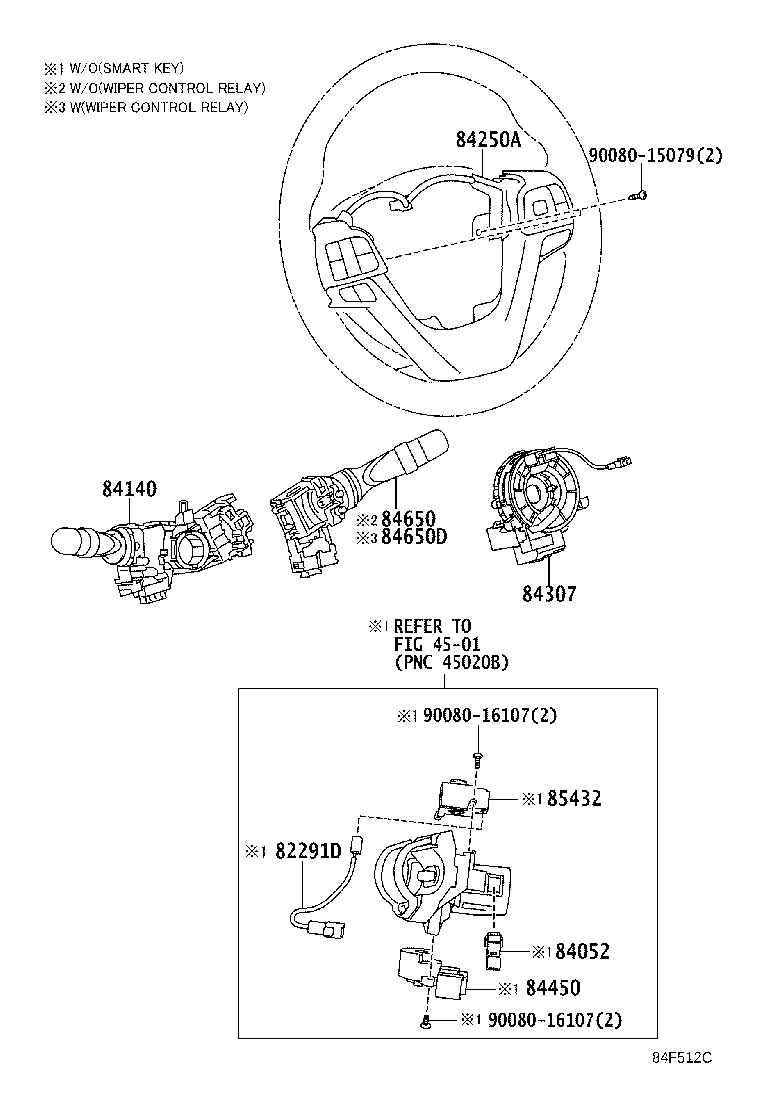

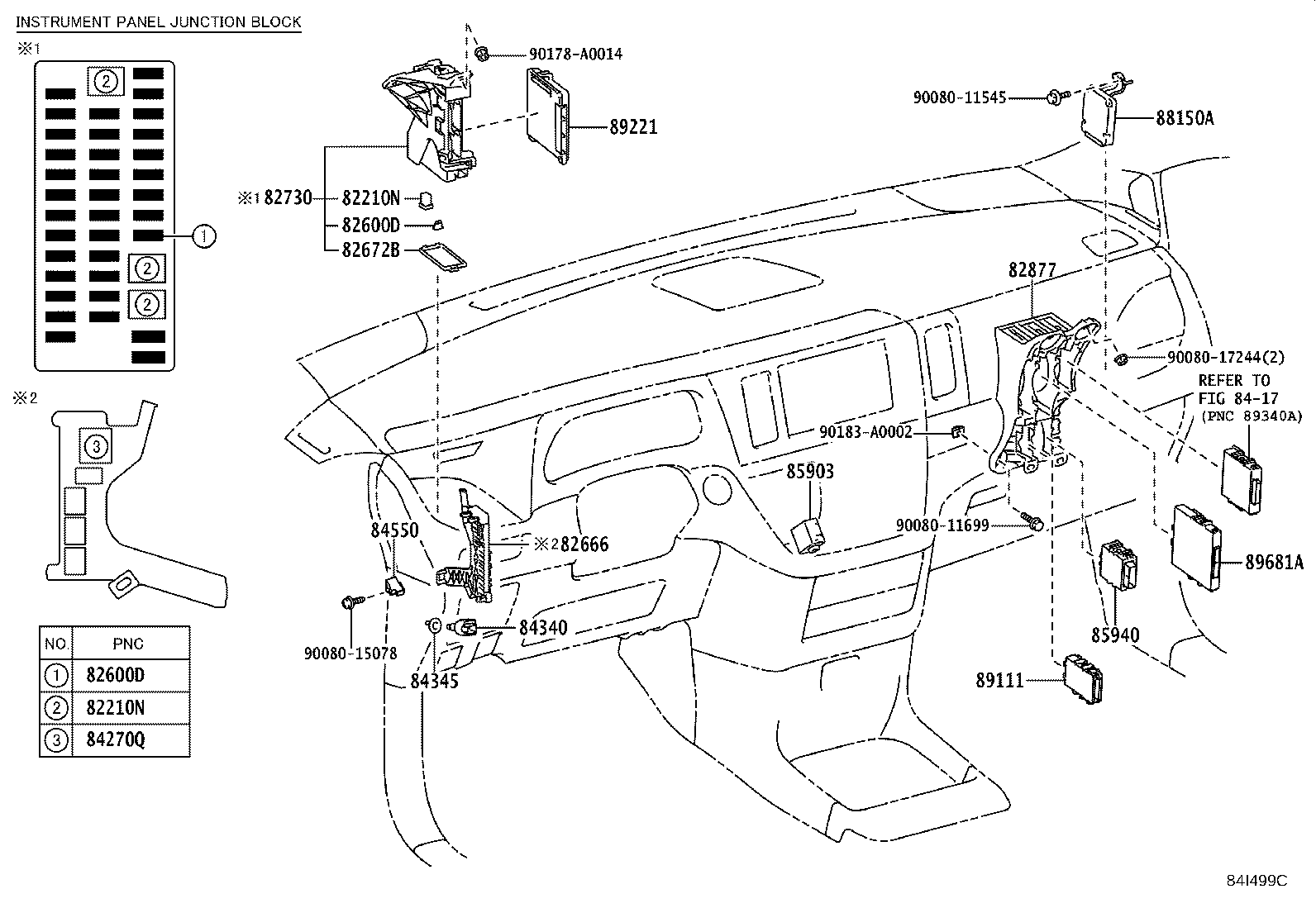

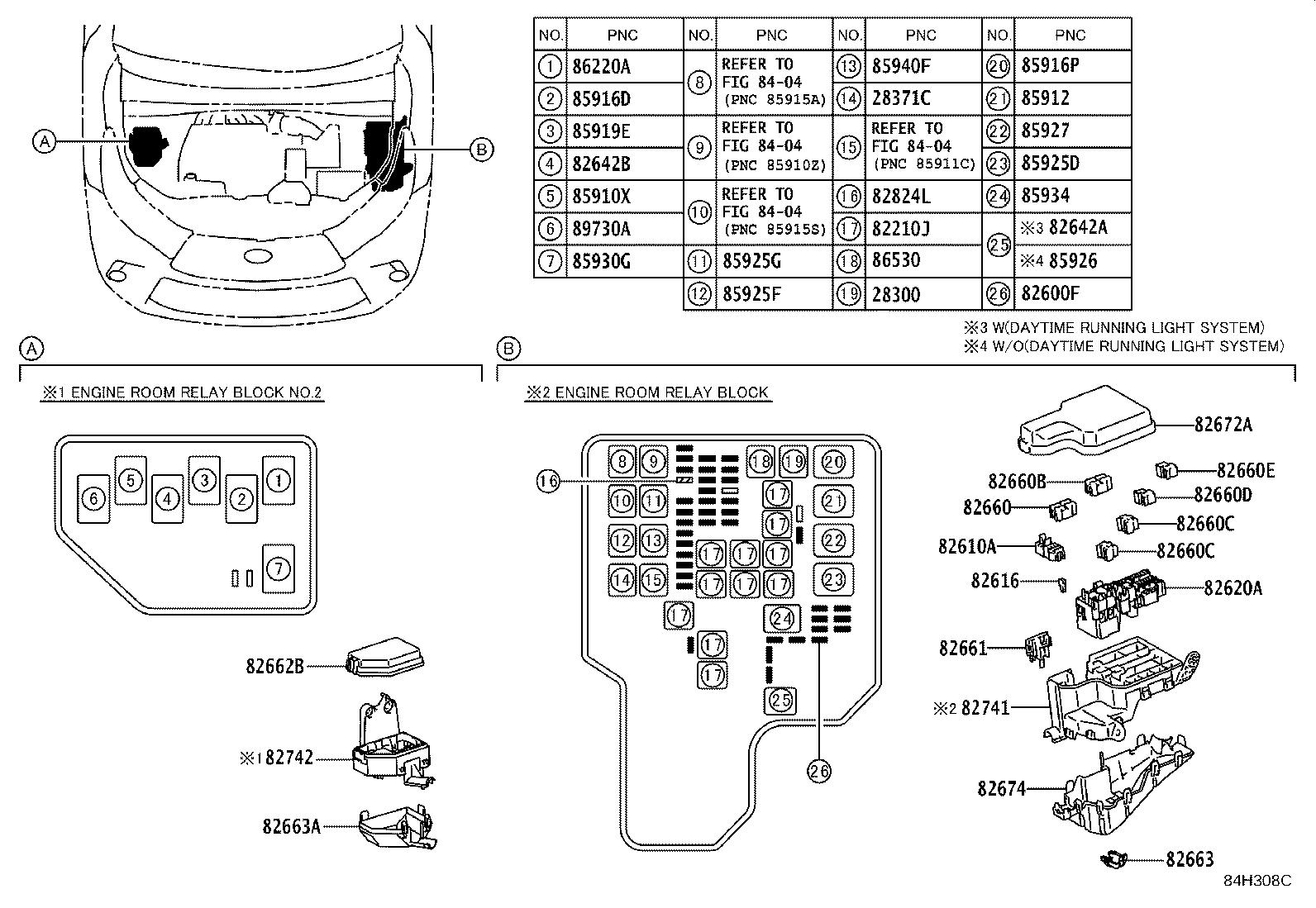

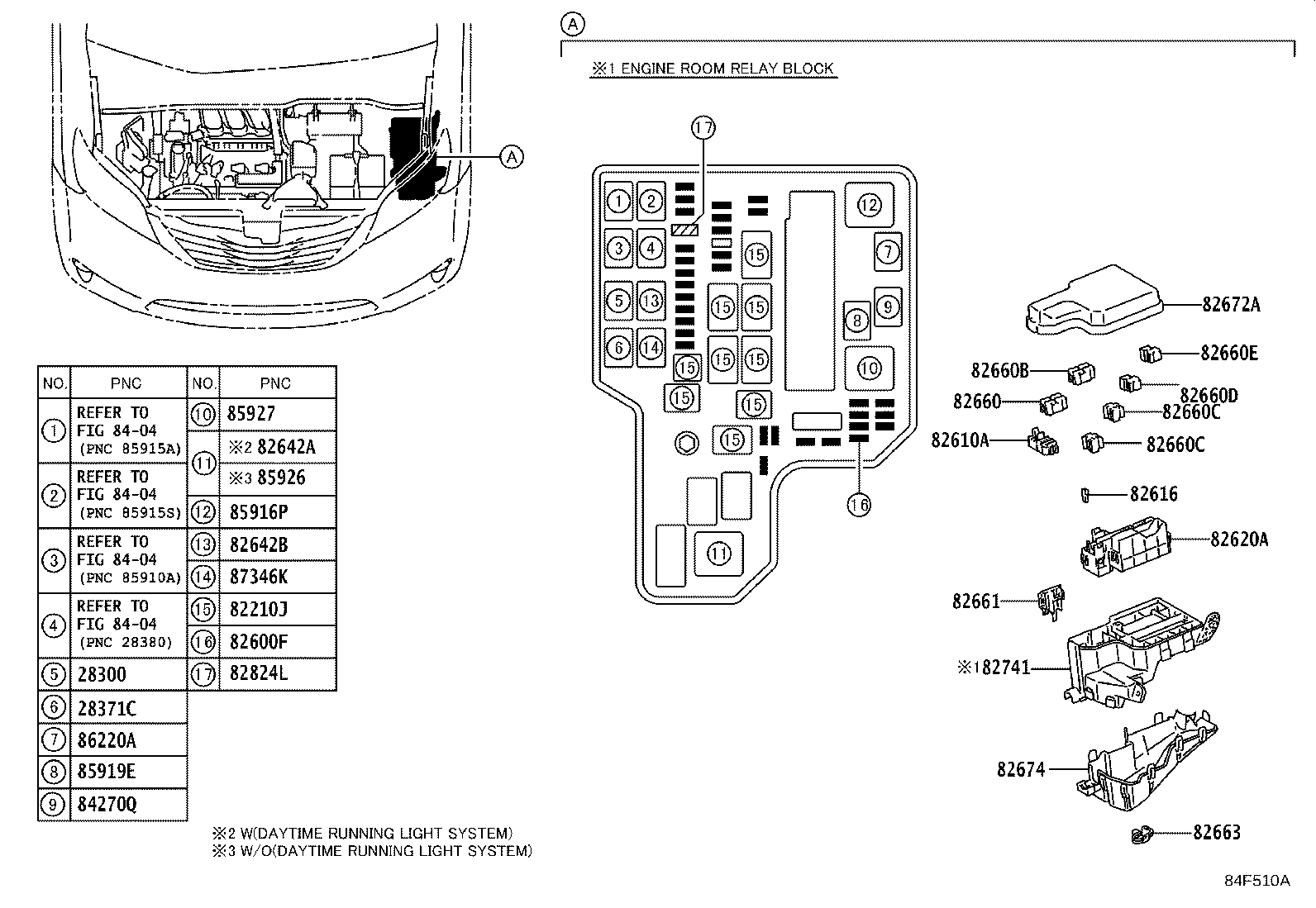

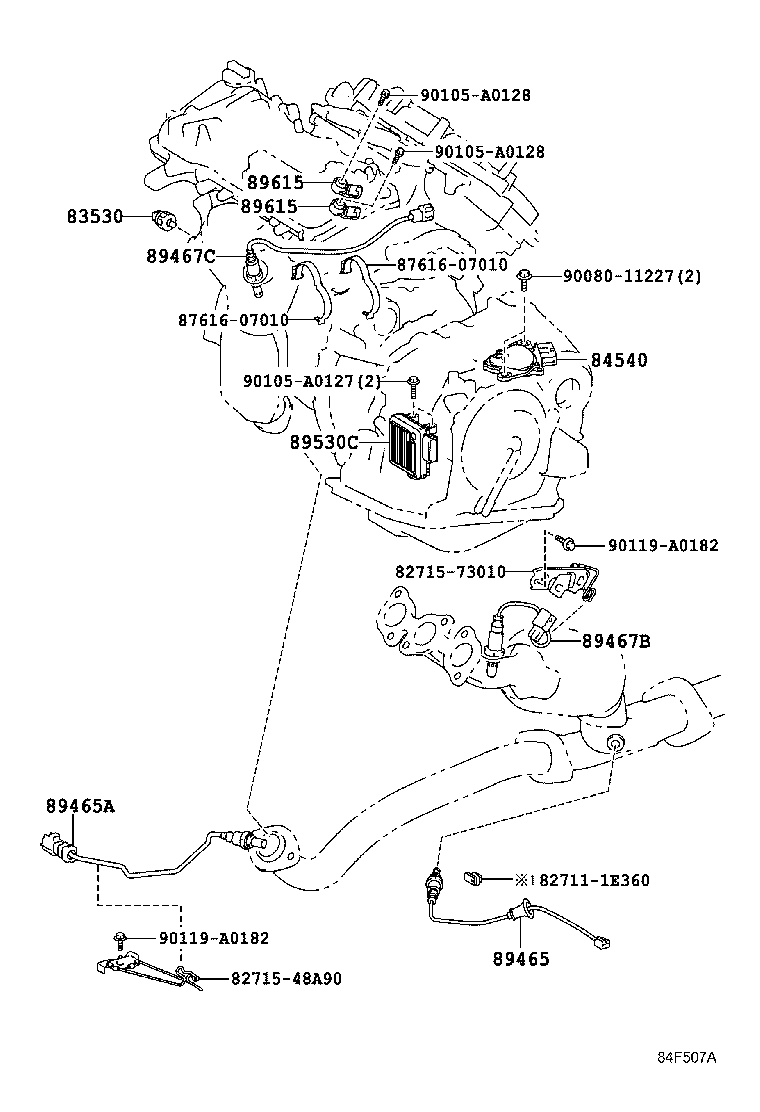

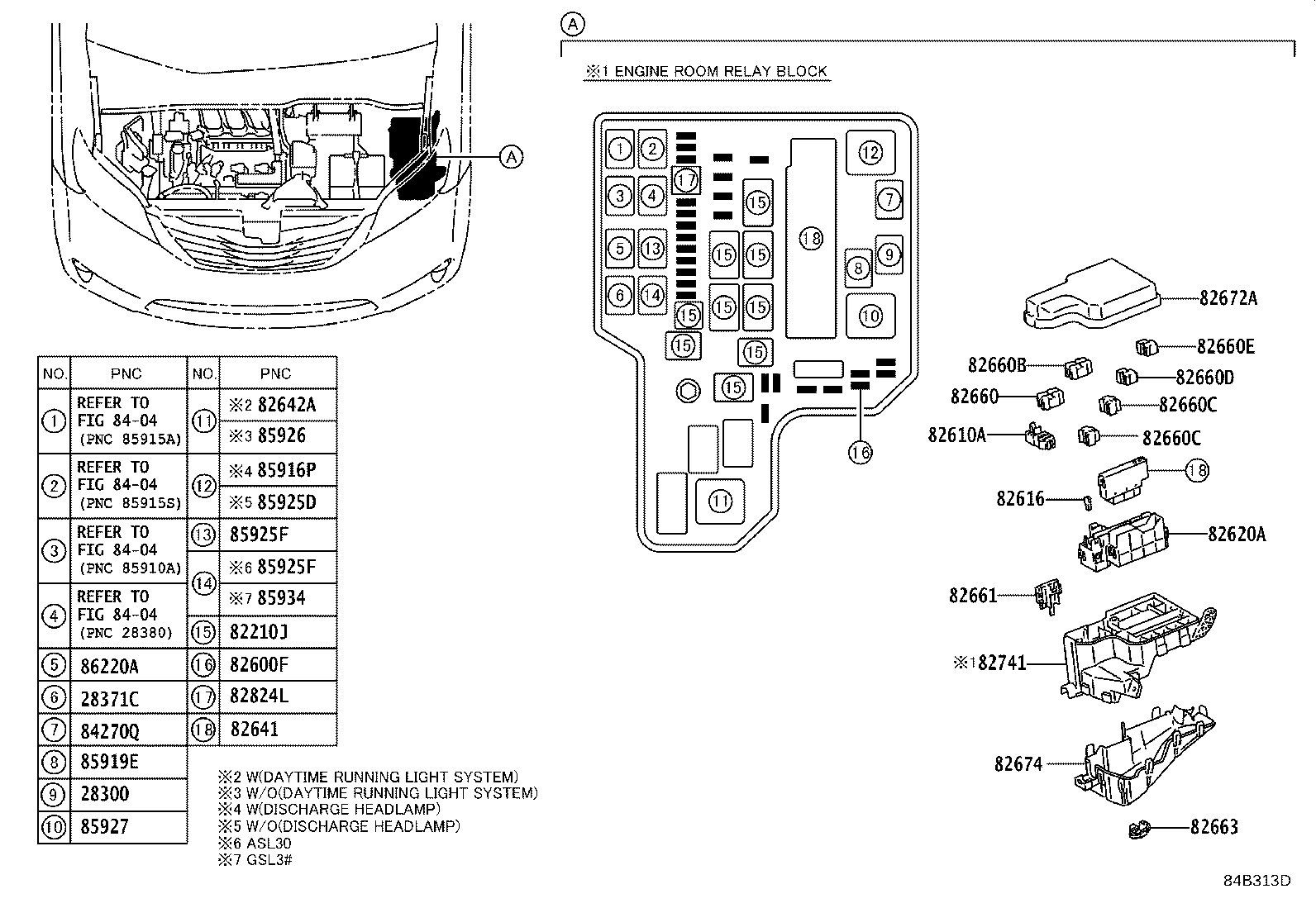

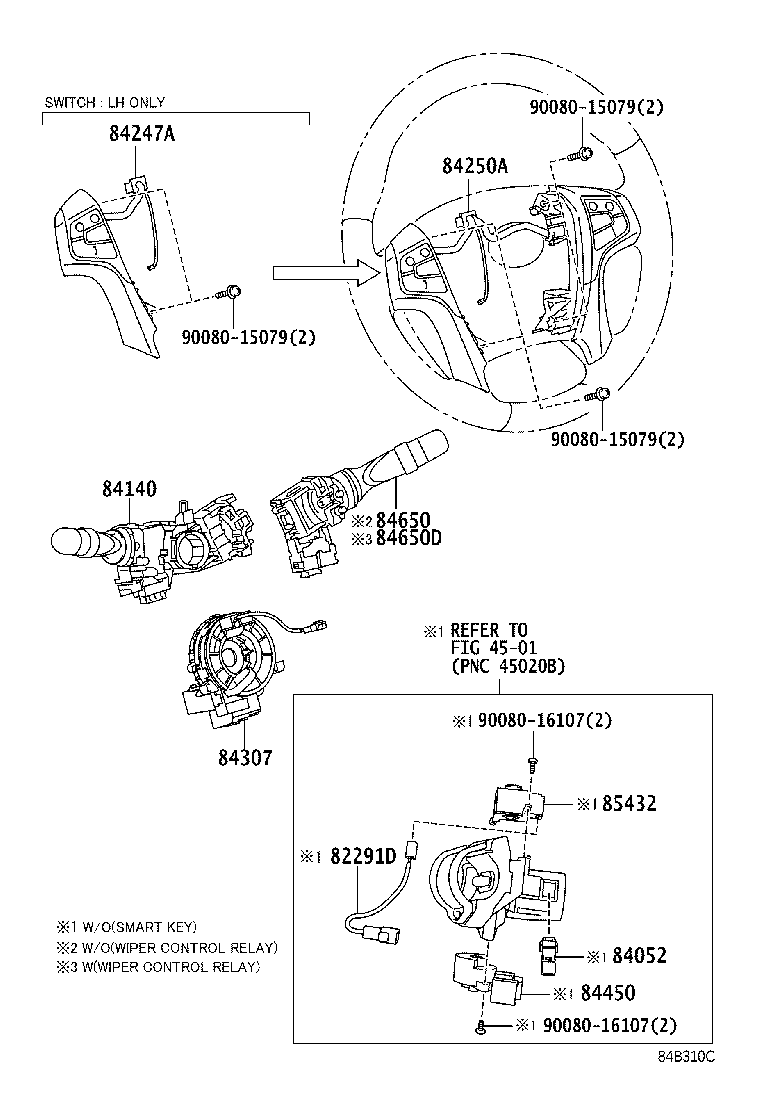

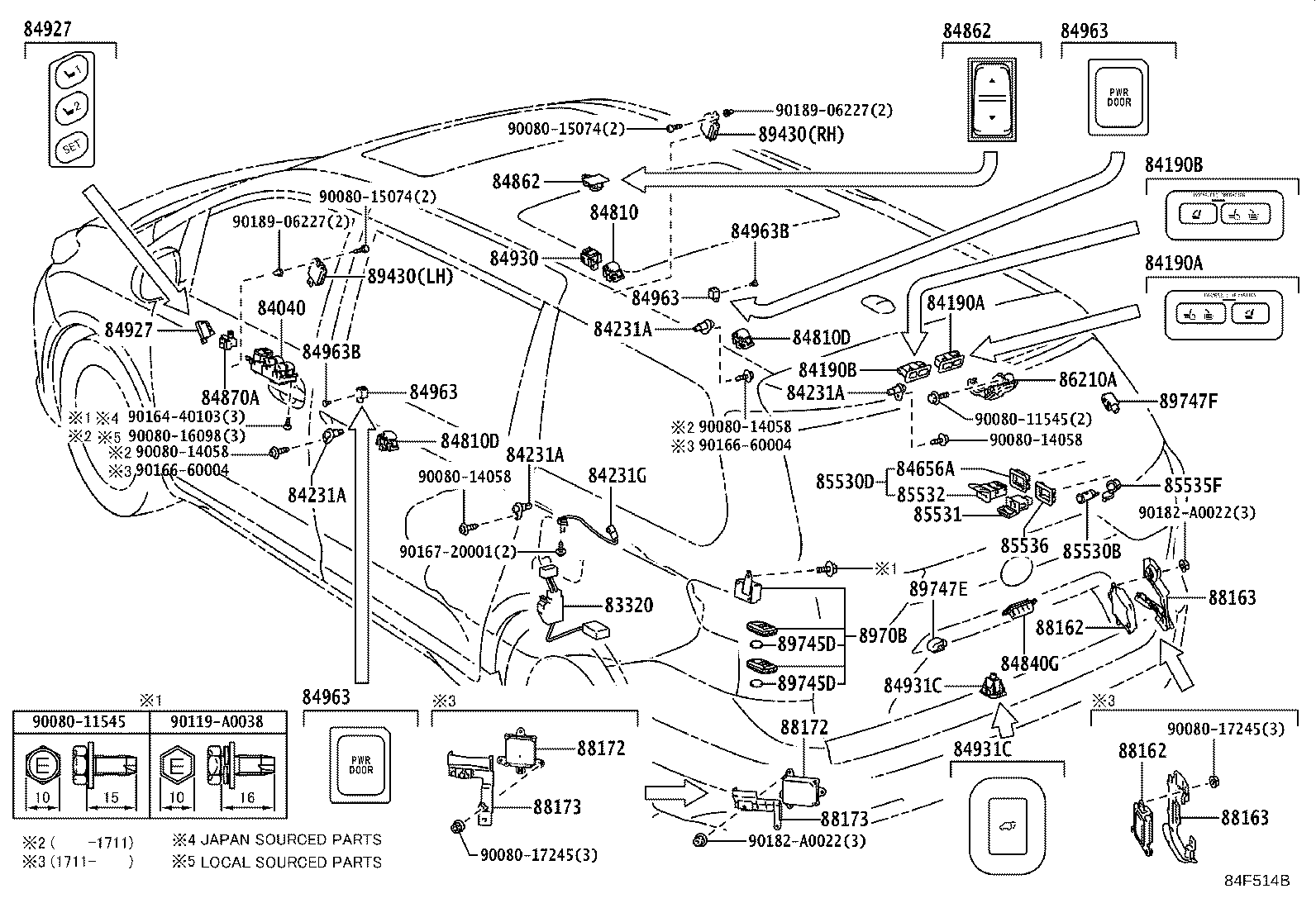

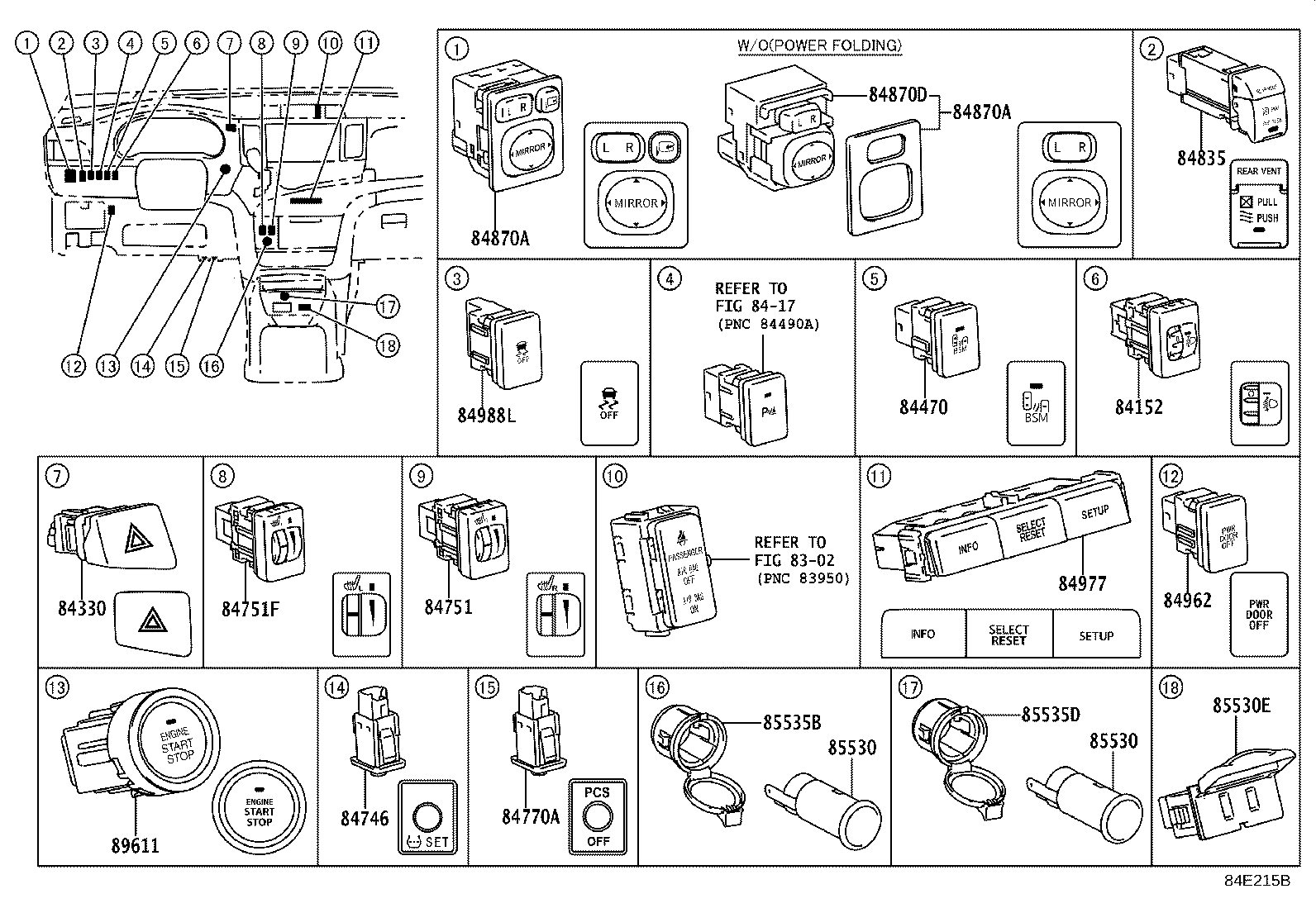

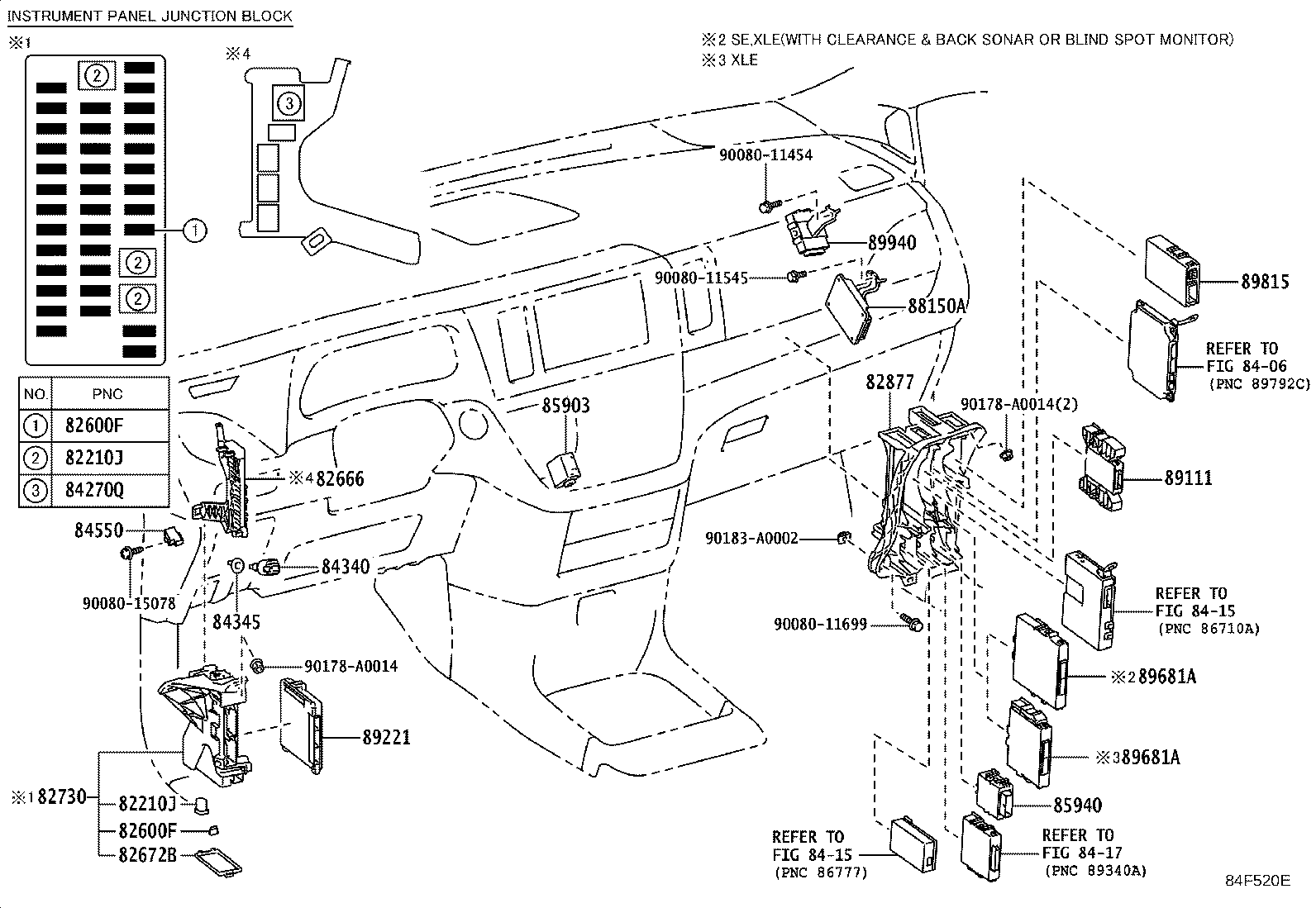

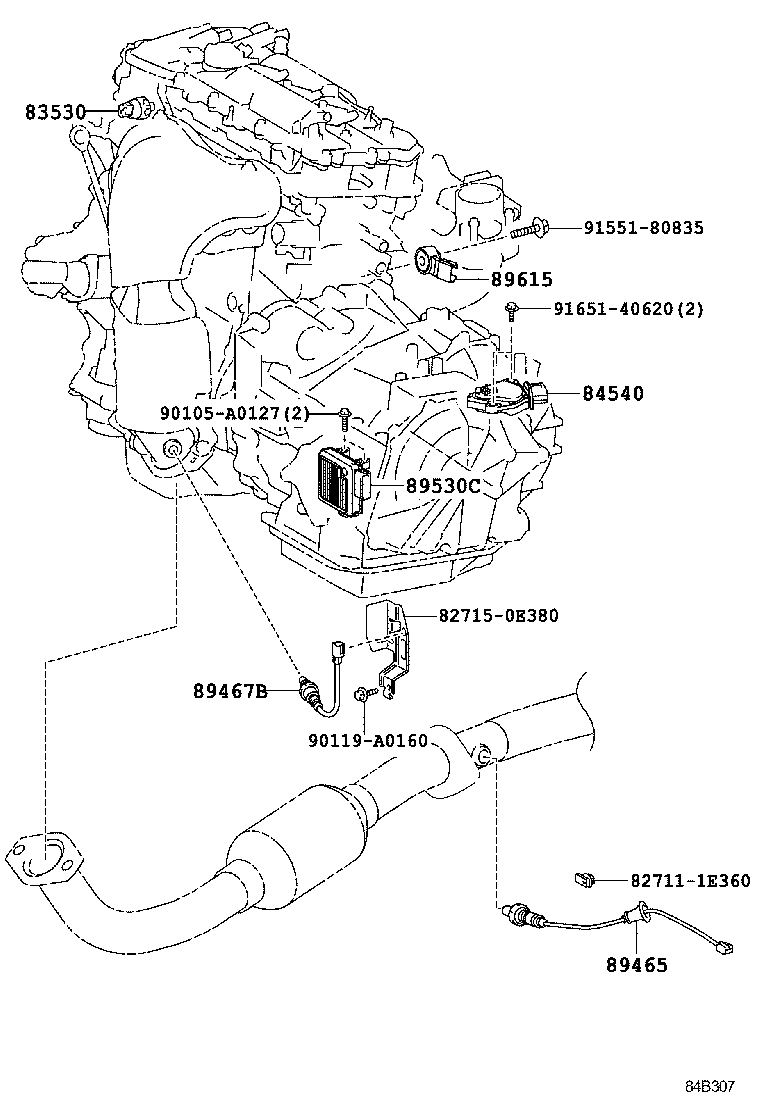

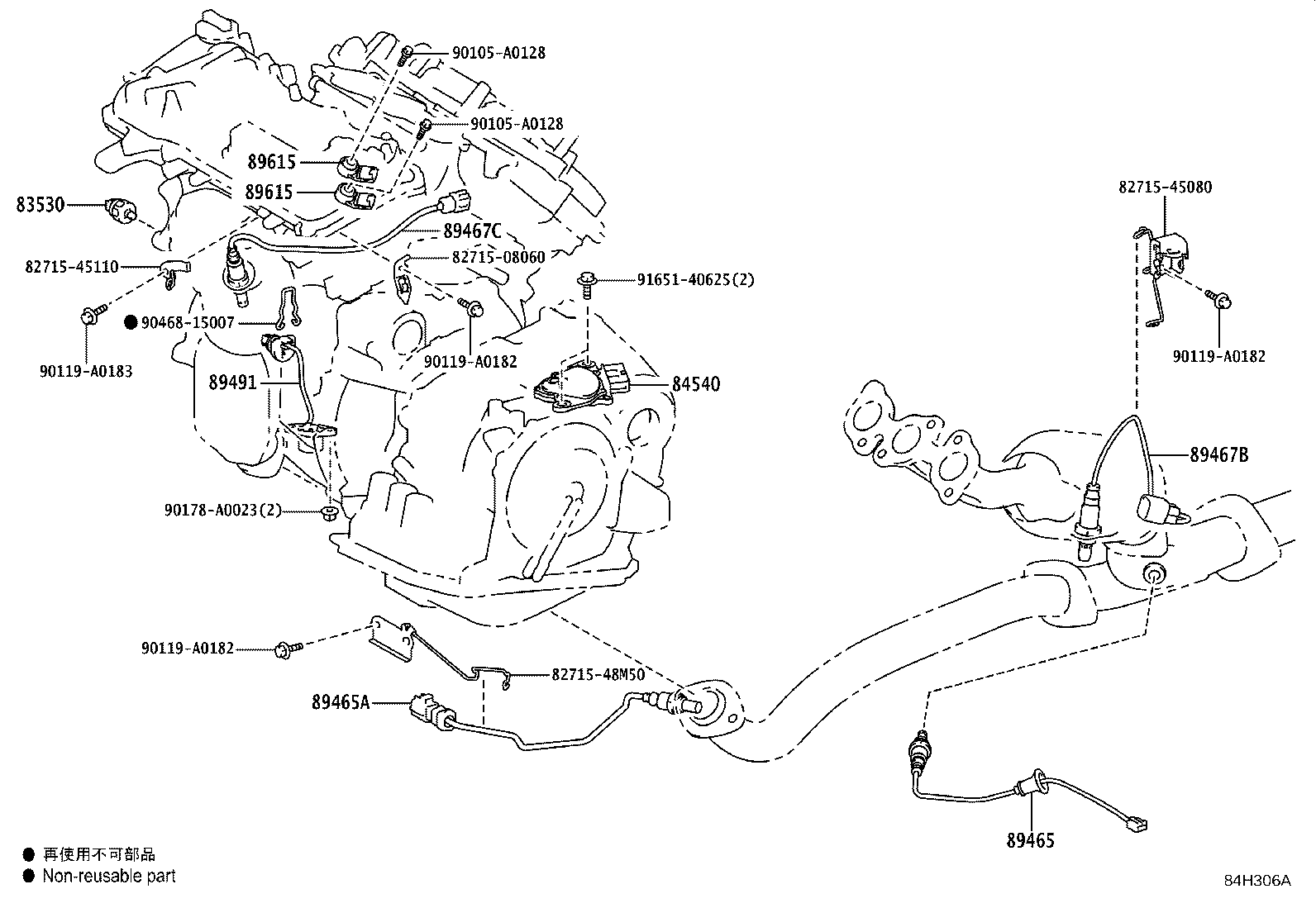

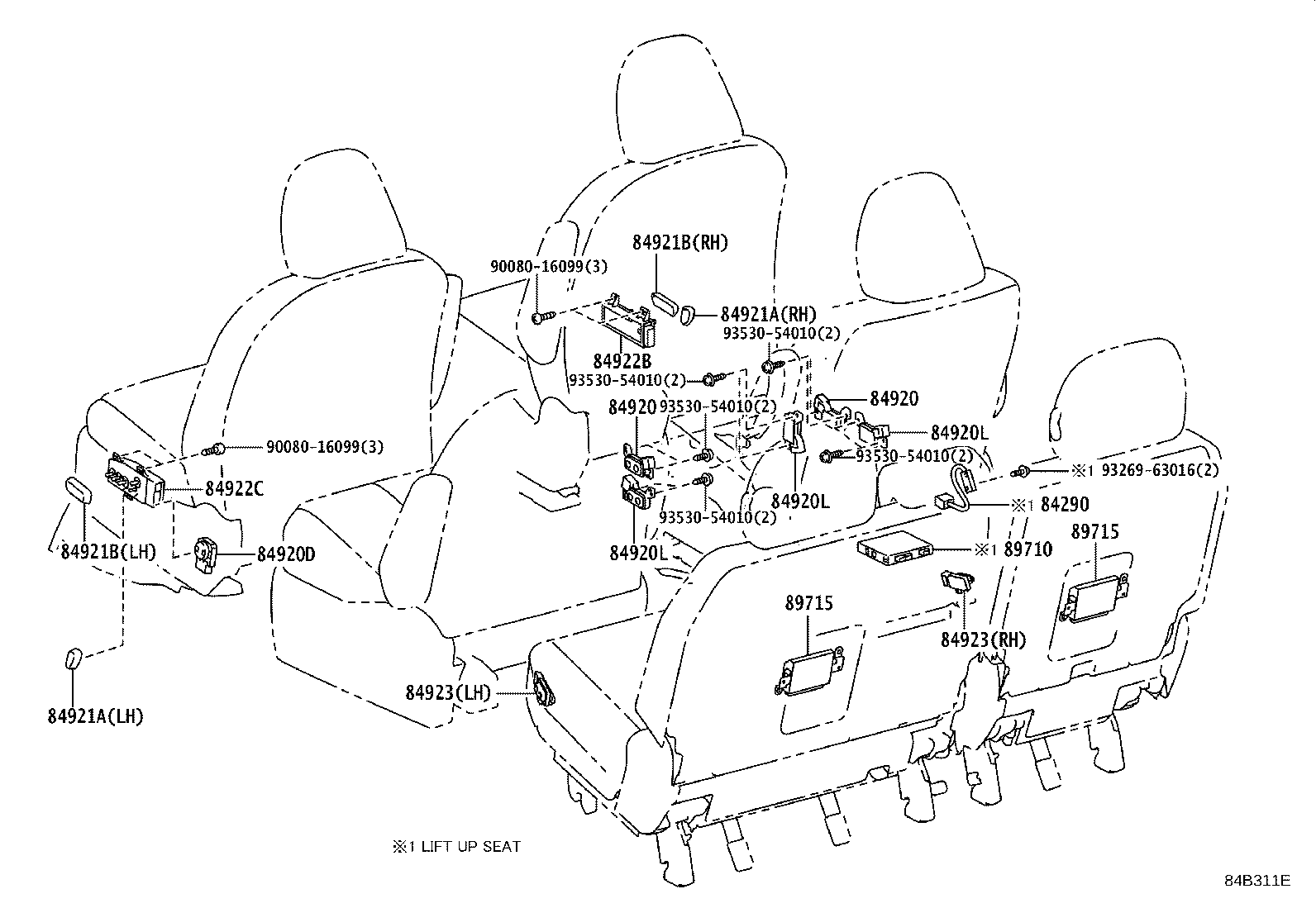

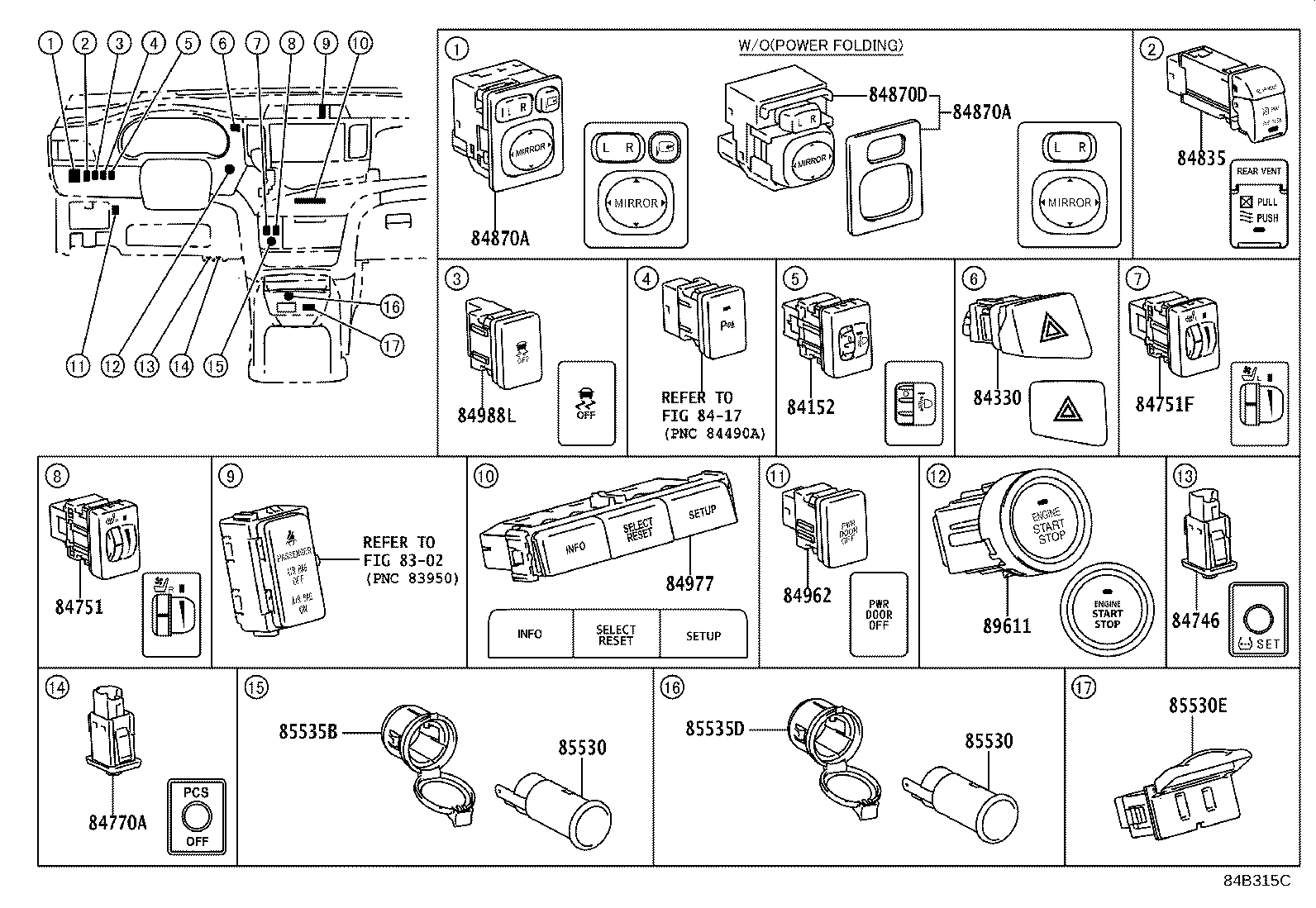

Figure 84B306B 84B306B 2010-01 → 2014-09 Figure 84F507A 84F507A 2014-09 → 2016-08 Figure 84H306A 84H306A 2016-08 → — Figure 84B307 84B307 2010-04 → 2014-09 Figure 84B312B 84B312B 2010-01 → — Figure 84B313D 84B313D 2010-01 → 2014-09 Figure 84F510A 84F510A 2014-09 → 2016-08 Figure 84H308C 84H308C 2016-08 → — Figure 84B314E 84B314E 2010-01 → 2014-09 Figure 84F520E 84F520E 2014-09 → 2017-11 Figure 84I499C 84I499C 2017-11 → — Figure 84B315C 84B315C 2010-01 → 2012-08 Figure 84E215B 84E215B 2012-08 → 2014-09 Figure 84F524B 84F524B 2014-09 → — Figure 84B310C 84B310C 2010-01 → 2014-09 Figure 84F512C 84F512C 2014-09 → — Figure 84B311E 84B311E 2010-01 → — Figure 84B316D 84B316D 2010-01 → 2014-09 Figure 84F514B 84F514B 2014-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371C Relay, Ignition, NO.2
28380A Resister, Fuel Pump
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82210N Instrument Panel Fusible Link
82291D Wire, TO Solenoid
82600D Instrument Panel Fuse
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82641 Relay, Integration NO.1
82642A Relay, Running Light
82642B Relay, Day Time Running Light, NO.1
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82672B Cover, Junction Block
82674 Cover, Junction Block Lower
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82824L Pin, Short
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84190A Switch Assy, Fold Seat, NO.1
84190B Switch Assy, Fold Seat, NO.2
84231A Switch, Courtesy Lamp
84231G Switch, Courtesy (FOR FUEL LID)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84270Q Relay, Lamp Cut
84290 Switch Assy, Limit
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470 Switch Assy, Warning Canceling
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84720J Switch Assy, Pattern Select
84746 Switch, Tire Pressure Warning
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84835 Switch, Power Quarter Window
84840G Switch Assy, Back Door Opener
84862 Switch, Slide Roof Motor
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
84920 Switch Assy, Power Seat
84920D Switch Assy, Power Seat Front, LH
84920L Switch Assy, Power Seat, NO.2
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84923 Switch, Rear Power Seat
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931C Switch, Back Door Control
84962 Switch, Power Slide Door Main
84963 Switch, Power Slide Door Control, NO.1
84963B Bulb, Power Slide Control Switch, NO.1
84977 Switch, Drive Monitor
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85531 Socket, Power Outlet
85532 Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85535D Cover, Power Outlet Socket, Center
85535F Cover, Power Outlet Socket, Rear
85536 Bezel, Power Outlet Socket
85903 Computer Sub-assy, Shift Lock Control
85910X Relay, Heater Mirror
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85919E Relay, Stop Lamp
85925D Relay, Ptc Heater
85925F Relay, Ptc Heater NO.2
85925G Relay, Ptc Heater NO.3
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85930G Relay, Acc
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85940F Relay Assy, Windshield Deicer
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88163 Cover, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88173 Cover, Blind Spot Monitor, LH
89111 Computer, Network Gateway
89221 Computer, Multiplex Network Body
89257 Computer, Cooling Fan
89430 Computer Assy, Outer Mirror Control
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
895A0 Relay Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89681A Computer, Power Management Control
8970B Switch Set, Seat Remote Control
89710 Computer Assy, Position Control
89715 Computer, Fold Seat Control
89730A Relay(FOR SECURITY WARNING)
89745D Battery, Transmitter
89747E Buzzer, Power Back Door Warning
89747F Buzzer, Blind Spot Monitor
89815 Computer, Seat Belt Control
89940 Computer Assy, Headlamp Swivel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
