Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

12 part groups · 3 illustrations

Illustrations

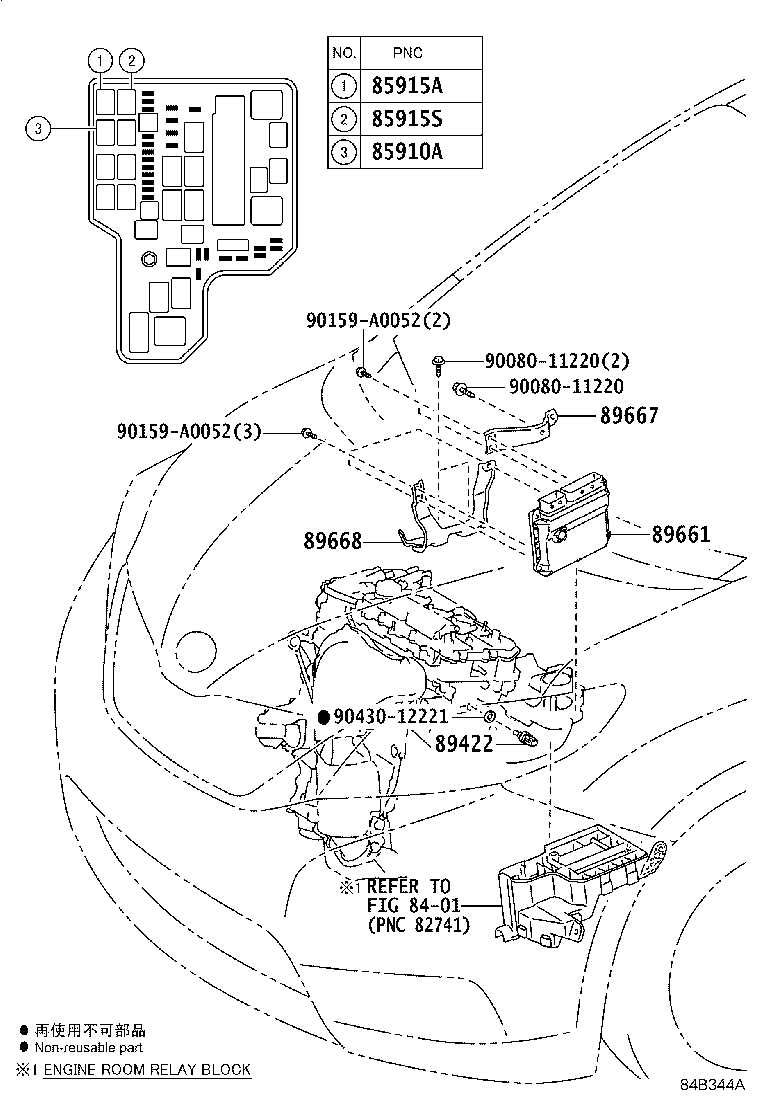

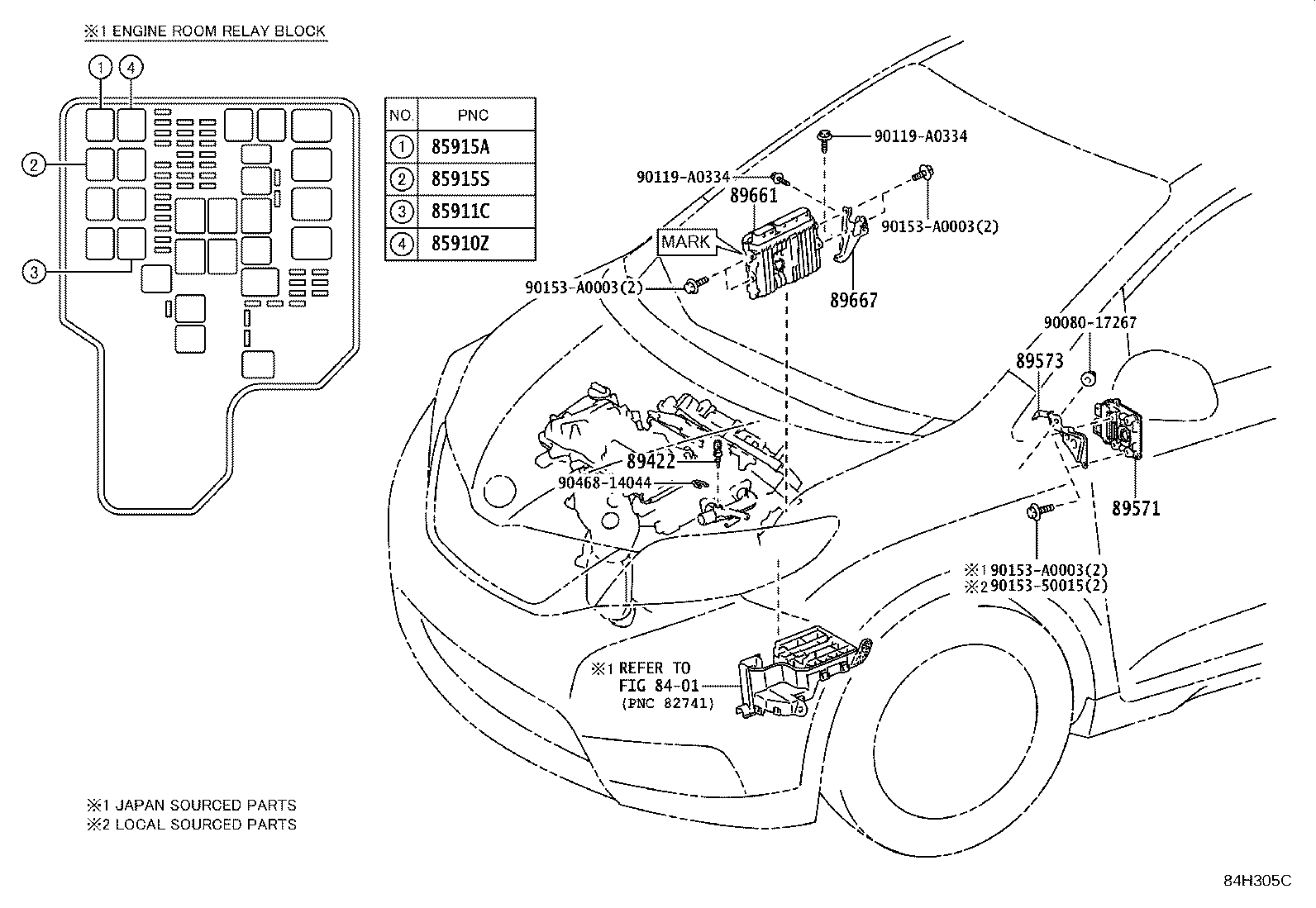

Figure 84B293A 84B293A 2010-01 → 2016-08 Figure 84H305C 84H305C 2016-08 → — Figure 84B344A 84B344A 2010-04 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
85910A Relay Assy, Circuit Opening (FOR EFI)
85910Z Relay, Injection (FOR EFI)
85911C Relay, Efi 2
85915A Relay, Main
85915S Relay, Heater (FOR AIR FUEL RATIO SENSOR)
89422 Sensor, Water Temperature (FOR E.F.I.)
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
