Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

7 part groups · 3 illustrations

Illustrations

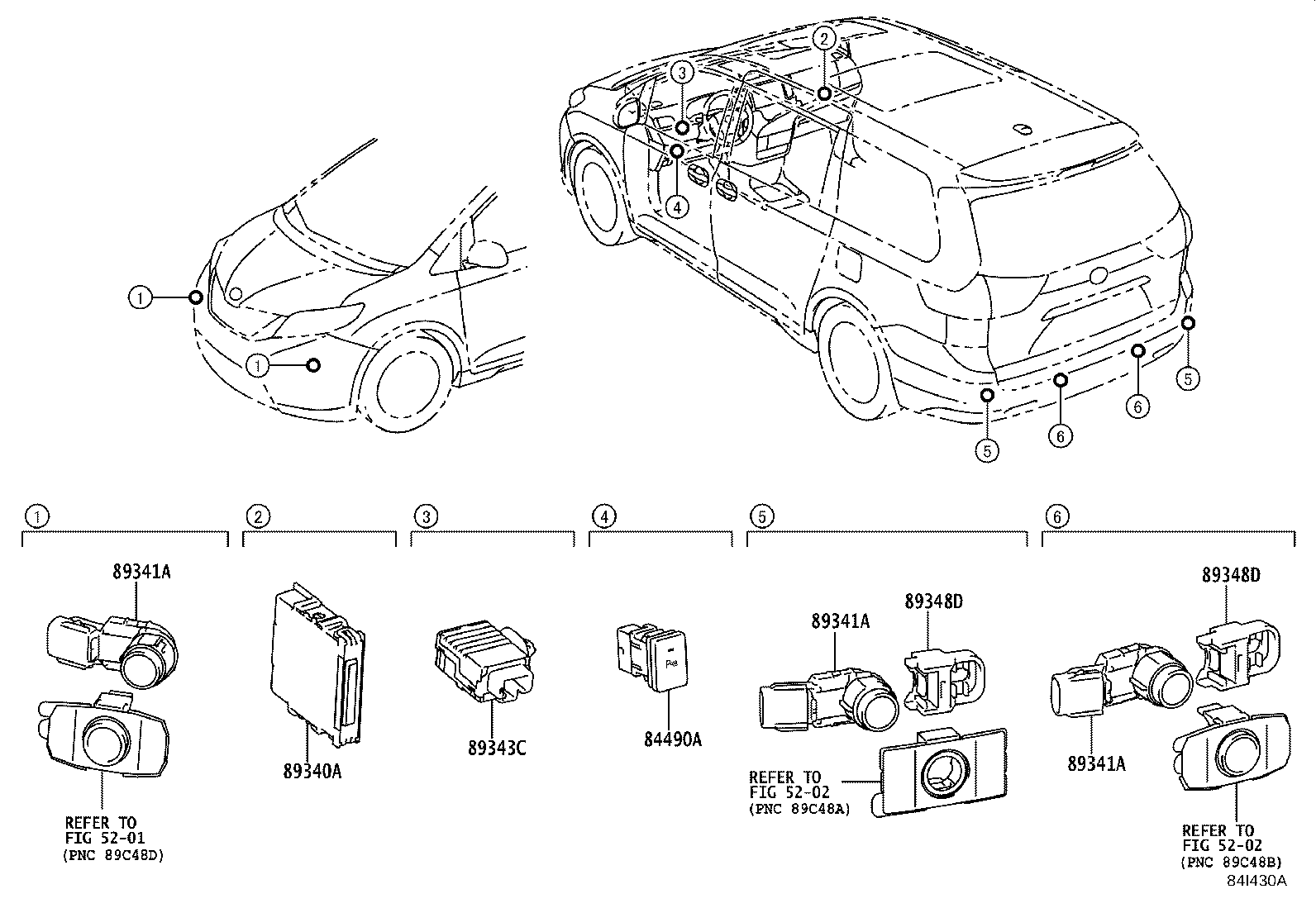

Figure 84B291A 84B291A 2010-01 → 2013-08 Figure 84B291A 84B291A 2010-01 → 2017-11 Figure 84I430A 84I430A 2017-11 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89343C Buzzer, Clearance Warning, NO.1
89348 Retainer, Ultrasonic Sensor, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
89348D Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
