Toyota Sienna
2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States
Supported model
Data version 2020-09

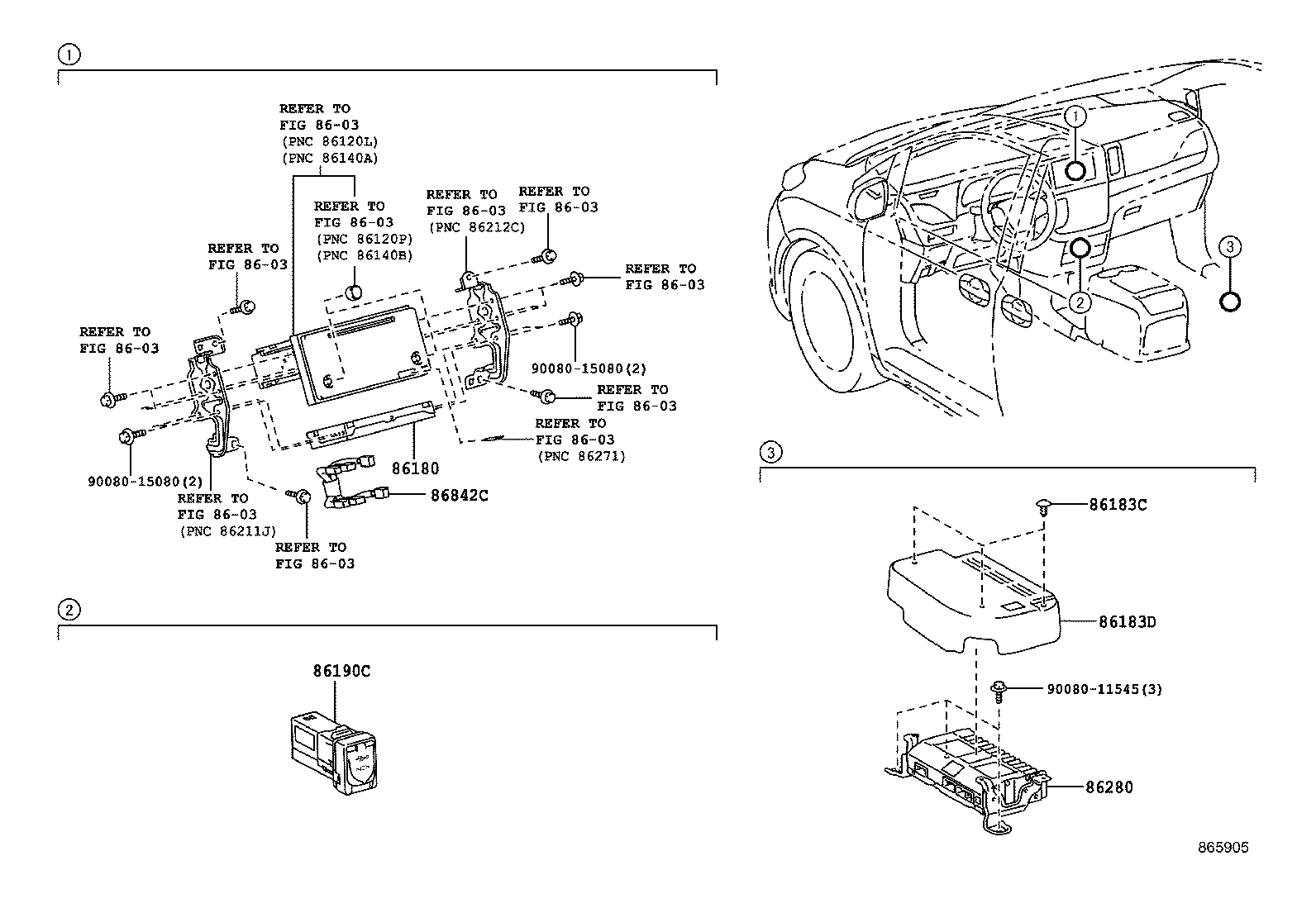

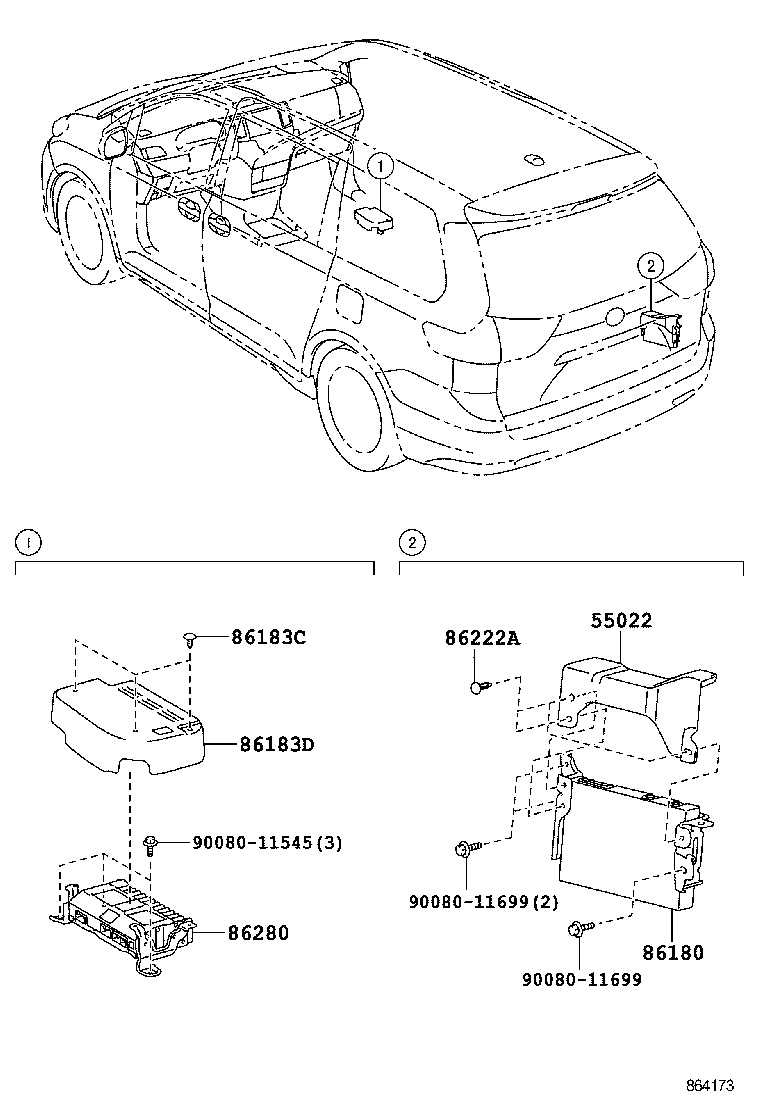

Radio Receiver & Amplifier & Condenser
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55022 | Cover Sub-assy, Radio Receiver Opening |
| 86120 | Receiver Assy, Radio |
| 86128 | Knob, Radio Receiver |
| 86180 | Tuner Assy, Stereo Component |
| 86183C | Clip, Audio Rack |
| 86183D | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 861A0 | Computer Assy, Multi-media Interface |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86222A | Clip, Radio Receiver Bracket NO.1 |
| 86280 | Amplifier Assy, Stereo Component |
| 86730C | Microphone Assy, Telephone |
| 86842C | Wire, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
