Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

14 part groups · 8 illustrations

Illustrations

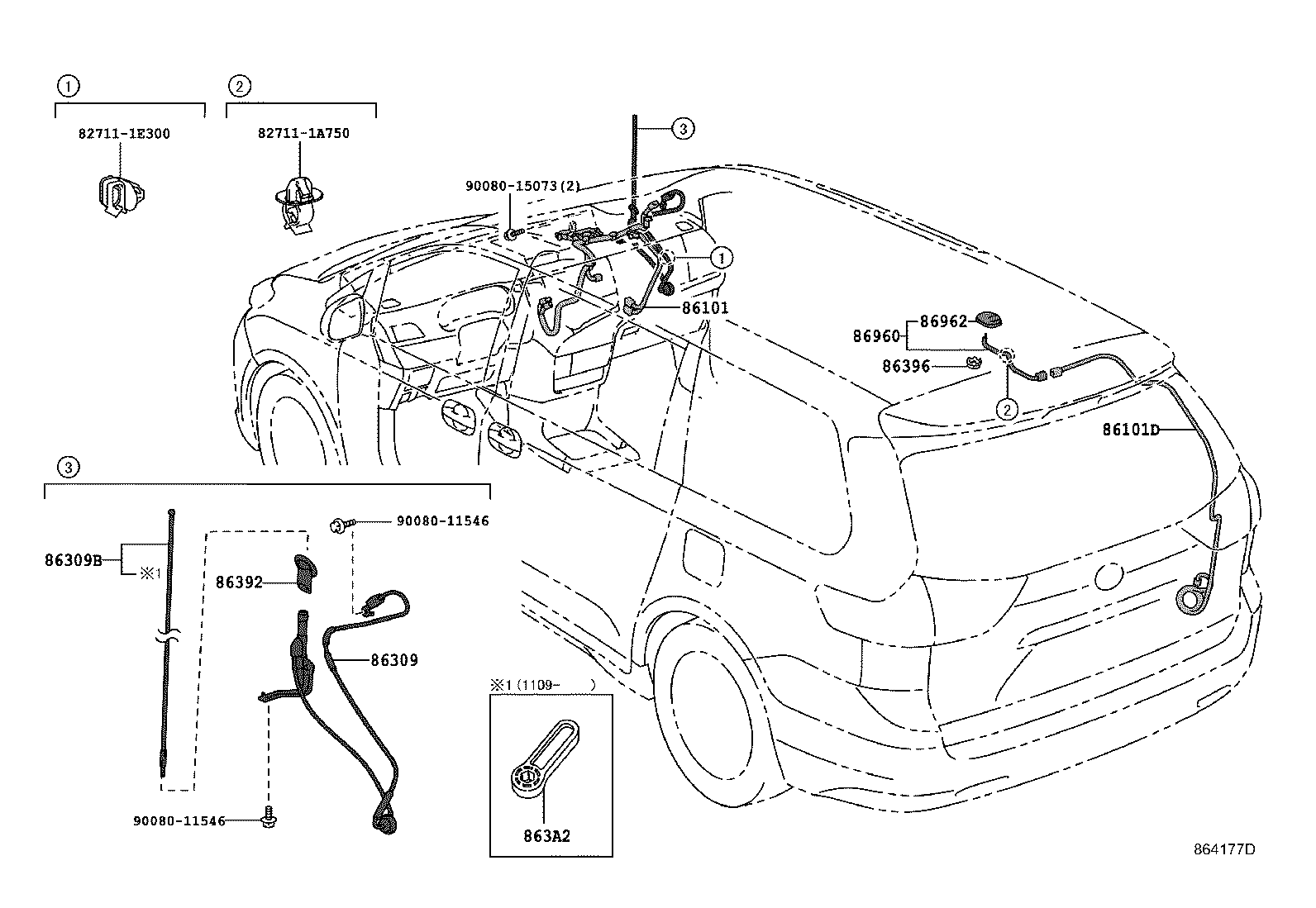

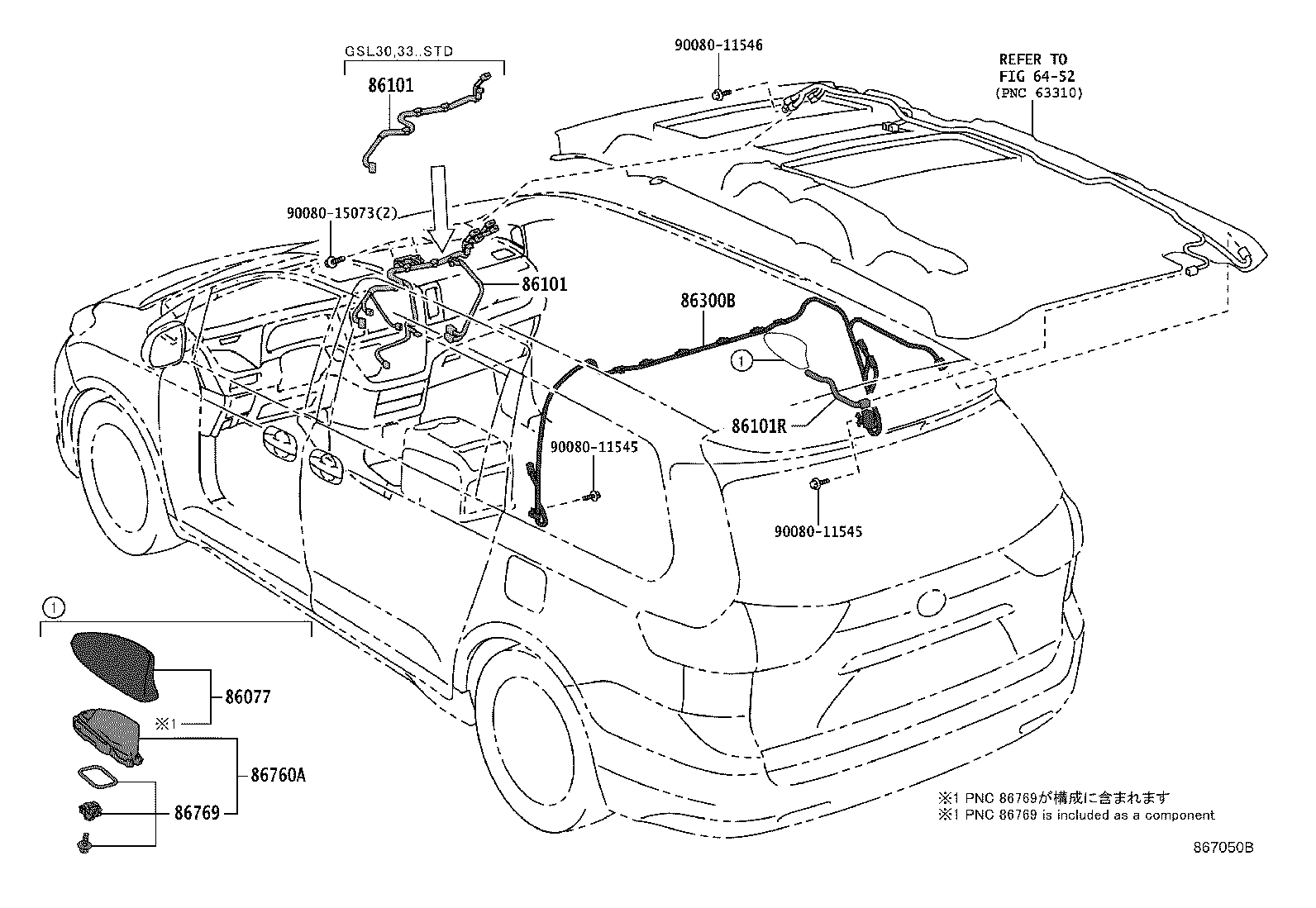

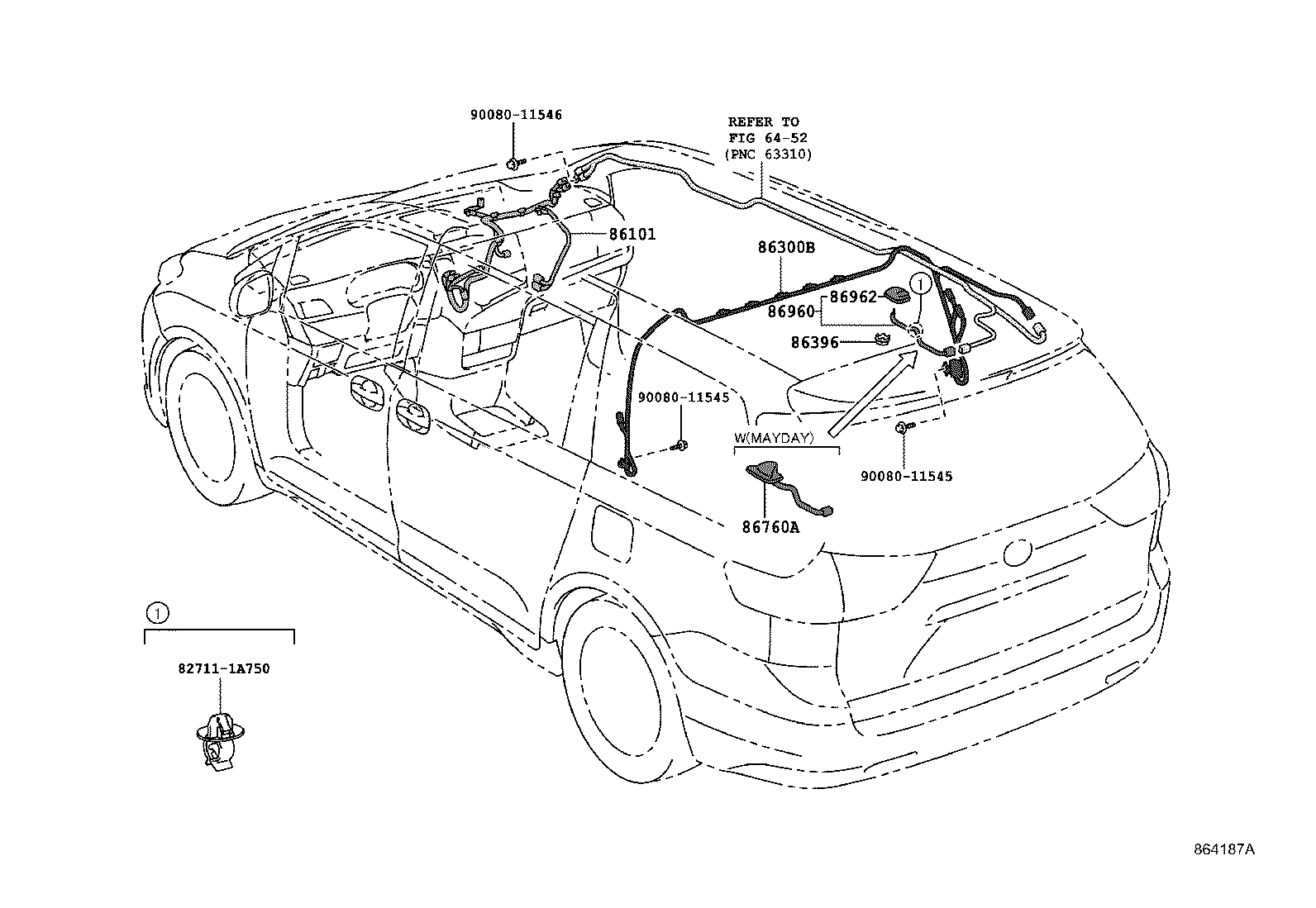

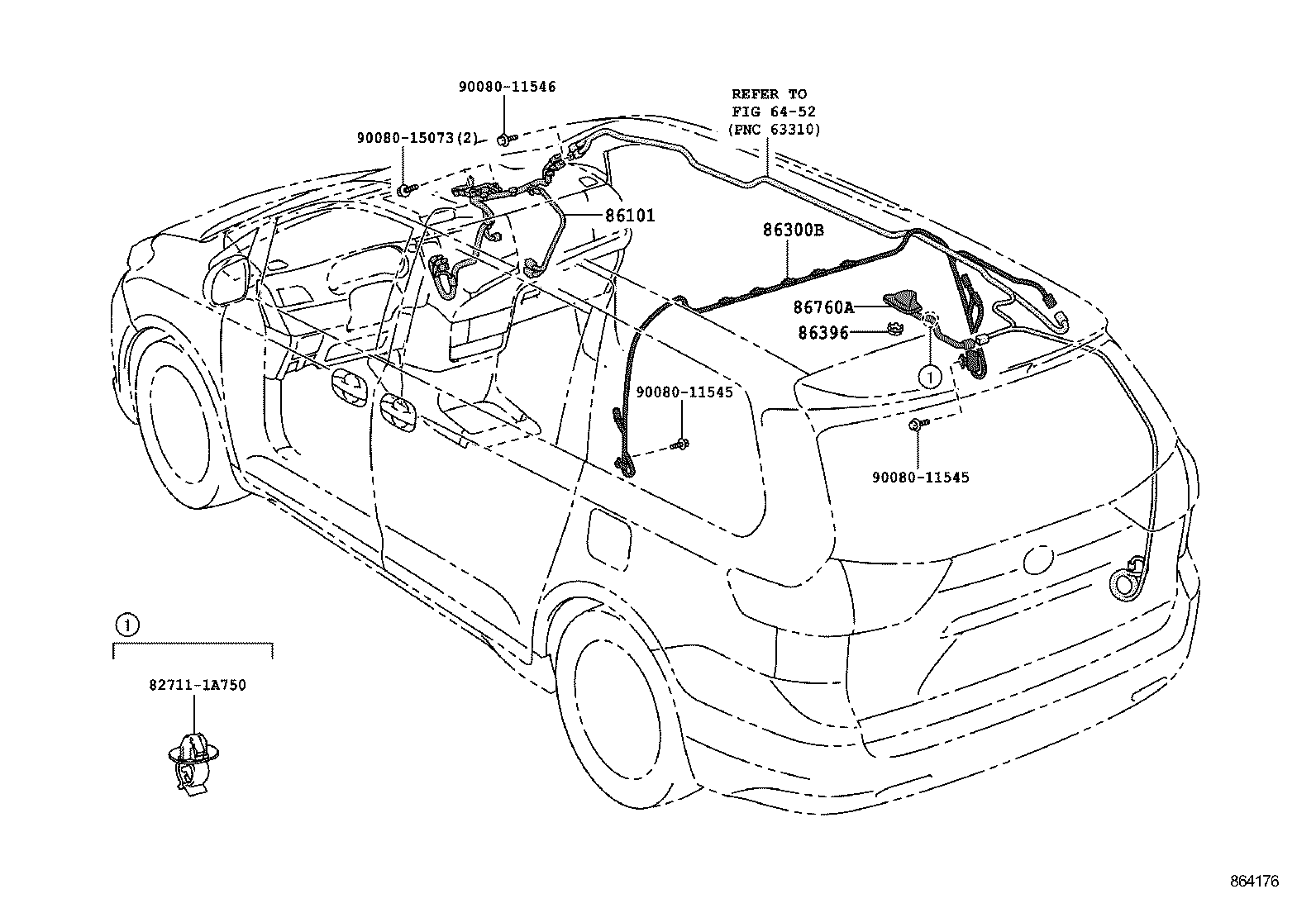

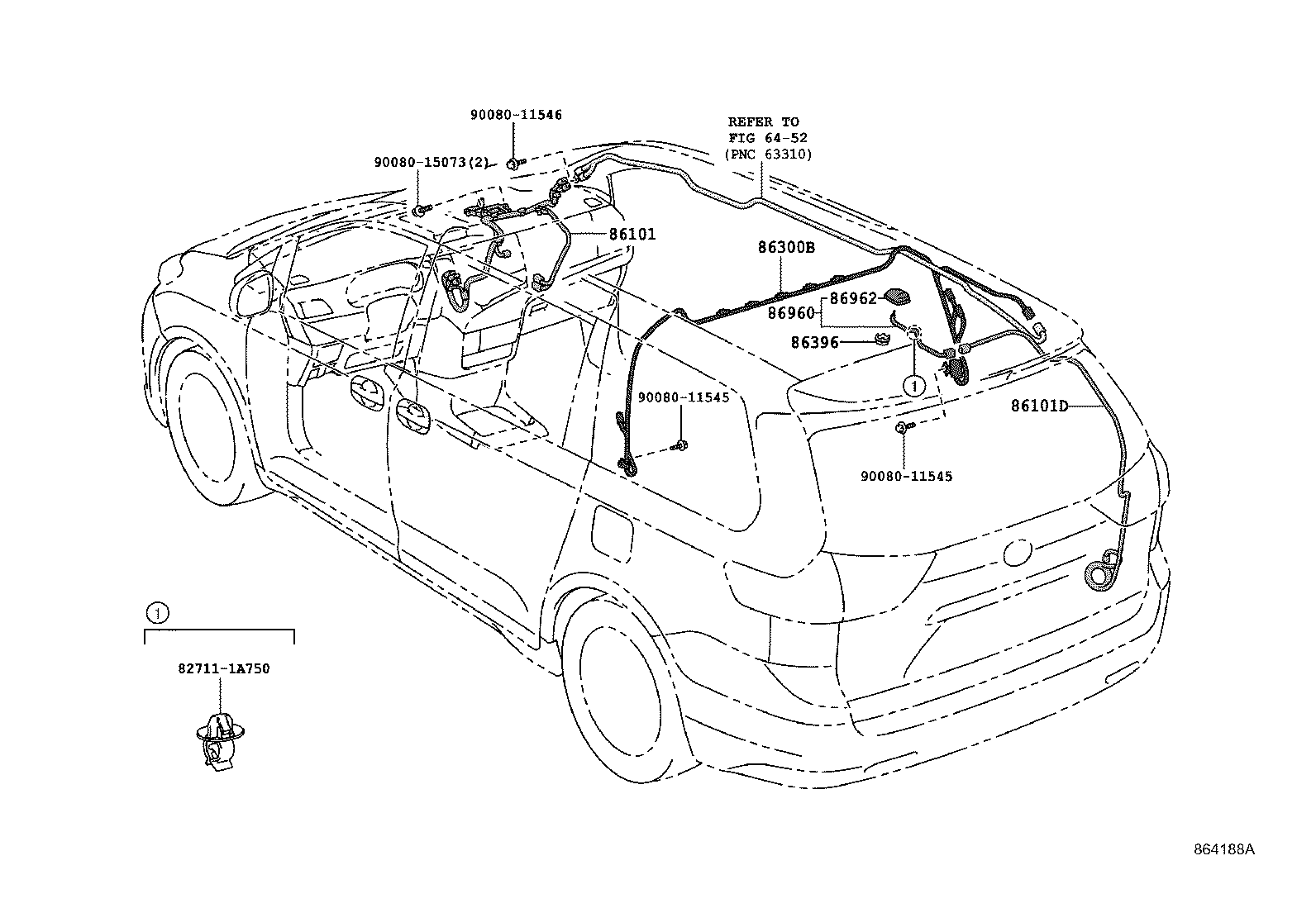

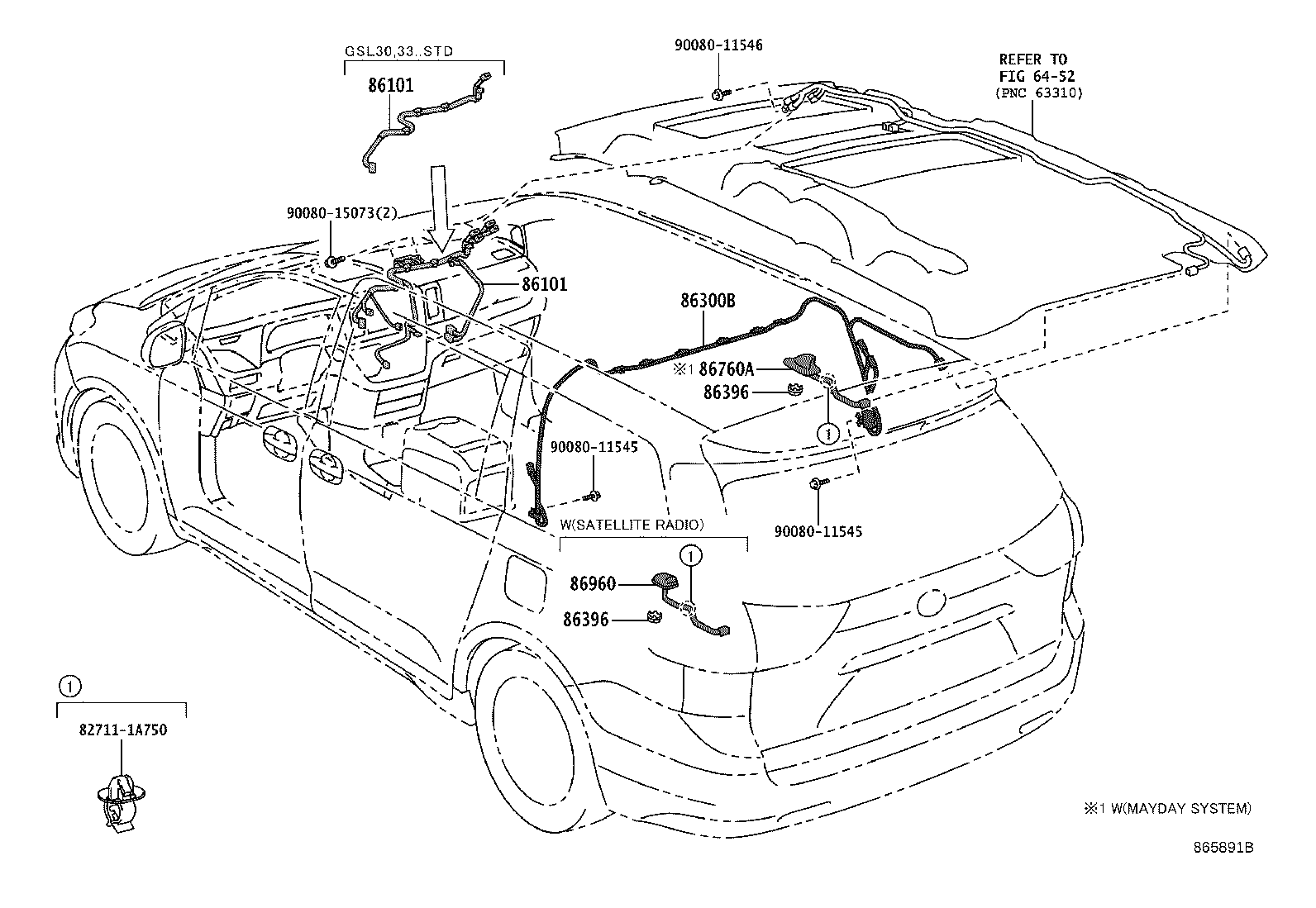

Figure 864186D 864186D 2010-01 → 2014-09 Figure 864177D 864177D 2010-01 → 2014-09 Figure 864187A 864187A 2010-01 → 2014-09 Figure 864188A 864188A 2010-01 → 2014-09 Figure 864188A 864188A 2011-09 → 2014-09 Figure 864176 864176 2010-01 → 2014-09 Figure 865891B 865891B 2014-09 → 2017-11 Figure 867050B 867050B 2017-11 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101R Cord Sub-assy, Antenna, NO.5
86300B Antenna Assy, Amplifier, NO.1
86309 Pole Sub-assy, Pillar Antenna
86309B Pole Sub-assy, Pull Top Antenna
86392 Ornament, Antenna
86396 Nut, Antenna
863A2 Tool, Pole Antenna
86760A Antenna Assy, Telephone
86769 Housing, Roof Antenna
86960 Antenna Assy, Satellite Radio
86962 Base, Satellite Radio Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
