Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

5 part groups · 2 illustrations

Illustrations

Figure 864180A

864180A 2010-01 → 2017-11

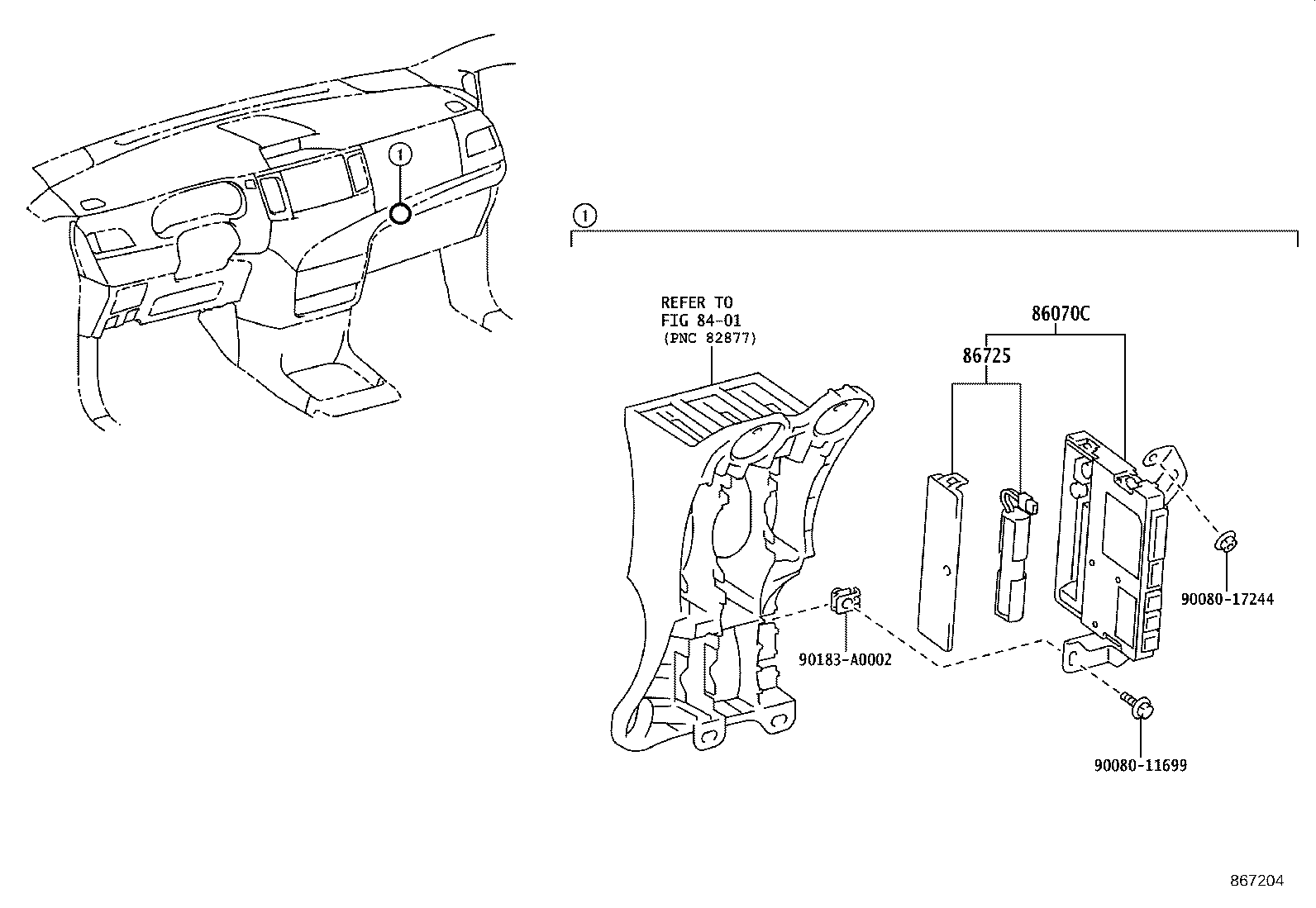

867204 2017-11 → —

Part groups

PNC	Description
86070C	Mayday Assy
86702	Bracket Set, Telephone
86710B	Computer Assy, Mayday
86725	Battery, Mobilephone
86777	Battery, Mayday

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
