Toyota Sienna
2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States
Supported model
Data version 2020-09
Mirror

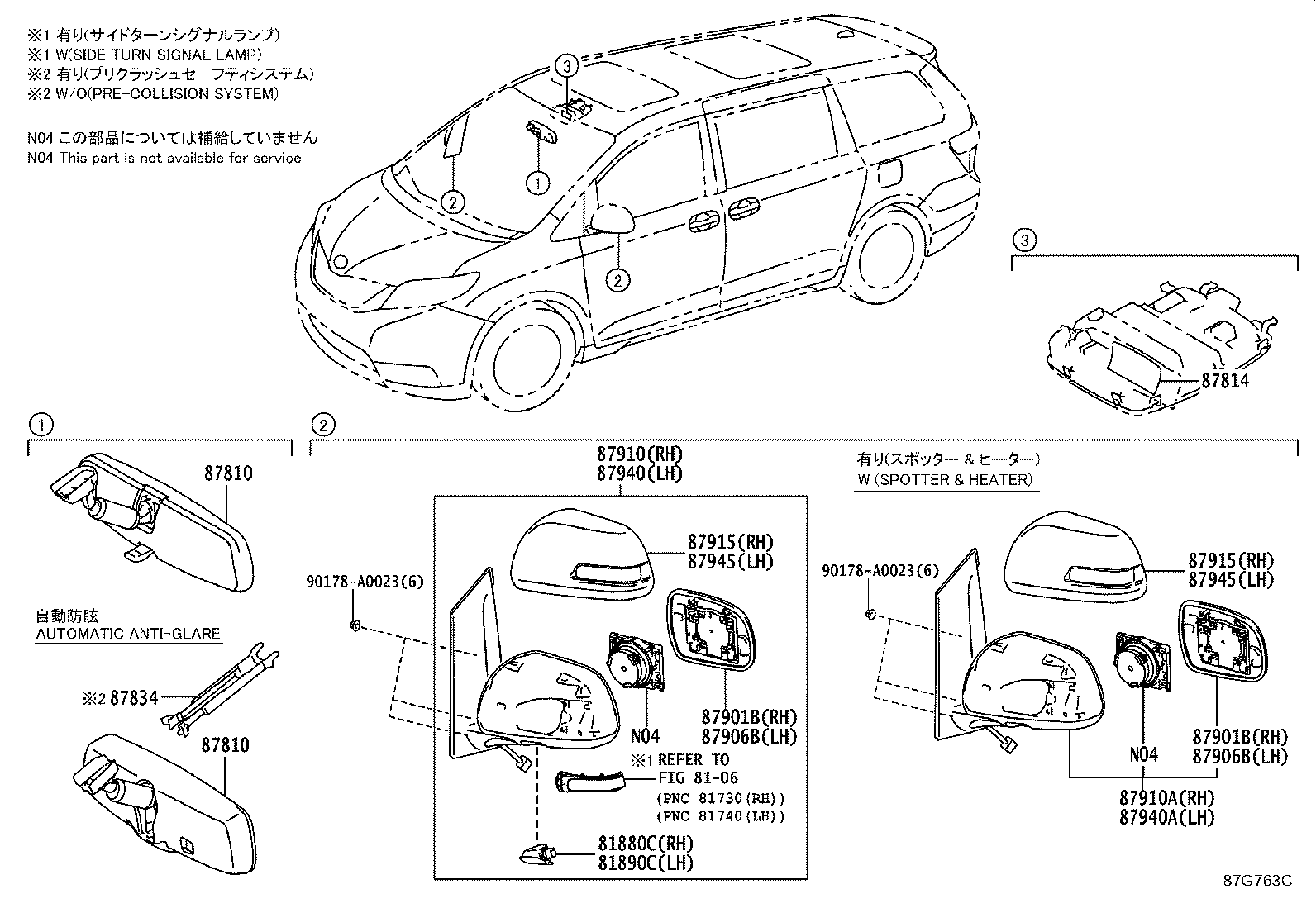

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81880C | Lamp Assy, Outer Mirror, RH |
| 81890C | Lamp Assy, Outer Mirror, LH |
| 87810 | Mirror Assy, Inner Rear View |
| 87814 | Mirror, Inner Rear View Mirror(BOX ASSY, ROOF CONSOLE) |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87910A | Mirror Assy, Outer Rear View, W/O Cover, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87940A | Mirror Assy, Outer Rear View, W/O Cover, LH |
| 87945 | Cover, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
