Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

35 part groups · 6 illustrations

Illustrations

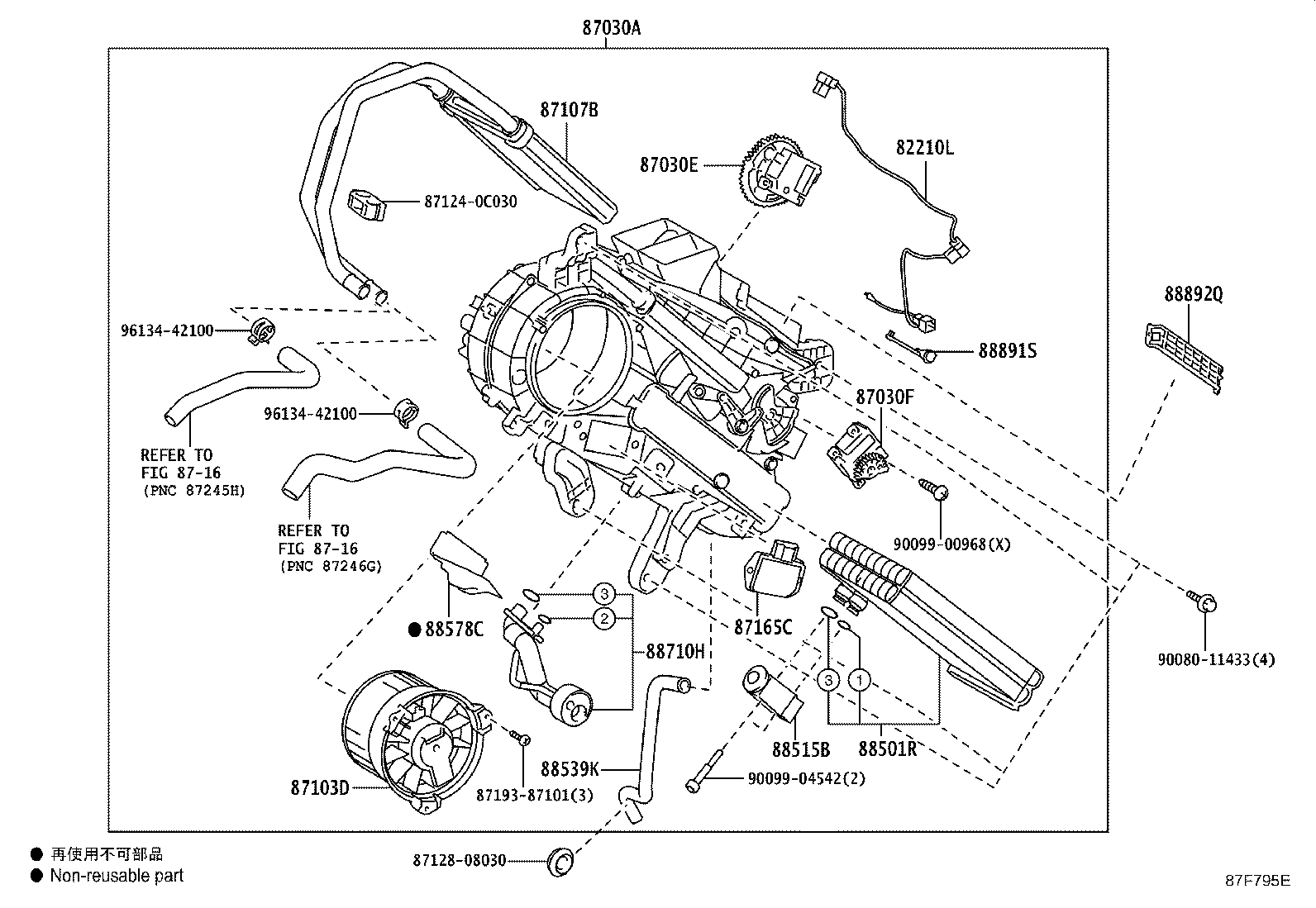

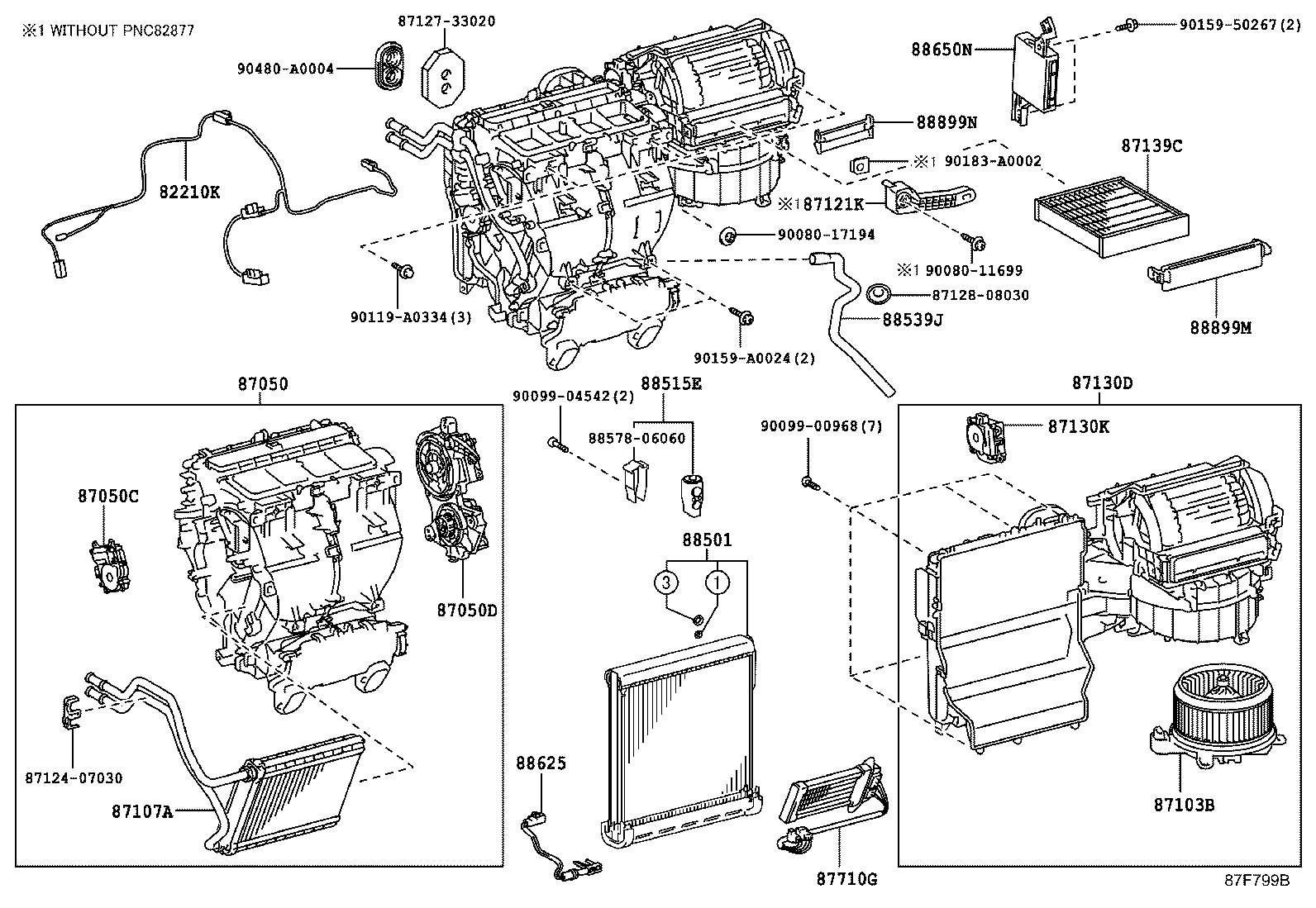

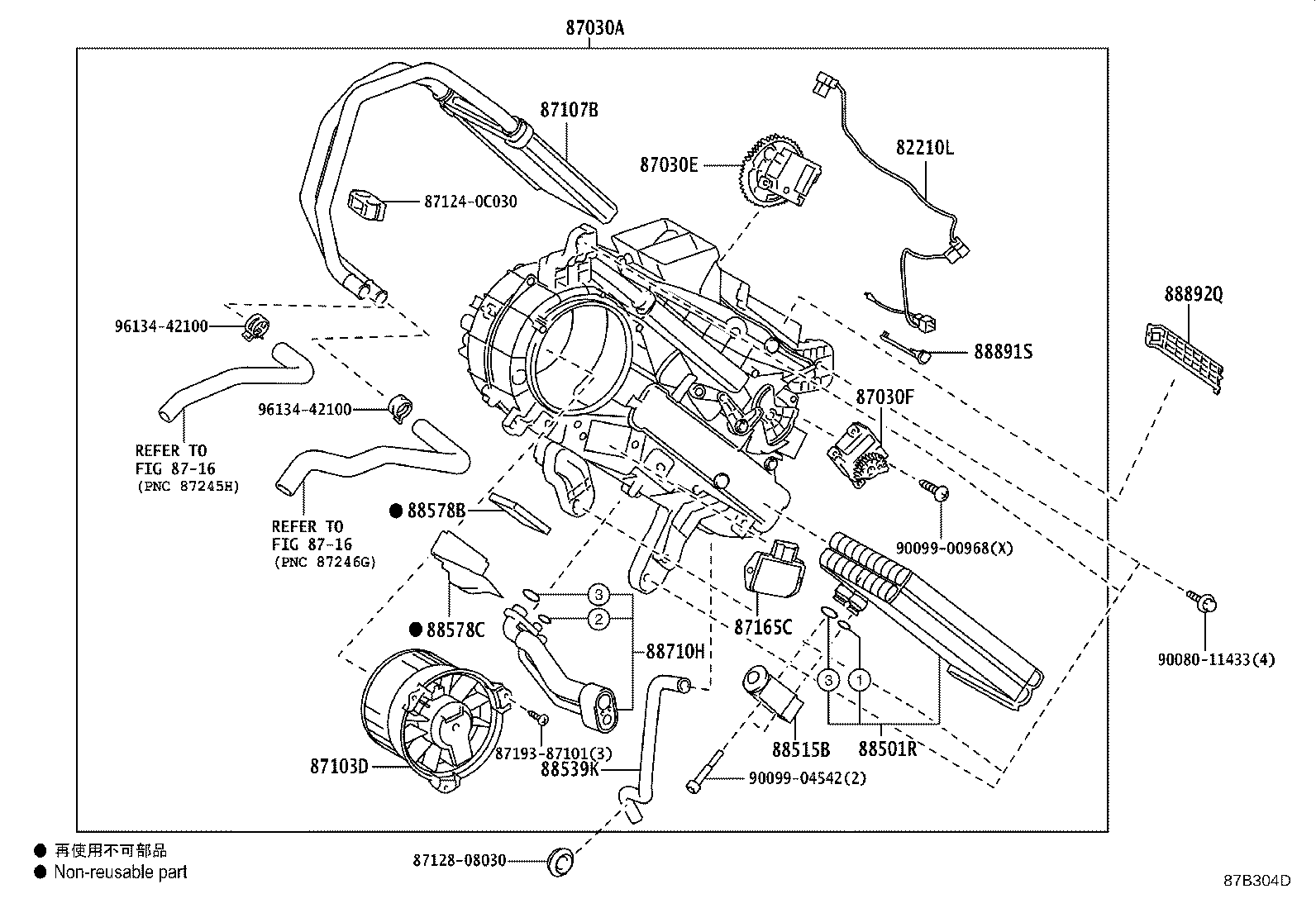

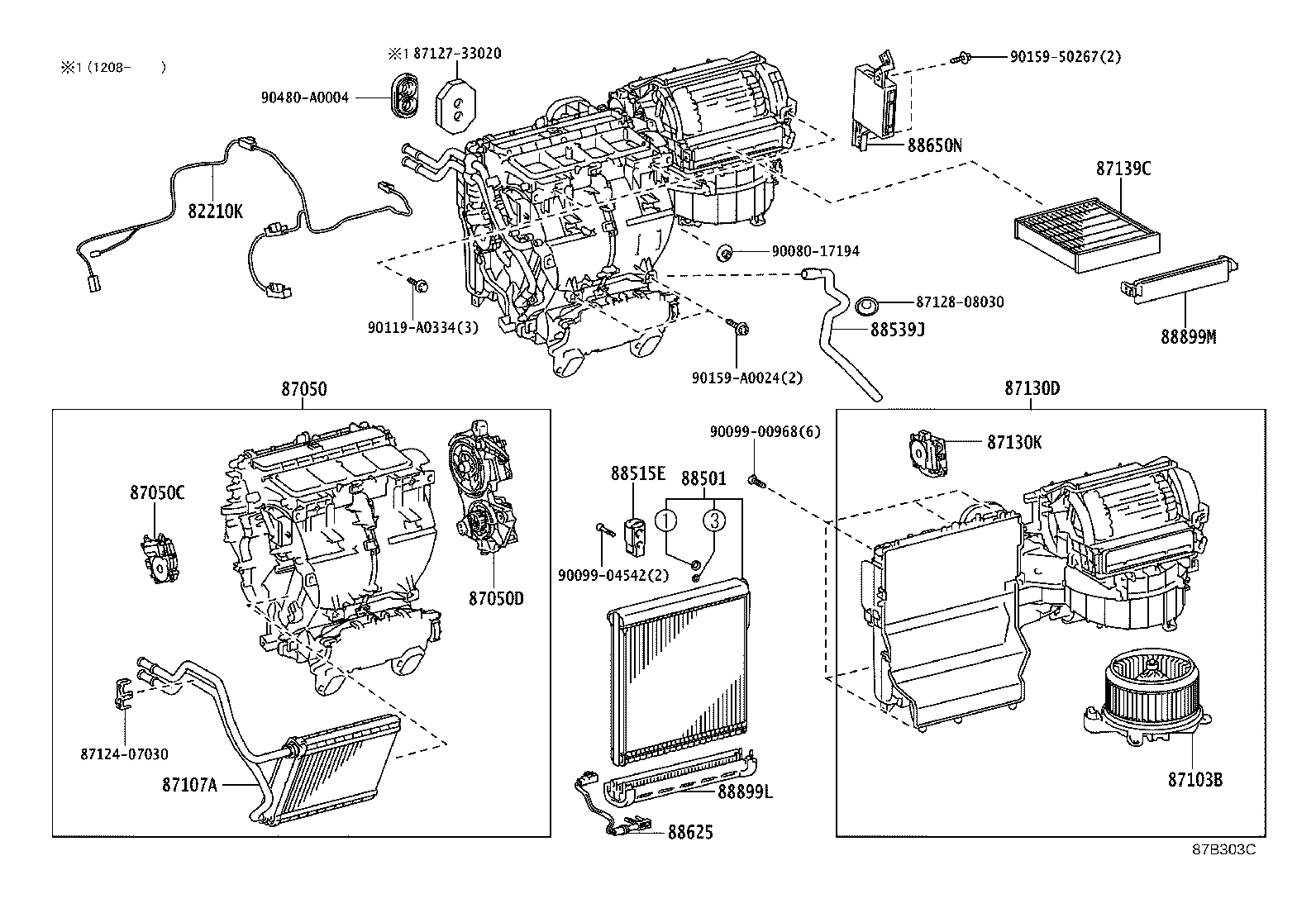

Figure 87B302D 87B302D 2010-01 → 2013-08 Figure 87B303C 87B303C 2010-01 → 2016-08 Figure 87F799B 87F799B 2016-08 → — Figure 87B304D 87B304D 2010-01 → 2016-08 Figure 87F795E 87F795E 2016-08 → — Figure 878346C 878346C 2010-01 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
82210L Harness Assy, Air Conditioner, NO.2
87030A Unit Assy, Cooling, Rear
87030E Damper Servo Sub-assy, Rear Cooling Unit, NO.1
87030F Damper Servo Sub-assy, Rear Cooling Unit, NO.2
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87107A Unit Sub-assy, Heater Radiator
87107B Unit Sub-assy, Heater Radiator
87121K Bracket, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87139C Filter, Clean Air
87165C Control, Blower Motor
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515E Valve, Cooler Expansion, W/Packing
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88891S Cover, Cooler, NO.1
88892Q Plate, Cooler
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
88899N Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
