Heating & Air Conditioning - Control & Air Duct

30 part groups · 7 illustrations

Illustrations

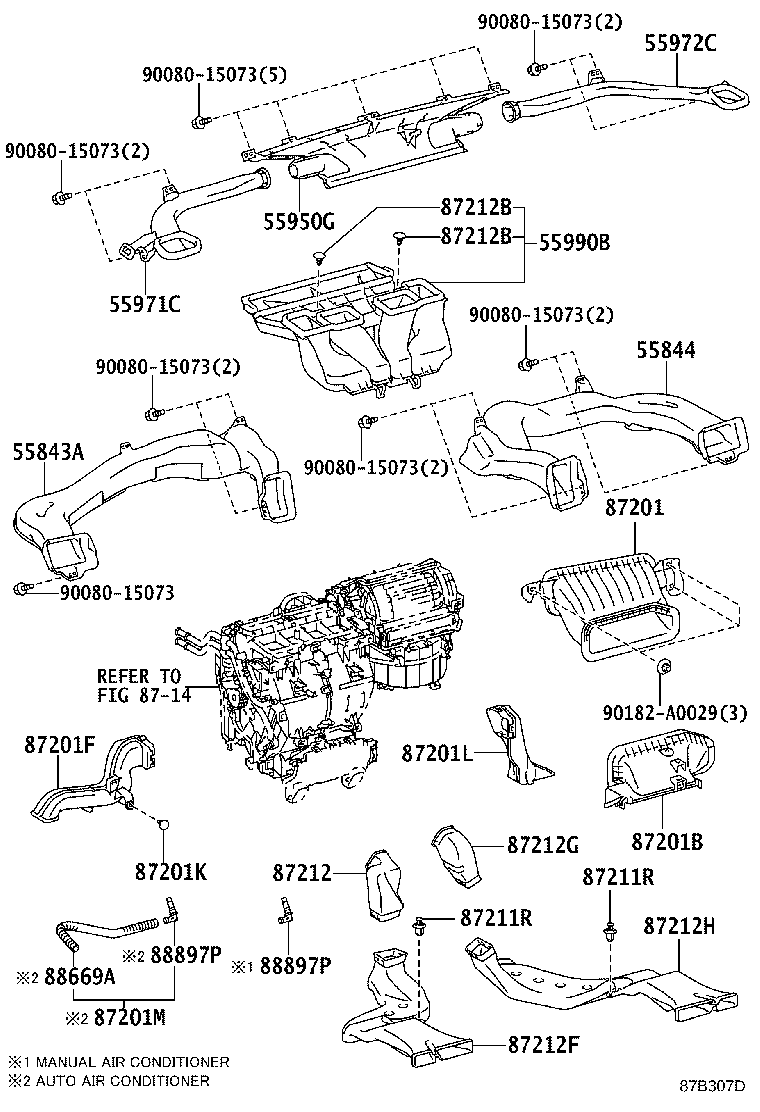

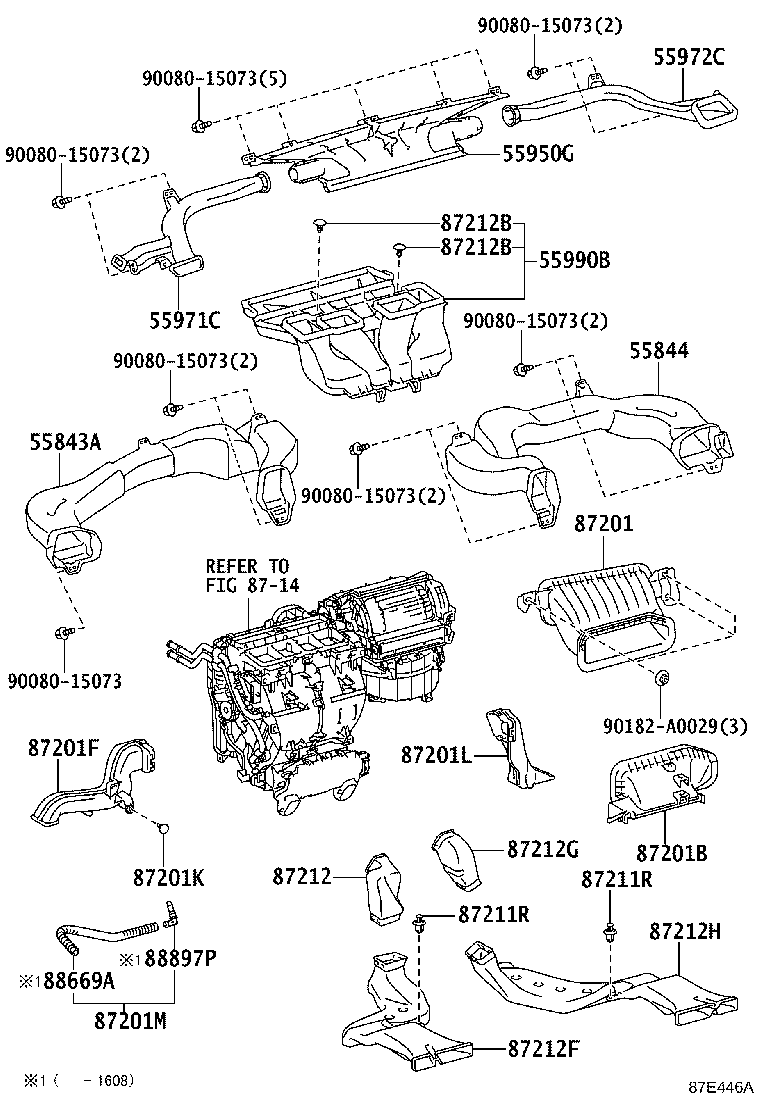

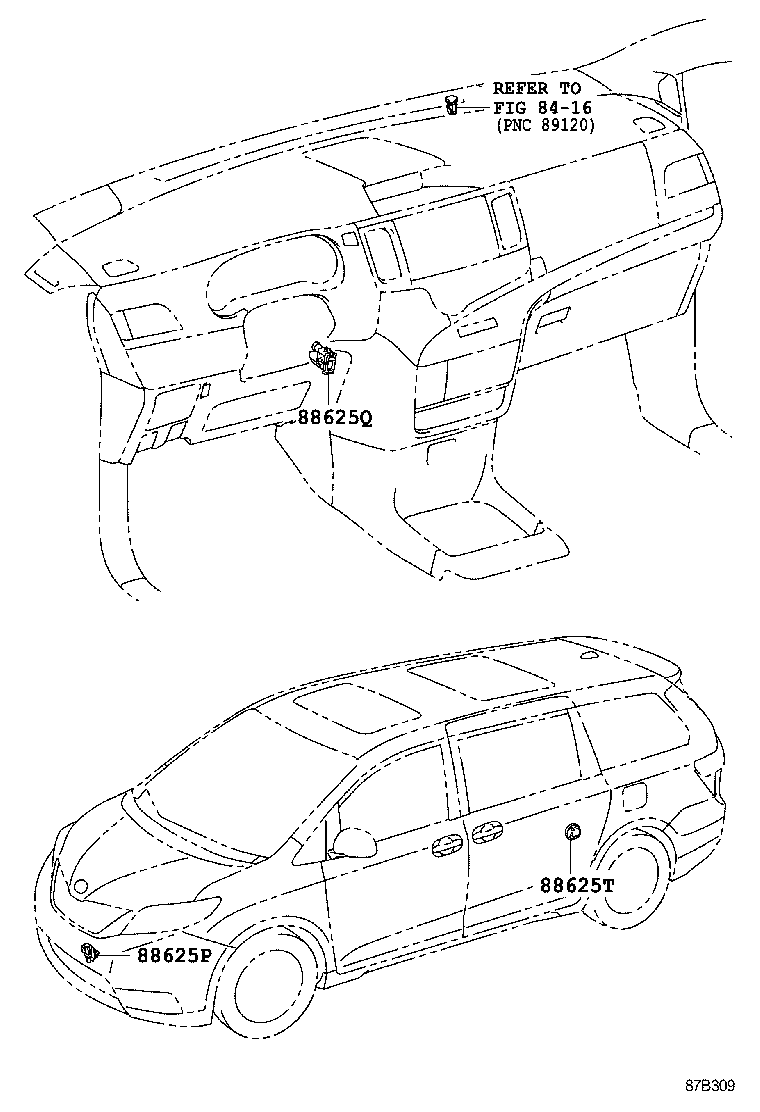

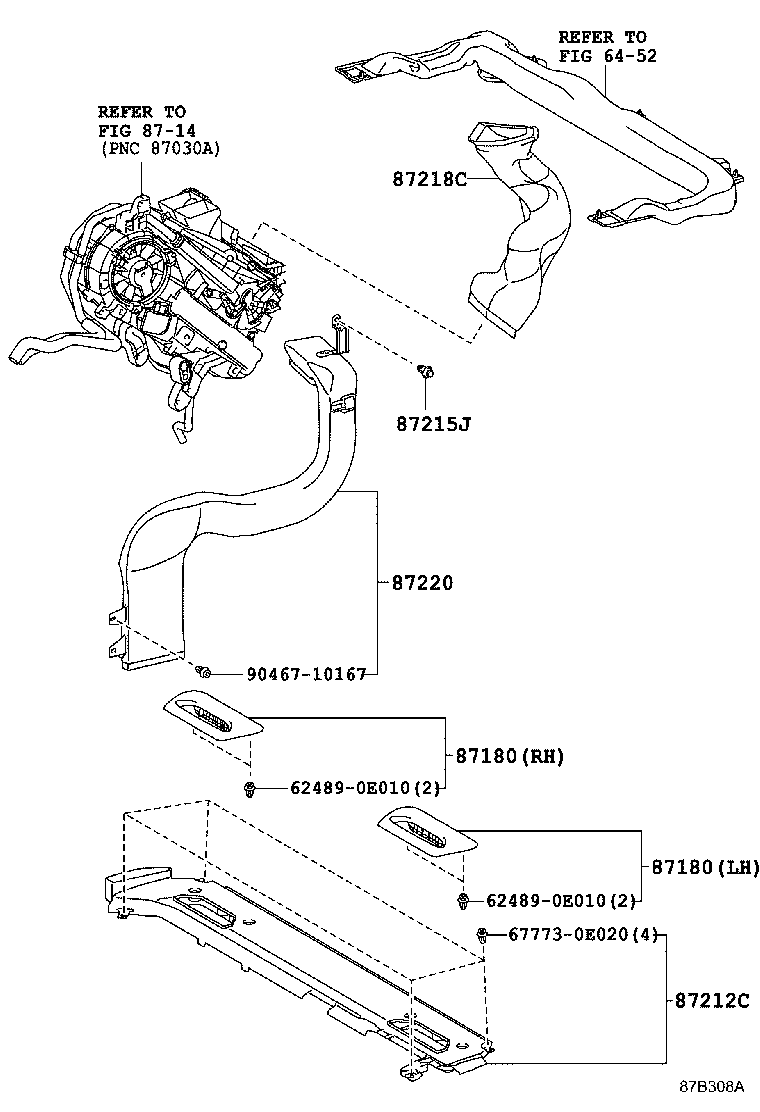

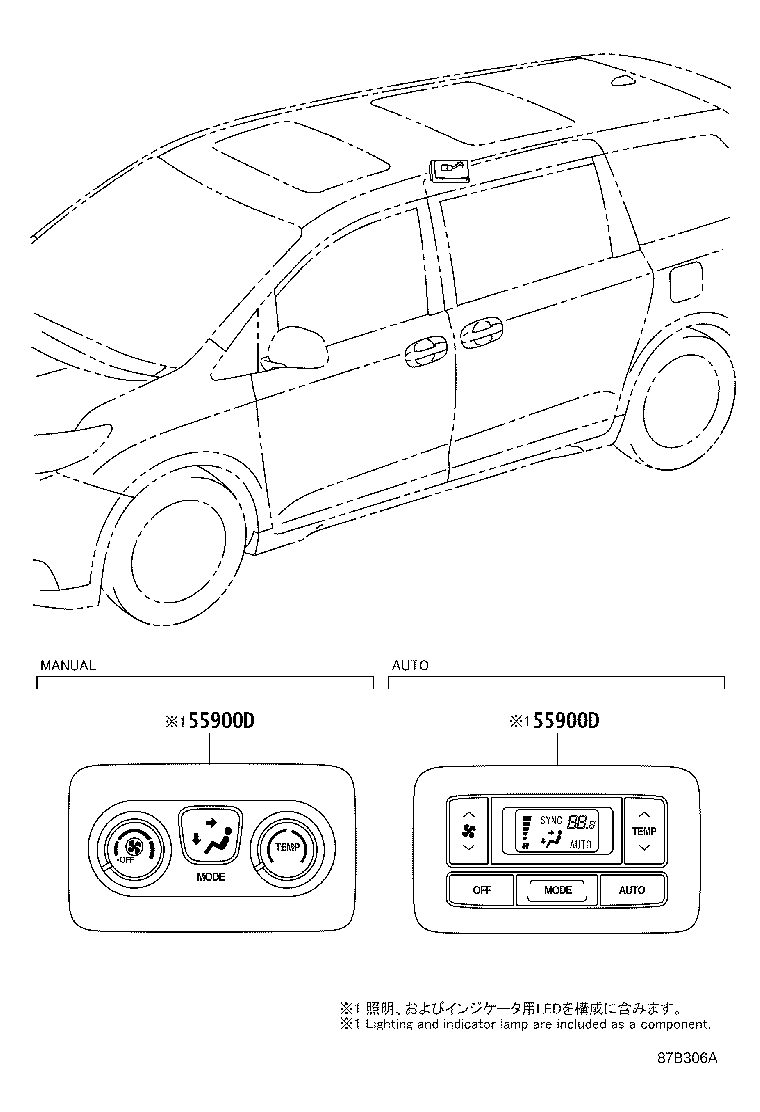

Figure 87B305C 87B305C 2010-01 → 2014-09 Figure 87E445B 87E445B 2014-09 → — Figure 87B306A 87B306A 2010-01 → — Figure 87B307D 87B307D 2010-01 → 2014-09 Figure 87E446A 87E446A 2014-09 → — Figure 87B308A 87B308A 2010-01 → — Figure 87B309 87B309 2010-01 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55900D Control Assy, Air Conditioner, NO.2
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
87180 Grille Assy, RR Heater Air Outlet
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201K Clip (FOR AIR DUCT)
87201L Duct Sub-assy, Air, NO.4
87201M Duct Sub-assy, Air, NO.5
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87212C Duct, Air, RR
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87215J Clip (FOR AIR REAR DUCT)
87218C Duct, Air, Rear NO.6
87220 Duct Assy, Air
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88625T Thermistor, Cooler (ROOM TEMP. SENSOR NO.2)
88669A Hose (FOR COOLER THERMISTOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
