Toyota Sienna

2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

28 part groups · 5 illustrations

Illustrations

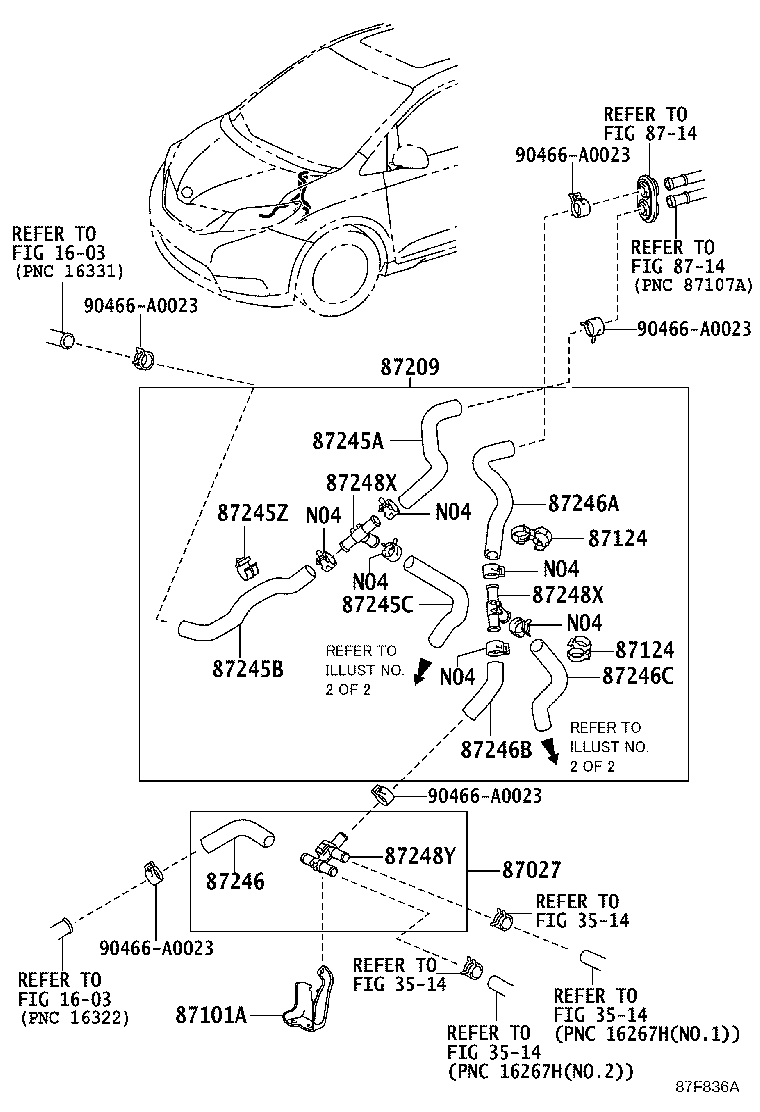

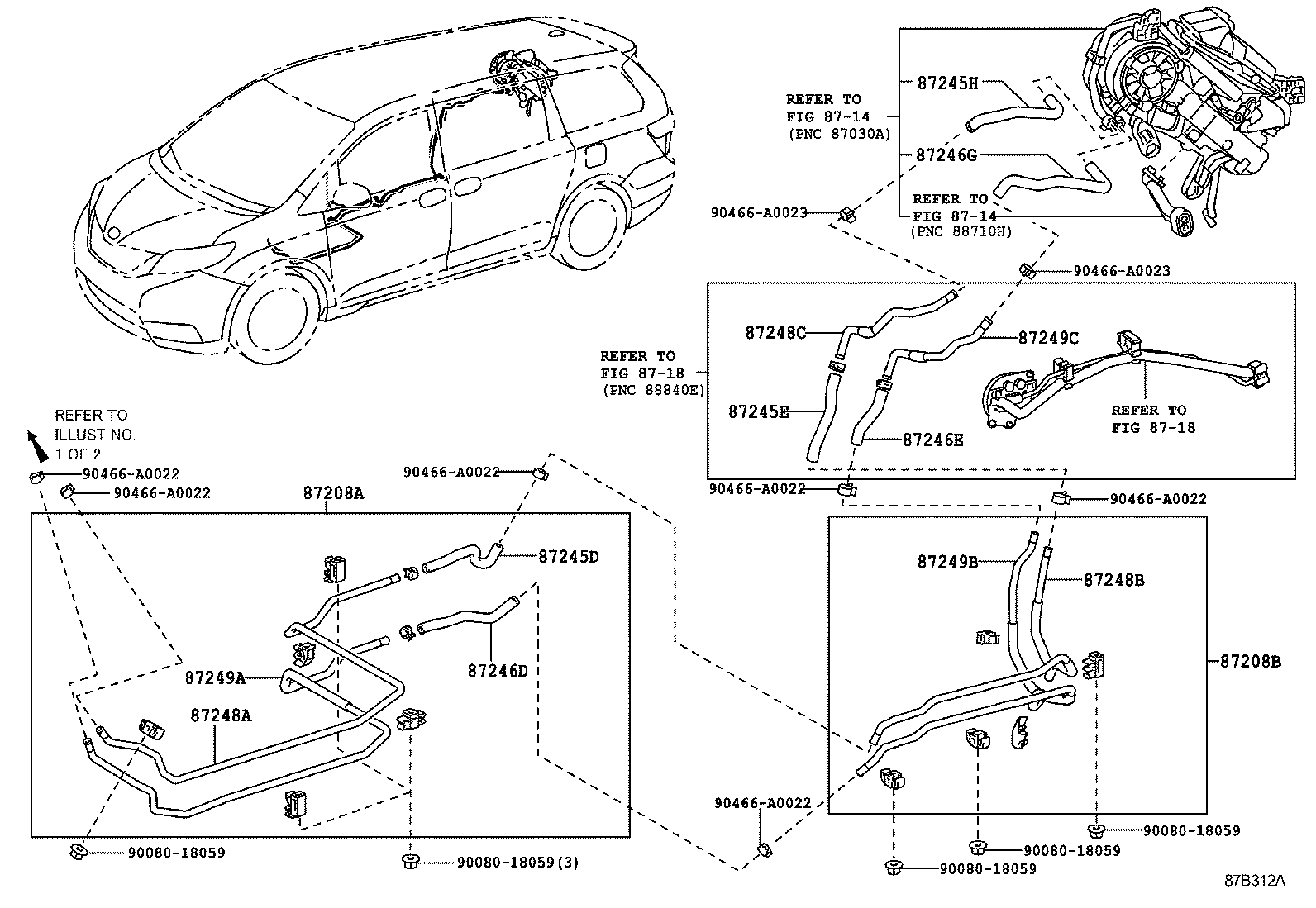

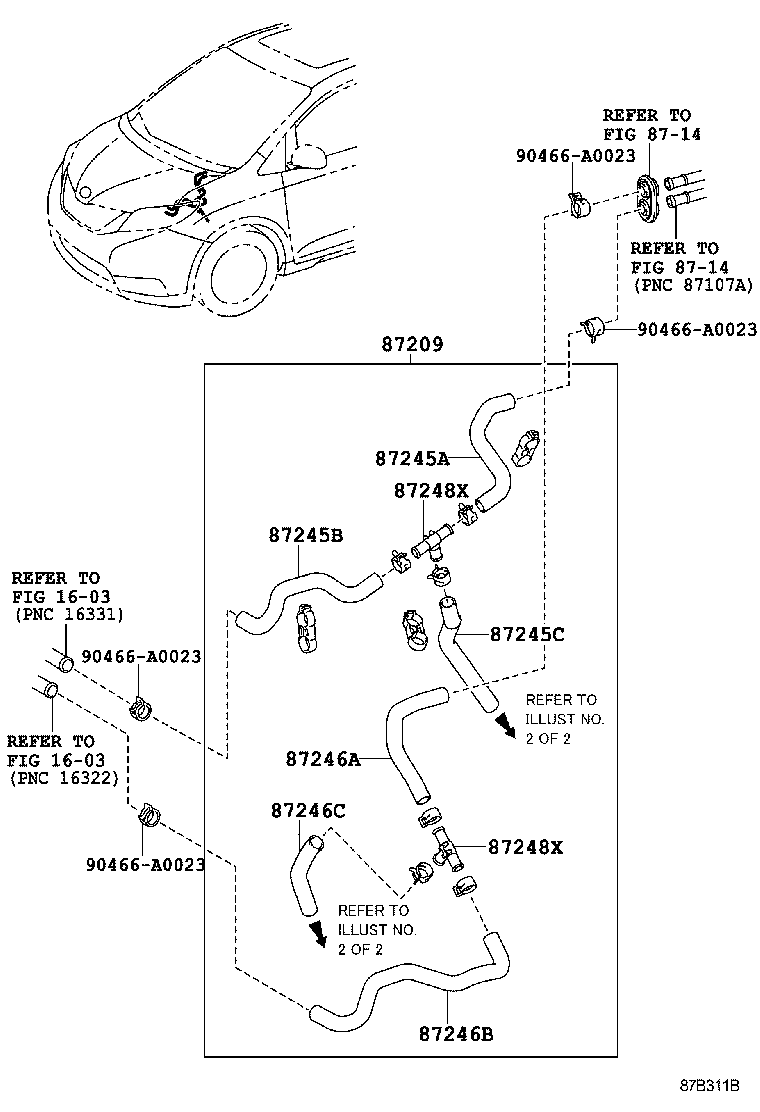

Figure 87B310B 87B310B 2010-04 → 2013-08 Figure 87B311B 87B311B 2010-01 → 2016-08 Figure 87F836A 87F836A 2016-08 → — Figure 87B312A 87B312A 2010-01 → 2016-08 Figure 87F847 87F847 2016-08 → —

Part groups

PNCDescription
87027 Hose Sub-assy, Water, NO.2
87101A Bracket Sub-assy, Heater NO.1
87124 Clamp, Heater
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87209 Hose Sub-assy, Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248X Pipe, Heater Water
87248Y Pipe, Heater Water, NO.2
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
