Toyota Sienna
2010-01 → 2020-09 · chassis ASL30,GSL3# · catalogue 622430 · United States
Supported model
Data version 2020-09
Heating & Air Conditioning - Compressor
6 part groups · 4 illustrations
Part groups

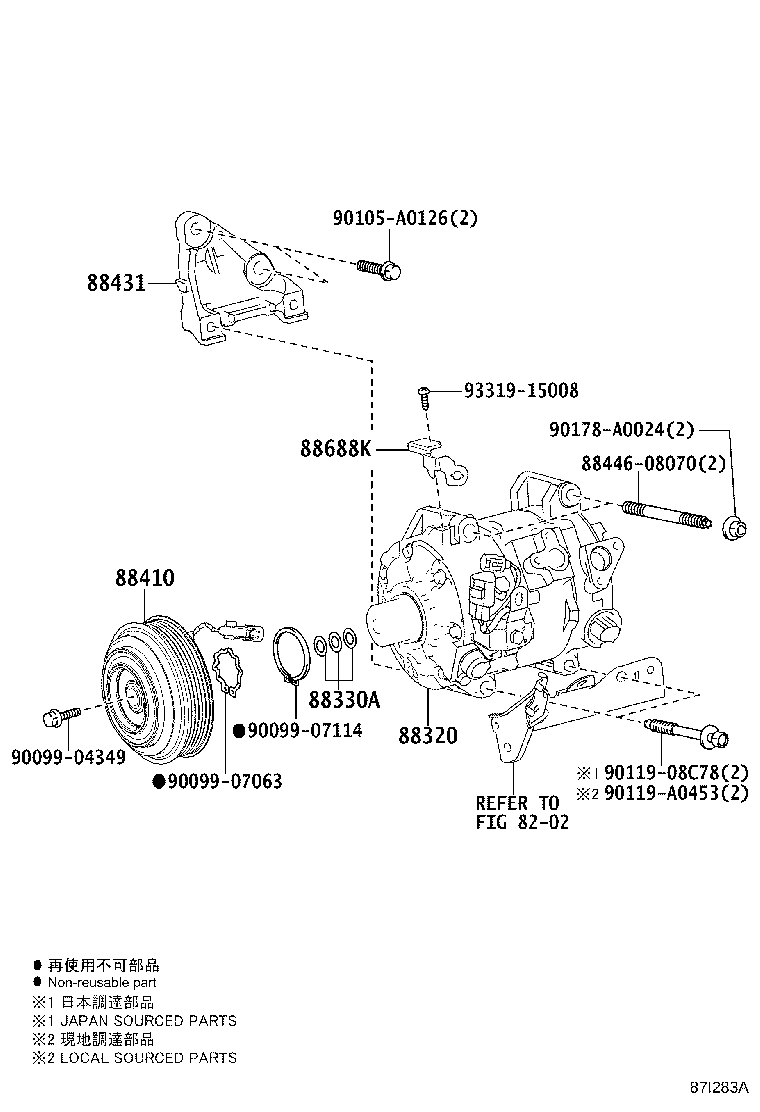

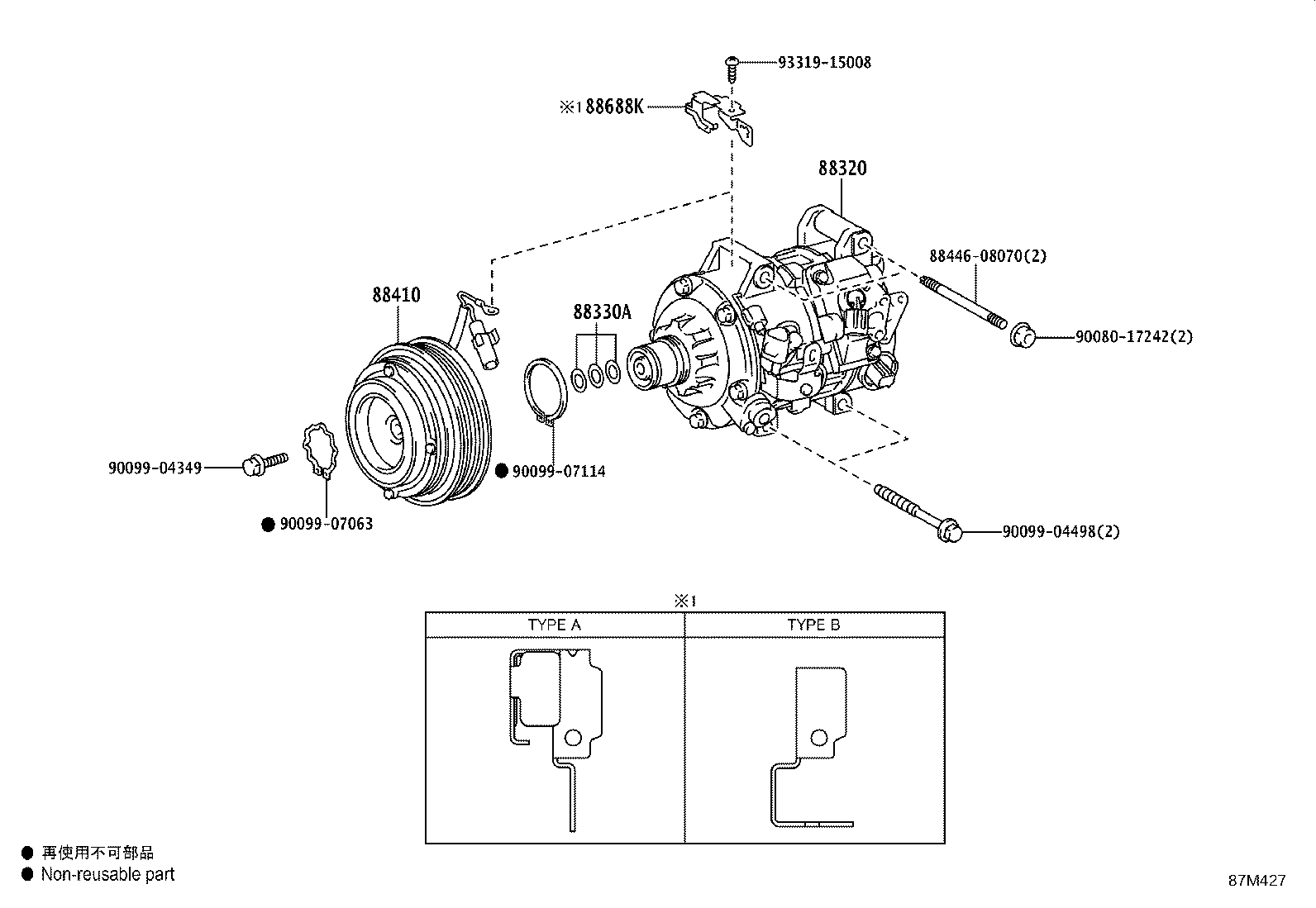

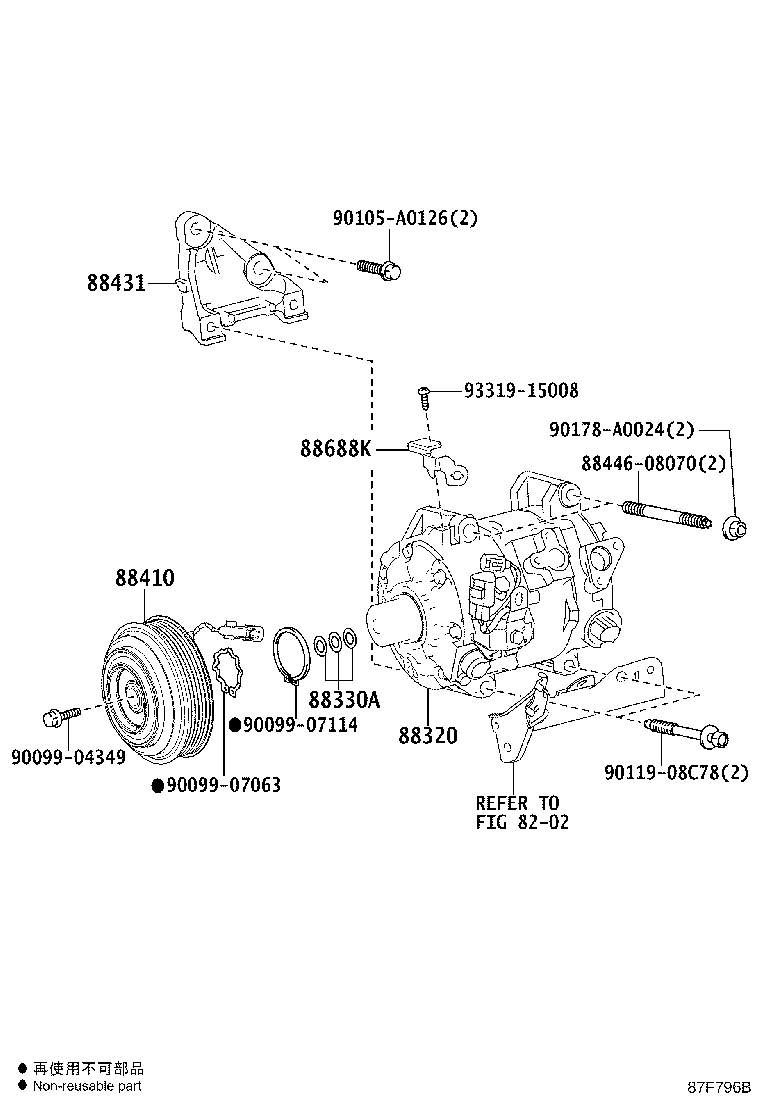

| PNC | Description |
|---|---|
| 88310 | Compressor Assy, W/Pulley |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
