Toyota Sienna
2020-11 → present · chassis AXLH4# · catalogue 622440 · United States
Supported model
Data version 2024-09

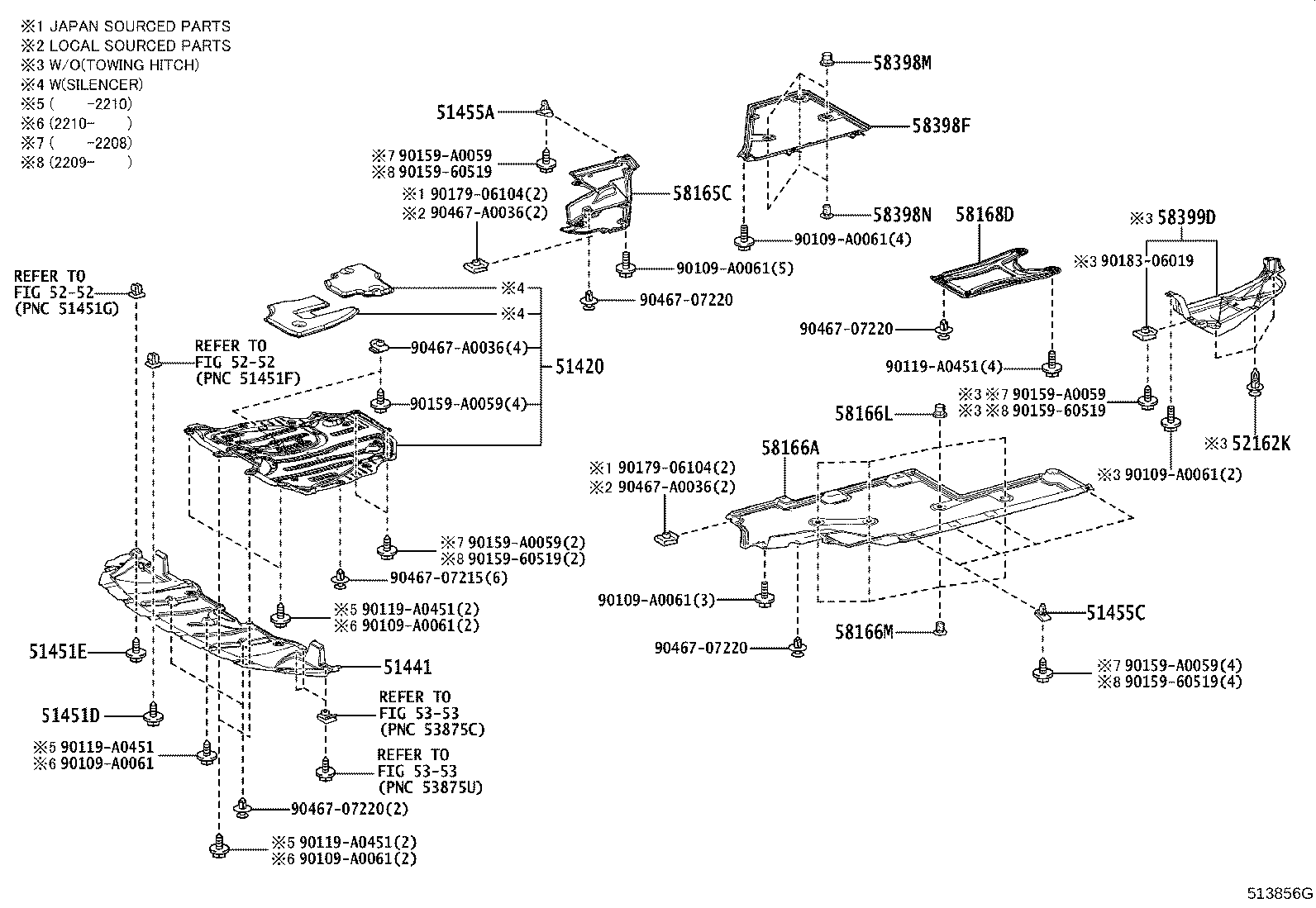

Suspension Crossmember & Under Cover
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51100H | Frame Assy, Front |
| 51206A | Member Sub-assy, Rear Suspension |
| 51420 | Cover Assy, Engine Under, NO.2 |
| 51441 | Cover, Engine Under, NO.1 |
| 51451D | Screw, NO.1 |
| 51451E | Screw, NO.2 |
| 51455A | Seal, Engine Under Cover, NO.1 |
| 51455C | Seal, Engine Under Cover, NO.2 |
| 52162K | Piece, Rear Bumper |
| 52257A | Brace, Front Suspension Member, Rear RH |
| 52258B | Brace, Front Suspension Member, Rear LH |
| 52271E | Cushion, Rear Suspension Member Body Mounting, Front RH |
| 52272 | Stopper, Rear Suspension Member, Upper |
| 52272A | Cushion, Rear Suspension Member Body Mounting, Front LH |
| 52273C | Stopper, Rear Suspension Member, Lower RH |
| 52274C | Stopper, Rear Suspension Member, Lower LH |
| 52275C | Cushion, Rear Suspension Member Body Mounting, Rear RH |
| 52276B | Cushion, Rear Suspension Member Body Mounting, Rear LH |
| 52277A | Retainer, Rear Suspension Member Lower Stopper, RH |
| 53653A | Brace, Rear Suspension, Lower RH |
| 53654A | Brace, Rear Suspension, Lower LH |
| 58165C | Cover, Front Floor, RH |
| 58166A | Cover, Front Floor, LH |
| 58166L | Clip, Front Floor Cover, NO.1 |
| 58166M | Clip, Front Floor Cover, NO.2 |
| 58168D | Cover, Front Floor, Center LH |
| 58398F | Cover, Floor Under, NO.1 |
| 58398M | Clip, Floor Under Cover, NO.1 |
| 58398N | Clip, Floor Under Cover, NO.2 |
| 58399D | Cover, Floor Under, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
