Toyota Sienna

2020-11 → present · chassis AXLH4# · catalogue 622440 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

30 part groups · 2 illustrations

Illustrations

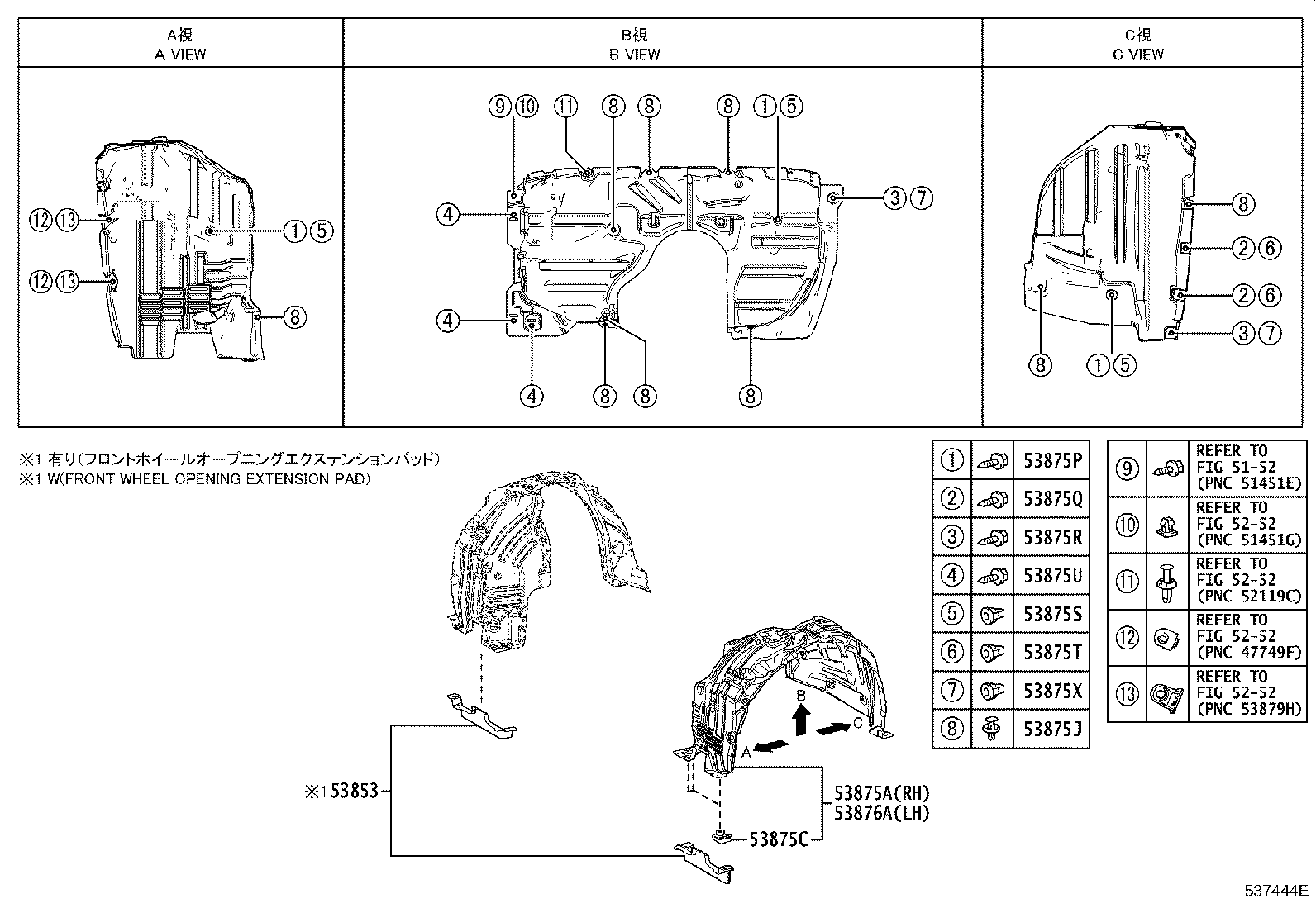

Figure 537443B 537443B 2020-11 → — Figure 537444E 537444E 2020-11 → —

Part groups

PNCDescription
53153E Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53301 Hood Sub-assy
53326A Clip, Hood Moulding
53326B Clip, Hood Moulding
53341B Insulator, Hood
53393B Protector, Hood, Front
53747D Extension, Apron Fender Side, RH
53748D Extension, Apron Fender Side, LH
53811B Panel, Front Fender, RH
53812D Panel, Front Fender, LH
53853 Pad, Front Wheel Opening Extension, NO.3
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875J Clip, Front Fender Liner
53875P Screw, NO.1
53875Q Screw, NO.2
53875R Screw, NO.3
53875S Grommet, NO.1
53875T Grommet, NO.2
53875U Screw, NO.4
53875X Grommet, NO.3
53876A Liner, Front Fender, LH
53882K Seal, Front Fender
53882Q Clip, NO.1(FOR FRONT FENDER SEAL)
53882S Seal, Front Fender, RH
53883D Seal, Front Fender, LH
53883P Clip, NO.1(FOR FRONT FENDER SEAL)
58741A Protector, Quarter Panel, RH
58742K Protector, Quarter Panel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
