Toyota Sienna

2020-11 → present · chassis AXLH4# · catalogue 622440 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

18 part groups · 4 illustrations

Illustrations

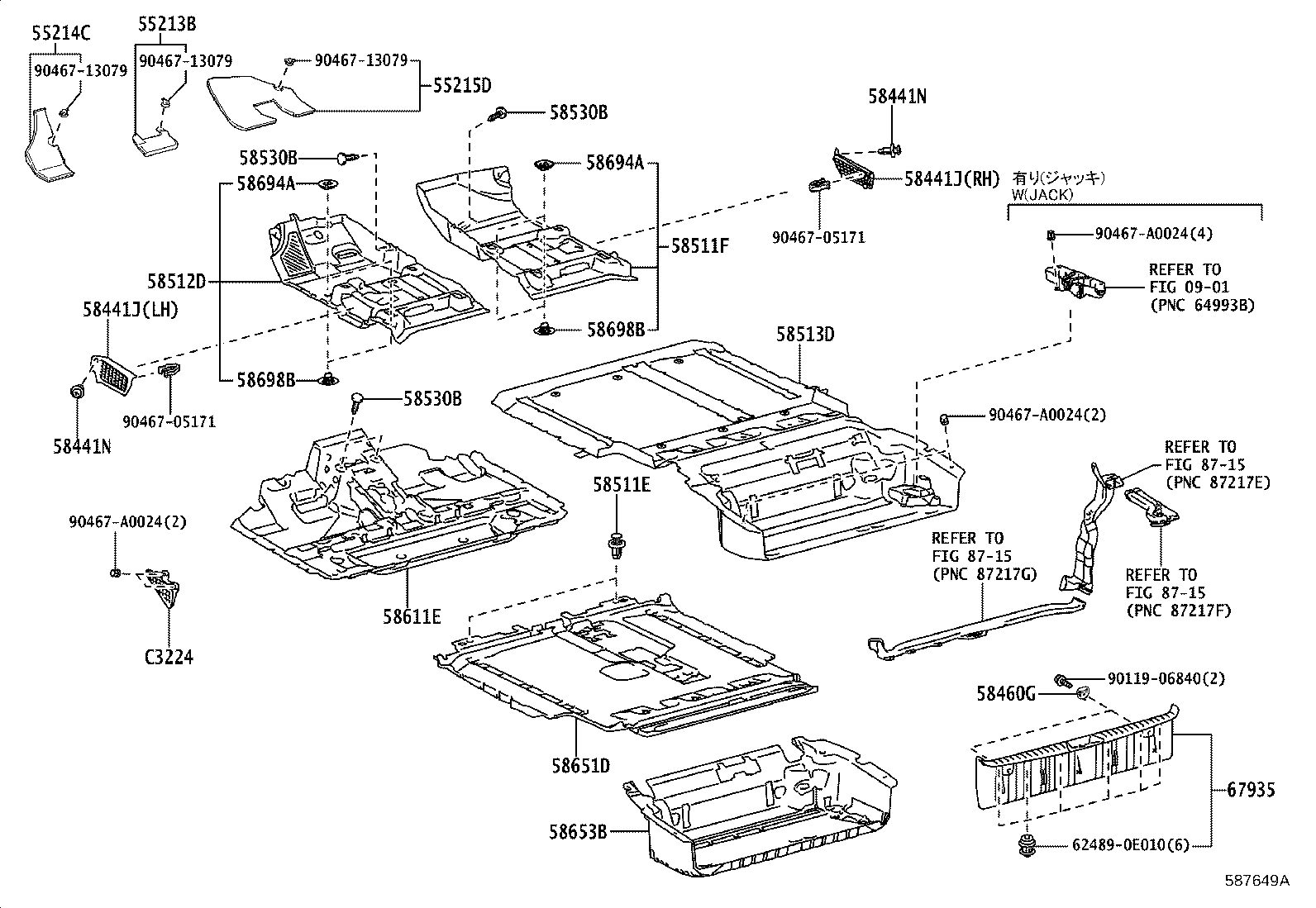

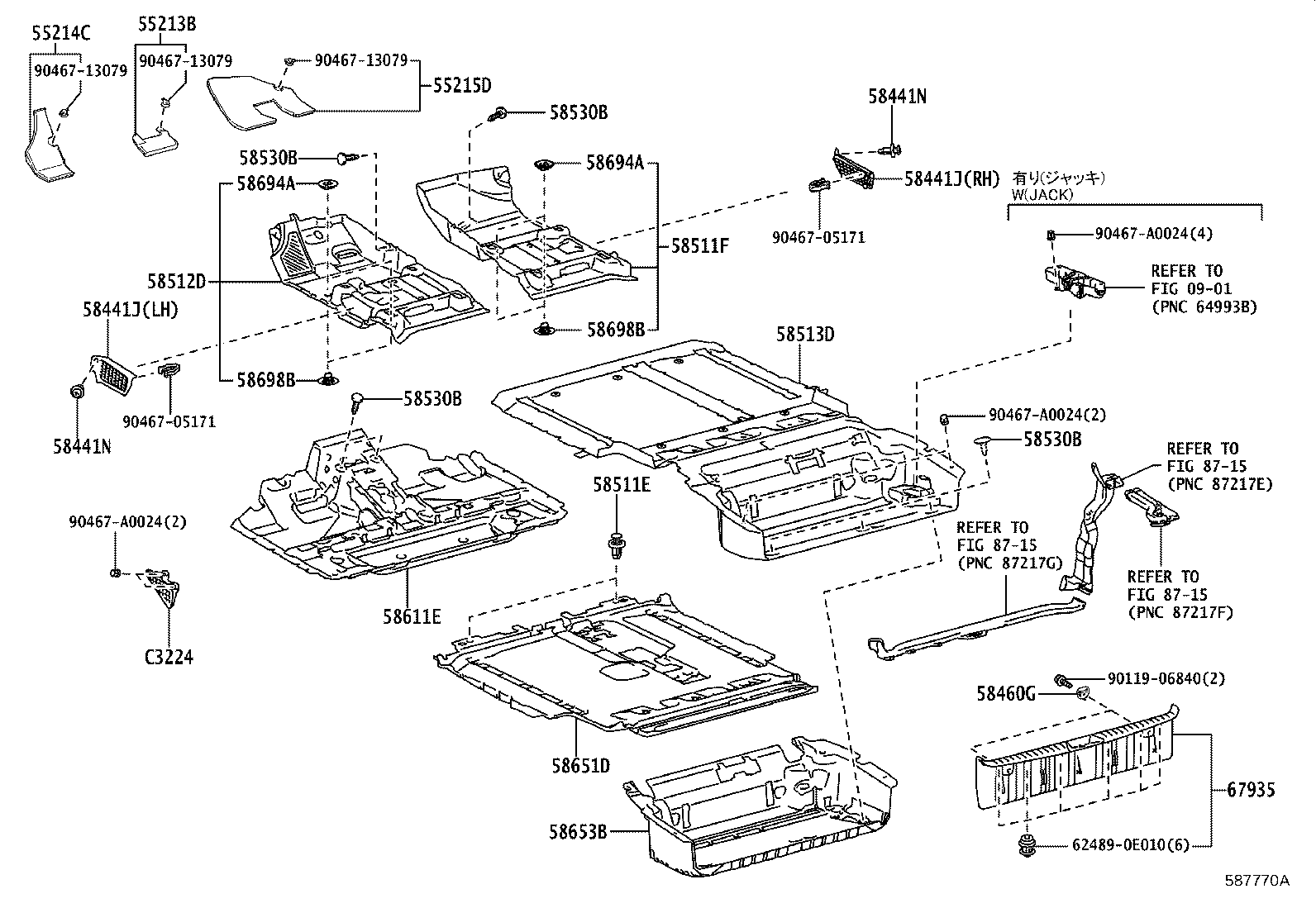

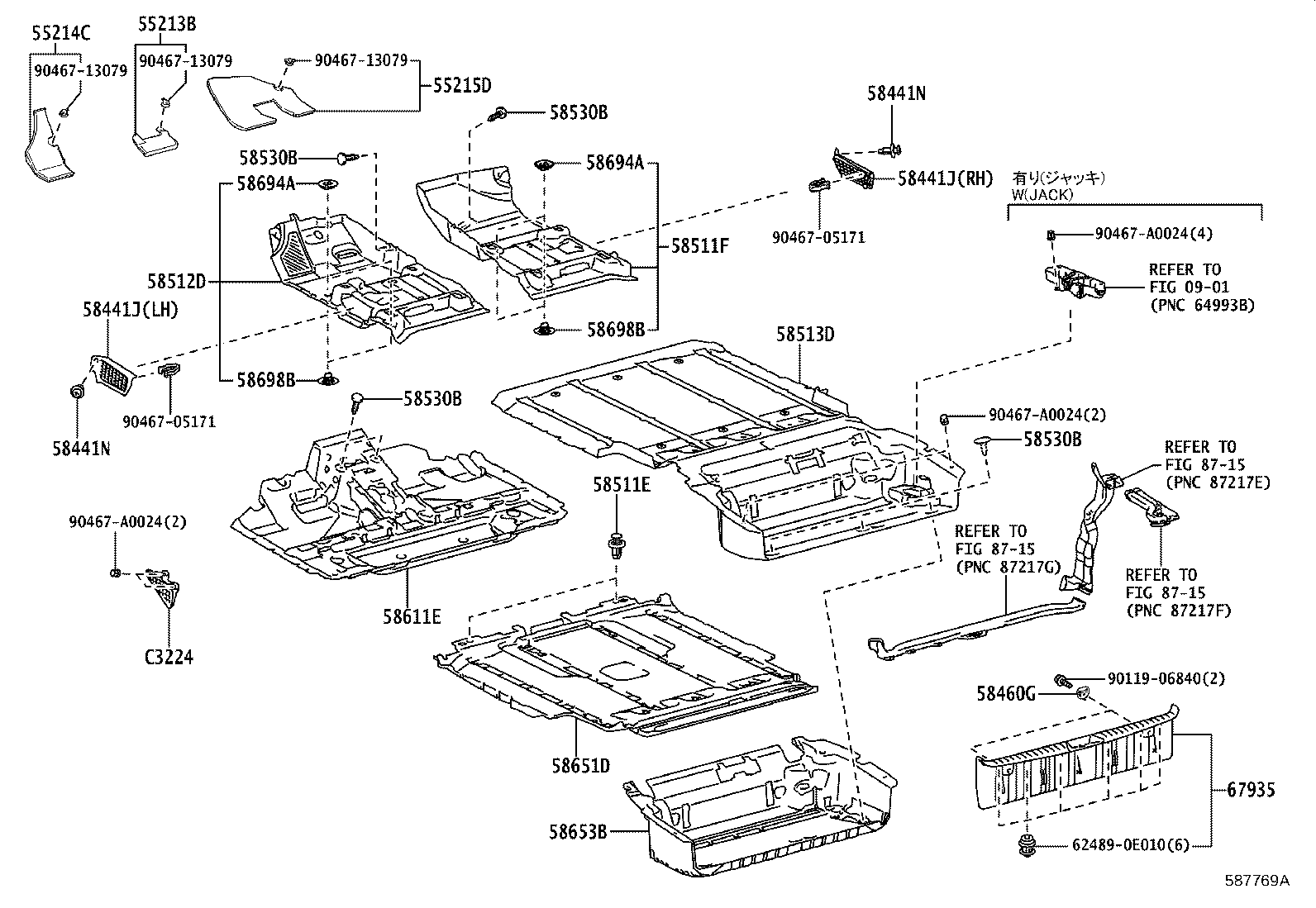

Figure 587648A 587648A 2020-11 → 2021-01 Figure 587769A 587769A 2021-01 → — Figure 587649A 587649A 2020-11 → 2021-01 Figure 587770A 587770A 2021-01 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58441J Cover, Battery Service Hole
58441N Clip(FOR BATTERY SERVICE HOLE COVER)
58460G Striker Assy, Luggage Hold Belt
58511E Clip(FOR FRONT FLOOR MAT)
58511F Carpet, Floor, Front RH
58512D Carpet, Floor, Front LH
58513D Carpet, Floor, Front Center
58530B Clip(FOR FRONT FLOOR CARPET)
58611E Sheet, Front Floor Silencer
58651D Sheet, Rear Floor Silencer, NO.1
58653B Sheet, Rear Floor Silencer, NO.2
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
67935 Plate, Back Door Scuff
C3224 Spacer, Floor Panel Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
